Toyota Chaser

1996-09 → 2001-06 · chassis GX10#,JZX10#,LX100,SX100 · catalogue 312180 · Japan

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

14 part groups · 6 illustrations

Illustrations

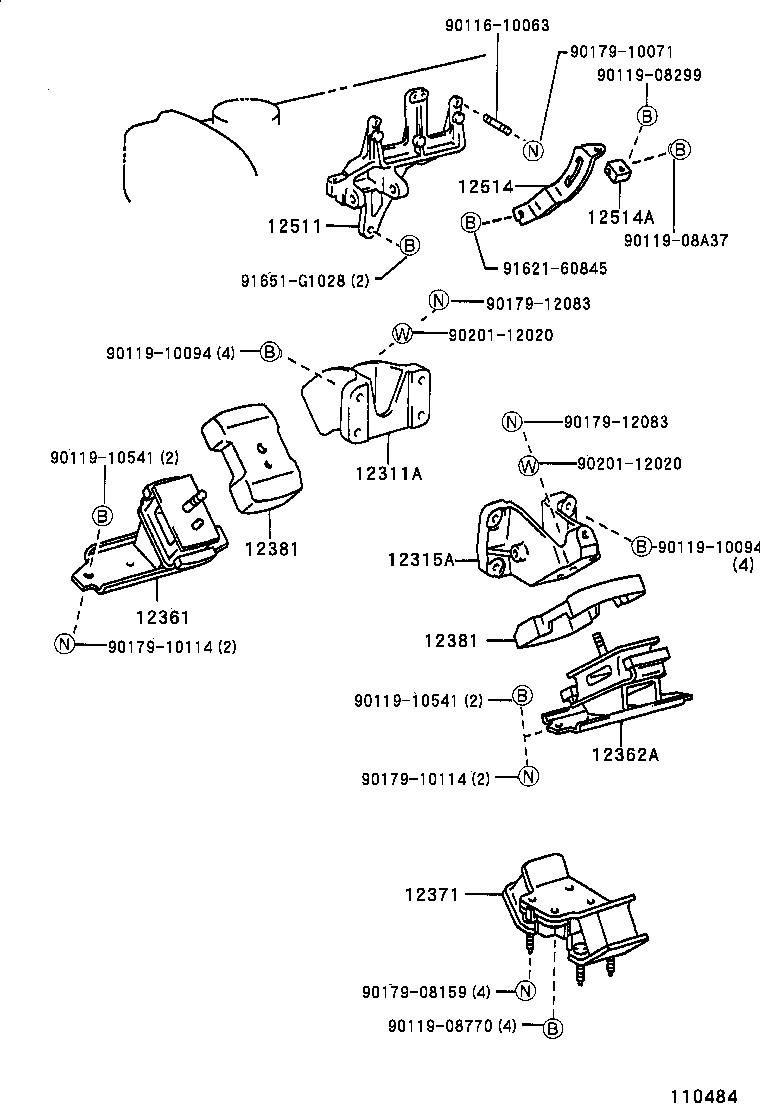

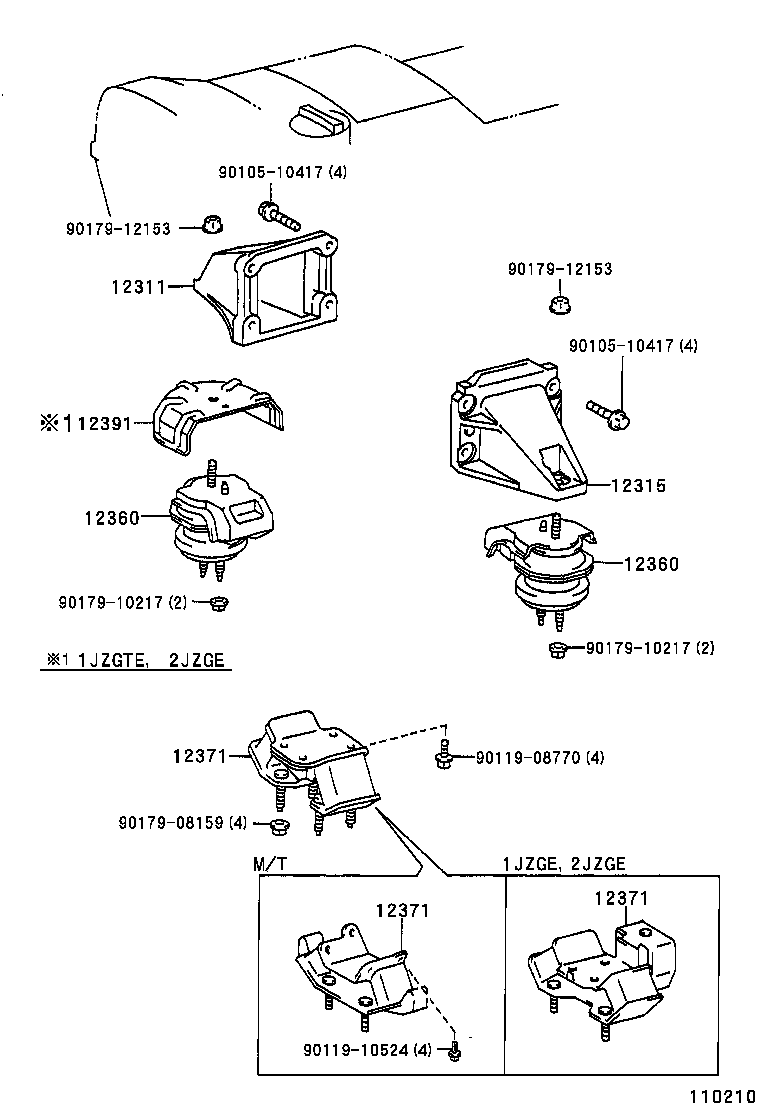

Figure 110184A 110184A 1996-09 → — Figure 111193 111193 1998-08 → — Figure 110210 110210 1996-09 → — Figure 110211A 110211A 1996-09 → — Figure 110180A 110180A 1996-09 → 1999-08 Figure 110484 110484 1997-04 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12315 Bracket, Engine Mounting, Front NO.1 LH
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12321 Bracket, Engine Mounting, Rear, NO.1
12360 Insulator Assy, Engine Mounting, Front
12361 Insulator, Engine Mounting, Front
12362A Insulator, Engine Mounting, Front LH
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12391 Insulator, Engine Mounting Front, Heat, RH
12511 Bracket, Alternator, NO.1
12514 Bar, Alternator Belt Adjusting
12514A Slider, Fan Belt Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
