Toyota Chaser

1996-09 → 2001-06 · chassis GX10#,JZX10#,LX100,SX100 · catalogue 312180 · Japan

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

29 part groups · 3 illustrations

Illustrations

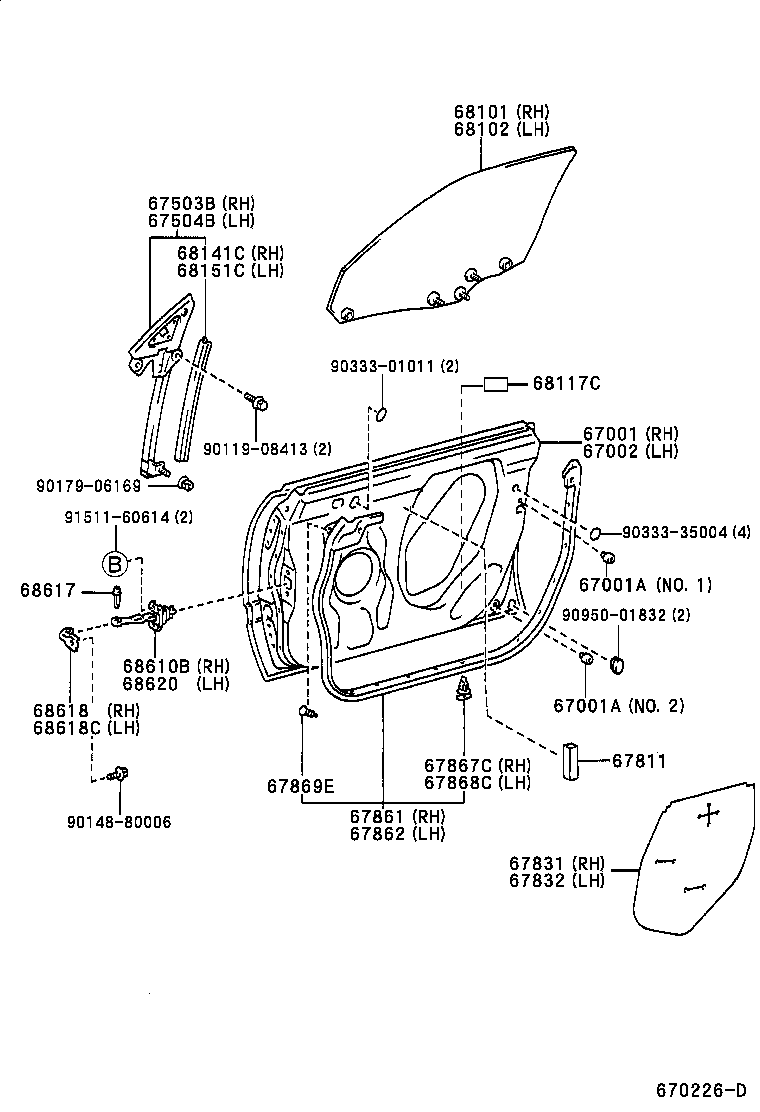

Figure 670223 670223 1996-09 → — Figure 670226D 670226D 1996-09 → — Figure 671434 671434 1998-08 → —

Part groups

PNCDescription
67001 Panel Sub-assy, Front Door, RH
67001A Cushion, Front Door Panel
67002 Panel Sub-assy, Front Door, LH
67491A Garnish, Front Door Lower Frame Bracket, RH
67492A Garnish, Front Door Lower Frame Bracket, LH
67503B Bracket Sub-assy, Front Door Mirror, RH
67504B Bracket Sub-assy, Front Door Mirror, LH
67601 Board Sub-assy, Front Door Trim, RH
67601B Clip(FOR FRONT DOOR TRIM BOARD)
67601G Plug, Hole(FOR FRONT DOOR TRIM BOARD)
67602 Board Sub-assy, Front Door Trim, LH
67811 Pad, Front Door Silencer
67831 Cover, Front Door Service Hole, RH
67832 Cover, Front Door Service Hole, LH
67861 Weatherstrip, Front Door, RH
67862 Weatherstrip, Front Door, LH
67867C Retainer, Front Door Weatherstrip, RH
67868C Retainer, Front Door Weatherstrip, LH
67869E Clip, Front Door Weatherstrip
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68117C Plate, Door Glass
68141C Run, Front Door Glass, RH
68151C Run, Front Door Glass, LH
68610B Check Assy, Front Door, RH
68617 Pin, Front Door Check
68618 Bracket, Front Door Check Arm, RH
68618C Bracket, Front Door Check Arm, LH
68620 Check Assy, Front Door, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
