Toyota Chaser

1996-09 → 2001-06 · chassis GX10#,JZX10#,LX100,SX100 · catalogue 312180 · Japan

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

23 part groups · 11 illustrations

Illustrations

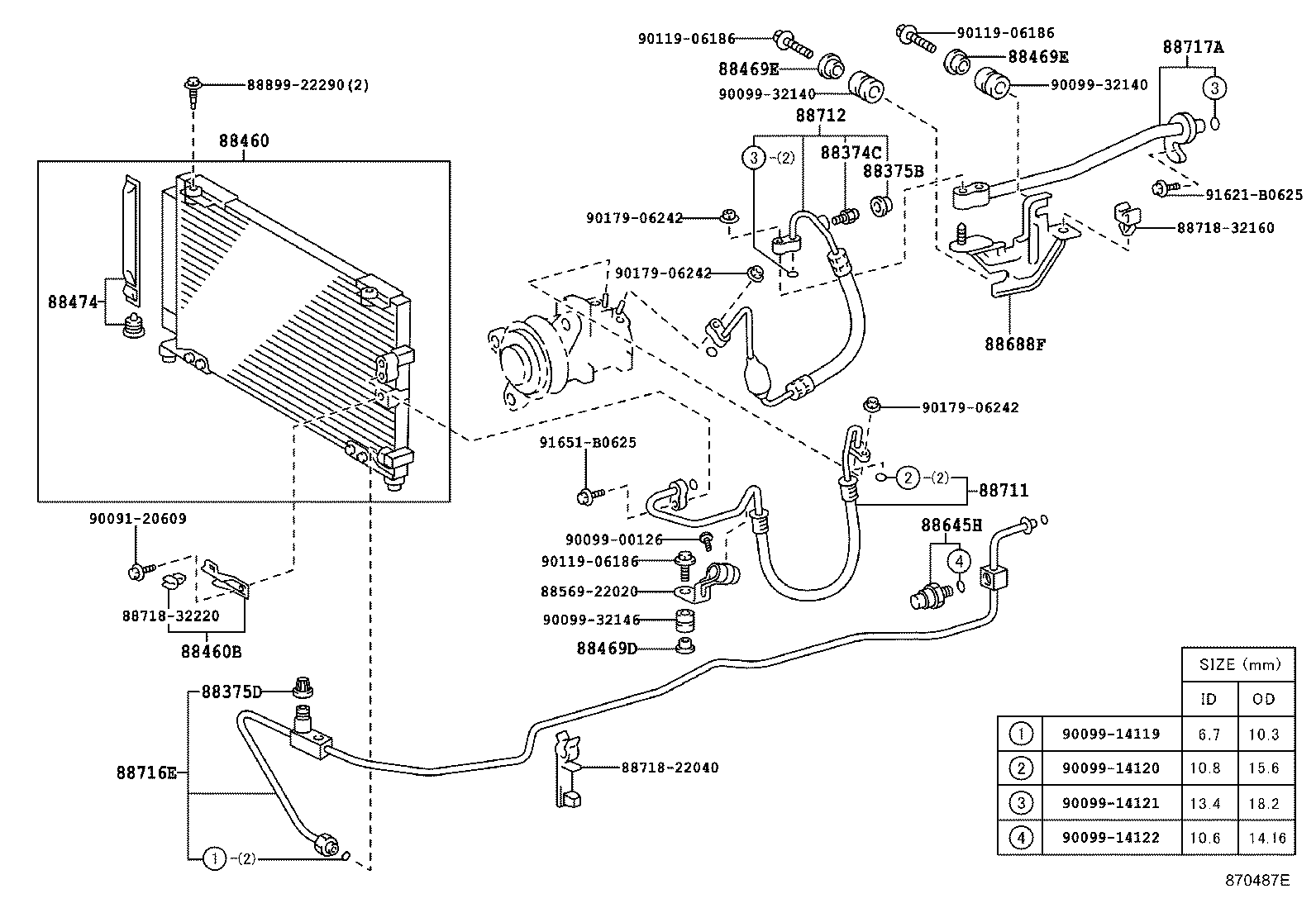

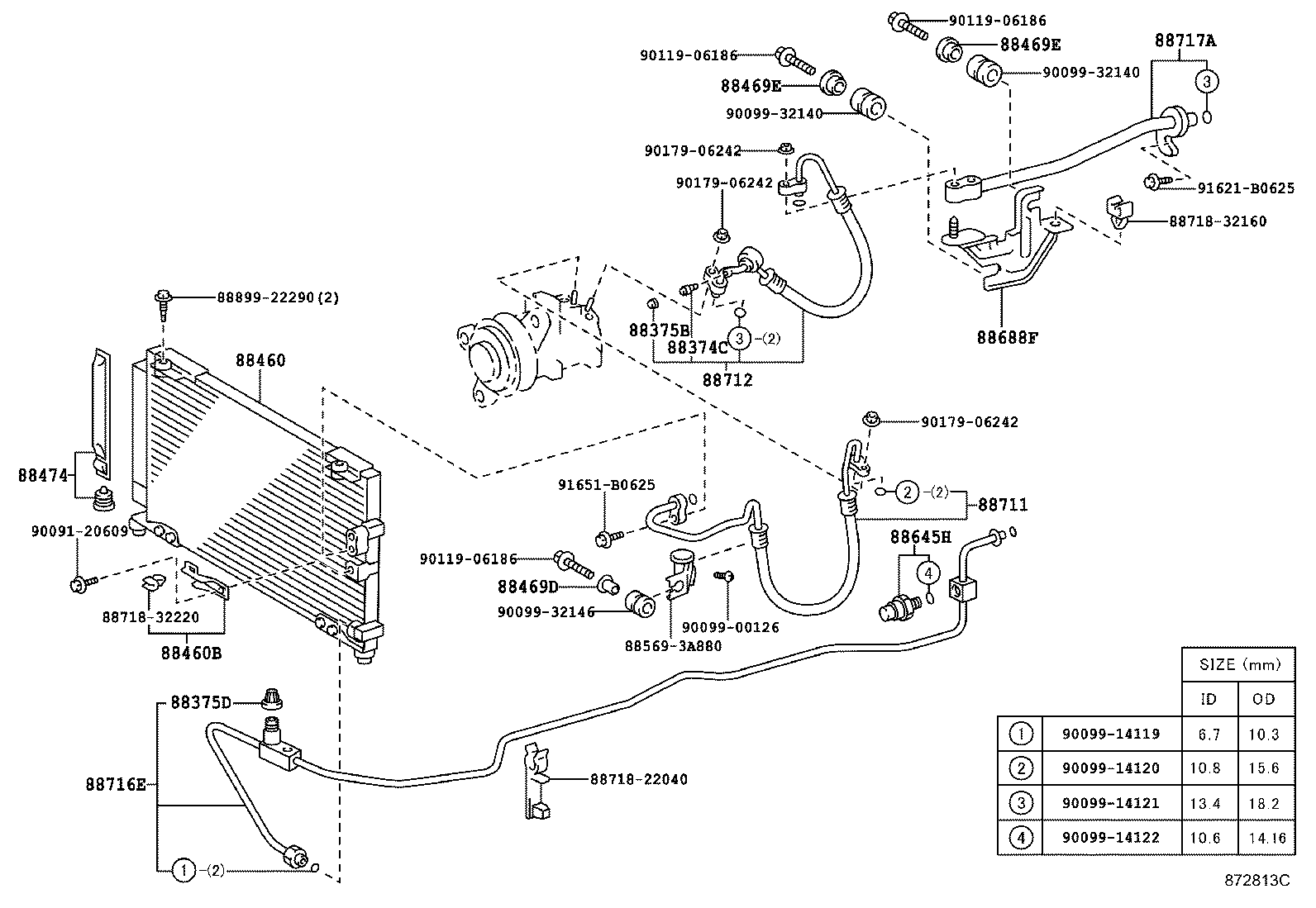

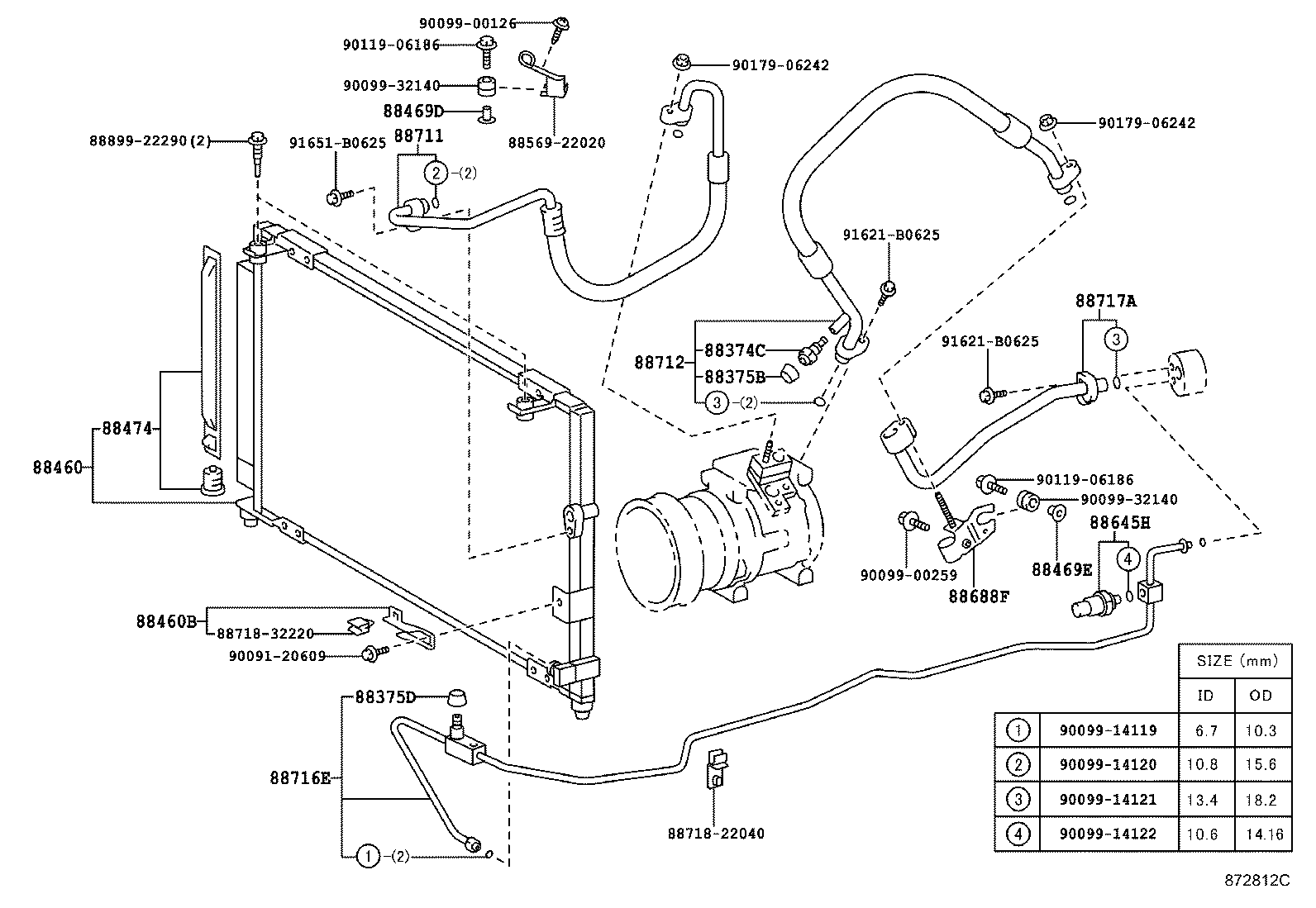

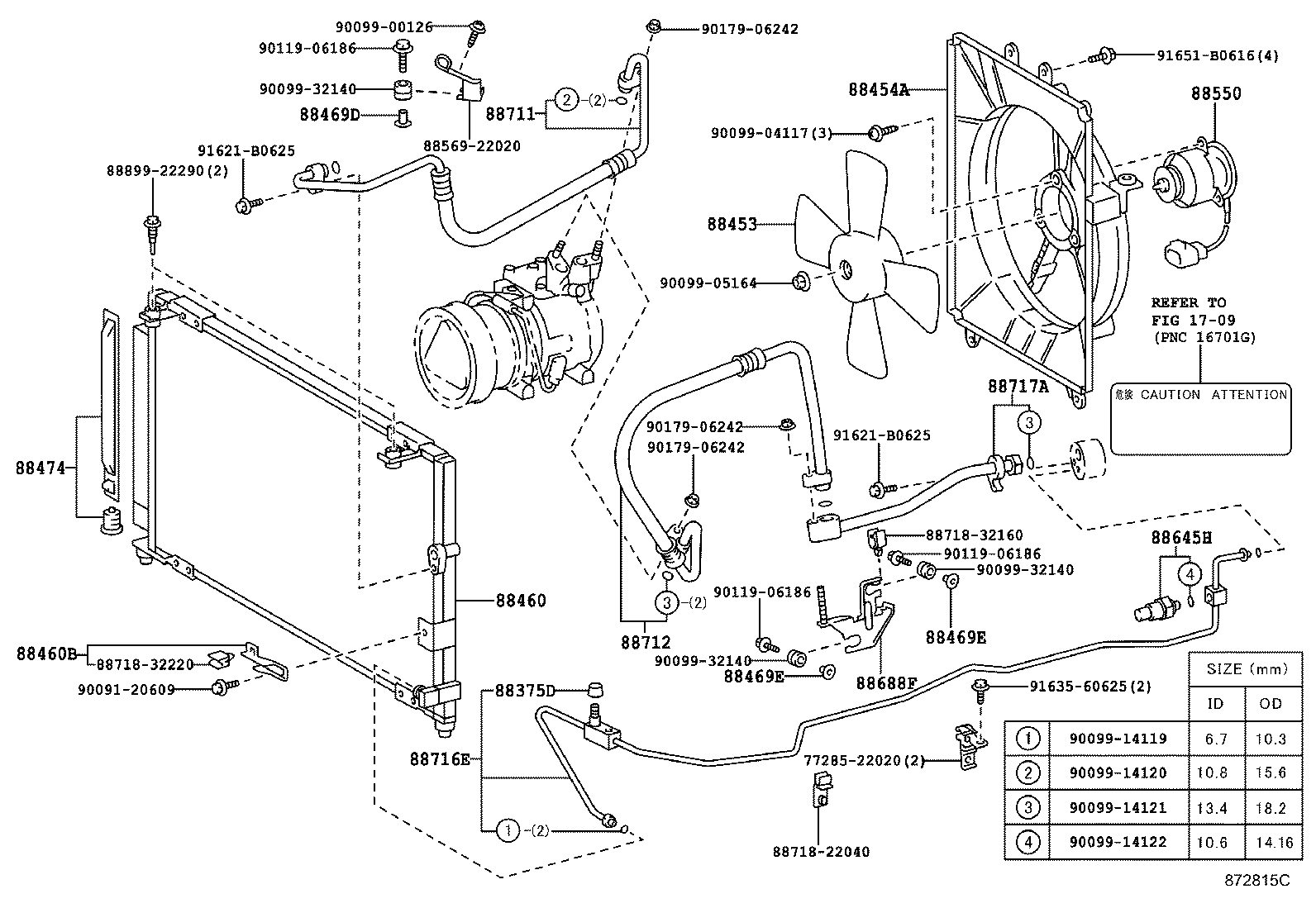

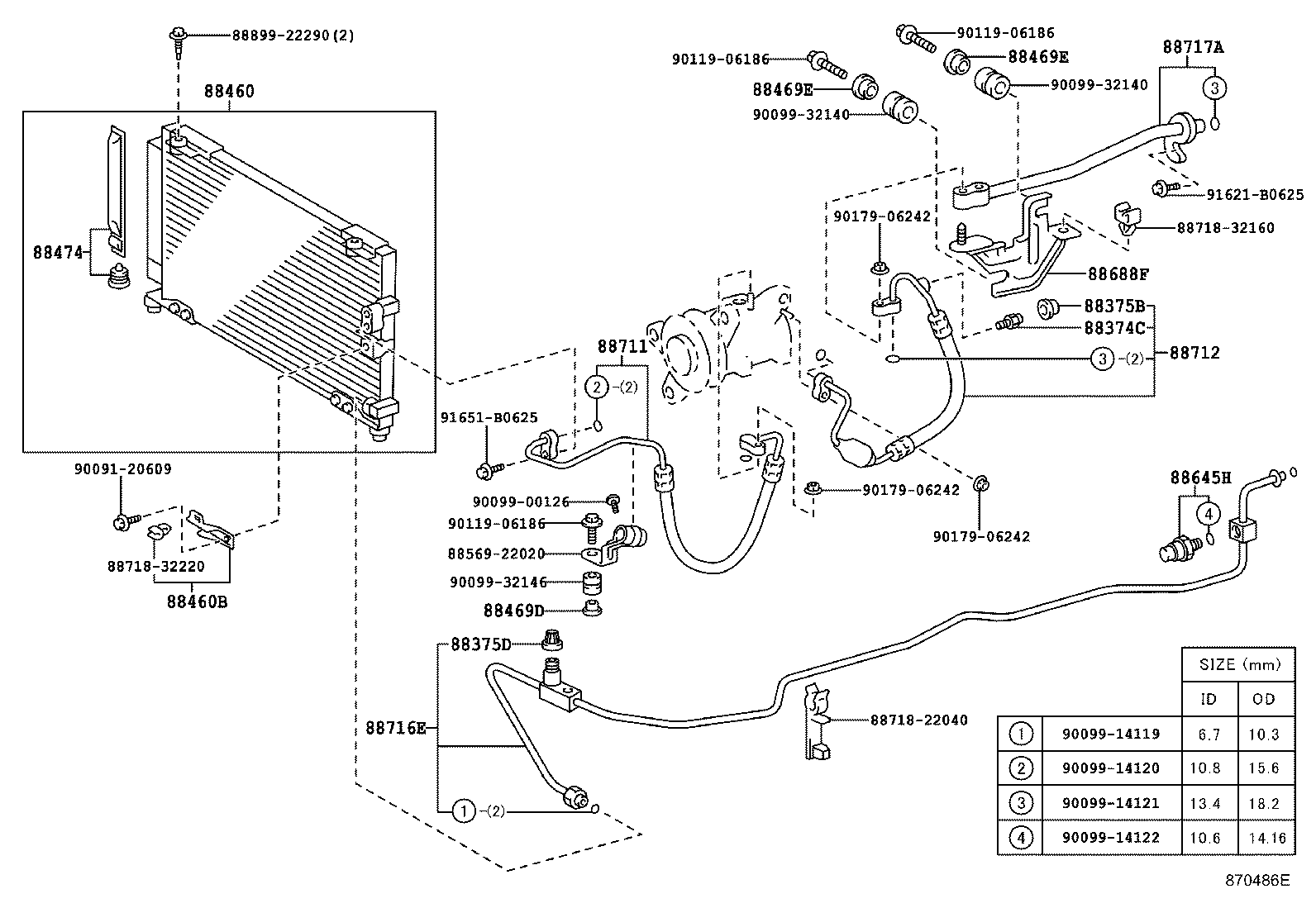

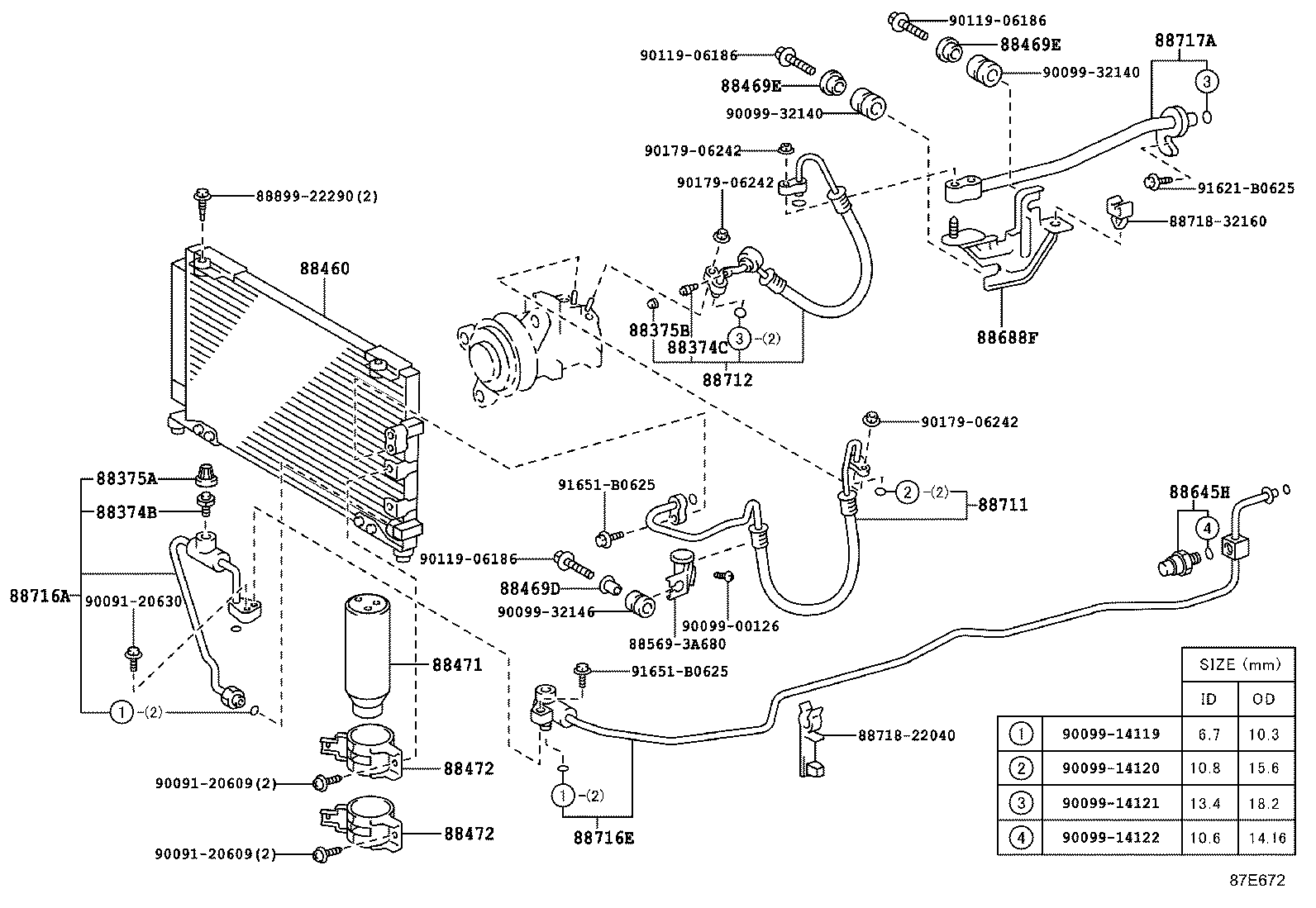

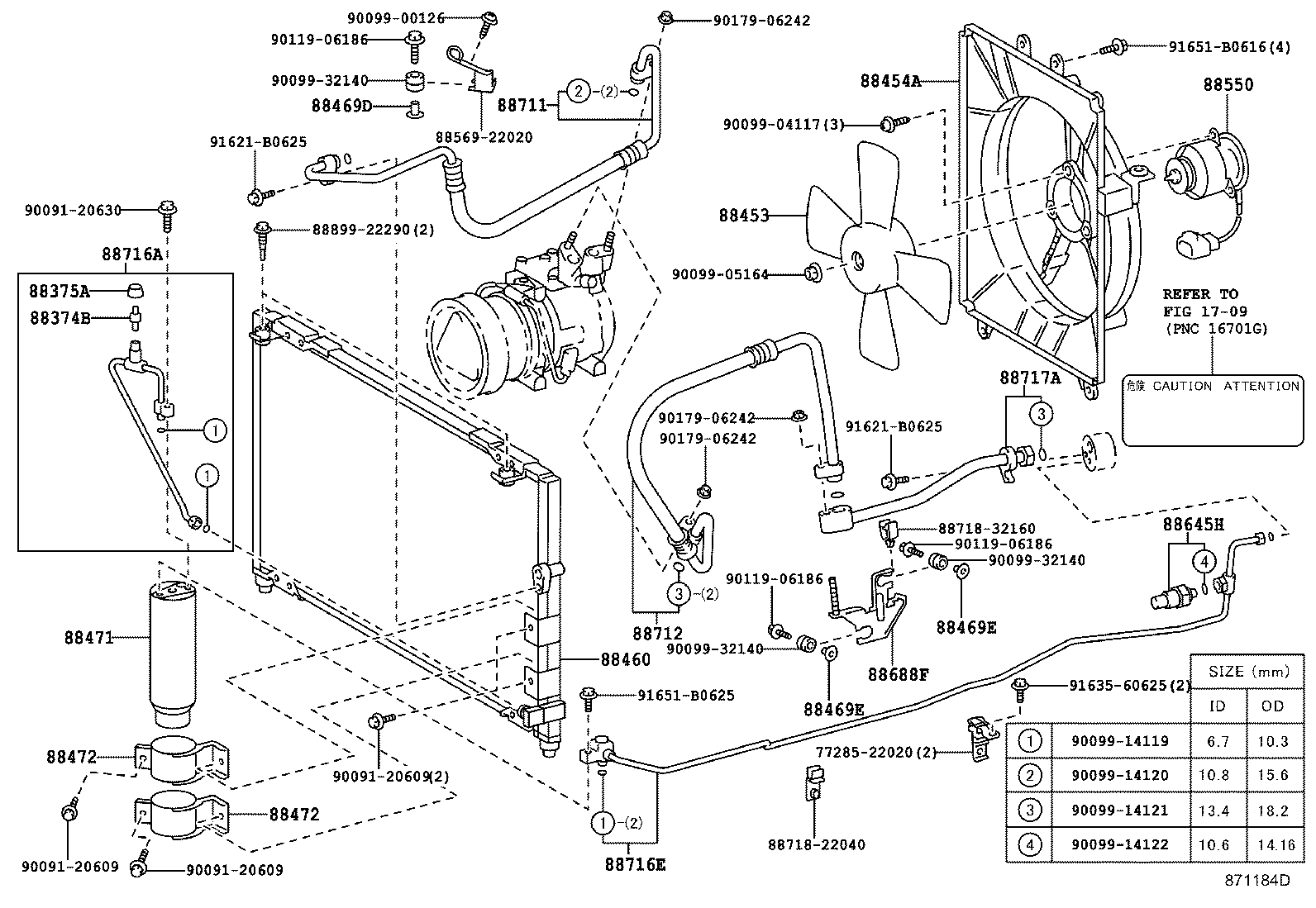

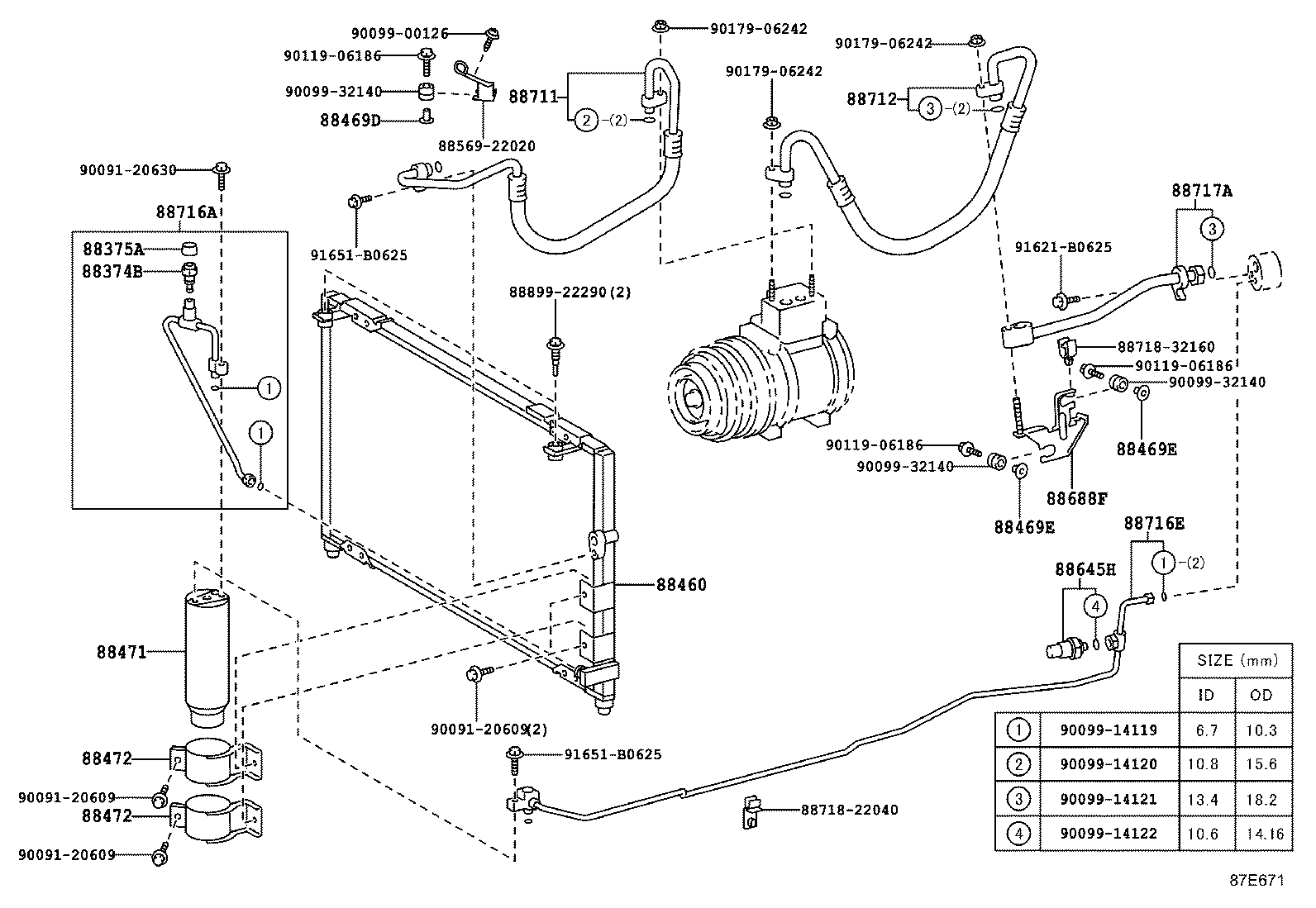

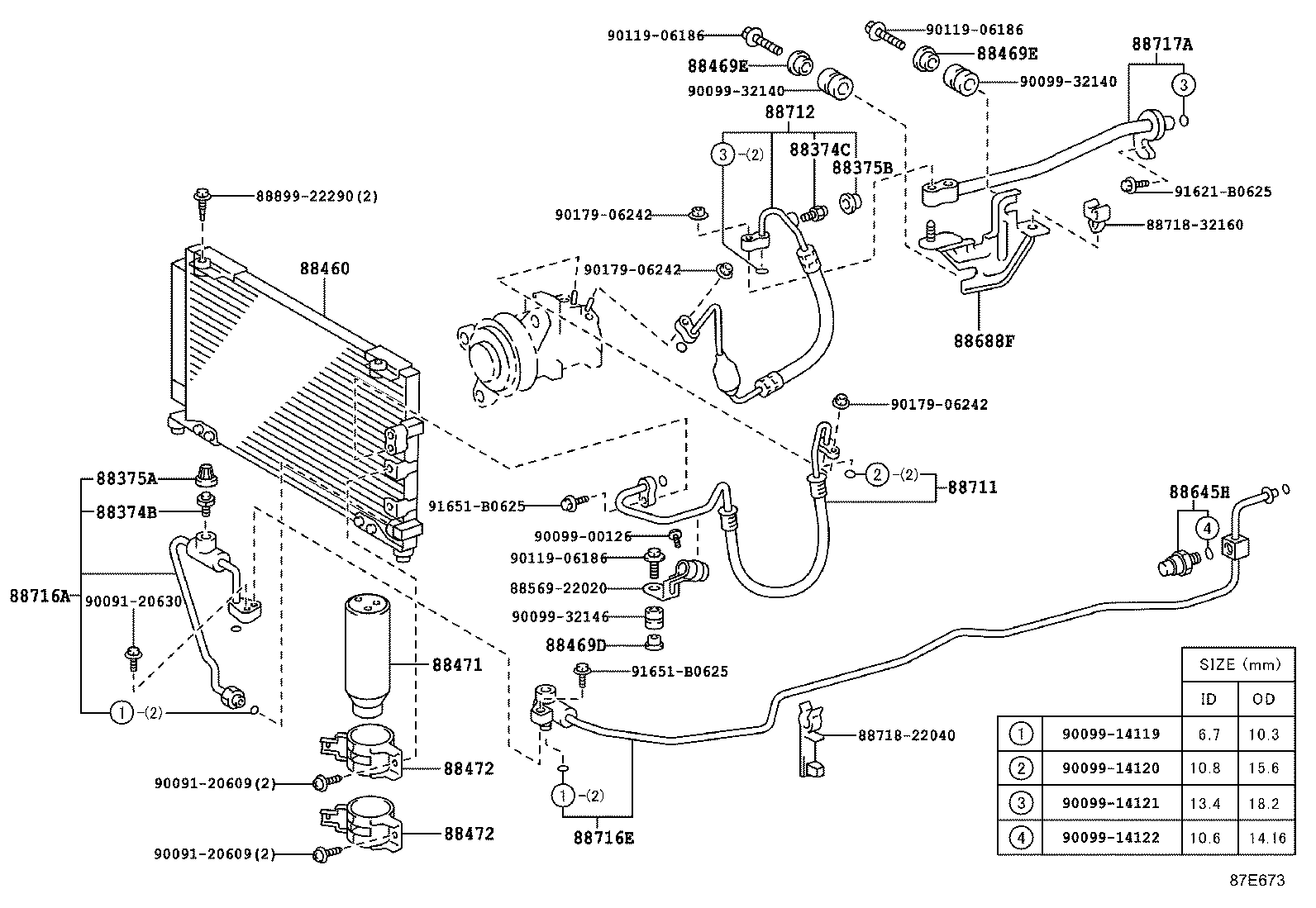

Figure 870482D 870482D 1996-09 → — Figure 87E671 87E671 1996-09 → 1998-08 Figure 872812C 872812C 1998-08 → — Figure 87E672 87E672 1996-09 → 1998-08 Figure 872813C 872813C 1998-08 → — Figure 87E673 87E673 1996-09 → 1998-08 Figure 872814C 872814C 1998-08 → — Figure 870486E 870486E 1996-09 → — Figure 870487E 870487E 1996-09 → — Figure 871184D 871184D 1997-04 → 1998-08 Figure 872815C 872815C 1998-08 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88469D Collar, Condenser Bracket, NO.1
88469E Collar, Condenser Bracket, NO.2
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88474 Dryer, Cooler
88550 Motor Assy, Blower (FOR CONDENSER)
88645H Switch, Pressure NO.1
88688E Bracket, Cooler Refrigerant Hose, NO.1
88688F Bracket, Cooler Refrigerant Hose, NO.2
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
