Toyota Cresta

1980-03 → 1984-07 · chassis GX5#,61,LX60,MX51,61,SX60,TX50 · catalogue 313140 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration MA5940B 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (11 parts) 17700 — CLEANER ASSY, AIR (5 parts) 17700A — NUT, WING(FOR AIR CLEANER) (2 parts) 17882 — HOSE, AIR CLEANER, NO.2 (6 parts) 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (11 parts) 17881A — CLAMP(FOR AIR CLEANER HOSE, NO.1) (6 parts) 9046711085 — not listed in this catalogue 9011908457 — not listed in this catalogue 9165540616 — not listed in this catalogue 17700F — BOLT, STUD(FOR AIR CLEANER SETTING) (2 parts) 17881 — HOSE, AIR CLEANER, NO.1 (6 parts) 17883A — CLAMP(FOR AIR CLEANER HOSE, NO.3) (6 parts) 17883 — HOSE, AIR CLEANER, NO.3 (7 parts) 17845 — GASKET, AIR CLEANER CAP (3 parts) 17705 — CAP SUB-ASSY, AIR CLEANER (7 parts) 17841 — GASKET, FILTER ELEMENT (2 parts) 17728 — VALVE, THERMOSTATIC (2 parts) 17801 — ELEMENT SUB-ASSY, AIR CLEANER FILTER (5 parts) 25710D — VALVE ASSY, AIR SWITCHING (2 parts) 17841 — GASKET, FILTER ELEMENT (2 parts) 17061 — DIAPHRAGM SUB-ASSY (2 parts) 17305 — VALVE SUB-ASSY, REED (1 parts) 17812 — FILTER, AIR CLEANER, NO.2 (2 parts) 17848 — GASKET, AIR CLEANER TO CARBURETOR (2 parts)

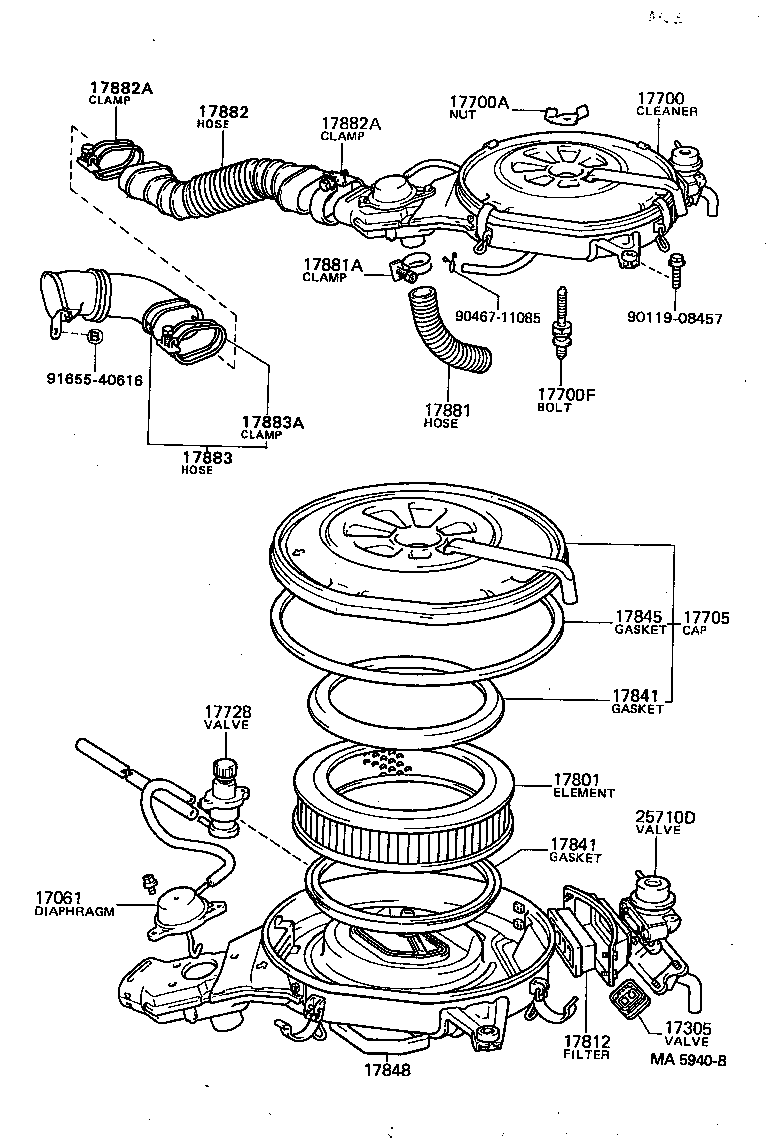

MA5940B · 21 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
79 parts on this figure
Part number Description Fitment Price
17061 — Diaphragm Sub-assy
17061-26010 Diaphragm Sub-assy
1980-03 → 1982-08 ended
13TU TX50 ¥5,100
17061-63010 Diaphragm Sub-assy
1982-08 → 1984-07 ended
1SU SX60 ¥4,420
17305 — Valve Sub-assy, Reed
17305-31010 Valve Sub-assy, Reed
1982-08 → 1984-07 ended
1SU SX60 —
17700 — Cleaner Assy, Air
17700-27121 Cleaner Assy, Air
1980-03 → 1980-08 ended
13TU TX50 ¥41,300
17700-27122 Cleaner Assy, Air
1980-08 → 1982-08 ended
13TU TX50 —
17700-41580 Cleaner Assy, Air
1981-10 → 1984-07 ended
MTEU MX51,61 —
17700-54200 Cleaner Assy, Air
1983-08 → 1984-07 ended
L LX60 ¥34,300
17700-63010 Cleaner Assy, Air
1982-08 → 1984-07 ended
1SU SX60 ¥43,600
17700A — Nut, Wing(FOR AIR CLEANER)
90175-06003 Nut, Wing(FOR AIR CLEANER)
1980-03 → 1982-08 ended
13TU TX50 —
90175-06009 Nut, Wing(FOR AIR CLEANER)
1982-08 → 1984-07 ended
1SU SX60 —
17700F — Bolt, Stud(FOR AIR CLEANER SETTING)
90116-06021 Bolt, Stud(FOR AIR CLEANER SETTING)
1982-08 → 1984-07 ended
1SU SX60 ¥270
90116-06222 note Bolt, Stud(FOR AIR CLEANER SETTING)
1980-03 → 1982-08 ended
13TU TX50 ¥230
17705 — Cap Sub-assy, Air Cleaner
17705-25012 Cap Sub-assy, Air Cleaner
1980-03 → 1980-08 ended
13TU TX50 —
17705-25013 Cap Sub-assy, Air Cleaner
1980-08 → 1982-08 ended
13TU TX50 —
17705-41170 Cap Sub-assy, Air Cleaner
1981-10 → 1984-07 ended
MTEU MX51,61 —
17705-54060 Cap Sub-assy, Air Cleaner
1983-08 → 1984-07 ended
L LX60 —
17705-63010 Cap Sub-assy, Air Cleaner
1982-08 → 1984-07 ended
1SU SX60 —
17705-70010 Cap Sub-assy, Air Cleaner
1981-12 → 1984-07 ended
1G# GX5#,61 ¥8,600
17735-70010 Cap Sub-assy, Air Cleaner
1980-03 → 1981-12 ended
1GEU GX5# —
17728 — Valve, Thermostatic
17728-27010 Valve, Thermostatic
1980-03 → 1982-08 ended
13TU TX50 ¥5,200
17728-63010 Valve, Thermostatic
1982-08 → 1984-07 ended
1SU SX60 ¥8,100
17801 — Element Sub-assy, Air Cleaner Filter
17801-25010 Element Sub-assy, Air Cleaner Filter
1980-03 → 1984-07 ended
13TU TX50 ¥1,370
17801-25010 Element Sub-assy, Air Cleaner Filter
1980-03 → 1984-07 ended
1SU SX60 ¥1,370
17801-54050 Element Sub-assy, Air Cleaner Filter
1983-08 → 1984-07 ended
L LX60 ¥3,150
17801-70010 Element Sub-assy, Air Cleaner Filter
1980-03 → 1984-07 ended
1G# GX5#,61 ¥2,940
17801-70010 Element Sub-assy, Air Cleaner Filter
1980-03 → 1984-07 ended
MTEU MX51,61 ¥2,940
17812 — Filter, Air Cleaner, NO.2
17812-15010 Filter, Air Cleaner, NO.2
1984-04 → 1984-07 ended
1SU SX60 ¥1,980
17812-63010 Filter, Air Cleaner, NO.2
1982-08 → 1984-04 ended
1SU SX60 ¥1,890
17841 — Gasket, Filter Element
17841-31020 Gasket, Filter Element
1980-03 → 1982-08 ended
13TU TX50 —
17841-63010 Gasket, Filter Element
1982-08 → 1984-07 ended
1SU SX60 —
17845 — Gasket, Air Cleaner Cap
17845-25010 Gasket, Air Cleaner Cap
1980-03 → 1982-08 ended
13TU TX50 —
17845-37020 note Gasket, Air Cleaner Cap
1982-10 → 1984-07 ended
1SU SX60 —
17845-63010 Gasket, Air Cleaner Cap
1982-08 → 1982-10 ended
1SU SX60 —
17848 — Gasket, Air Cleaner TO Carburetor
17848-37011 Gasket, Air Cleaner TO Carburetor
1982-08 → 1984-07 ended
1SU SX60 —
90430-63187 Gasket, Air Cleaner TO Carburetor
1980-03 → 1980-08 ended
13TU TX50 ¥310
17881 — Hose, Air Cleaner, NO.1
17881-26020 Hose, Air Cleaner, NO.1
1980-03 → 1982-08 ended
13TU TX50 —
17881-41070 Hose, Air Cleaner, NO.1
1981-10 → 1984-07 ended
MTEU MX51,61 ¥1,840
17881-54100 Hose, Air Cleaner, NO.1
1983-08 → 1984-07 ended
L LX60 ¥6,200
17881-63010 Hose, Air Cleaner, NO.1
1982-08 → 1984-07 ended
1SU SX60 —
17881-70010 Hose, Air Cleaner, NO.1
1980-03 → 1984-07 ended
1GEU GX5#,61 ¥4,490
17881-70040 Hose, Air Cleaner, NO.1
1982-08 → 1984-07 ended
1GGEU GX61 ¥4,290
17881A — Clamp(FOR AIR CLEANER HOSE, NO.1)
90460-75001 Clamp(FOR AIR CLEANER HOSE, NO.1)
1981-10 → 1984-07 ended
MTEU MX51,61 ¥520
90460-80001 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1982-08 → 1984-07 ended
1GGEU GX61 ¥820
90460-95001 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1982-08 → 1984-07 ended
1GGEU GX61 ¥1,050
96111-10460 Clamp(FOR AIR CLEANER HOSE, NO.1)
1982-08 → 1984-07 ended
1SU SX60 ¥190
96111-10710 Clamp(FOR AIR CLEANER HOSE, NO.1)
1983-08 → 1984-07 ended
L LX60 ¥160
96111-10710 Clamp(FOR AIR CLEANER HOSE, NO.1)
1980-03 → 1984-07 ended
1GEU GX5#,61 ¥160
17882 — Hose, Air Cleaner, NO.2
17882-25010 Hose, Air Cleaner, NO.2
1980-03 → 1982-08 ended
13TU TX50 —
17882-41130 Hose, Air Cleaner, NO.2
1981-10 → 1984-07 ended
MTEU MX51,61 ¥5,700
17882-54080 Hose, Air Cleaner, NO.2
1983-08 → 1984-07 ended
L LX60 —
17882-63020 Hose, Air Cleaner, NO.2
1982-08 → 1984-07 ended
1SU SX60 —
17882-70010 Hose, Air Cleaner, NO.2
1980-03 → 1984-07 ended
1GEU GX5#,61 ¥3,740
17882-70030 Hose, Air Cleaner, NO.2
1982-08 → 1984-07 ended
1GGEU GX61 ¥2,650
17882A — Clamp(FOR AIR CLEANER HOSE, NO.2)
90460-01003 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-03 → 1982-08 ended
13TU TX50 ¥300
90460-01012 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1982-08 → 1984-07 ended
1SU SX60 ¥640
90460-01016 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1982-08 → 1984-07 ended
1SU SX60 ¥370
90460-65001 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-03 → 1982-08 ended
13TU TX50 ¥180
90460-80001 Clamp(FOR AIR CLEANER HOSE, NO.2)
1982-08 → 1984-07 ended
1GGEU GX61 ¥820
96111-10710 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1981-10 → 1984-07 ended
MTEU MX51,61 ¥160
96111-10710 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-03 → 1984-07 ended
1GEU GX5#,61 ¥160
96111-10730 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1983-08 → 1984-07 ended
L LX60 ¥160
96111-10800 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1981-10 → 1984-07 ended
MTEU MX51,61 ¥160
96111-10800 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1983-08 → 1984-07 ended
L LX60 ¥160
96111-10800 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-03 → 1984-07 ended
1GEU GX5#,61 ¥160
17883 — Hose, Air Cleaner, NO.3
17883-25010 Hose, Air Cleaner, NO.3
1980-03 → 1982-08 ended
13TU TX50 —
17883-41070 Hose, Air Cleaner, NO.3
1981-10 → 1984-07 ended
MTEU MX51,61 —
17883-54030 Hose, Air Cleaner, NO.3
1983-08 → 1984-07 ended
L LX60 ¥7,900
17883-70010 Hose, Air Cleaner, NO.3
1982-08 → 1984-07 ended
1GGEU GX61 ¥2,900
17883-70010 Hose, Air Cleaner, NO.3
1982-08 → 1984-07 ended
1SU SX60 ¥2,900
17883-70010 Hose, Air Cleaner, NO.3
1980-03 → 1982-08 ended
1GEU GX5# ¥2,900
17883-70020 Hose, Air Cleaner, NO.3
1982-08 → 1984-07 ended
1GEU GX61 ¥6,800
17883A — Clamp(FOR AIR CLEANER HOSE, NO.3)
90460-01012 Clamp(FOR AIR CLEANER HOSE, NO.3)
1980-03 → 1982-08 ended
1GEU GX5# ¥640
90460-01012 Clamp(FOR AIR CLEANER HOSE, NO.3)
1982-08 → 1984-07 ended
1GGEU GX61 ¥640
90460-01012 Clamp(FOR AIR CLEANER HOSE, NO.3)
1982-08 → 1984-07 ended
1SU SX60 ¥640
90460-01027 Clamp(FOR AIR CLEANER HOSE, NO.3)
1981-10 → 1984-07 ended
MTEU MX51,61 ¥590
90460-01027 Clamp(FOR AIR CLEANER HOSE, NO.3)
1982-08 → 1984-07 ended
1GEU GX61 ¥590
90460-65001 Clamp(FOR AIR CLEANER HOSE, NO.3)
1980-03 → 1982-08 ended
13TU TX50 ¥180
25710D — Valve Assy, Air Switching
25710-18031 Valve Assy, Air Switching
1980-03 → 1982-08 ended
13TU TX50 —
25710-63010 Valve Assy, Air Switching
1982-08 → 1984-07 ended
1SU SX60 ¥6,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
