Toyota Cresta

1980-03 → 1984-07 · chassis GX5#,61,LX60,MX51,61,SX60,TX50 · catalogue 313140 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

6 part groups · 6 illustrations

Illustrations

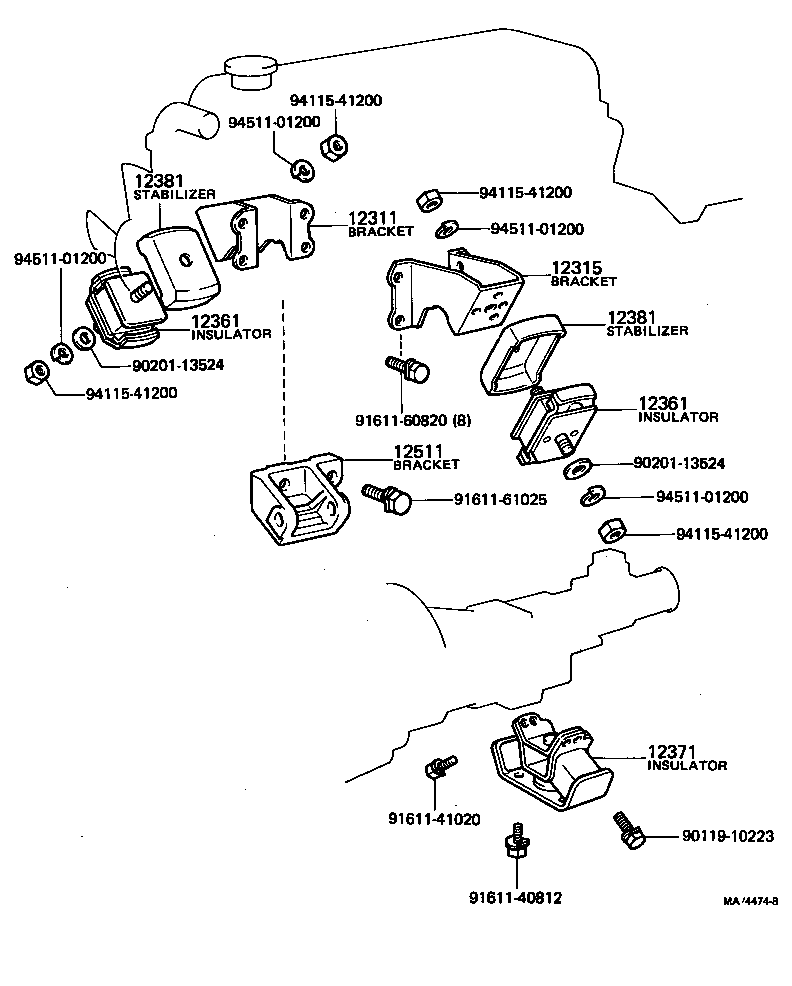

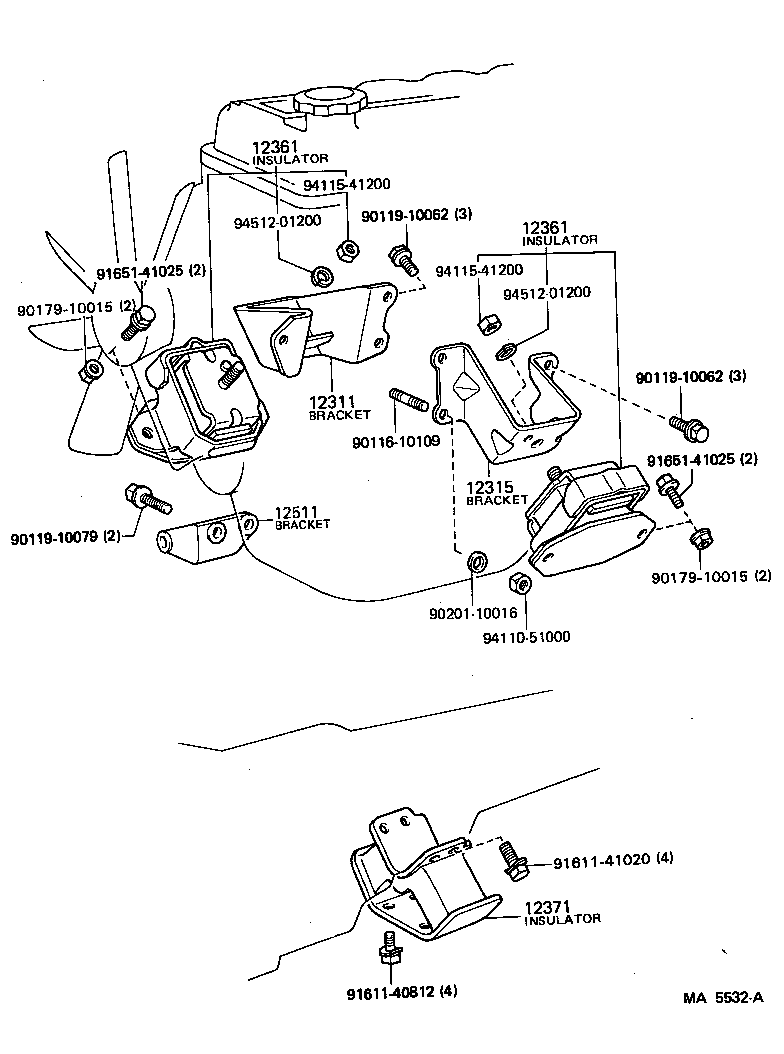

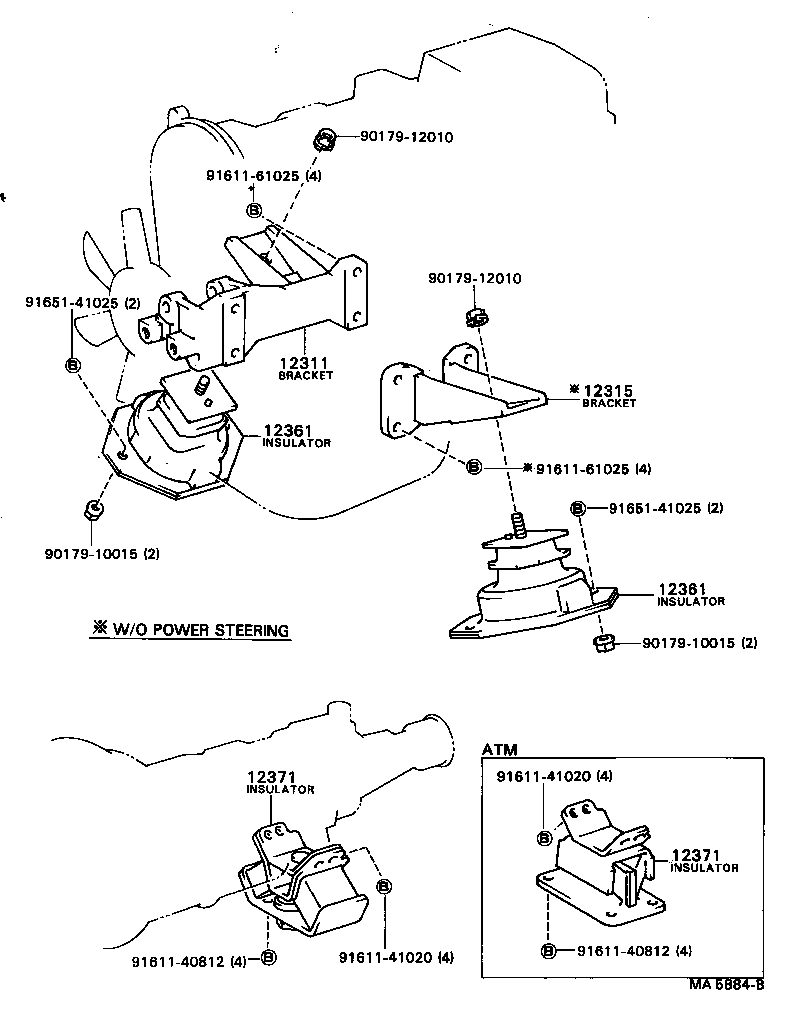

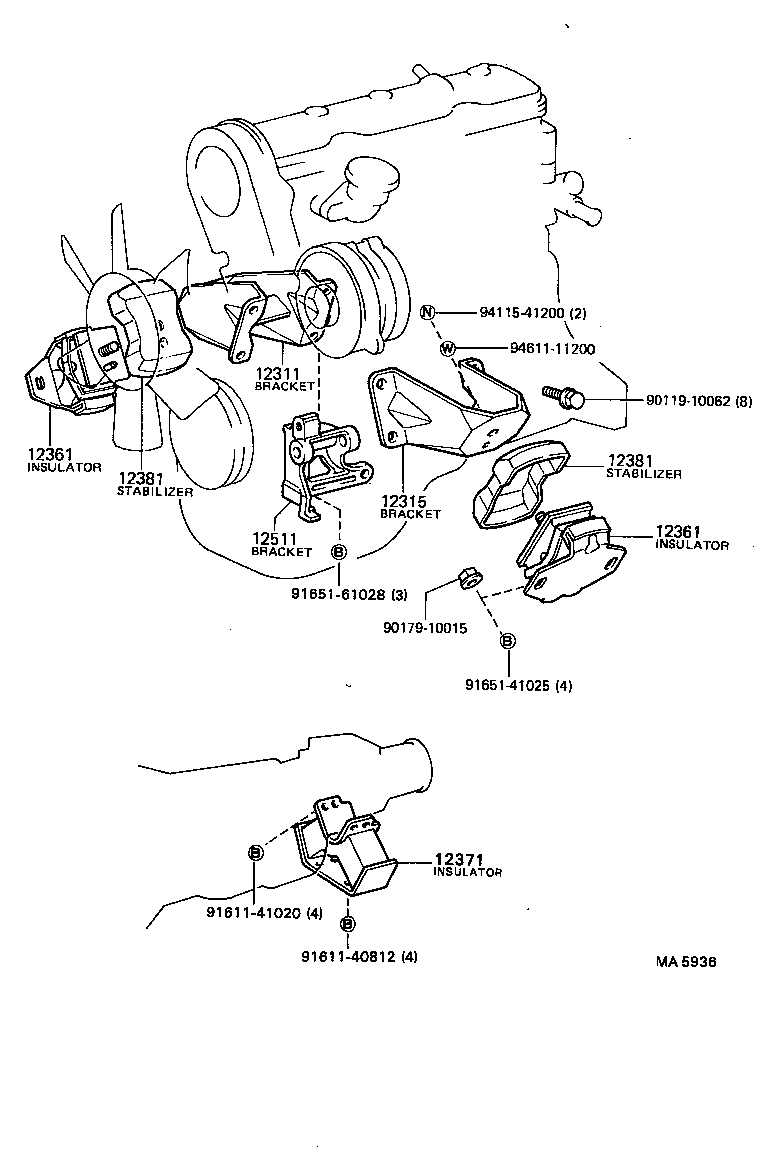

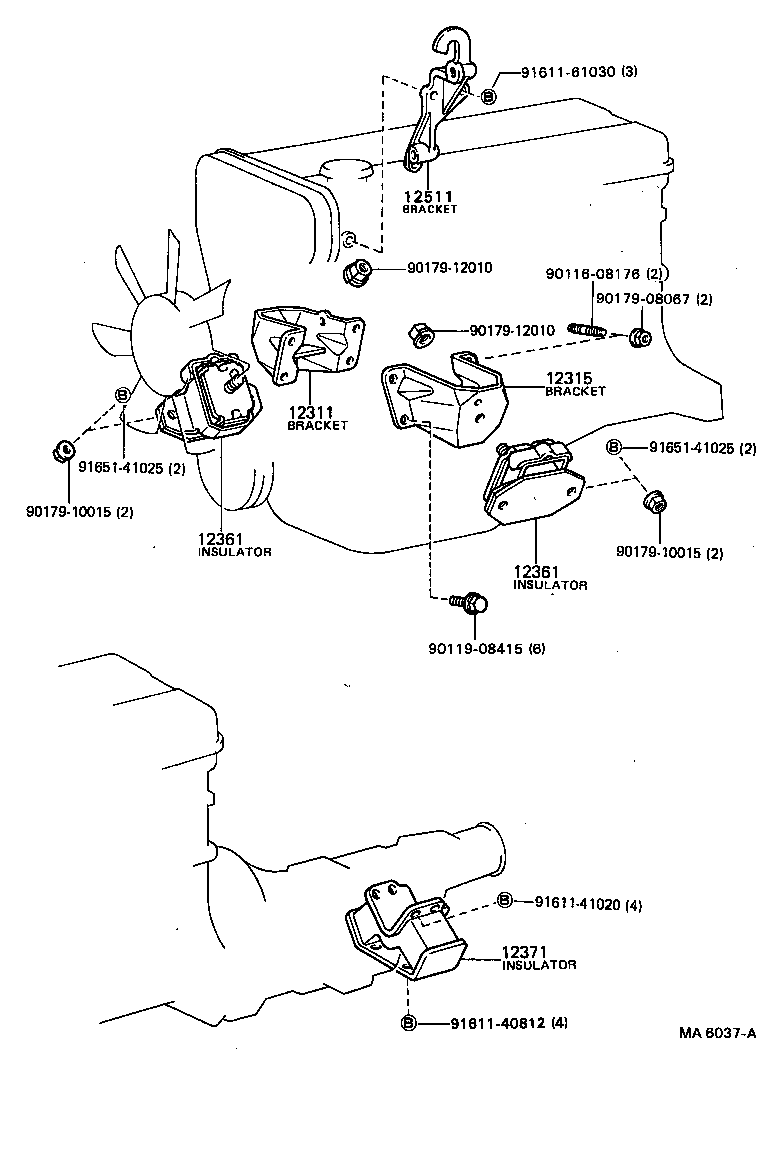

Figure MA4475F MA4475F 1980-03 → — Figure MA6037A MA6037A 1982-08 → — Figure MA5884B MA5884B 1983-08 → — Figure MA5532A MA5532A 1981-10 → — Figure MA5936 MA5936 1982-08 → — Figure MA4474B MA4474B 1980-03 → 1982-08

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12511 Bracket, Alternator, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
