Toyota Cresta
1980-03 → 1984-07 · chassis GX5#,61,LX60,MX51,61,SX60,TX50 · catalogue 313140 · Japan
Discontinued model
Data version 1985-03

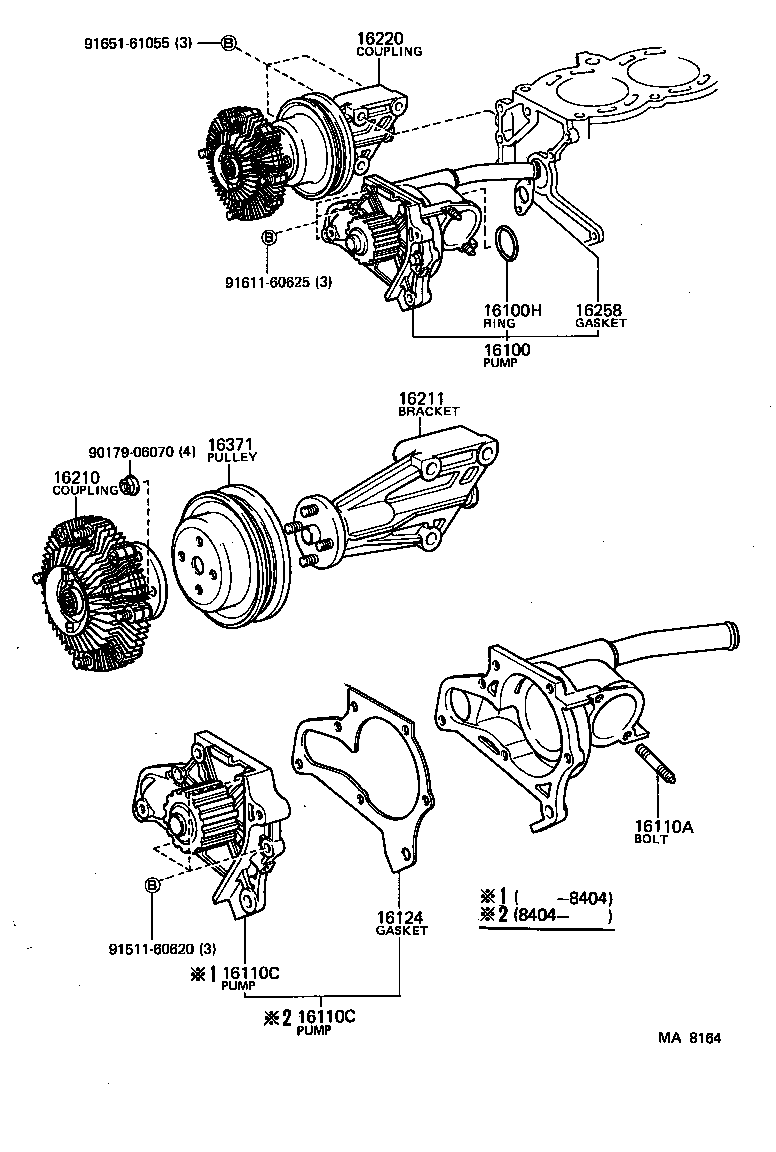

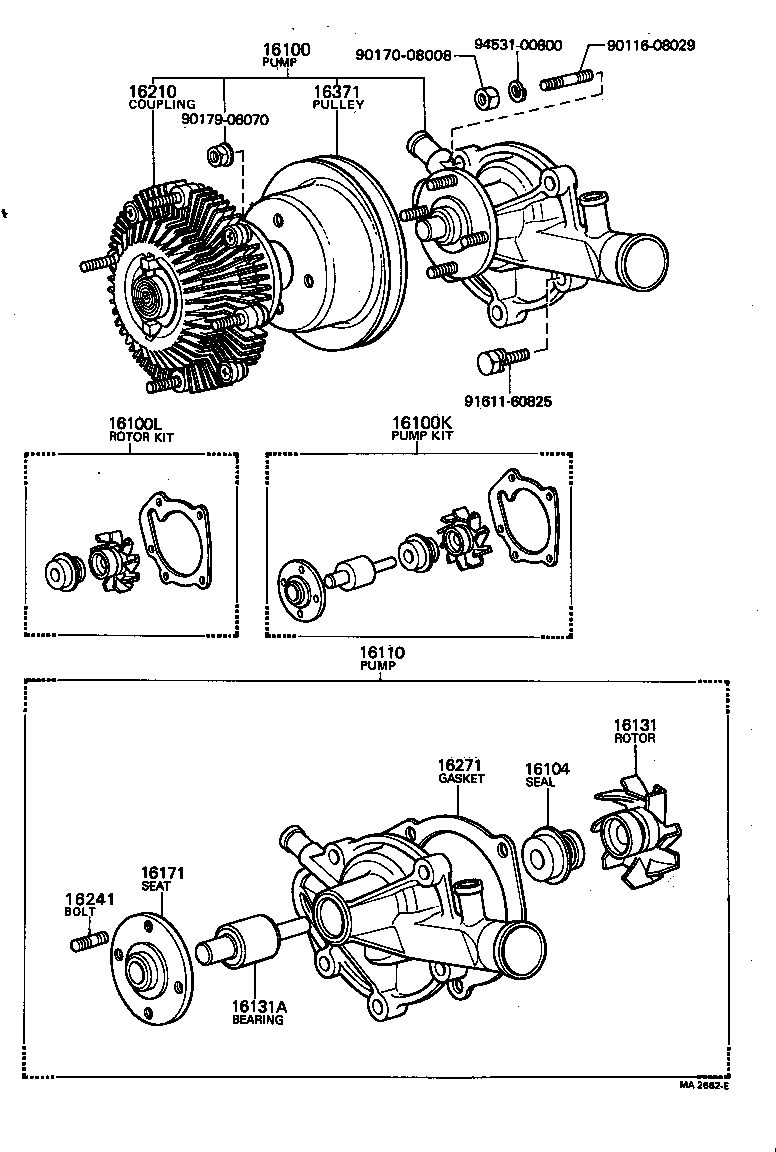

Water Pump
24 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 16100 | Pump Assy, Engine Water |
| 16100B | Pin, Ring(FOR WATER PUMP SET) |
| 16100G | Bolt, Stud(FOR WATER PUMP SET) |
| 16100H | Ring, O(FOR WATER PUMP) |
| 16100K | Pump Kit, Water |
| 16100L | Rotor Kit, Water Pump |
| 16104 | Seal Set, Water Pump |
| 16110 | Pump Assy, Water, W/O Coupling |
| 16110A | Bolt, Stud(FOR WATER OUTLET SETTING) |
| 16110C | Pump Assy, Water, W/O Cover |
| 16120 | Cover Assy, Water Pump |
| 16124 | Gasket, Water Pump Cover |
| 16131 | Rotor, Water Pump |
| 16131A | Bearing, Water Pump |
| 16171 | Seat, Water Pump Pulley |
| 16178 | Guide, Water Pump V Belt |
| 16193 | Bolt, Stud(FOR WATER PUMP COVER) |
| 16210 | Coupling Assy, Fluid |
| 16211 | Bracket, Fluid Coupling |
| 16220 | Coupling Assy, Fluid, W/Bracket |
| 16241 | Bolt, Stud(FOR WATER PUMP COUPLING) |
| 16258 | Gasket(FOR HEATER RETURN) |
| 16271 | Gasket, Water Pump |
| 16371 | Pulley, Fan |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
