Toyota Cresta

1980-03 → 1984-07 · chassis GX5#,61,LX60,MX51,61,SX60,TX50 · catalogue 313140 · Japan

Discontinued model Data version 1985-03

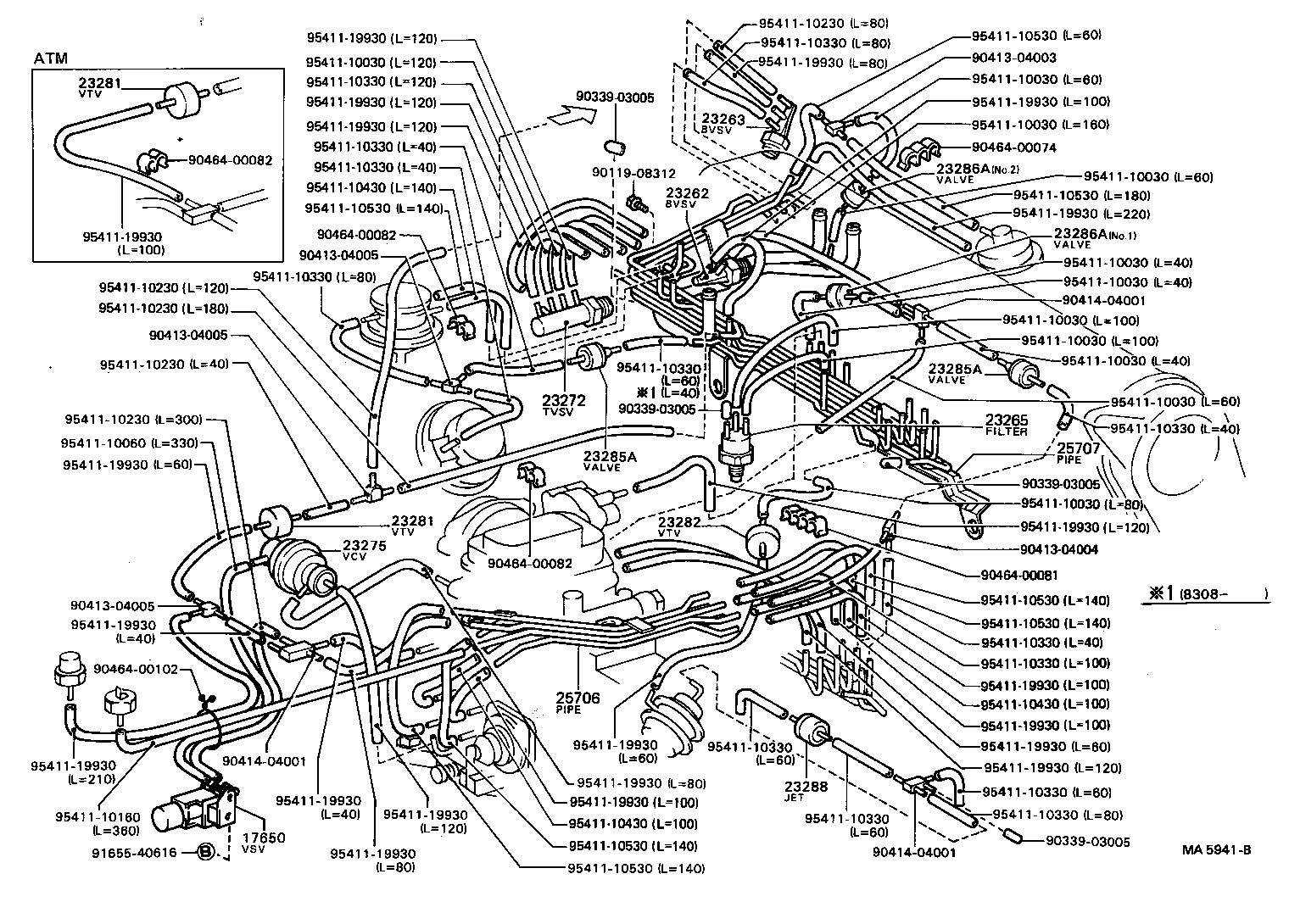

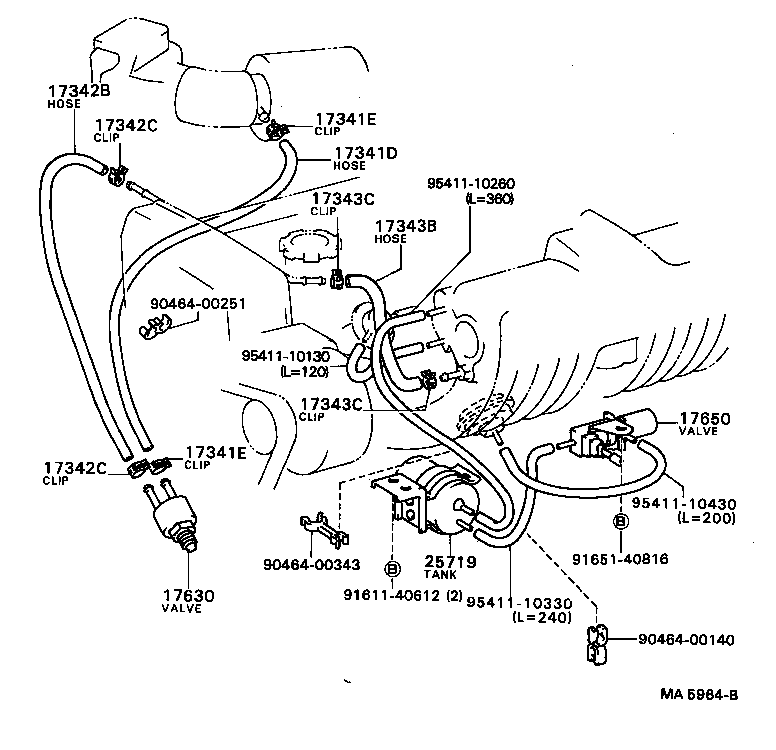

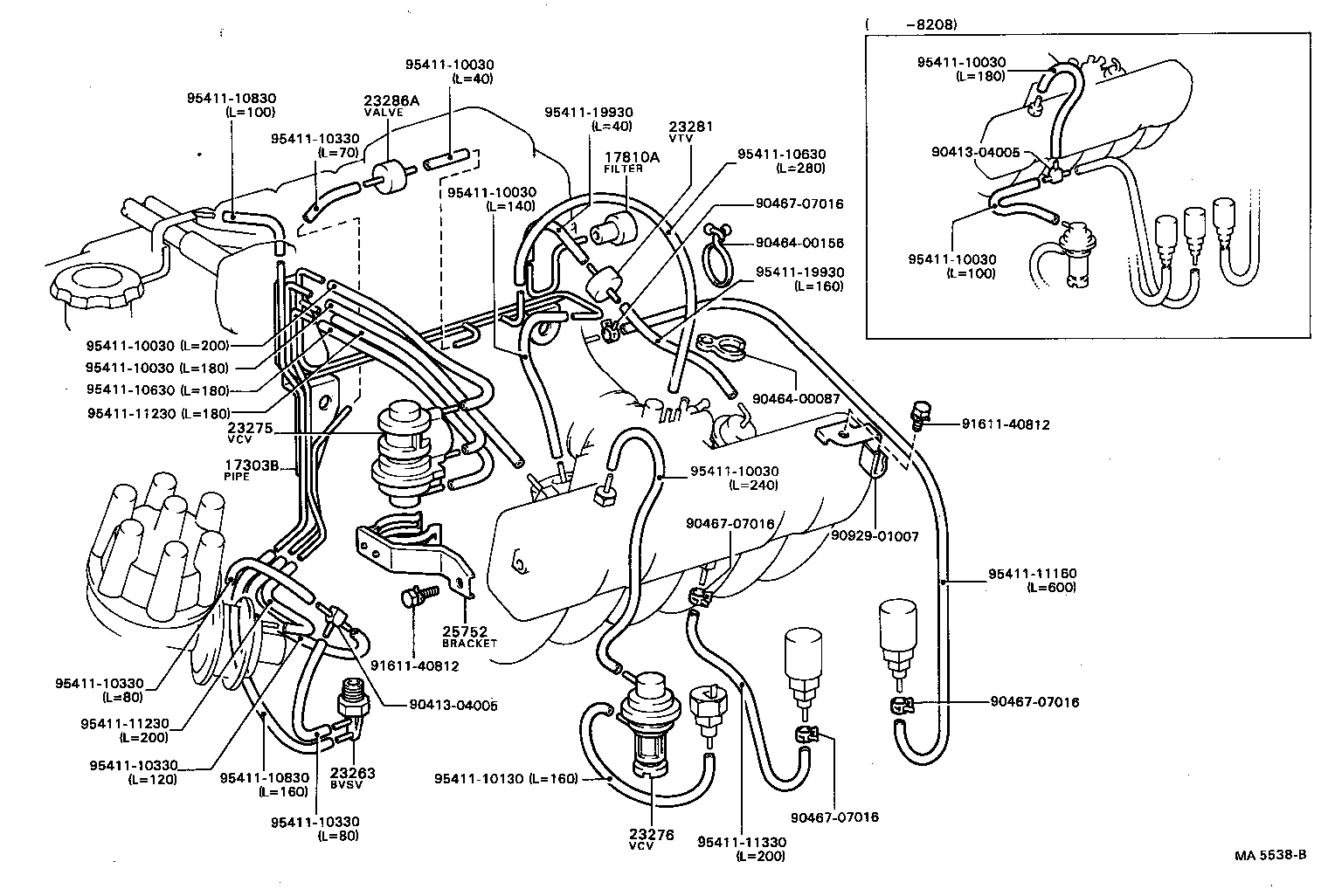

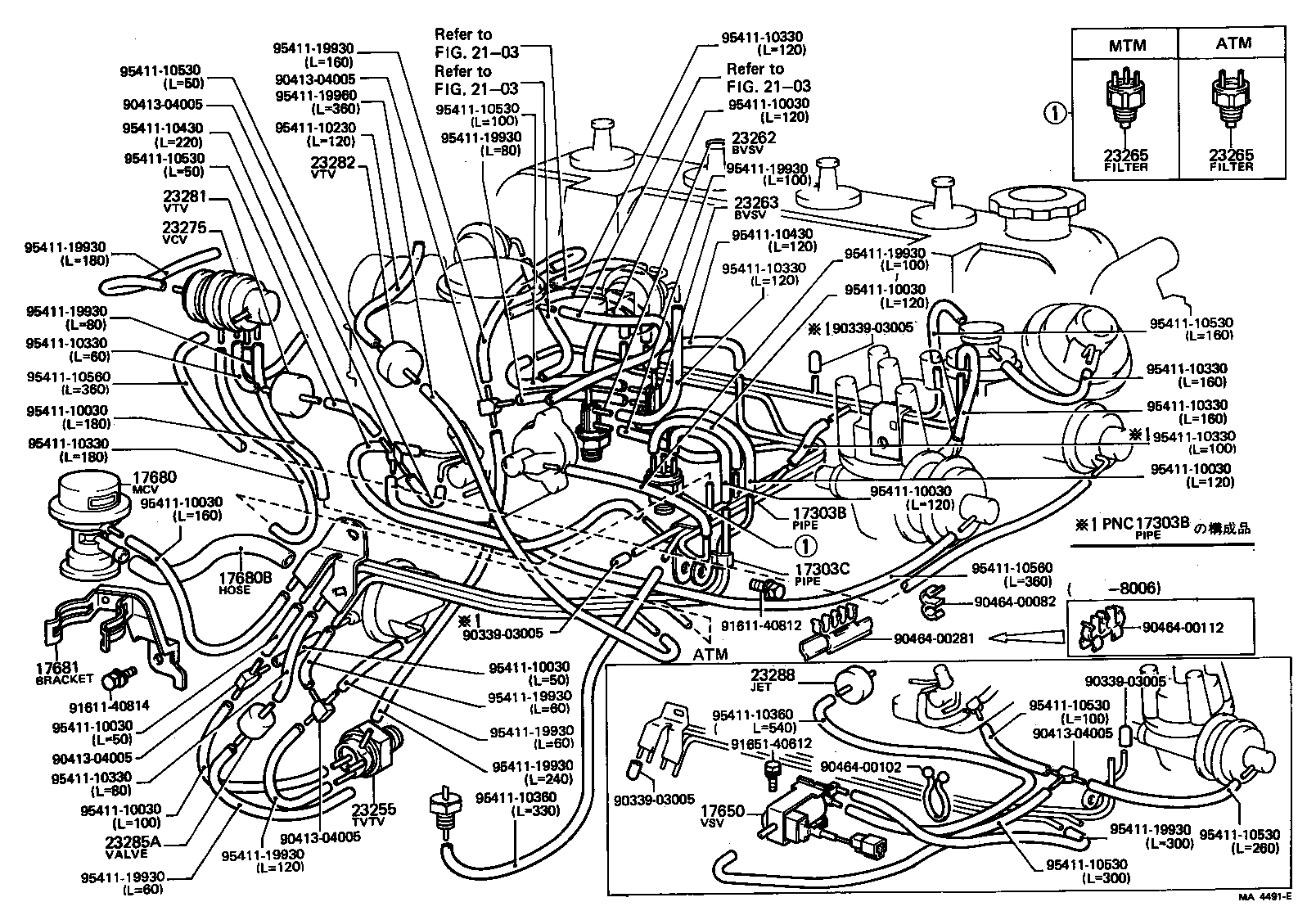

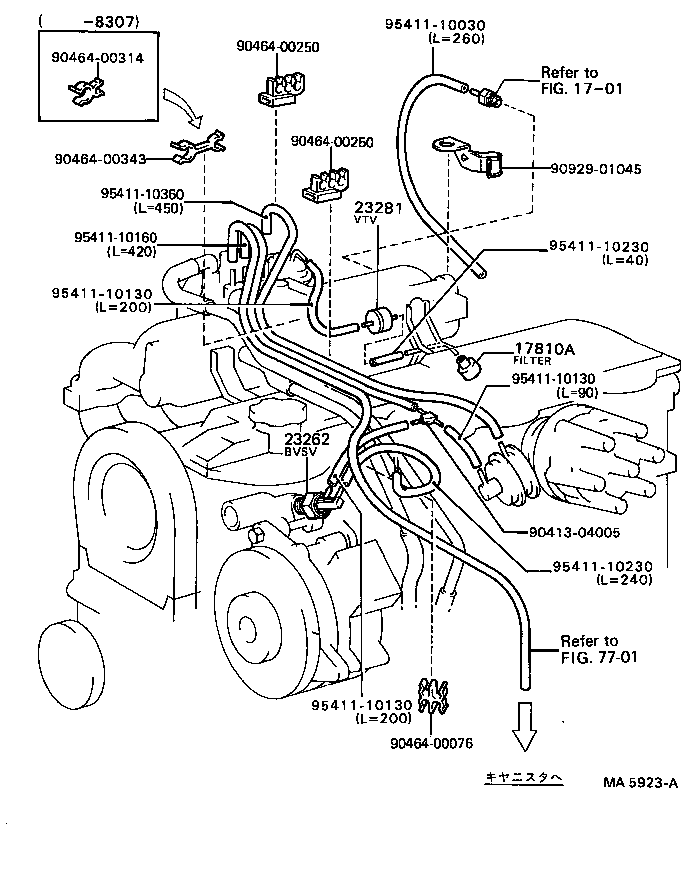

Vacuum Piping

35 part groups · 15 illustrations

PNC	Description
17303B	Pipe Sub-assy, Air, NO.1
17303C	Pipe Sub-assy, Air, NO.2
17308	Hose Sub-assy, Vacuum(FOR IDLE-UP)
17341D	Hose, NO.1(FOR IDLE-UP)
17341E	Clip, NO.1(FOR IDLE-UP HOSE)
17342B	Hose, NO.2(FOR IDLE-UP)
17342C	Clip, NO.2(FOR IDLE-UP HOSE)
17343B	Hose, NO.3(FOR IDLE-UP)
17343C	Clip, NO.3(FOR IDLE-UP HOSE)
17561	Stay(FOR AIR HOSE)
17561A	Clamp(FOR AIR HOSE)
17630	Valve Assy, Air Control
17650	Valve Assy, Vacuum Switching
17680	Valve Assy, Mixture Control
17680B	Hose(FOR MIXTURE CONTROL VALVE)
17681	Bracket, Mixture Control Valve
17810A	Filter Assy, Air

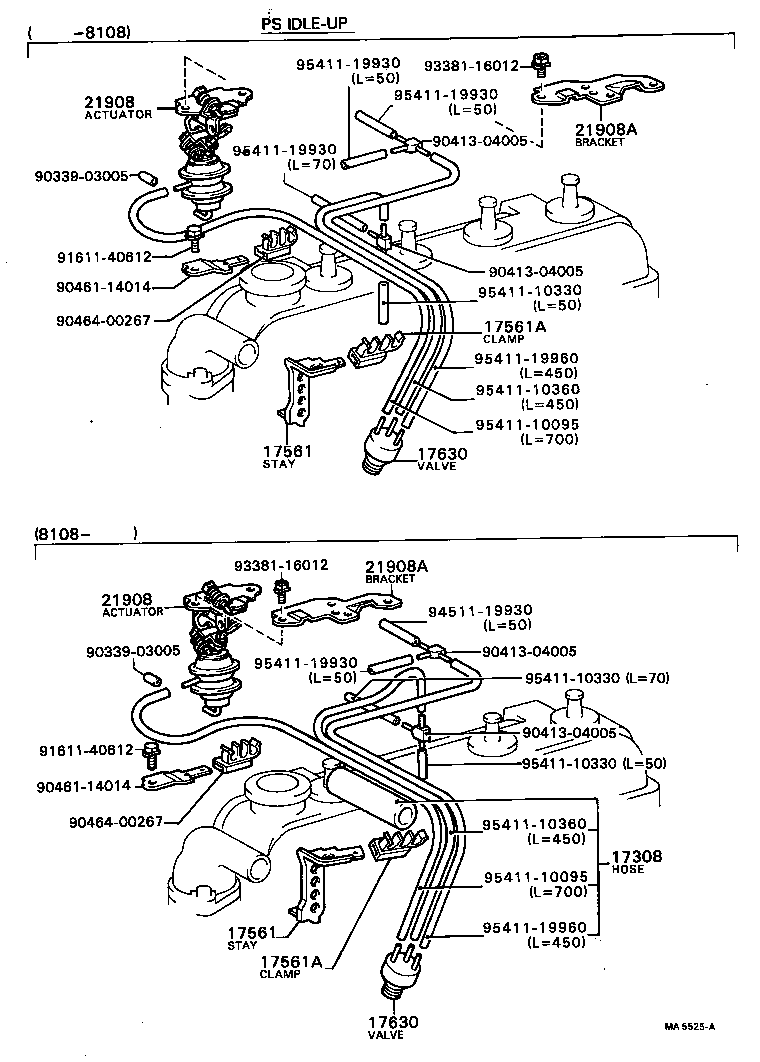

21908	Actuator Sub-assy, Idle-up
21908A	Bracket, Idle-up Actuator
23255	Valve, Thermostatic Vacuum Transmitting, NO.1
23262	Valve, Bimetal Vacuum Switching, NO.1
23263	Valve, Bimetal Vacuum Switching, NO.2
23265	Filter, Gas, NO.1
23272	Valve, Thermostatic Vacuum Switching, NO.2
23275	Valve, Vacuum Control, NO.1
23276	Valve, Vacuum Control, NO.2
23281	Valve, Vacuum Transmitting, NO.1
23282	Valve, Vacuum Transmitting, NO.2
23285A	Valve, Check, NO.1
23286A	Valve, Check, NO.2
23288	Jet, NO.1
25706	Pipe Sub-assy, Vacuum Transmitting, NO.1
25707	Pipe Sub-assy, Vacuum Transmitting, NO.2
25719	Tank, Vacuum Surge
25752	Clamp, Vacuum Control Valve, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
