Toyota Cresta

1980-03 → 1984-07 · chassis GX5#,61,LX60,MX51,61,SX60,TX50 · catalogue 313140 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

33 part groups · 10 illustrations

Illustrations

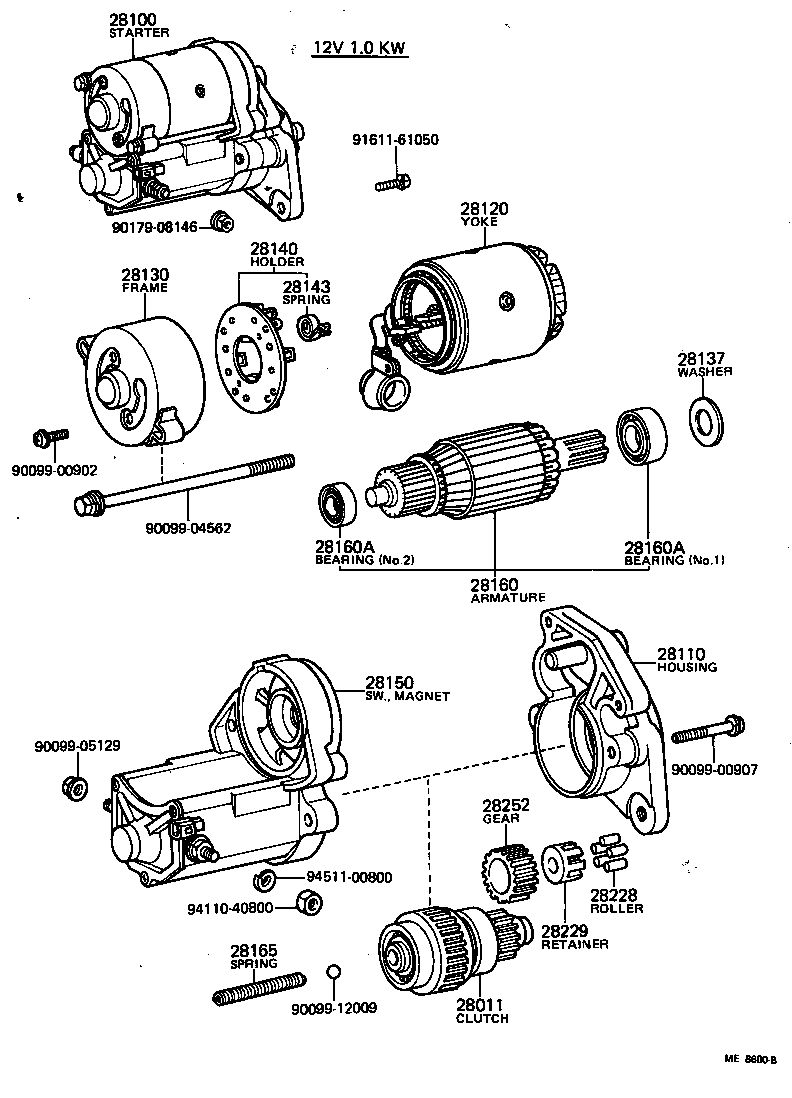

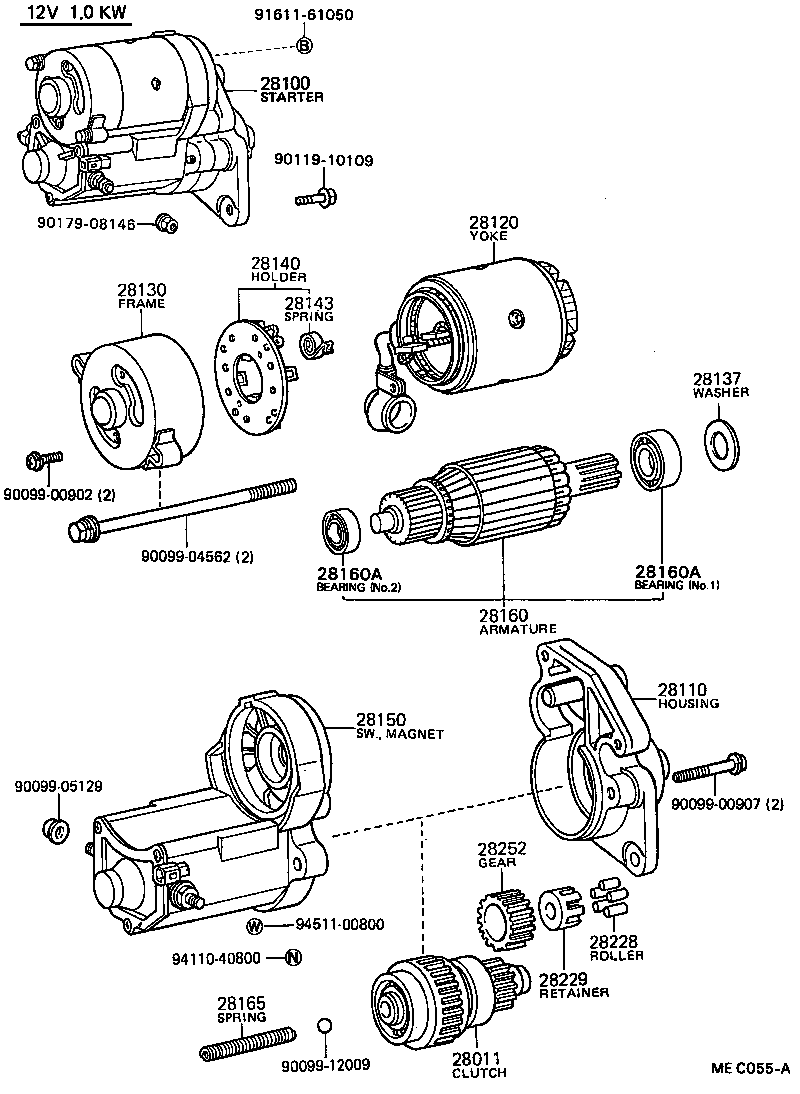

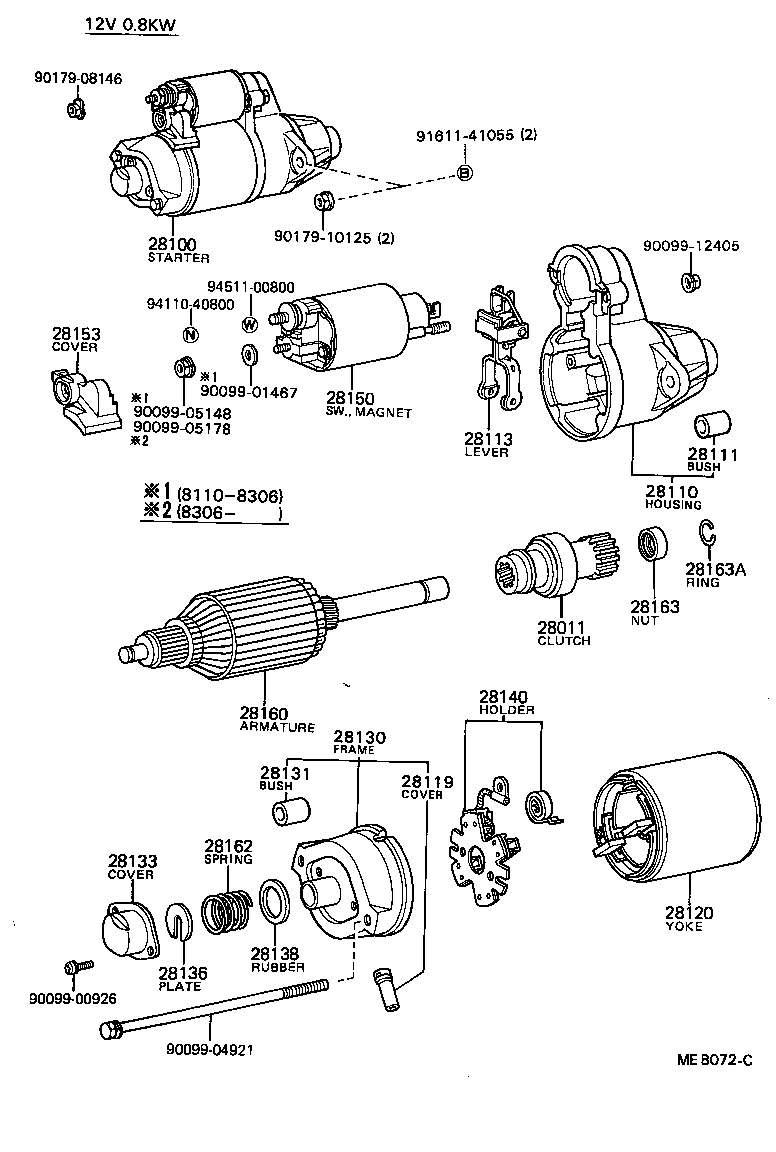

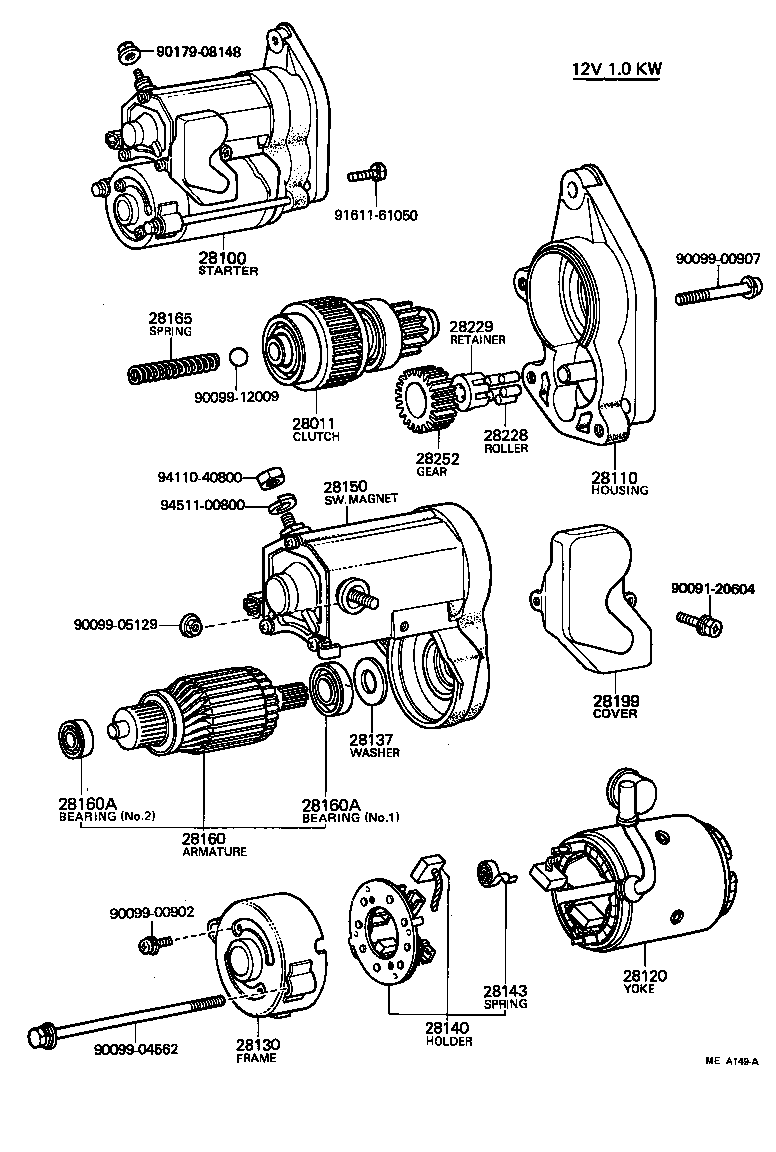

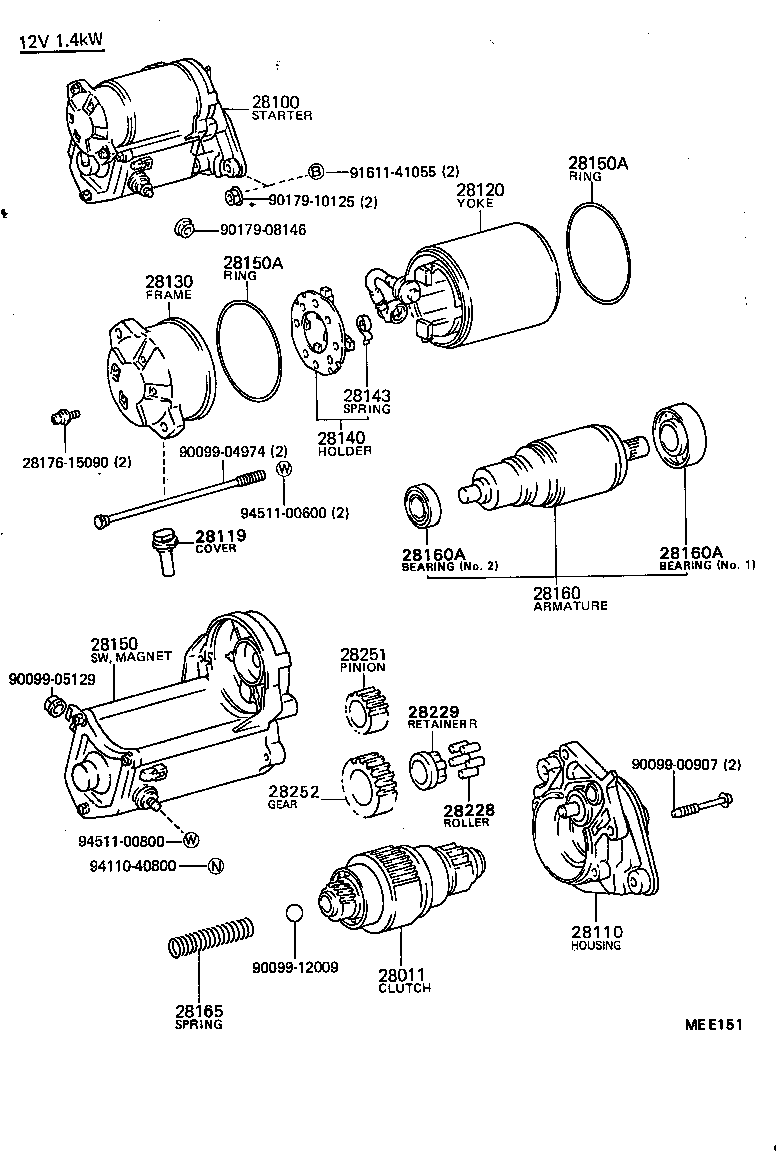

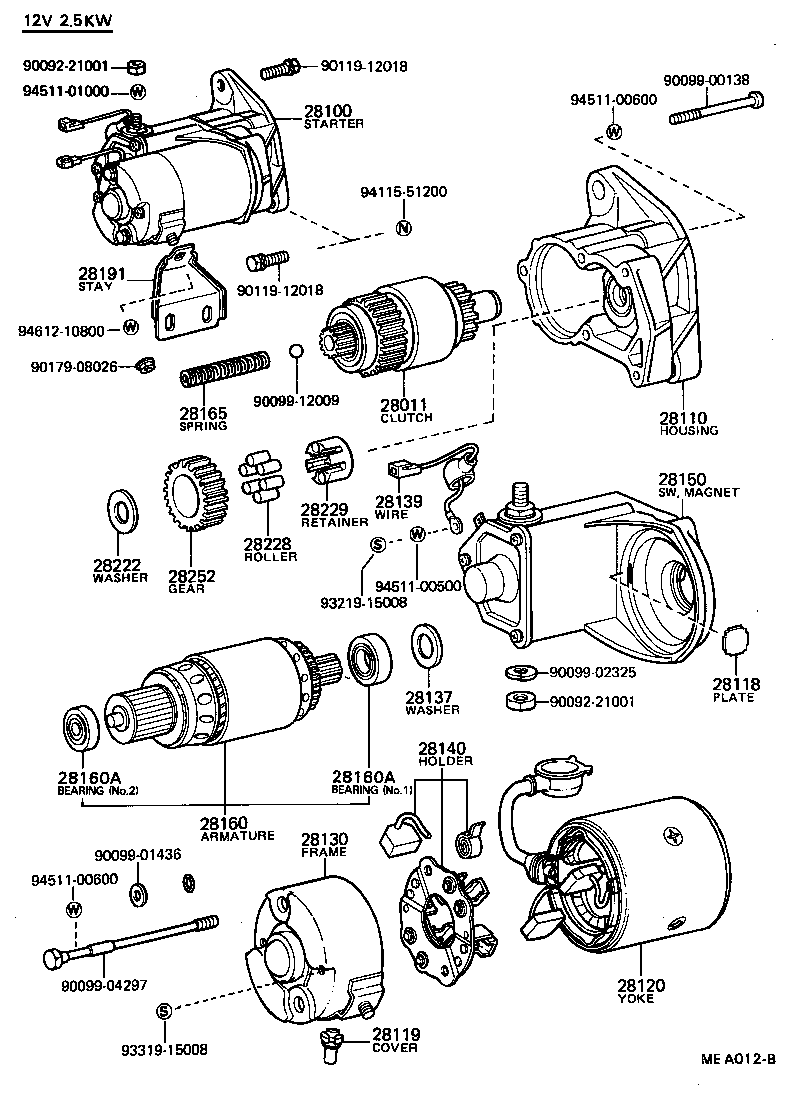

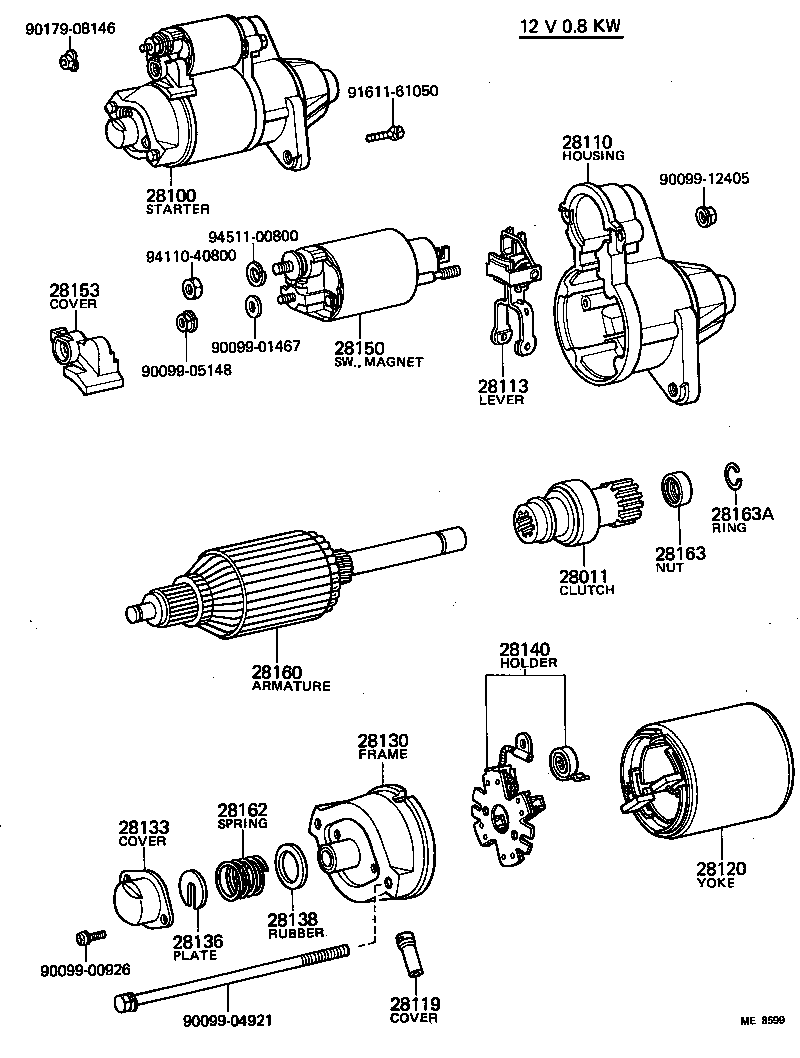

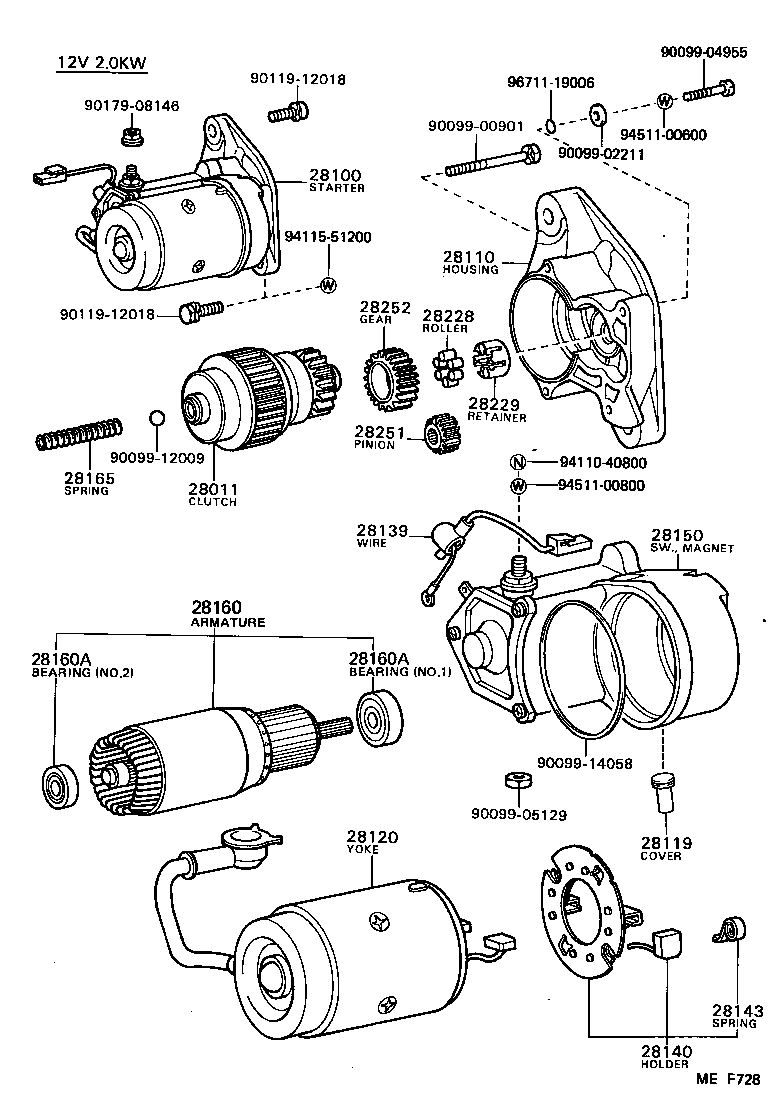

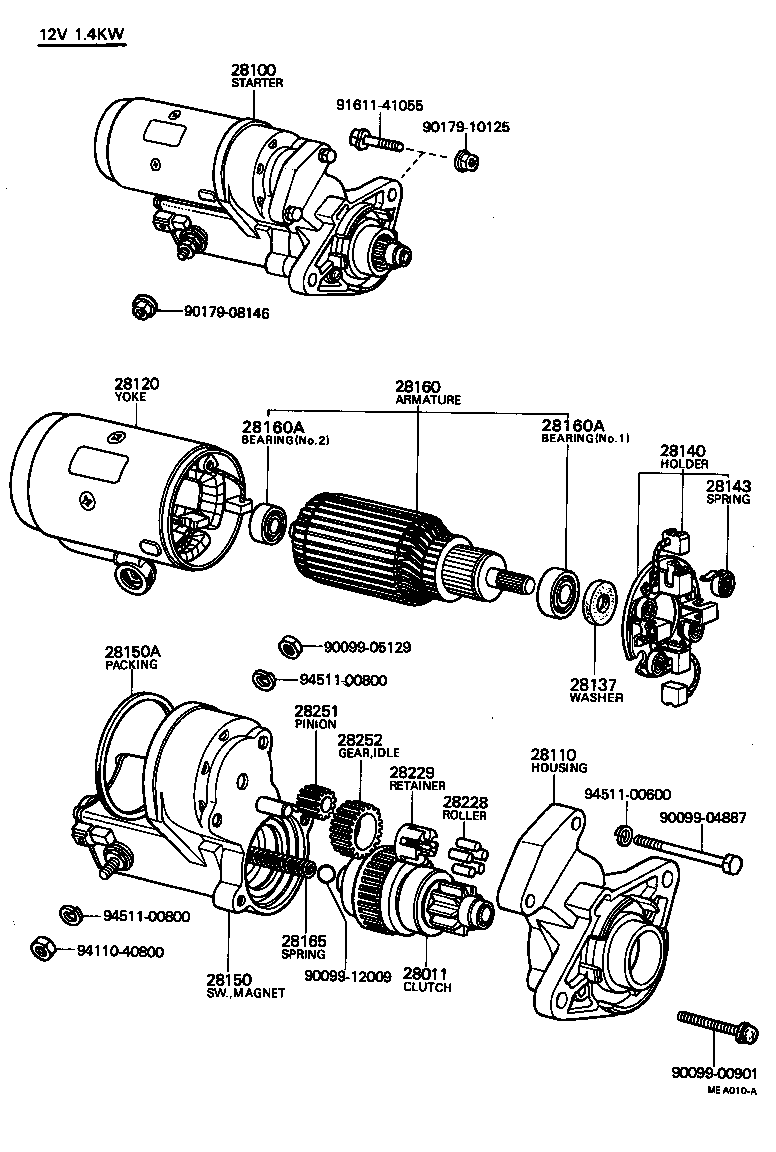

Figure ME8886C ME8886C 1980-03 → 1982-08 Figure MEA149A MEA149A 1980-03 → 1982-08 Figure MEC055A MEC055A 1982-08 → — Figure ME8599 ME8599 1980-03 → 1980-06 Figure ME8600B ME8600B 1980-03 → — Figure MEA010A MEA010A 1981-10 → 1983-08 Figure MEB072C MEB072C 1981-10 → — Figure MEE151 MEE151 1983-08 → — Figure MEF728 MEF728 1983-08 → — Figure MEA012B MEA012B 1983-08 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28100 Starter Assy
28110 Housing Assy, Starter Drive
28111 Bush(FOR STARTER HOUSING)
28113 Lever, Starter Pinion Drive
28118 Plate(FOR STARTER YOKE)
28119 Cover, Starter End Frame
28120 Yoke Assy, Starter
28130 Frame Assy, Starter Commutator End
28131 Bush, Commutator End Frame
28133 Cover, Bearing(FOR END FRAME)
28136 Plate, Starter Lock
28137 Washer, Felt, Starter
28138 Rubber(FOR STARTER BEARING COVER)
28139 Wire, Lead, NO.1(FOR STARTER)
28140 Holder Assy, Starter Brush
28143 Spring, Starter Brush
28150 Switch Assy, Magnet Starter
28150A Packing(FOR STARTER MAGNET SWITCH)
28153 Cover, Magnet Switch
28160 Armature Assy, Starter
28160A Bearing, Starter Armature
28162 Spring, Starter Brake
28163 Nut OR Collar, Pinion Stop, Starter
28163A Ring, Snap(FOR STARTER PINION STOP NUT)
28165 Spring, Starter Magnet Switch Return
28191 Stay, Starter
28199 Cover, Starter
28222 Washer, Starter Idle Gear Clutch
28228 Roller, Starter Idle Gear Clutch
28229 Retainer, Starter Idle Gear
28251 Pinion, Starter Drive
28252 Gear, Starter Idle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
