Toyota Cresta

1980-03 → 1984-07 · chassis GX5#,61,LX60,MX51,61,SX60,TX50 · catalogue 313140 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Gas Recirculation System

14 part groups · 3 illustrations

Illustrations

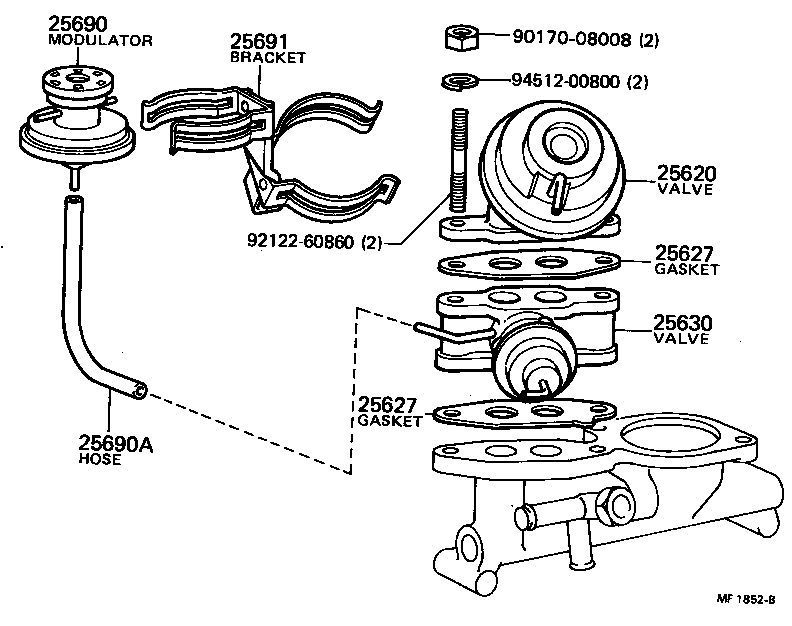

Figure AS0331A AS0331A 1981-10 → — Figure AS0331A AS0331A 1981-10 → — Figure MF1852B MF1852B 1980-03 → 1982-08

Part groups

PNCDescription
22235 Inlet, Auxiliary Air
25601F Union(FOR EGR PIPE, NO.1)
25617 Plate, Egr Hole Cover
25618A Bolt, Stud(FOR EGR INLET)
25620 Valve Assy, Egr
25620A Bolt, Stud(FOR EGR VALVE)
25627 Gasket, Egr Valve
25628 Gasket, Egr Inlet
25630 Valve Assy, Egr, NO.2
25682 Cooler, Egr, NO.2
25686 Gasket, Egr Cooler, NO.2
25690 Modulator Assy, Egr Vacuum
25690A Hose(FOR EGR VACUUM MODULATOR)
25691 Bracket, Egr Vacuum Modulator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
