Toyota Cresta

1980-03 → 1984-07 · chassis GX5#,61,LX60,MX51,61,SX60,TX50 · catalogue 313140 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Extension Housing (MTM)

11 part groups · 3 illustrations

Illustrations

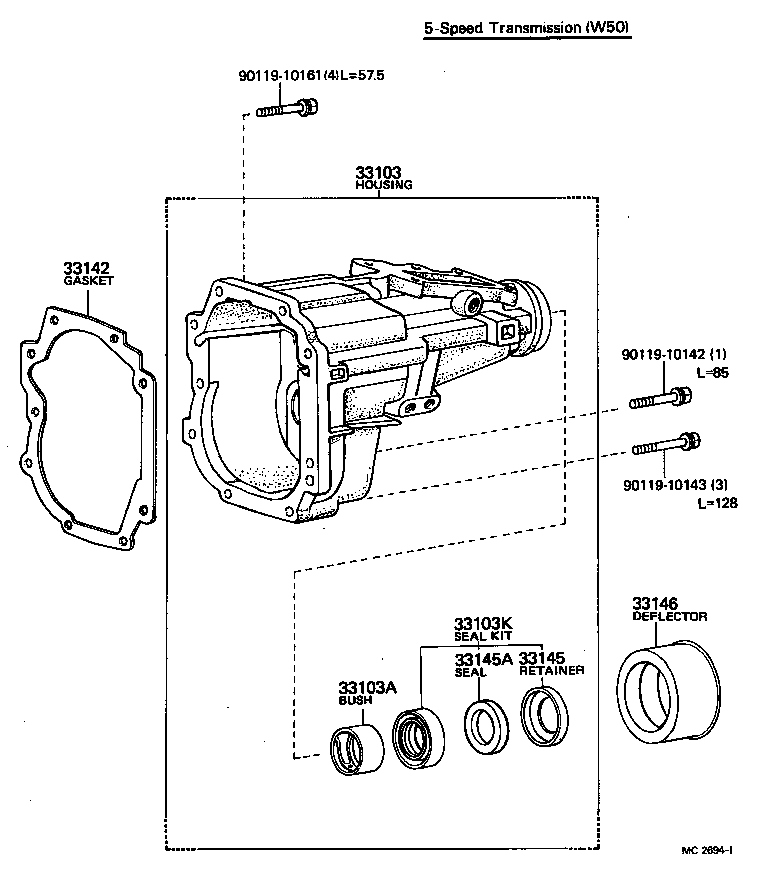

Figure MC2693E MC2693E 1980-03 → 1980-10 Figure MC2694I MC2694I 1980-03 → 1980-10 Figure MC7297A MC7297A 1980-10 → —

Part groups

PNCDescription
33103 Housing Sub-assy, Extension(MTM)
33103A Bush(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
33103K Seal Kit, Oil(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
33103R Seal, Oil(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
33124 Pipe, Oil Receiver(MTM)
33142 Gasket, Extension Housing(MTM)
33145 Retainer, Extension Housing Dust Seal(MTM)
33145A Seal, Dust(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
33146 Deflector, Extension Housing Dust(MTM)
33148 Shroud, Gear, NO.1
33283H Plug, W/Head Straight Screw
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
