Toyota Cresta
1980-03 → 1984-07 · chassis GX5#,61,LX60,MX51,61,SX60,TX50 · catalogue 313140 · Japan
Discontinued model
Data version 1985-03

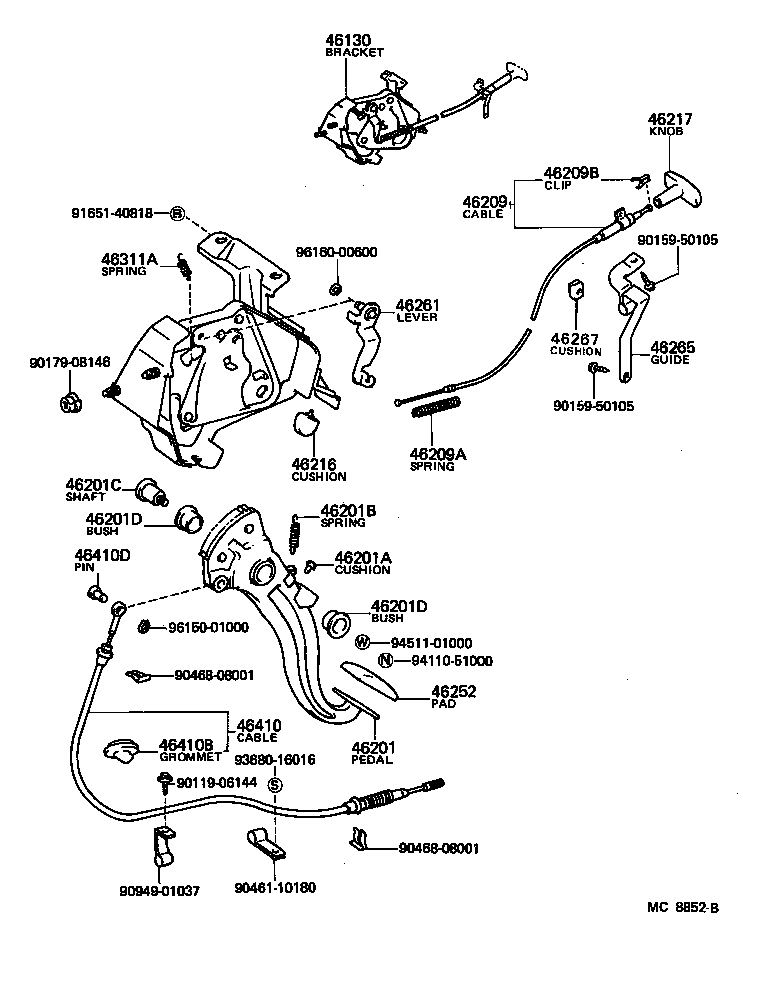

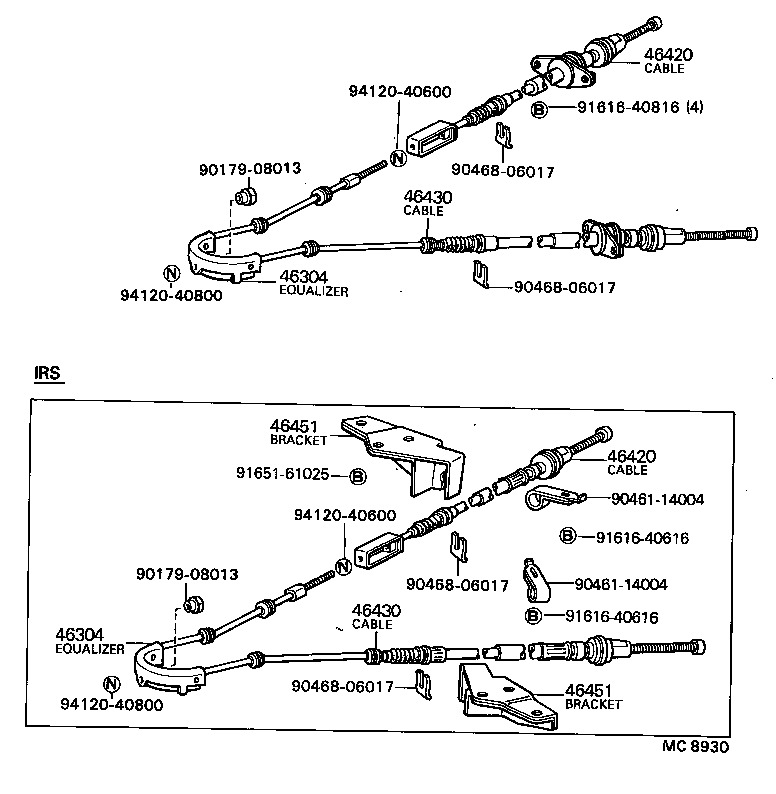

Parking Brake & Cable
52 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 46130 | Bracket Assy, Parking Brake Pedal |
| 46201 | Pedal Sub-assy, Parking Brake |
| 46201A | Cushion(FOR PARKING BRAKE PEDAL) |
| 46201B | Spring, Tension |
| 46201C | Shaft, Pedal |
| 46201D | Bush(FOR PARKING BRAKE PEDAL) |
| 46201E | Lever Sub-assy, Parking Brake |
| 46209 | Cable Sub-assy, Parking Brake Release |
| 46209A | Spring, Compression(FOR PARKING BRAKE RELEASE CABLE) |
| 46209B | Clip(FOR PARKING BRAKE RELEASE CABLE) |
| 46216 | Cushion, Parking Pedal |
| 46217 | Knob, Parking Brake Release Rod |
| 46225A | Spring, Compression(FOR PARKING BRAKE PAWL ROD) |
| 46241 | Boot, Parking Brake Lever |
| 46243 | Cover, Parking Brake Lever |
| 46249 | Shield, Parking Brake Hole |
| 46252 | Pad, Parking Pedal |
| 46261 | Lever, Parking Brake Release Intermediate |
| 46265 | Guide, Parking Brake Release Rod |
| 46267 | Cushion, Release Rod Guide Intermediate |
| 46304 | Equalizer Sub-assy, Parking Brake |
| 46311A | Spring(FOR PARKING BRAKE PAWL) |
| 46361 | Rod, Parking Brake Pull |
| 46361A | Pin, Parking Brake Pull Rod |
| 46361C | Grommet(FOR PARKING BRAKE PULL ROD) |
| 46410 | Cable Assy, Parking Brake, NO.1 |
| 46410B | Grommet(FOR PARKING BRAKE FRONT CABLE) |
| 46410D | Pin(FOR PARKING BRAKE FRONT CABLE) |
| 46420 | Cable Assy, Parking Brake, NO.2 |
| 46430 | Cable Assy, Parking Brake, NO.3 |
| 46451 | Bracket, Cable Support |
| 46503 | Plate Sub-assy, Parking Brake, RH |
| 46504 | Plate Sub-assy, Parking Brake, LH |
| 46506 | Adjuster Sub-assy, Parking Brake Shoe, RH OR Center |
| 46507 | Adjuster Sub-assy, Parking Brake Shoe, LH |
| 46540 | Shoe Assy, Parking Brake, RH OR Center NO.1 |
| 46540A | Plate, Parking Brake Shoe Guide |
| 46540B | Bolt, Parking Brake Shoe Guide Plate Set |
| 46550 | Shoe Assy, Parking Brake, RH OR Center NO.2 |
| 46550A | Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN) |
| 46550C | Washer, Type C(FOR PARKING BRAKE SHOE) |
| 46550E | Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN) |
| 46550H | Shim(FOR PARKING BRAKE SHOE) |
| 46555 | Spring, Brake Shoe Hold Down |
| 46556 | Pin, Shoe Hold Down Spring |
| 46557 | Cup, Brake Shoe Hold Down |
| 46580 | Shoe Assy, Parking Brake, LH NO.1 |
| 46590 | Shoe Assy, Parking Brake, LH NO.2 |
| 46611 | Lever, Parking Brake Shoe, RH OR Center |
| 46612 | Strut, Parking Brake Shoe Lever |
| 46612B | Spring, Compression(FOR PARKING BRAKE SHOE STRUT) |
| 46613 | Lever, Parking Brake Shoe, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
