Toyota Cresta

1980-03 → 1984-07 · chassis GX5#,61,LX60,MX51,61,SX60,TX50 · catalogue 313140 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

44 part groups · 9 illustrations

Illustrations

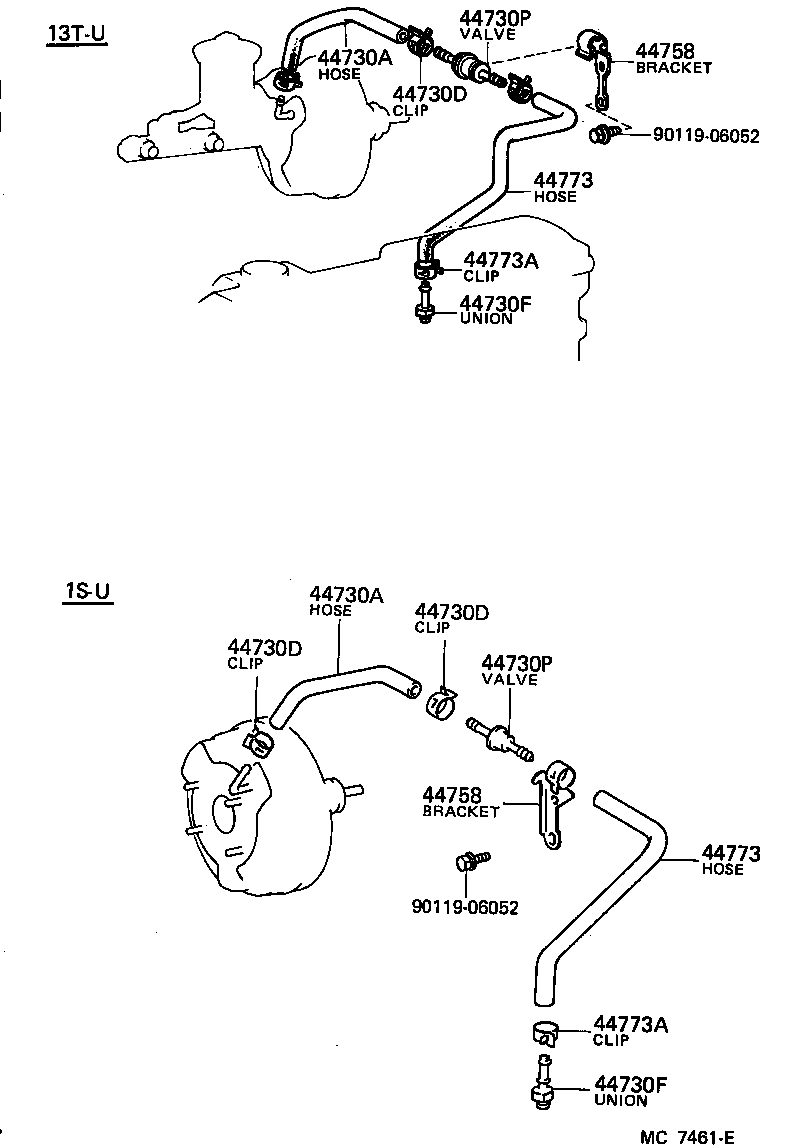

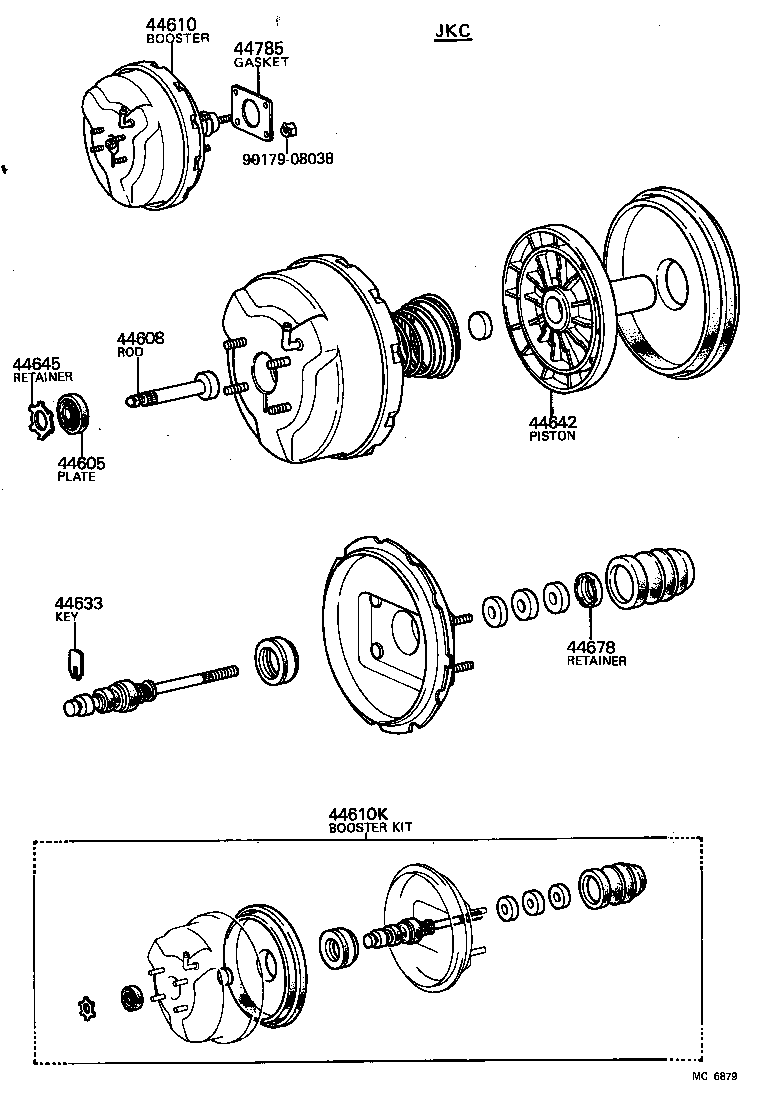

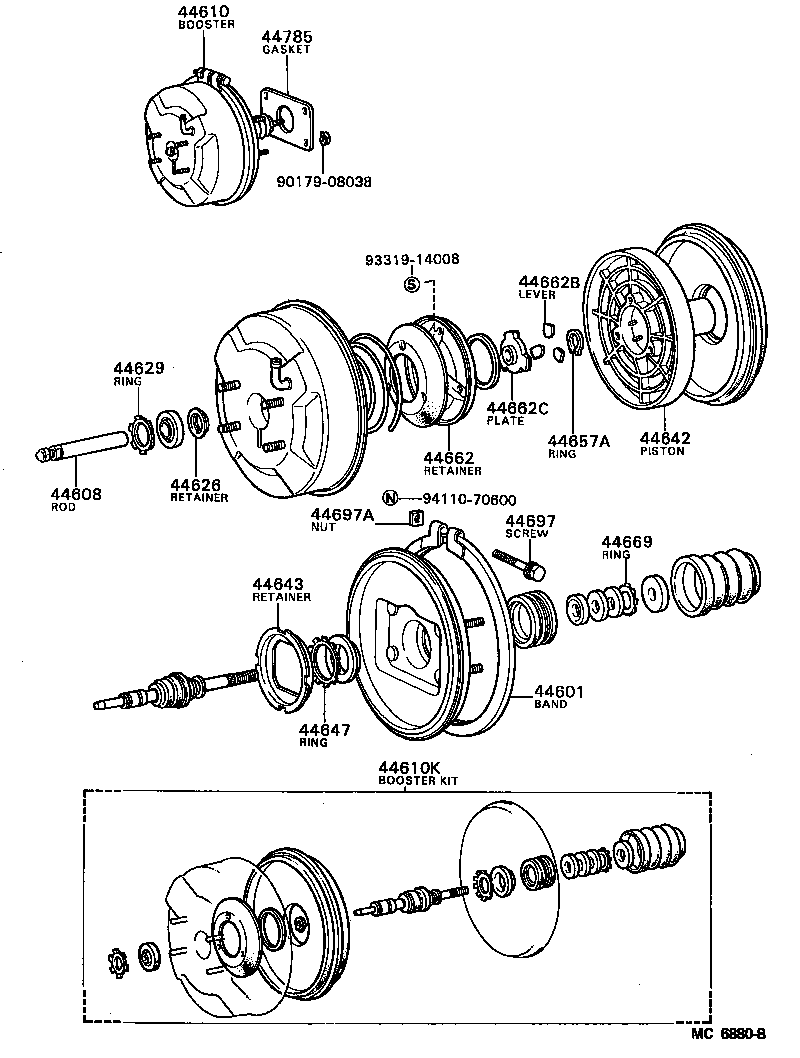

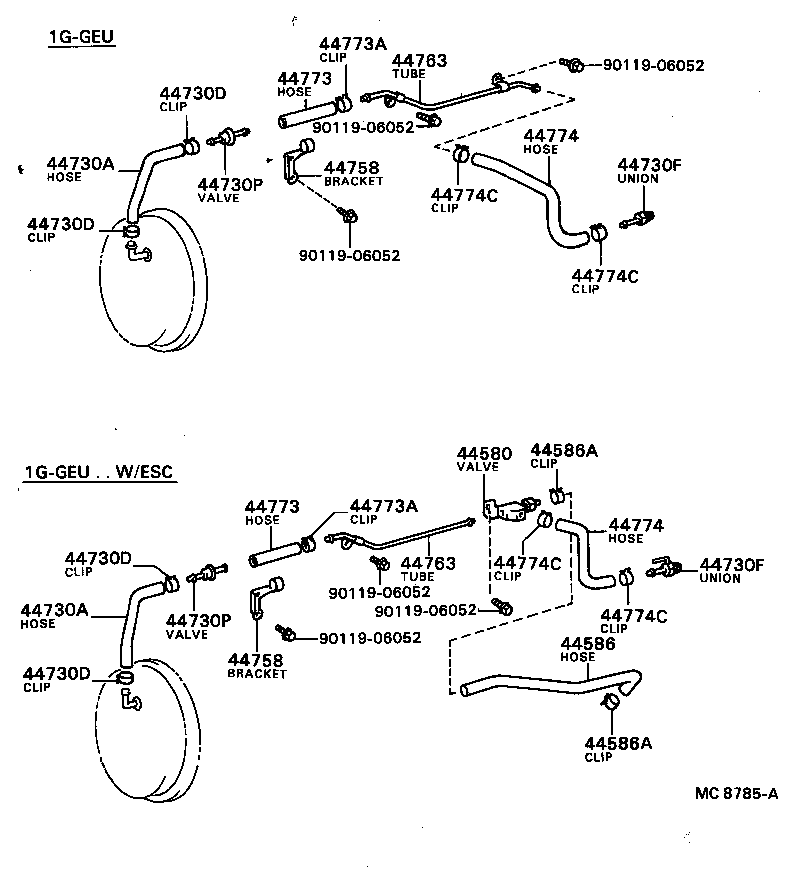

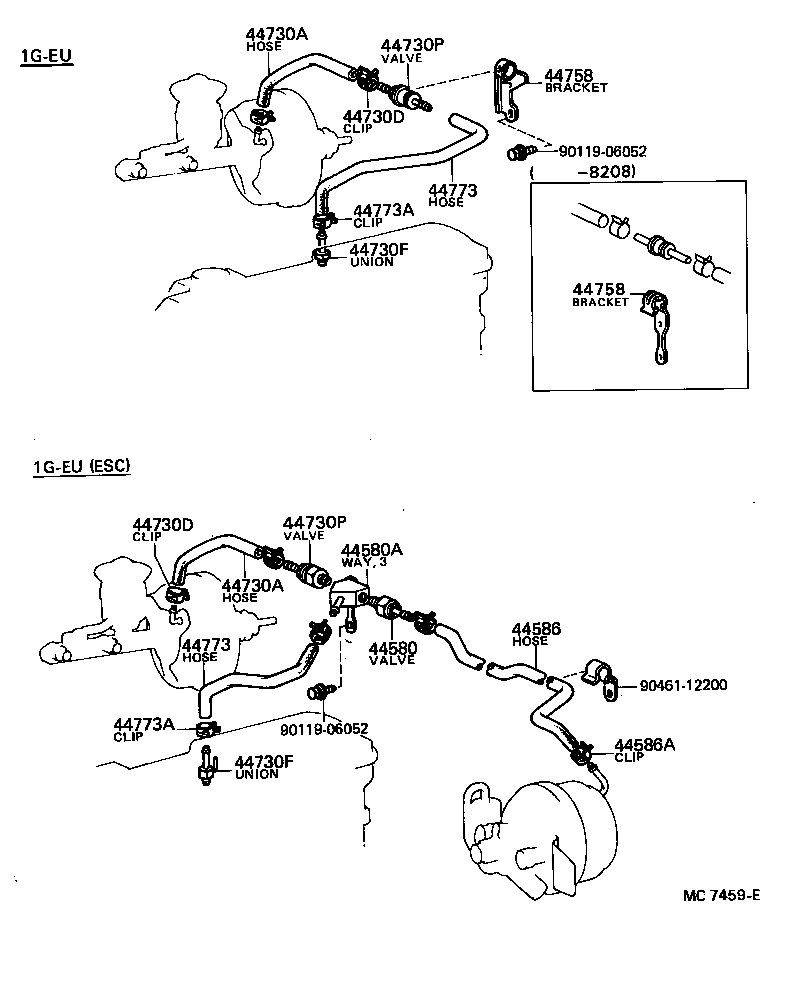

Figure MC6878D MC6878D 1980-03 → — Figure MC6880B MC6880B 1982-08 → — Figure MC6879 MC6879 1980-03 → 1982-08 Figure MC6879 MC6879 1982-08 → — Figure MC7461E MC7461E 1982-08 → — Figure MC7459E MC7459E 1980-03 → — Figure MC8785A MC8785A 1982-08 → — Figure MC8046A MC8046A 1981-10 → — Figure MC9922A MC9922A 1983-08 → —

Part groups

PNCDescription
44580 Valve Assy, Actuator Check
44580A Way, 3, Actuator Vacuum
44586 Hose, Actuator Vacuum, NO.1
44586A Clip(FOR ACTUATOR VACUUM HOSE)
44601 Band Sub-assy, Booster Body
44605 Plate & Seal Sub-assy, Booster
44608 Push Rod Sub-assy, Booster
44610 Booster Assy, Brake
44610J Way, 2(FOR BRAKE BOOSTER)
44610K Booster Kit, Brake
44626 Retainer, Booster Rod Cup
44629 Ring, Circular Internal
44633 Key, Booster Valve Plunger
44642 Piston, Brake Booster
44643 Retainer, Diaphragm
44645 Retainer, Booster Push Rod Seal
44647 Ring, Circular Internal(FOR BOOSTER BODY SEAL STOPPER)
44657A Ring, Snap(FOR BOOSTER AIR VALVE STOPPER)
44657B Washer, Plate(FOR BOOSTER AIR VALVE STOPPER)
44662 Retainer, Reaction, NO.1
44662B Lever, Reaction
44662C Plate, Reaction, NO.1
44669 Ring, Circular Internal(FOR AIR CLEANER ELEMENT STOPPER)
44678 Retainer, Booster Air Cleaner
44683 Connector, Booster Body
44683A Lock, Connector
44696 Grommet, Check Valve
44697 Screw, Booster Band Set
44697A Nut(FOR BOOSTER BAND SET)
44708 Insulator Sub-assy, Brake Booster Heat
44730A Hose, Vacuum, NO.1
44730D Clip(FOR VACUUM HOSE, NO.1)
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44730P Valve Assy, Vacuum Check, NO.1
44730Q Valve Assy, Vacuum Check, NO.2
44743 Union(FOR VACUUM PUMP)
44758 Bracket, Vacuum Check Valve
44763 Tube, Booster Vacuum
44773 Hose, Vacuum, NO.2
44773A Clip, NO.1(FOR VACUUM HOSE, NO.2)
44774 Hose, Union TO Connector Tube
44774C Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44785 Gasket, Brake Booster
44797 Bracket, Heat Insulator, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
