Toyota Cresta

1980-03 → 1984-07 · chassis GX5#,61,LX60,MX51,61,SX60,TX50 · catalogue 313140 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

23 part groups · 3 illustrations

Illustrations

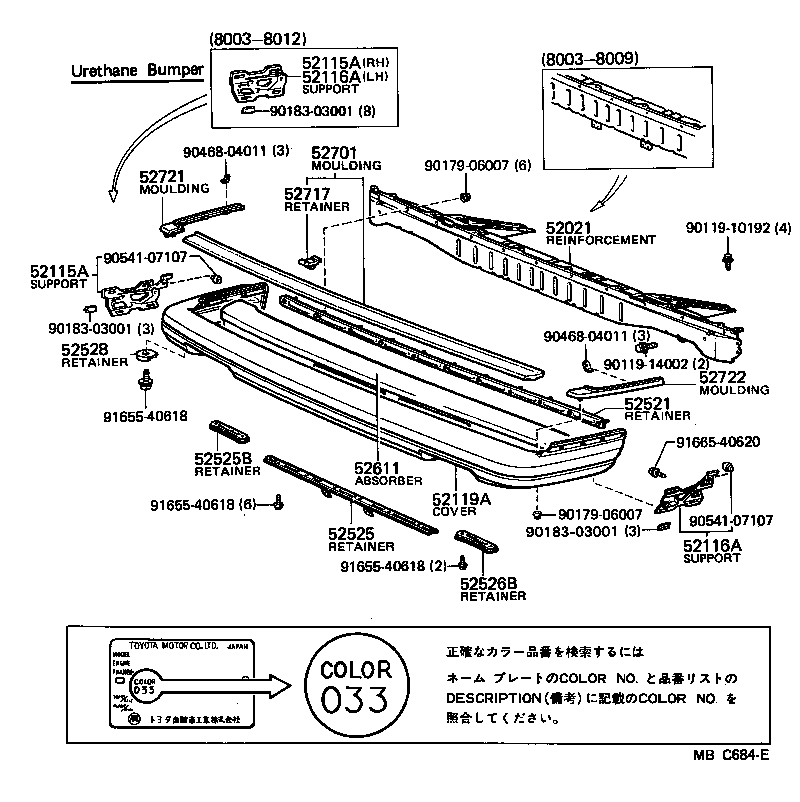

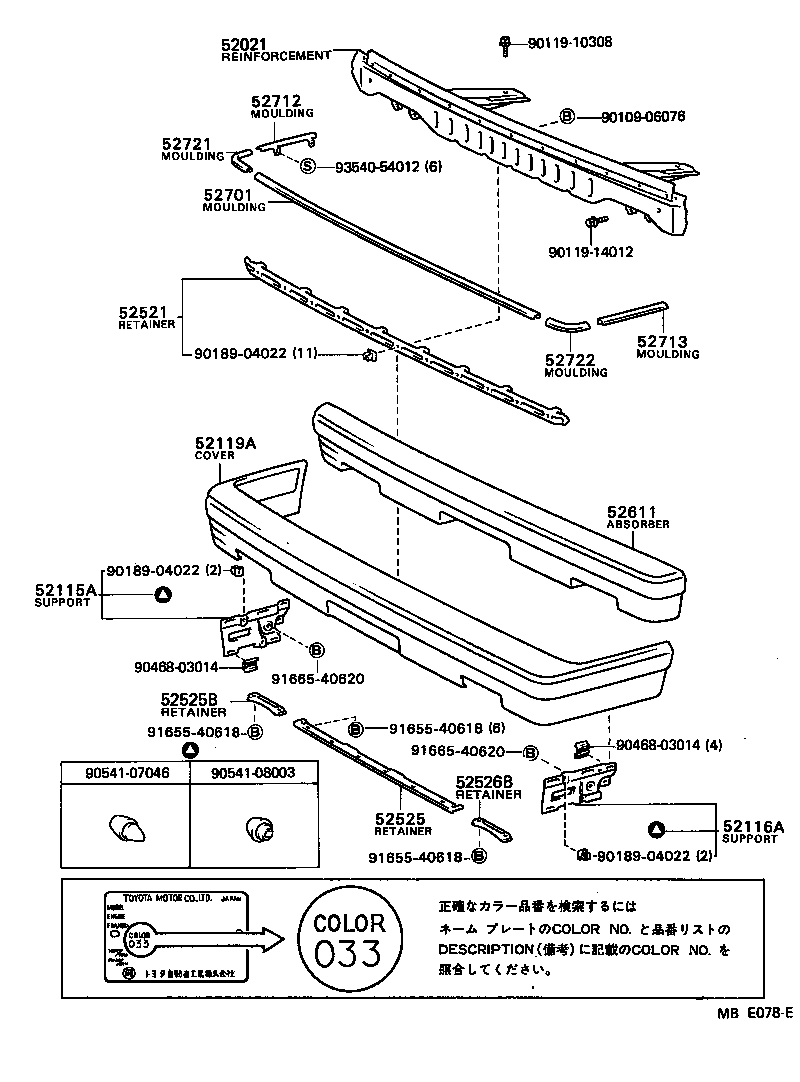

Figure MBB062F MBB062F 1980-03 → 1982-08 Figure MBC684E MBC684E 1980-03 → 1982-08 Figure MBE078E MBE078E 1982-08 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52051 Pad Sub-assy, Front Bumper, RH
52052 Pad Sub-assy, Front Bumper, LH
52105 Stay Sub-assy, Front Bumper, RH
52106 Stay Sub-assy, Front Bumper, LH
52111 Bumper Assy, Front
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52521 Retainer, Front Bumper, Upper Center
52525 Retainer, Front Bumper, Lower Center
52525B Retainer, Front Bumper, Lower Side RH
52526B Retainer, Front Bumper, Lower Side LH
52528 Retainer, Front Bumper, Lower Corner
52611 Absorber, Front Bumper Energy
52701 Moulding Sub-assy, Front Bumper
52712 Moulding, Front Bumper Side, RH
52713 Plug, Front Bumper Moulding
52717 Retainer, Front Bumper Moulding
52721 Moulding, Front Bumper Extension, RH
52722 Moulding, Front Bumper Extension, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
