Toyota Cresta

1980-03 → 1984-07 · chassis GX5#,61,LX60,MX51,61,SX60,TX50 · catalogue 313140 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

15 part groups · 3 illustrations

Illustrations

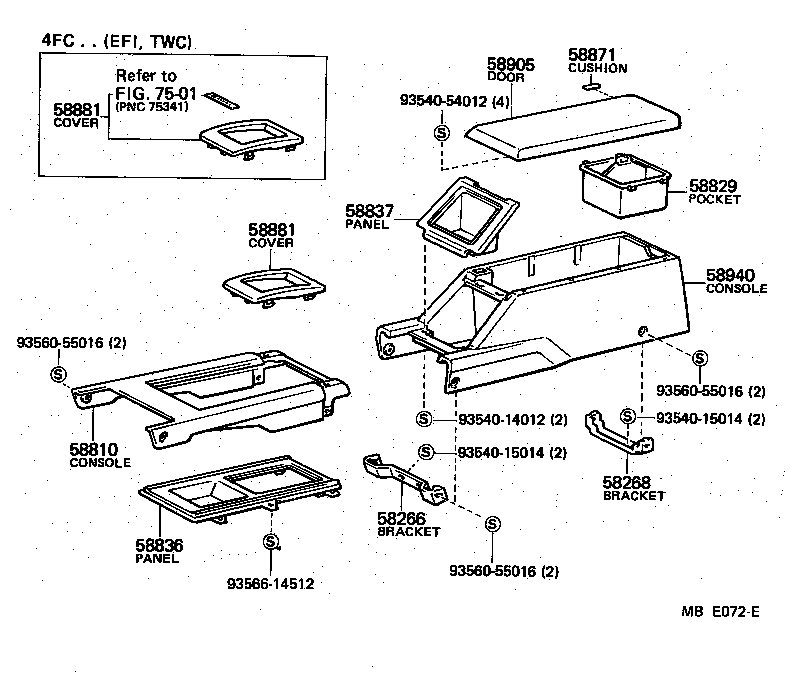

Figure MBB076I MBB076I 1980-03 → 1982-08 Figure MBB076I MBB076I 1982-08 → — Figure MBE072E MBE072E 1982-08 → —

Part groups

PNCDescription
58266 Bracket, Console Box Support, Front
58268 Bracket, Console Box Support, Rear
58808 Cover Sub-assy, Shifting Hole
58810 Console Assy
58827B Spacer, Console Compartment Door Stopper
58829 Pocket, Console Box
58836 Panel, Console, Upper Front
58837 Panel, Console, Upper Rear
58871 Cushion, Console Box
58881 Cover, Shifting Hole
58904A Stopper Sub-assy, Console Compartment Door
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58940 Console Assy, Rear
58969A Retainer, Console Compartment Door Stopper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
