Toyota Cresta
1980-03 → 1984-07 · chassis GX5#,61,LX60,MX51,61,SX60,TX50 · catalogue 313140 · Japan
Discontinued model
Data version 1985-03

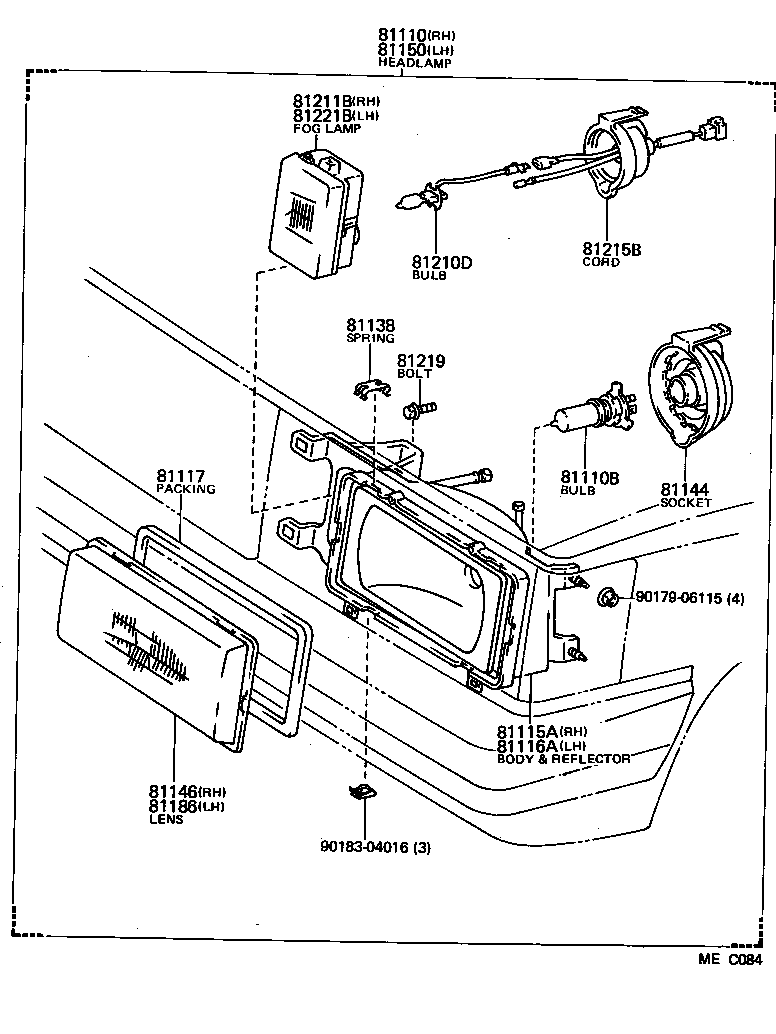

Headlamp
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81105 | Housing Sub-assy, Headlamp, RH |
| 81106 | Housing Sub-assy, Headlamp, LH |
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110D | Bulb(FOR HEADLAMP, NO.2) |
| 81110S | Sealed Beam Unit, NO.1 |
| 81110T | Sealed Beam Unit, NO.2 |
| 81111A | Ring, Sealed Beam Retaining, NO.1 RH |
| 81112 | Ring, Sealed Beam Retaining, NO.2 RH |
| 81113 | Ring, Sealed Beam Mounting, NO.1 RH |
| 81114 | Ring, Sealed Beam Mounting, NO.2 RH |
| 81115A | Body And Reflector Sub-assy, Headlamp, RH |
| 81116A | Body And Reflector Sub-assy, Headlamp, LH |
| 81117 | Packing, Headlamp Housing |
| 81121 | Spring, Headlamp Tension |
| 81131 | Screw, Headlamp Adjusting |
| 81138 | Spring, Headlamp |
| 81144 | Cover, Headlamp, NO.1 |
| 81146 | Lens, Headlamp, RH |
| 81150 | Headlamp Assy, LH |
| 81151A | Ring, Sealed Beam Retaining, NO.1 LH |
| 81152 | Ring, Sealed Beam Retaining, NO.2 LH |
| 81153 | Ring, Sealed Beam Mounting, NO.1 LH |
| 81154 | Ring, Sealed Beam Mounting, NO.2 LH |
| 81186 | Lens, Headlamp, LH |
| 81210D | Bulb, Fog Lamp |
| 81211B | Fog Lamp, RH |
| 81215B | Cord, Fog Lamp |
| 81219 | Bolt, Fog Lamp |
| 81221B | Fog Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
