Toyota Cresta

1980-03 → 1984-07 · chassis GX5#,61,LX60,MX51,61,SX60,TX50 · catalogue 313140 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

13 part groups · 2 illustrations

Illustrations

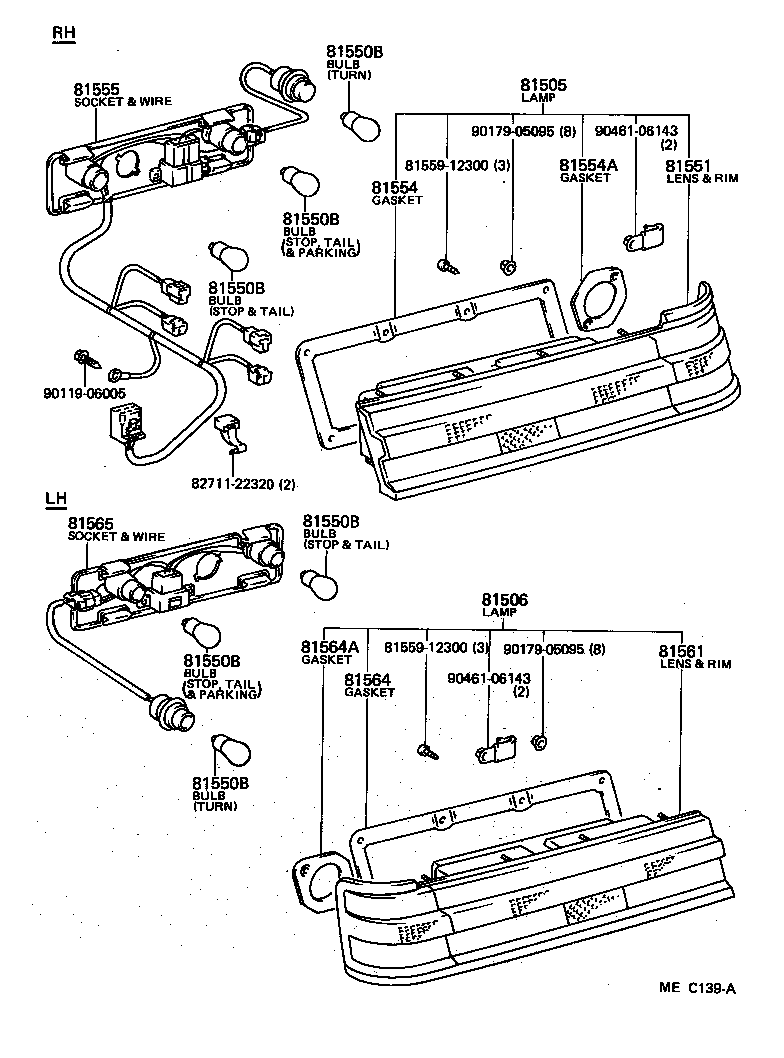

Figure ME8604A ME8604A 1980-03 → 1982-08 Figure MEC139A MEC139A 1982-08 → —

Part groups

PNCDescription
81505 Lamp Sub-assy, Rear Combination, RH
81506 Lamp Sub-assy, Rear Combination, LH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81554 Gasket, Rear Combination Lamp Body, RH
81554A Gasket, Rear Combination Lamp Body, NO.1 RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81555A Socket & Wire Sub-assy, Rear Combination Lamp, RH
81561 Lens, Rear Combination Lamp, LH
81564 Gasket, Rear Combination Lamp Body, LH
81564A Gasket, Rear Combination Lamp Body, NO.1 LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81565A Socket & Wire Sub-assy, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
