Toyota Cresta
1980-03 → 1984-07 · chassis GX5#,61,LX60,MX51,61,SX60,TX50 · catalogue 313140 · Japan
Discontinued model
Data version 1985-03

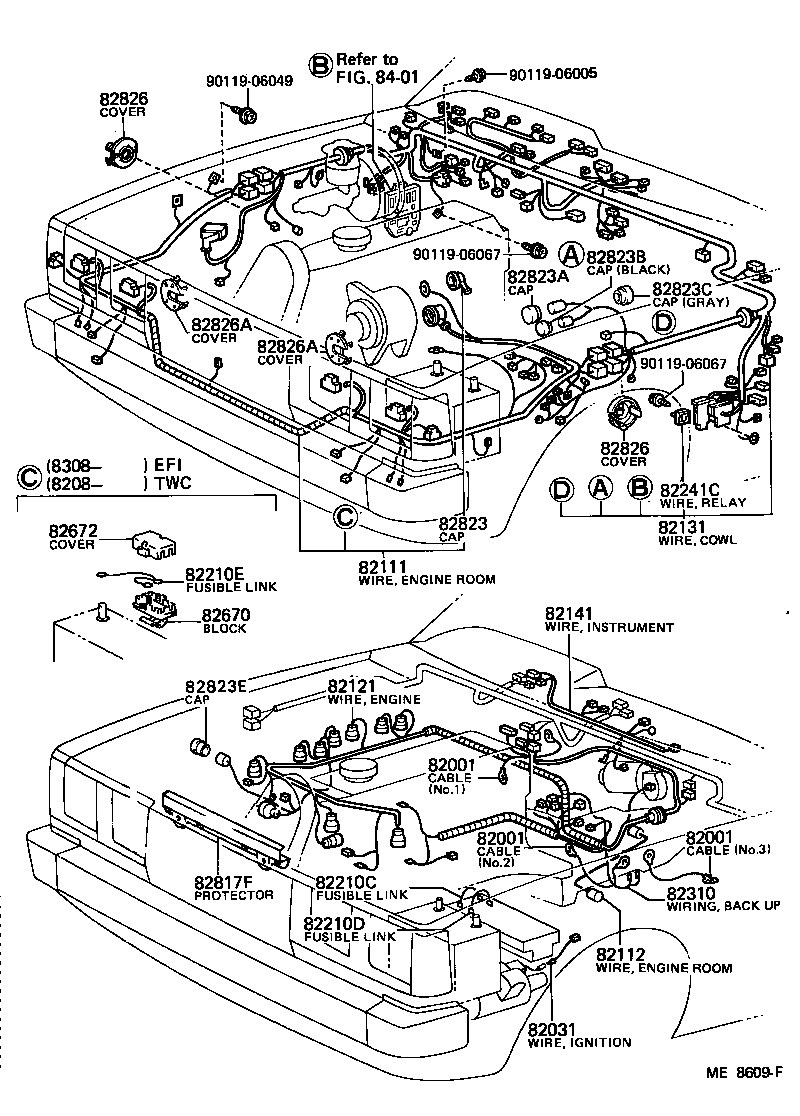

Wiring & Clamp
43 part groups · 12 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 82001 | Cable, Bond, NO.1 |

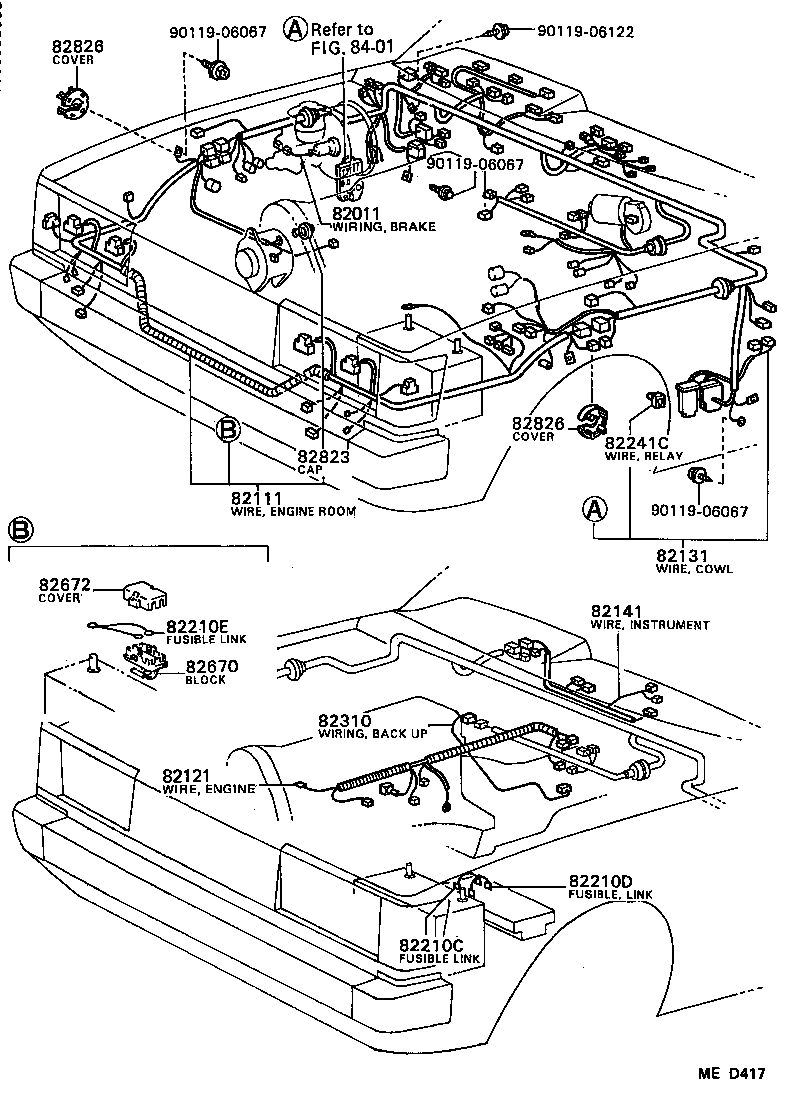

| 82011 | Wiring Assy, Brake Warning System |
| 82031 | Wire Sub-assy, Ignition Coil |

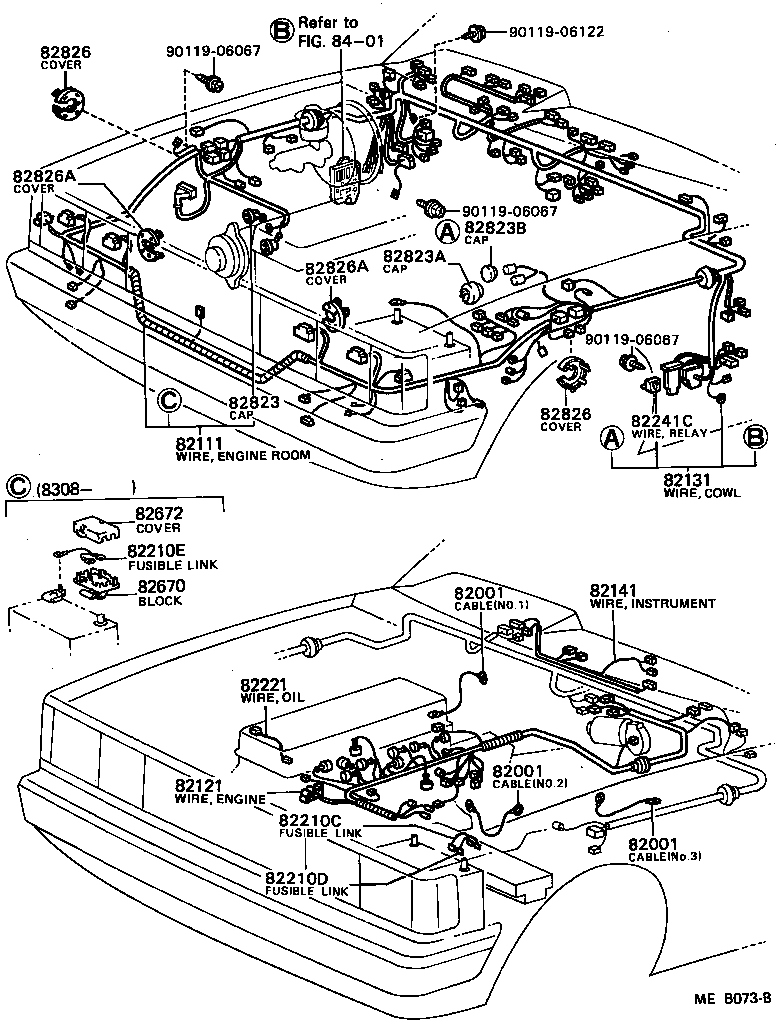

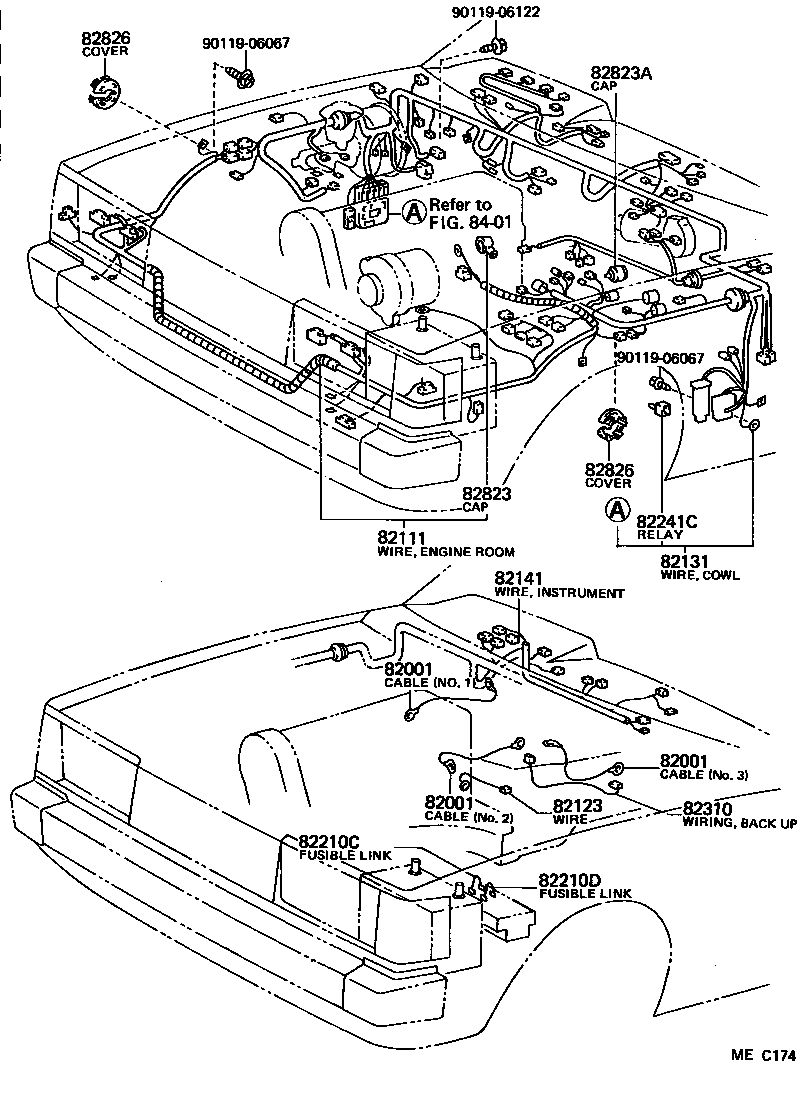

| 82111 | Wire, Engine Room Main |
| 82112 | Wire, Engine Room, NO.2 |
| 82121 | Wire, Engine |
| 82123 | Wire, Engine, NO.3 |
| 82131 | Wire, Cowl |
| 82141 | Wire, Instrument Panel |

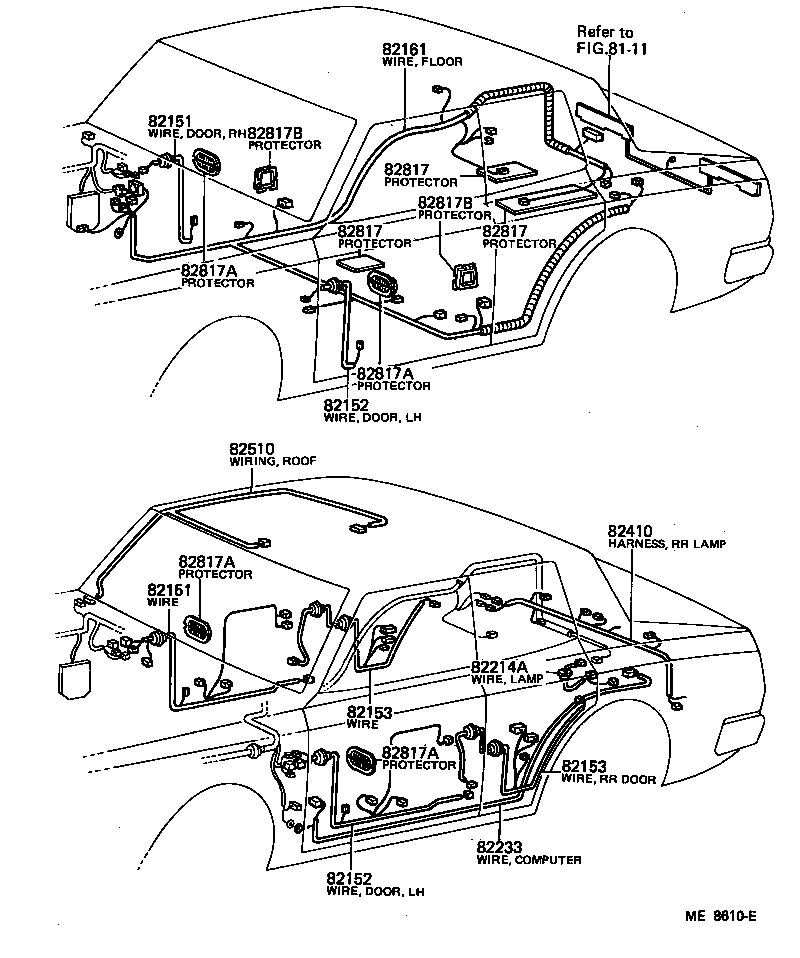

| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82161 | Wire, Floor |
| 82210C | Fusible Link |
| 82210D | Fusible Link |
| 82210E | Fusible Link |
| 82214A | Wire, Lamp |
| 82219 | Wire, Thermo Sensor |
| 82221 | Wire, Oil Pressure Switch |
| 82233 | Wire, Computer |
| 82241C | Wire, Relay |
| 82310 | Wiring Assy, TO Back UP Lamp Switch |
| 82410 | Harness Assy, Wiring TO Rear Lamp |
| 82510 | Wiring Assy, Roof |
| 82670 | Block Assy, Junction, NO.1 |
| 82672 | Cover, Junktion Block |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82817F | Protector, Wiring Harness, NO.7 |
| 82823 | Cap, Terminal, NO.1 |
| 82823A | Cap, Terminal, NO.2 |
| 82823B | Cap, Terminal, NO.3 |
| 82823C | Cap, Terminal, NO.4 |
| 82823E | Cap, Terminal, NO.5 |
| 82826 | Cover, Wiring Harness Hole |
| 82826A | Cover, Wiring Harness Hole, NO.2 |

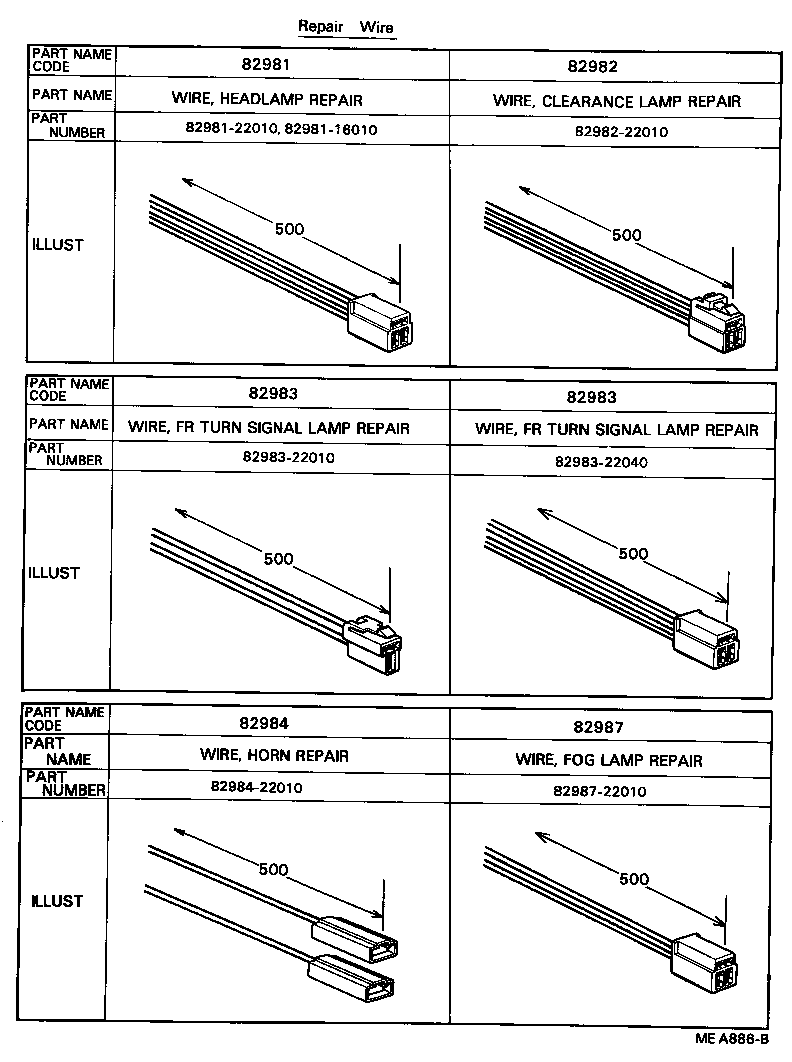

| 82981 | Wire, Headlamp Repair |
| 82982 | Wire, Clearance Lamp Repair |
| 82983 | Wire, Front Turn Signal Lamp Repair |
| 82984 | Wire, Horn Repair |
| 82987 | Wire, Fog Lamp Repair |
| 82991 | Wire, Fusible Link Repair |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
