Toyota Cresta
1980-03 → 1984-07 · chassis GX5#,61,LX60,MX51,61,SX60,TX50 · catalogue 313140 · Japan
Discontinued model
Data version 1985-03
Meter
29 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 83100B | Bulb, Combination Meter, NO.1 |
| 83100C | Connector, Combination Meter |
| 83100G | Glass, Combination Meter |
| 83101 | Socket Sub-assy, Combination Meter Bulb |

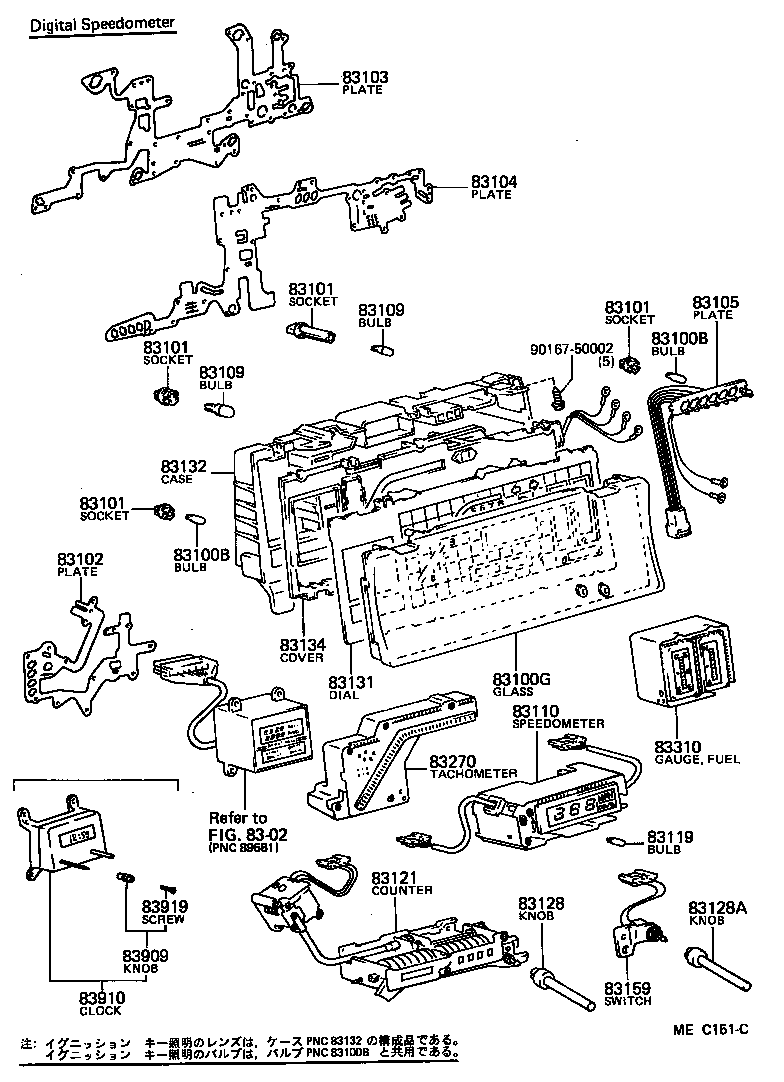

| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |
| 83103 | Plate Sub-assy, Combination Meter Circuit, NO.2 |
| 83104 | Plate Sub-assy, Combination Meter Circuit, NO.3 |
| 83105 | Plate Sub-assy, Combination Meter Circuit, NO.4 |
| 83109 | Bulb, Combination Meter, NO.2 |

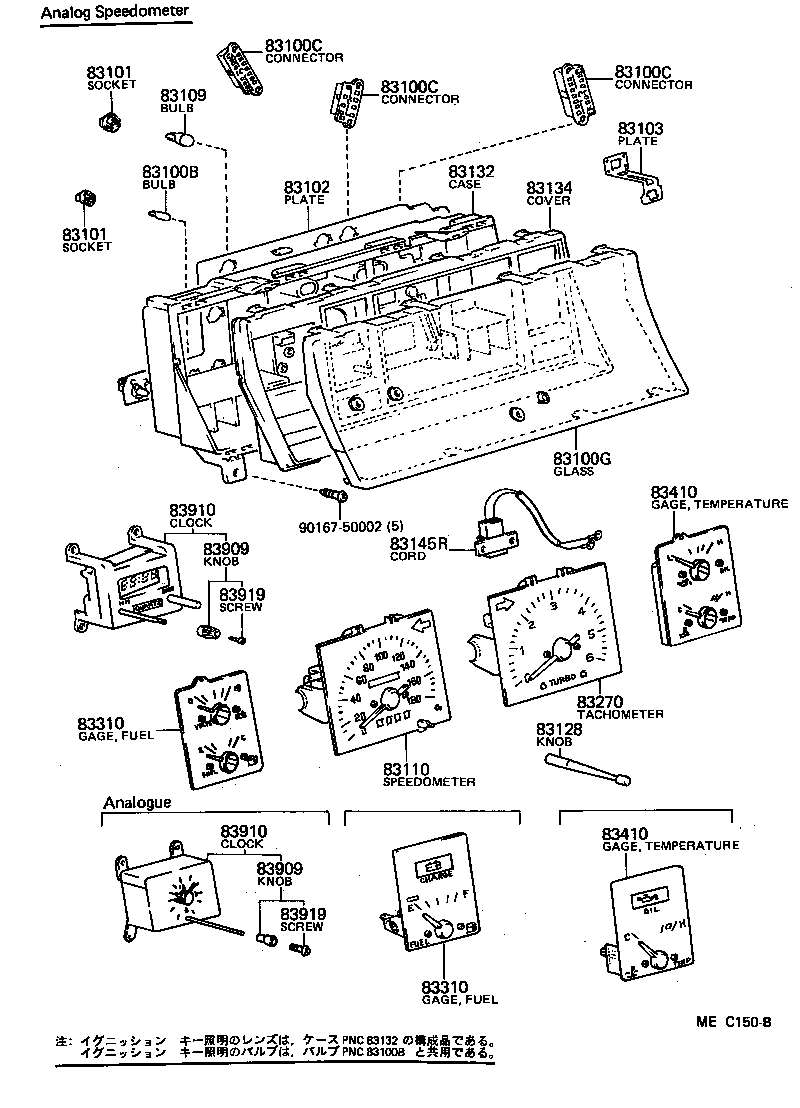

| 83110 | Speedometer Assy |
| 83119 | Bulb, Combination Meter, NO.3 |
| 83121 | Counter, Total |
| 83128 | Knob, Trip Counter |
| 83128A | Knob, Meter |
| 83131 | Dial, Meter, NO.1 |
| 83132 | Case, Combination Meter |
| 83134 | Cover, Combination Meter, NO.1 |
| 83145R | Cord, Meter |
| 83159 | Switch, Meter, NO.1 |
| 83180 | Detector Assy, Revolution |
| 83270 | Tachometer Assy, Engine |
| 83310 | Gage Assy, Fuel Receiver |
| 83410 | Gage Assy, Water Temperature Receiver |

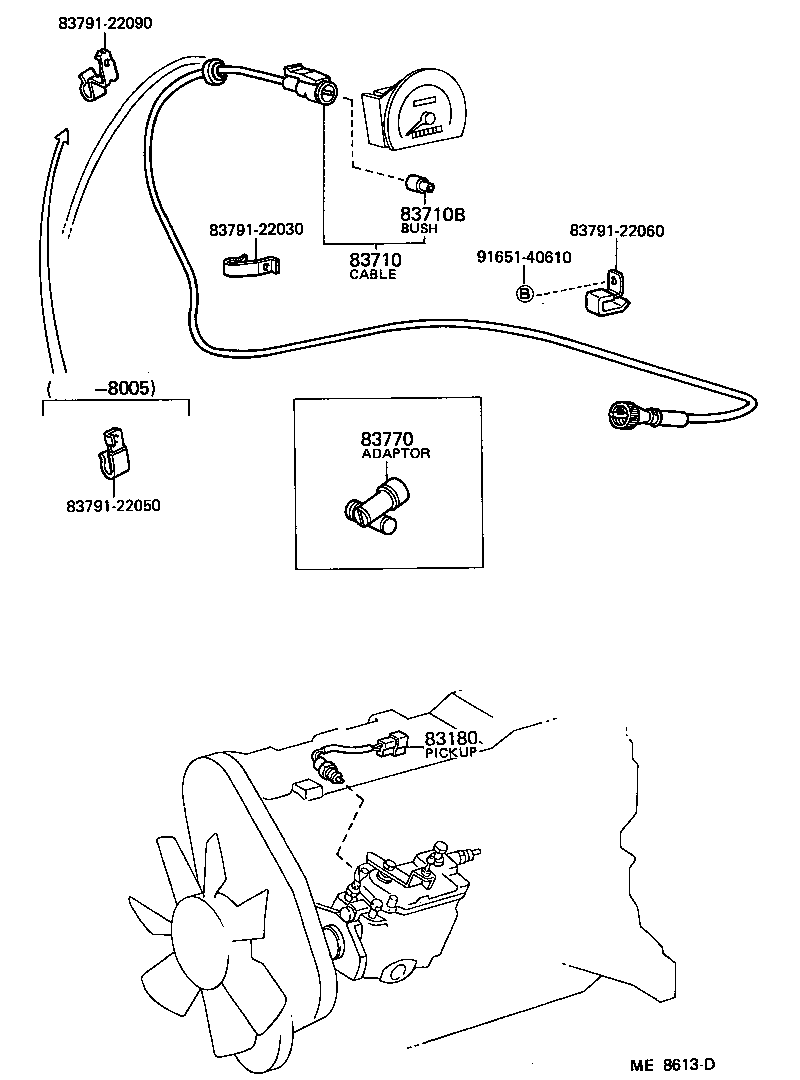

| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83710B | Bush, Speedometer Drive Cable |
| 83770 | Adapter Assy, Speedometer Cable |
| 83909 | Knob, Clock |
| 83910 | Clock Assy |
| 83919 | Screw, Clock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
