Toyota Cresta
1980-03 → 1984-07 · chassis GX5#,61,LX60,MX51,61,SX60,TX50 · catalogue 313140 · Japan
Discontinued model
Data version 1985-03

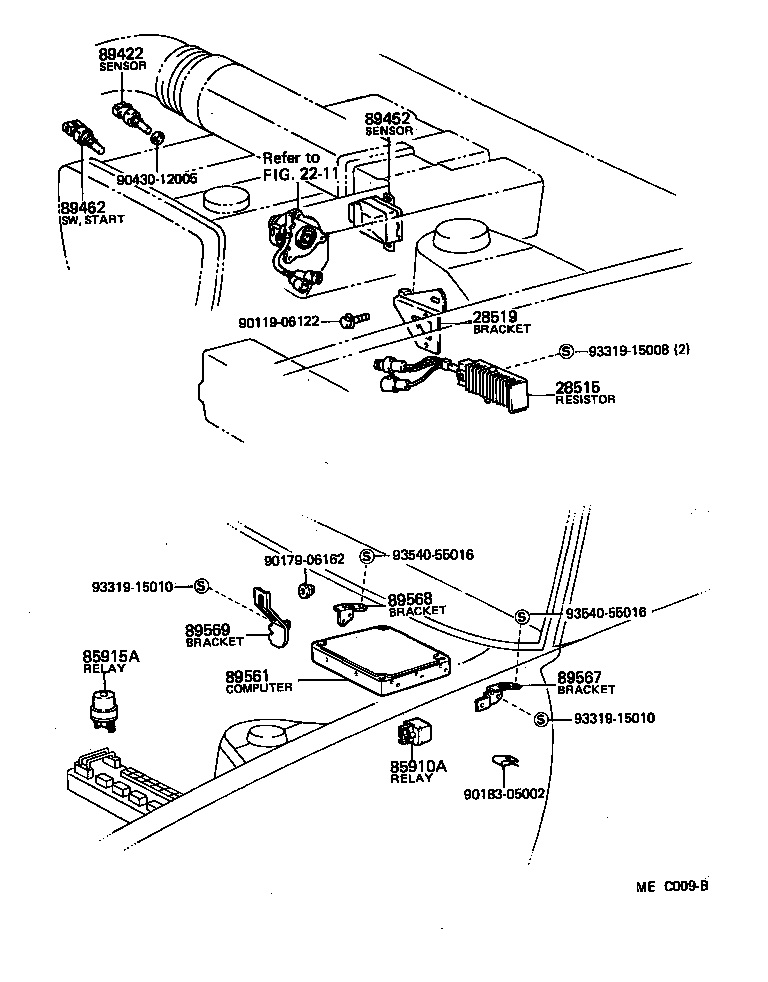

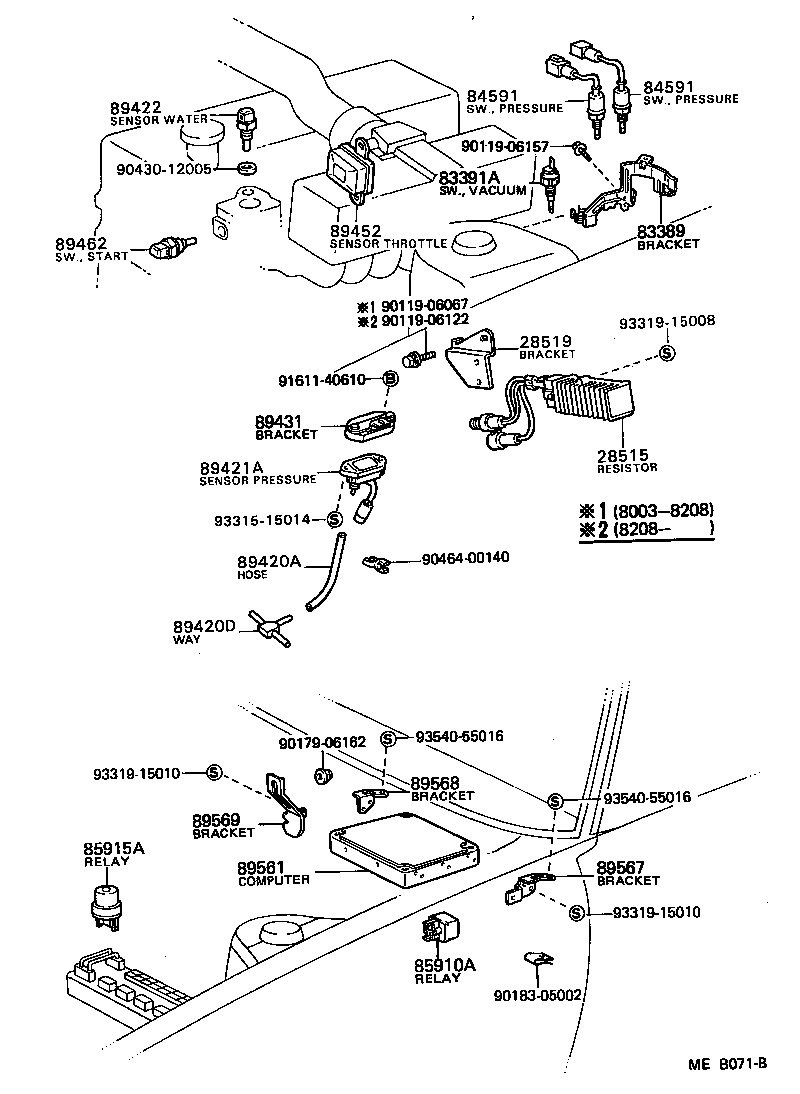

Electronic Fuel Injection System
18 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 28515 | Resistor, Solenoid |
| 28519 | Bracket, Solenoid Resistor |
| 83389 | Bracket, Pressure Switch |
| 83391A | Switch, Vacuum |
| 84591 | Switch, Pressure |
| 85910A | Relay Assy, Circuit Opening (FOR EFI) |
| 85915A | Relay, Main |
| 89420A | Hose, Vacuum Pressure Sensor |
| 89420D | Way, 3(FOR TURBO PRESSURE SENSOR) |
| 89421A | Sensor, Turbo Pressure |
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89431 | Bracket, Turbo Pressure |
| 89452 | Sensor, Throttle Position (FOR E.F.I.) |
| 89462 | Switch, Start Injector Time |
| 89561 | Computer, Fuel Injection |
| 89567 | Bracket, Fuel Injection Computer |
| 89568 | Bracket, Fuel Injection Computer |
| 89569 | Bracket, Fuel Injection Computer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
