Toyota Cresta

1980-03 → 1984-07 · chassis GX5#,61,LX60,MX51,61,SX60,TX50 · catalogue 313140 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

13 part groups · 2 illustrations

Illustrations

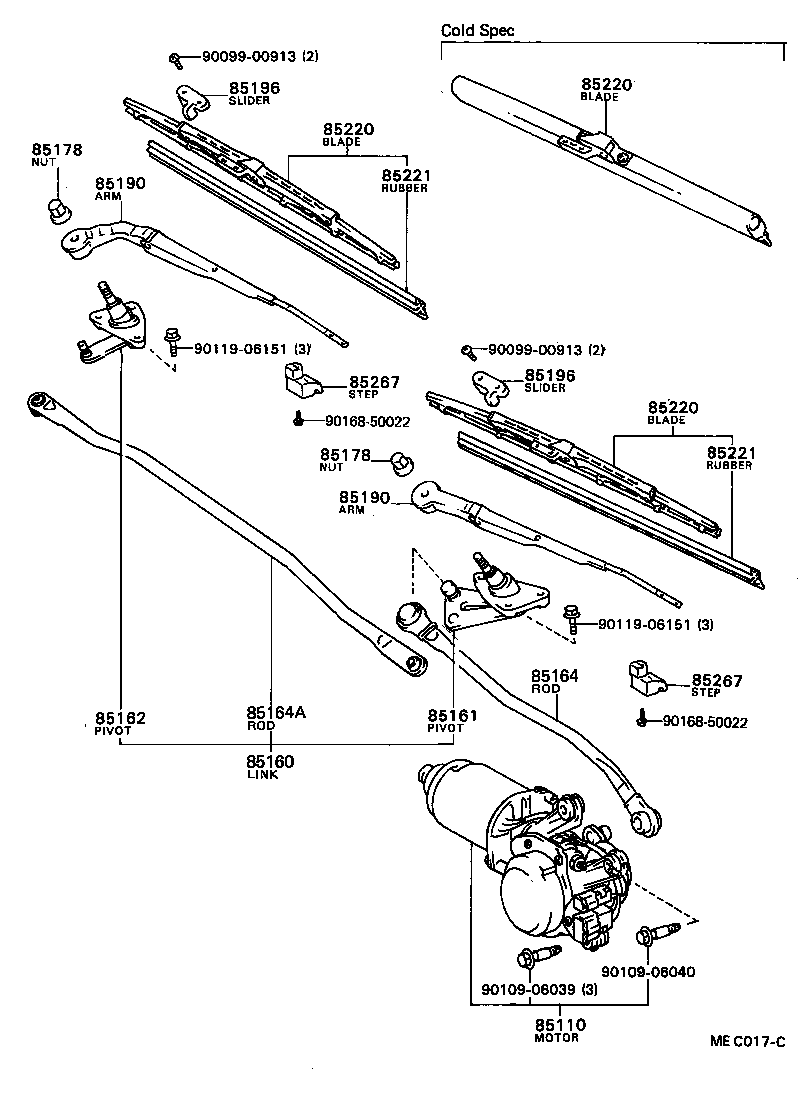

Figure ME8626D ME8626D 1980-03 → 1982-08 Figure MEC017C MEC017C 1982-08 → —

Part groups

PNCDescription
85110 Motor Assy, Windshield Wiper
85160 Link Assy, Windshield Wiper
85161 Pivot, Windshield Wiper Link, NO.1
85162 Pivot, Windshield Wiper Link, NO.2
85164 Rod, Windshield Wiper Link, NO.1
85164A Rod, Windshield Wiper Link, NO.2
85178 Nut (FOR FRONT WIPER ARM SETTING)
85190 Arm Assy, Windshield Wiper
85192 Cover, Windshield Wiper Arm
85196 Slider, Wiper Arm
85220 Blade Assy, Windshield Wiper
85221 Blade, Windshield Wiper
85267 Step, Linear Wiper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
