Toyota Cresta

1980-03 → 1984-07 · chassis GX5#,61,LX60,MX51,61,SX60,TX50 · catalogue 313140 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

11 part groups · 4 illustrations

Illustrations

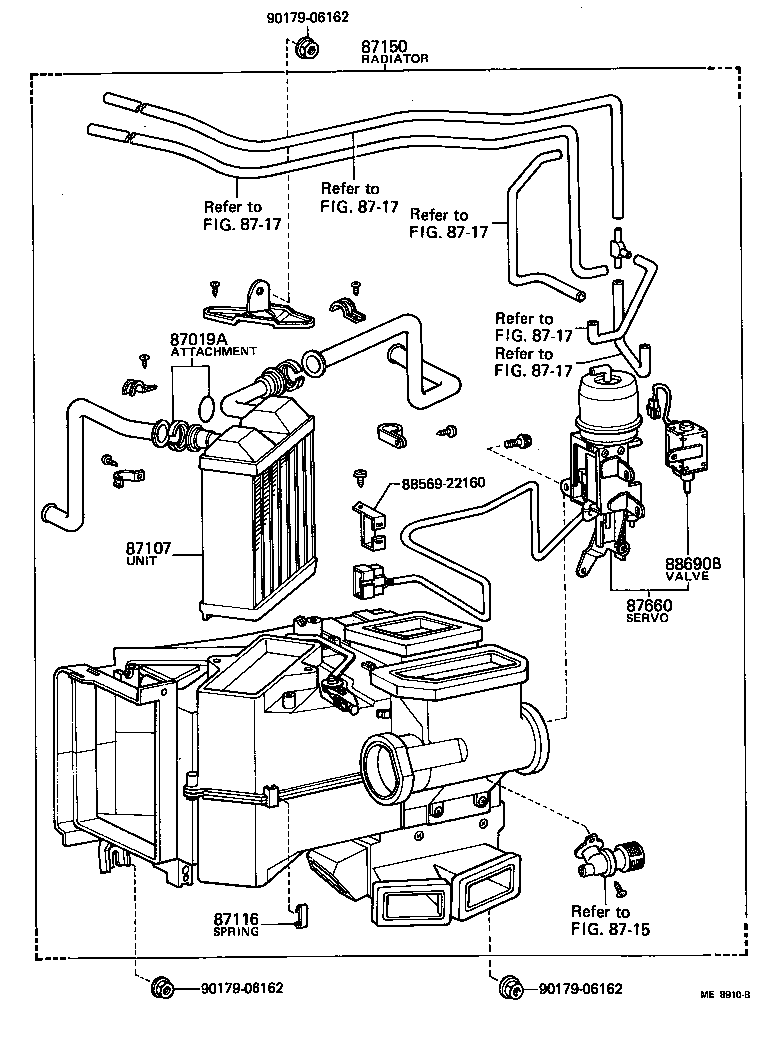

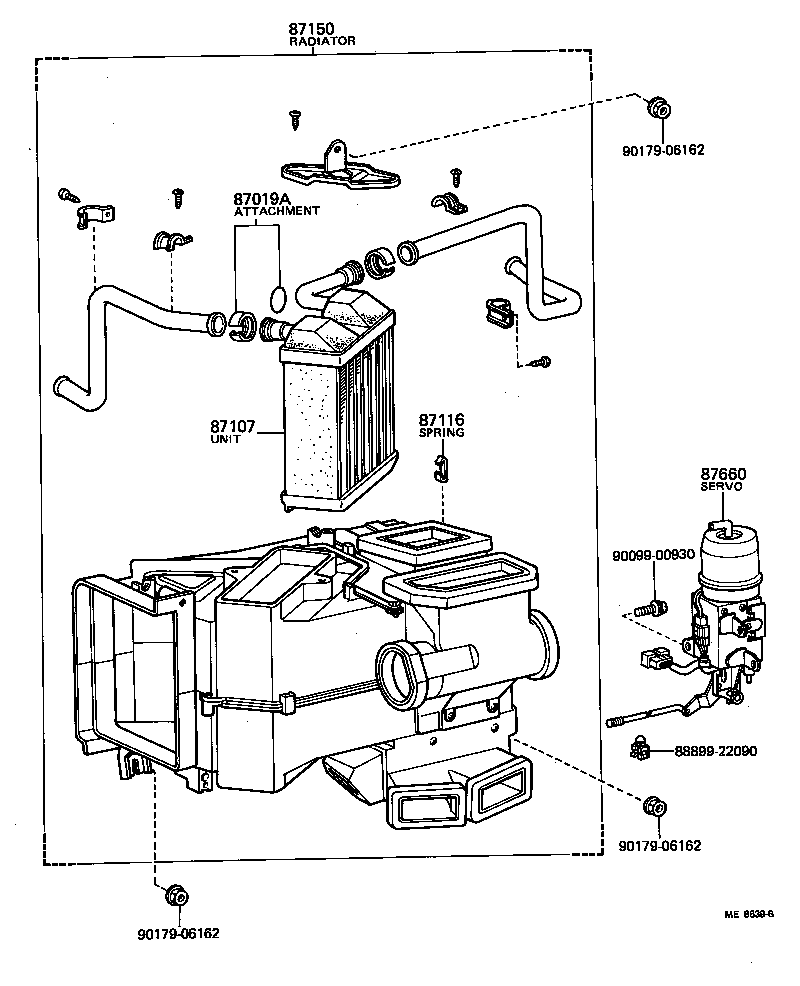

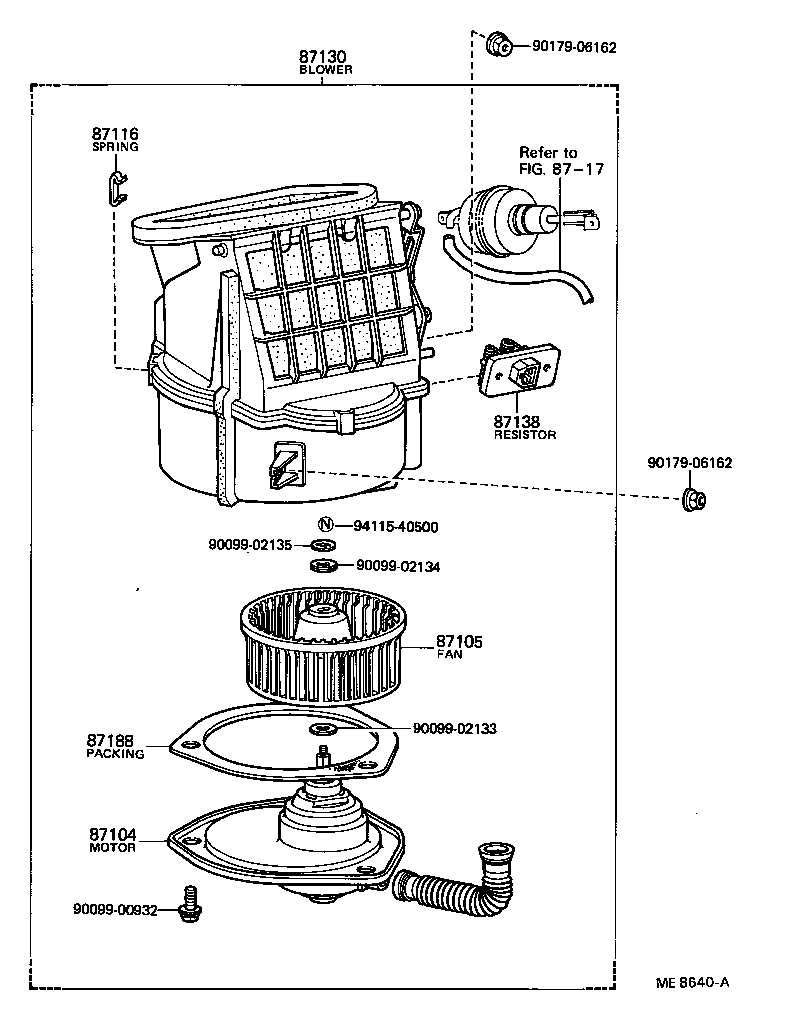

Figure ME8638C ME8638C 1980-03 → — Figure ME8639B ME8639B 1980-03 → — Figure ME8910B ME8910B 1980-03 → — Figure ME8640A ME8640A 1980-03 → —

Part groups

PNCDescription
87019A Attachment, Heater
87104 Motor Sub-assy, Heater Blower
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87116 Spring, Heater Case Fastening
87130 Blower Assy, Heater, Front
87138 Resistor, Heater Blower
87150 Radiator Assy, Heater
87188 Packing, Heater Blower Motor
87660 Servo Assy, Air Conditioner
88690B Valve Assy, Cooler Magnet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
