Toyota Cresta
1984-08 → 1988-08 · chassis GX71,LX70,MX71,SX70 · catalogue 313150 · Japan
Discontinued model
Data version 1989-02

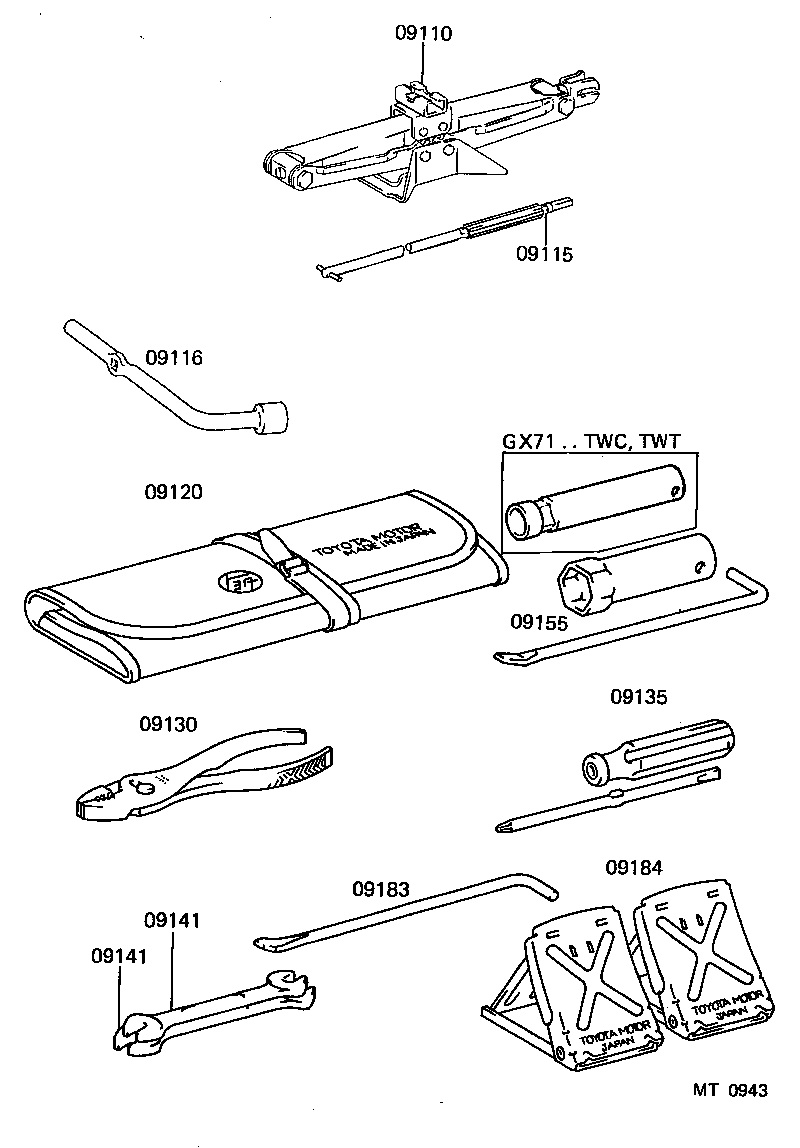

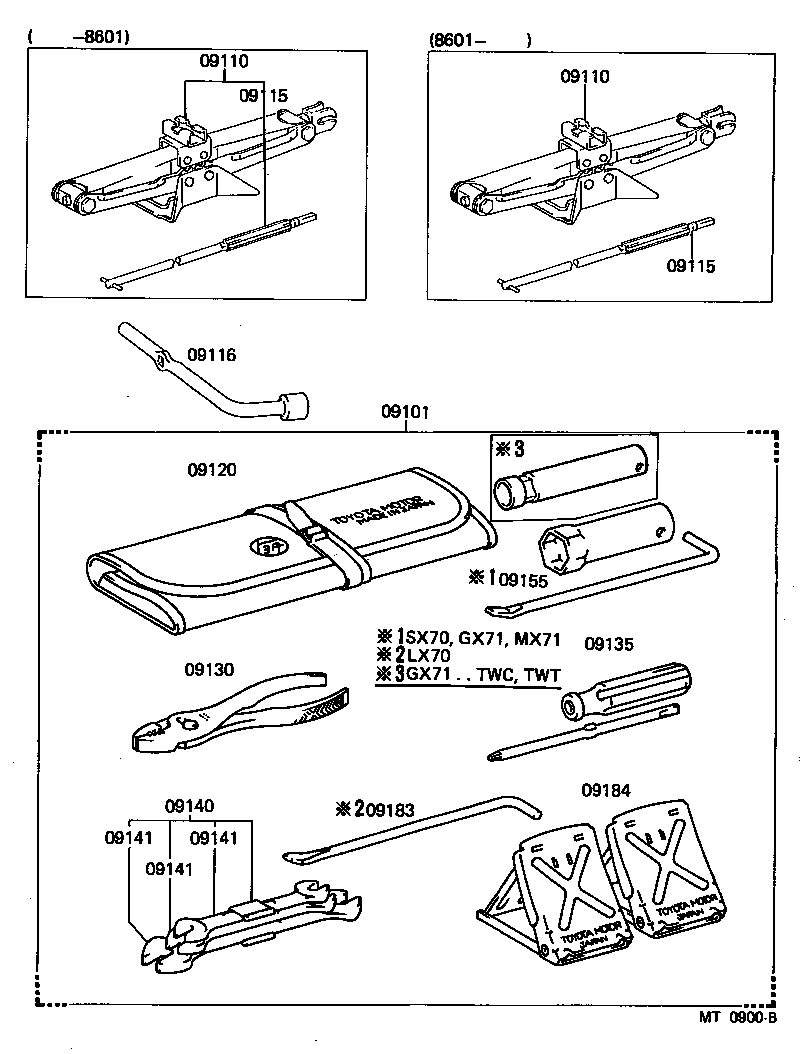

Standard Tool
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 09101 | Tool Set, Standard W/O Jack |
| 09110 | Jack Assy |
| 09115 | Rod Sub-assy, Jack Handle |
| 09116 | Lever, Jack Handle |
| 09120 | Bag, Tool |
| 09130 | Pliers |
| 09135 | Driver, Screw |
| 09140 | Spanner Set |
| 09141 | Spanner |
| 09155 | Wrench, Spark Plug |
| 09183 | Wrench, Wheel Cap |
| 09184 | Stopper, Wheel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
