Toyota Cresta
1984-08 → 1988-08 · chassis GX71,LX70,MX71,SX70 · catalogue 313150 · Japan
Discontinued model
Data version 1989-02

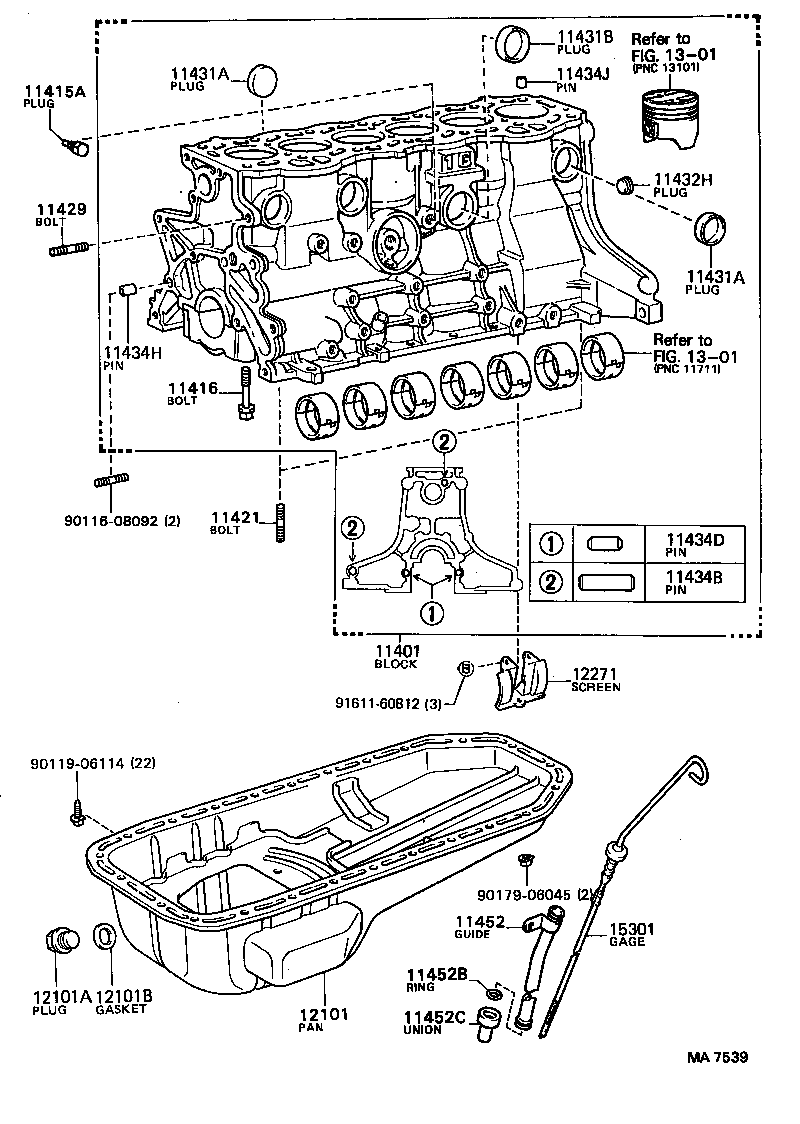

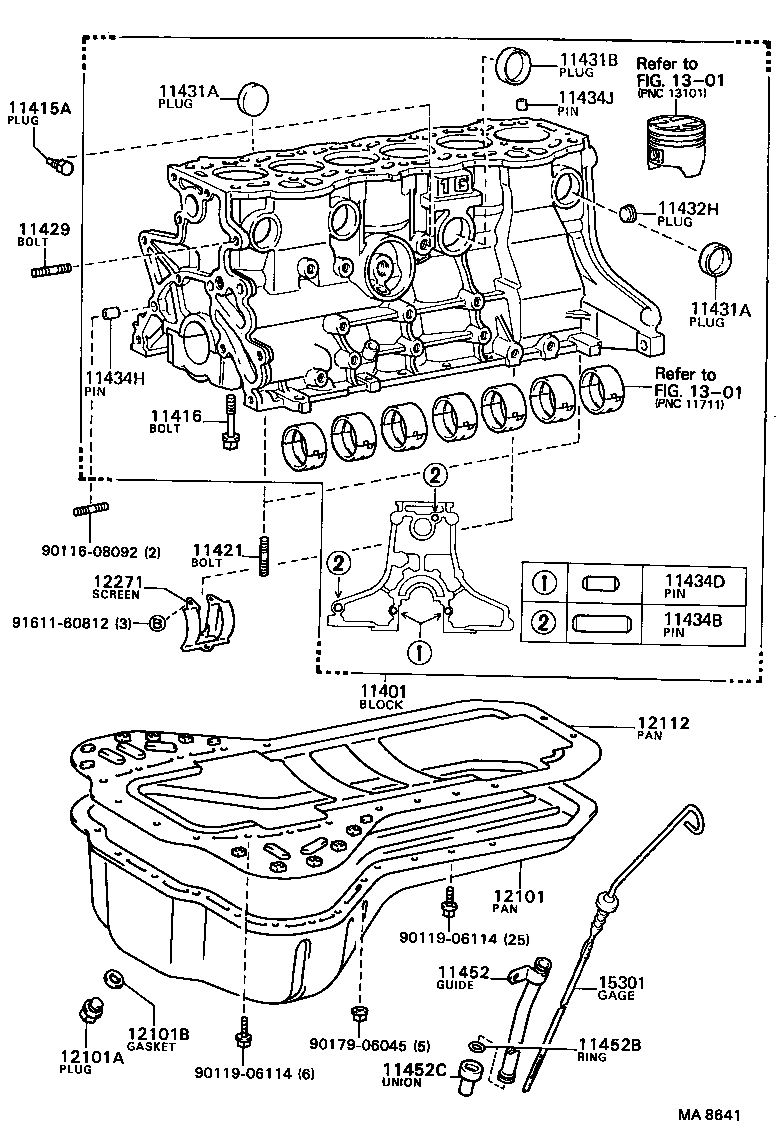

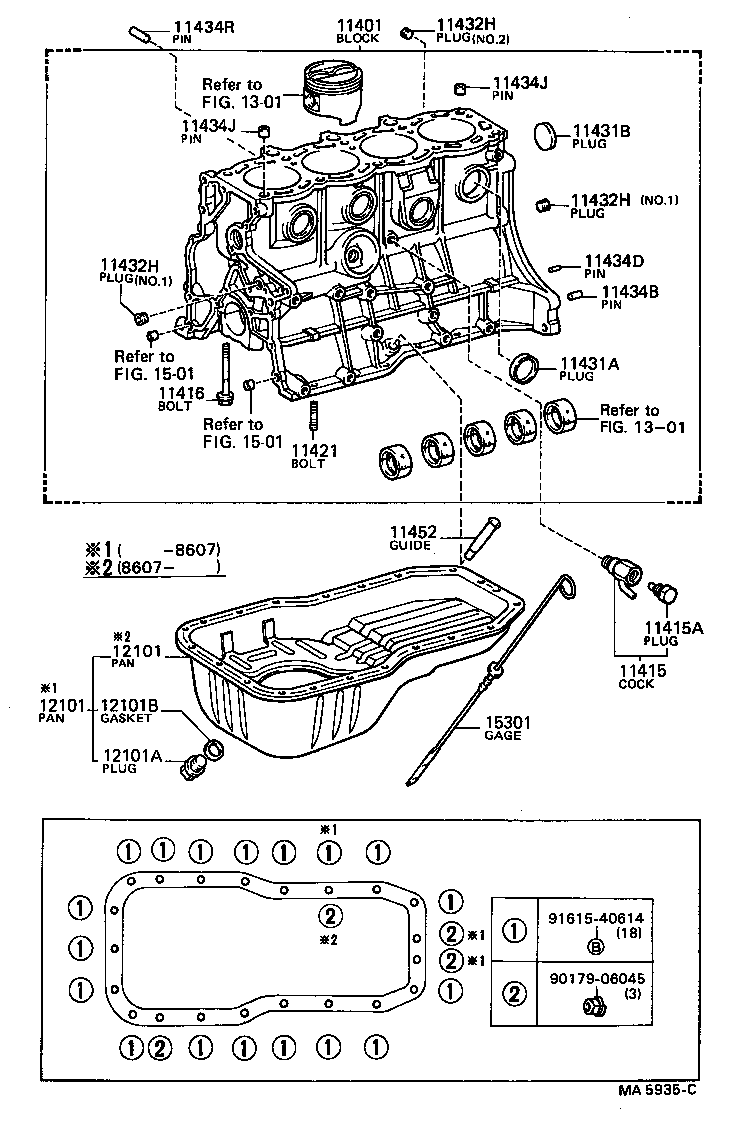

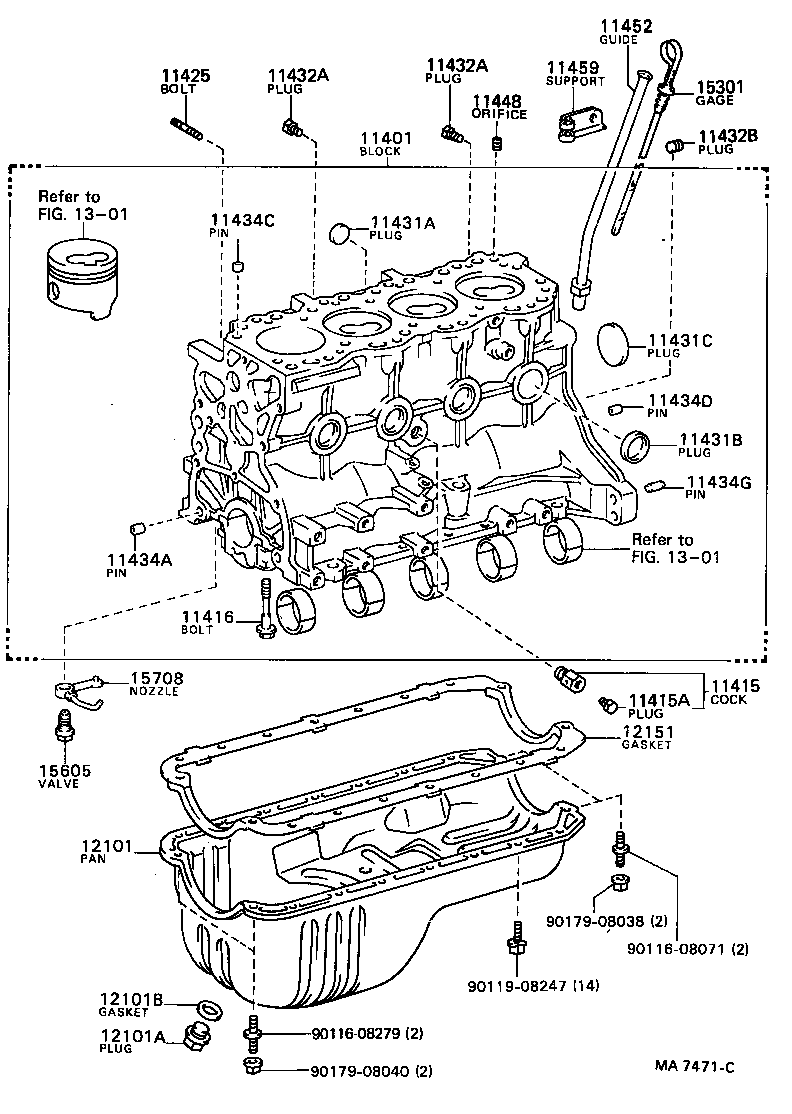

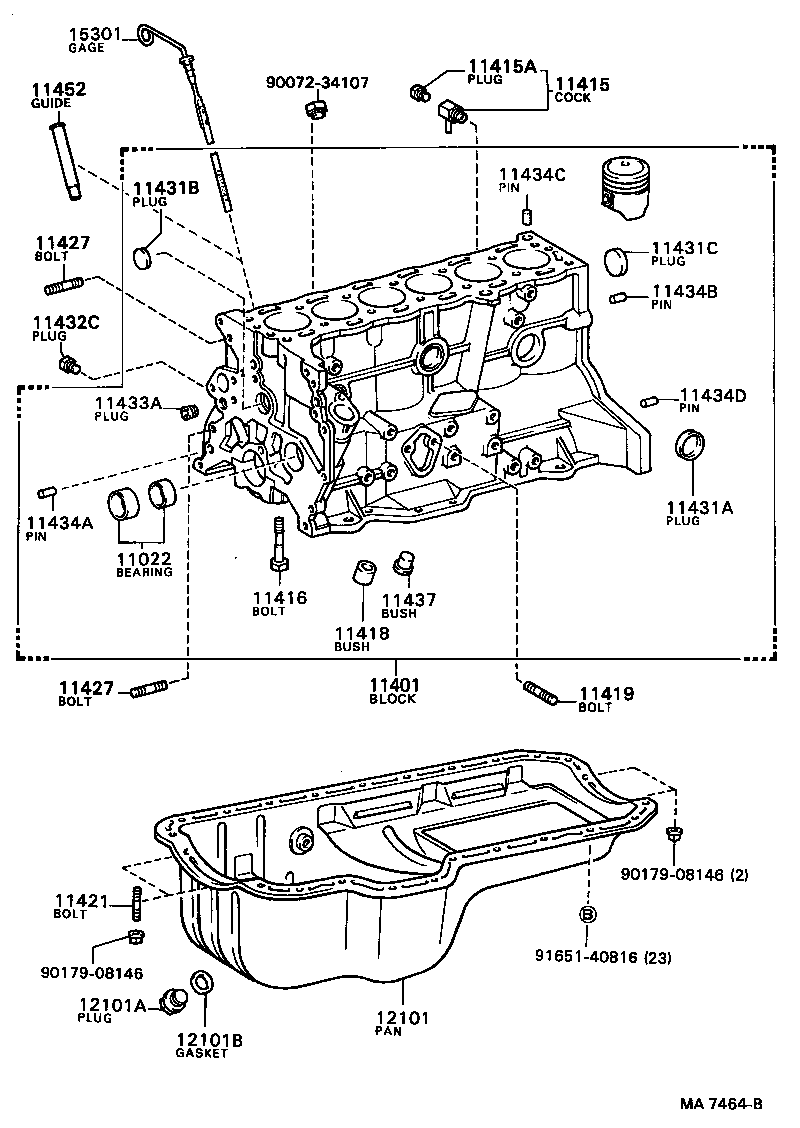

Cylinder Block
42 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 11022 | Bearing Set, Pump Drive Shaft |
| 11401 | Block Sub-assy, Cylinder |
| 11415 | Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK) |
| 11415A | Plug, Water Drain Cock(FOR CYLINDER BLOCK) |
| 11416 | Bolt(FOR CRANKSHAFT BEARING CAP SET) |
| 11418 | Bush, Solid(FOR DISTRIBUTOR) |
| 11419 | Bolt, Stud(FOR FUEL PUMP) |
| 11421 | Bolt, Stud(FOR OIL PAN) |
| 11425 | Bolt, Stud(FOR OIL FILTER) |
| 11427 | Bolt, Stud(FOR TIMING CHAIN COVER SET) |
| 11429 | Bolt, Stud(FOR ALTERNATOR BRACKET) |
| 11431A | Plug, Tight, NO.1(FOR CYLINDER BLOCK) |
| 11431B | Plug, Tight, NO.2(FOR CYLINDER BLOCK) |
| 11431C | Plug, Tight, NO.3(FOR CYLINDER BLOCK) |
| 11432A | Plug, W/Head Taper Screw, NO.1 |
| 11432B | Plug, W/Head Taper Screw, NO.2 |
| 11432C | Plug, W/Head Taper Screw, NO.3 |
| 11432H | Plug, W/Head Taper Screw, NO.5 |
| 11433A | Plug, Straight, NO.1 |
| 11434A | Pin, Straight(FOR TIMING GEAR COVER SET) |
| 11434B | Pin, Straight(FOR CLUTCH HOUSING SET) |
| 11434C | Pin, Straight (FOR CYLINDER HEAD SET) |
| 11434D | Pin, Straight(FOR ENGINE REAR OIL SEAL) |
| 11434G | Pin, Straight(FOR END PLATE) |
| 11434H | Pin, Ring (FOR TIMING BELT COVER SET) |
| 11434J | Pin, Ring (FOR CYLINDER HEAD SET) |
| 11434R | Pin, Straight(FOR DRIVE SHAFT BEARING BRACKET) |
| 11437 | Bush, Oil Pump Shaft Guide |
| 11448 | Orifice, Cylinder Block Oil |
| 11452 | Guide, Oil Level Gage |
| 11452B | Ring, O(FOR OIL LEVEL GAGE GUIDE) |
| 11452C | Union(FOR OIL LEVEL GAGE GUIDE) |
| 11459 | Support, Oil Level Gage Guide |
| 12101 | Pan Sub-assy, Oil |
| 12101A | Plug(FOR OIL PAN DRAIN) |
| 12101B | Gasket(FOR OIL PAN DRAIN PLUG) |
| 12112 | Pan, Oil NO.2 |
| 12151 | Gasket, Oil Pan |
| 12271 | Screen, Oil Separator |
| 15301 | Gage Sub-assy, Oil Level |
| 15605 | Valve Sub-assy, Oil Check |
| 15708 | Nozzle Sub-assy, Oil, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
