Toyota Cresta
1984-08 → 1988-08 · chassis GX71,LX70,MX71,SX70 · catalogue 313150 · Japan
Discontinued model
Data version 1989-02
Oil Filter

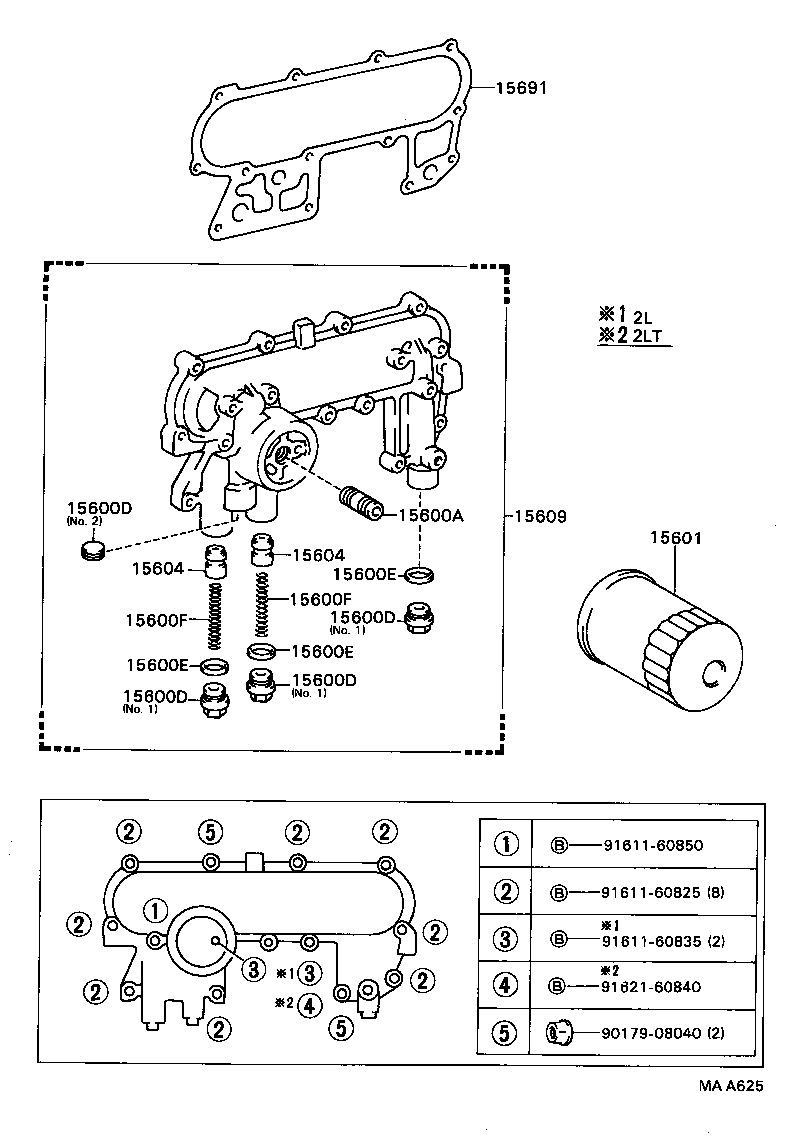

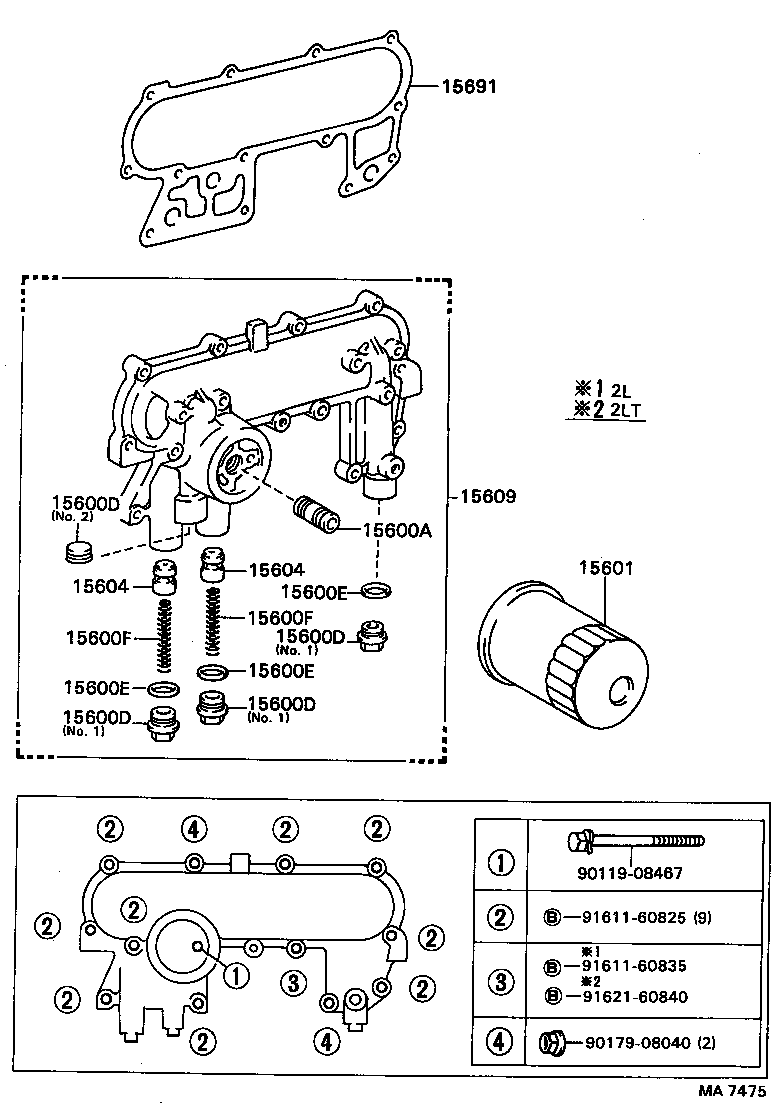

8 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 15600A | Union(FOR OIL FILTER) |
| 15600D | Plug(FOR OIL FILTER) |
| 15600E | Washer(FOR OIL FILTER) |
| 15600F | Spring, Compression(FOR OIL FILTER) |
| 15601 | Filter Sub-assy, Oil |
| 15604 | Valve Sub-assy, Oil Safety |
| 15609 | Bracket Sub-assy, Oil Filter |
| 15691 | Gasket, Oil Filter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
