Toyota Cresta
1984-08 → 1988-08 · chassis GX71,LX70,MX71,SX70 · catalogue 313150 · Japan
Discontinued model
Data version 1989-02

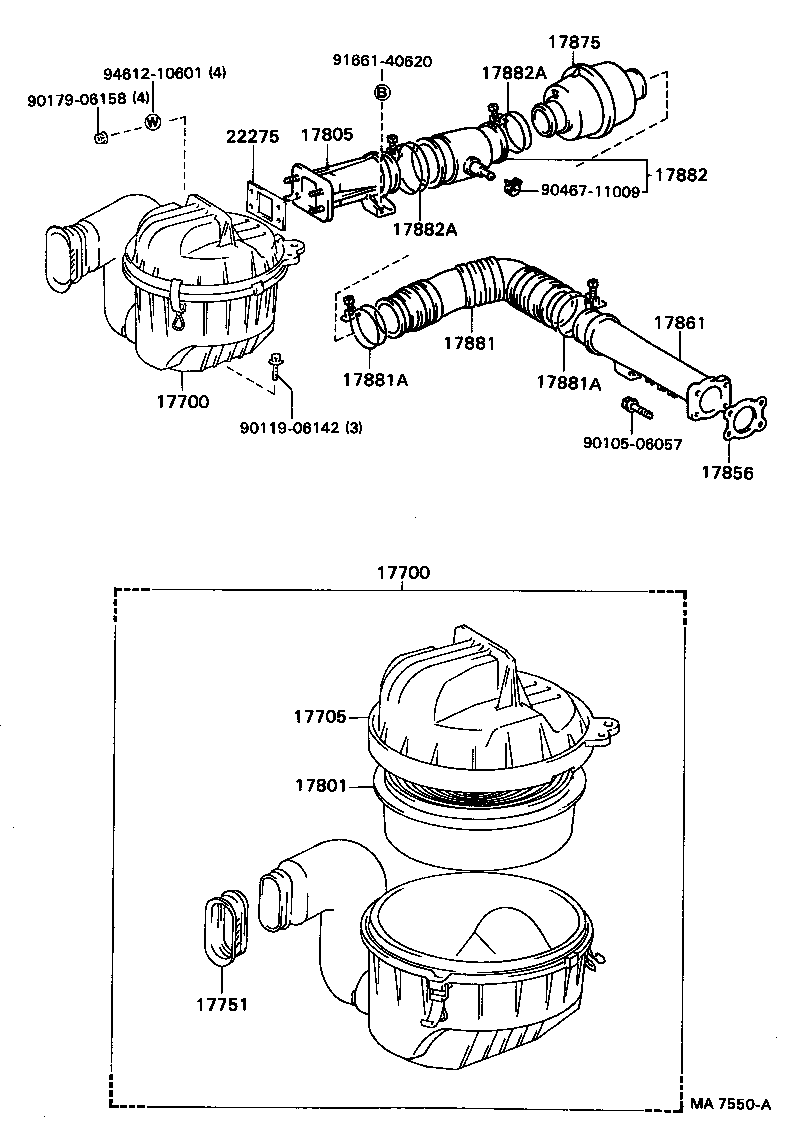

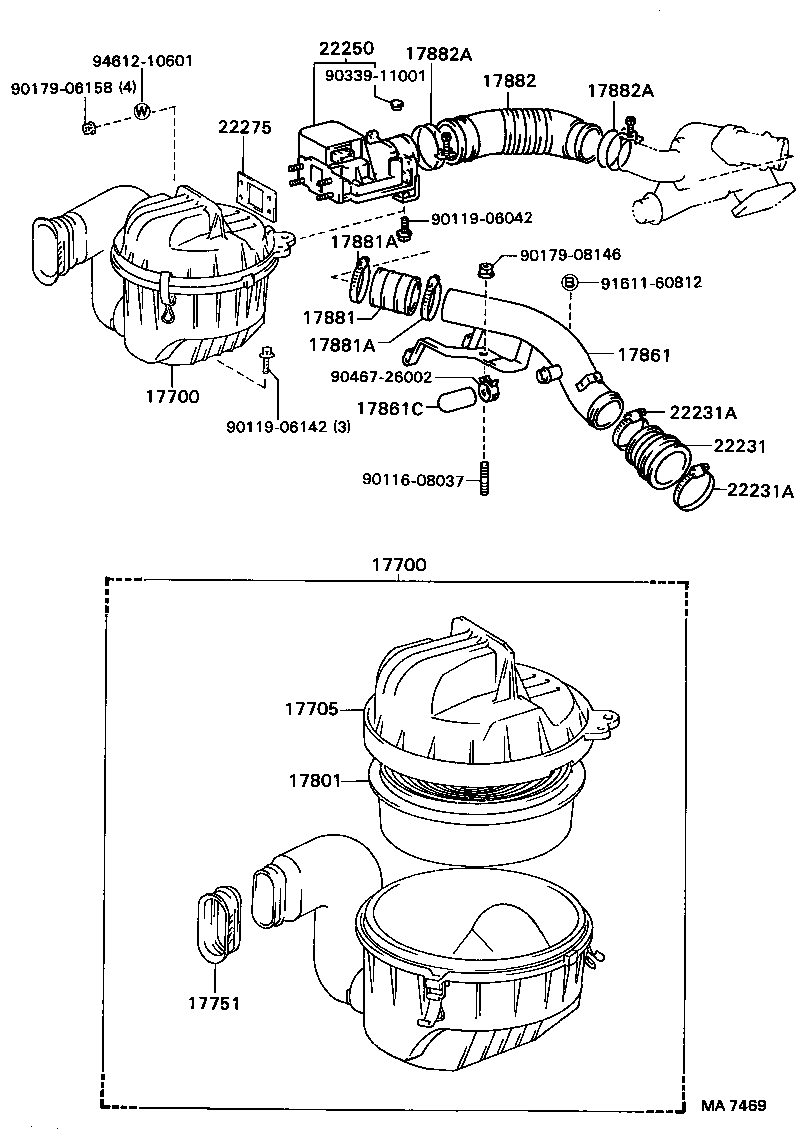

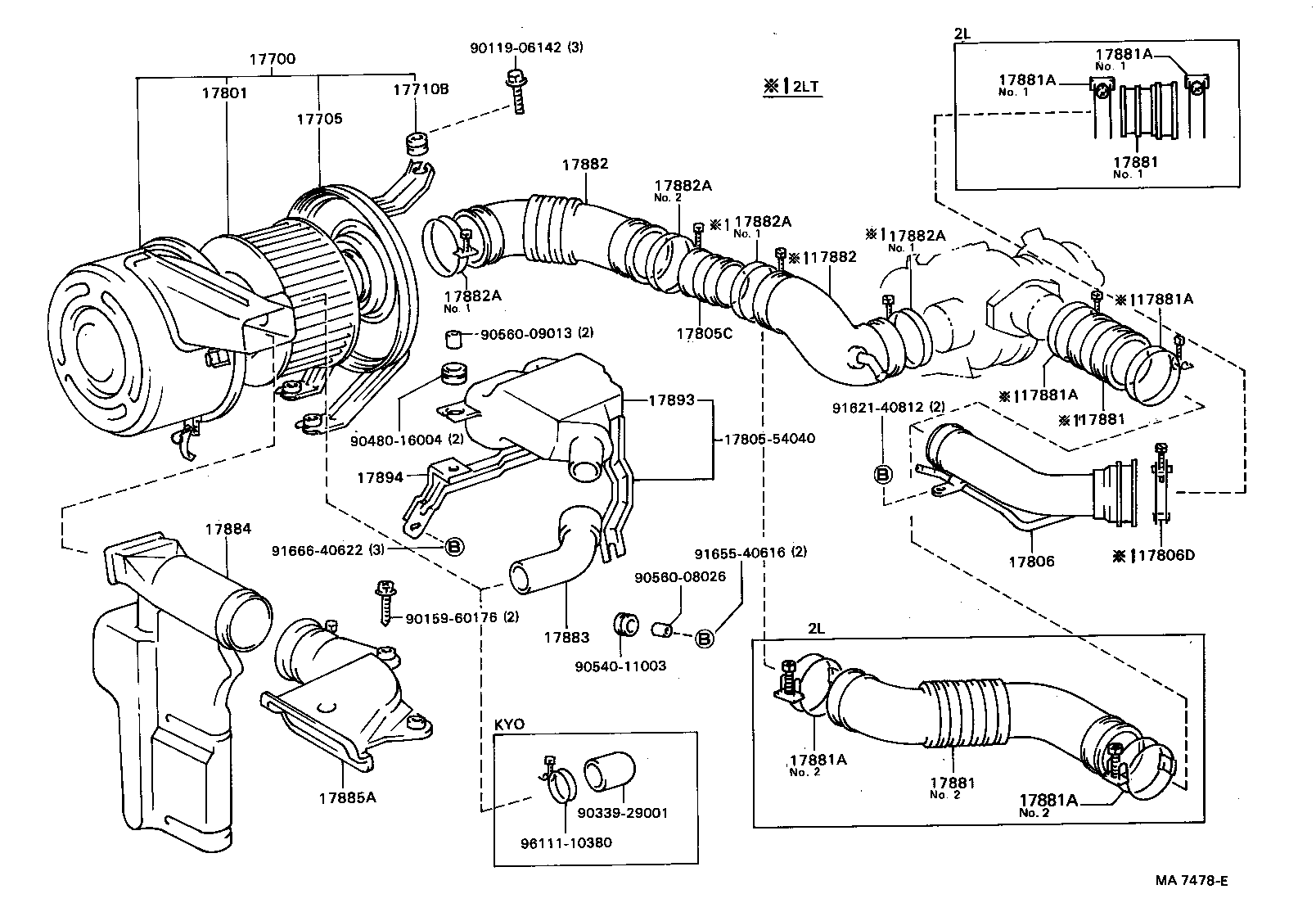

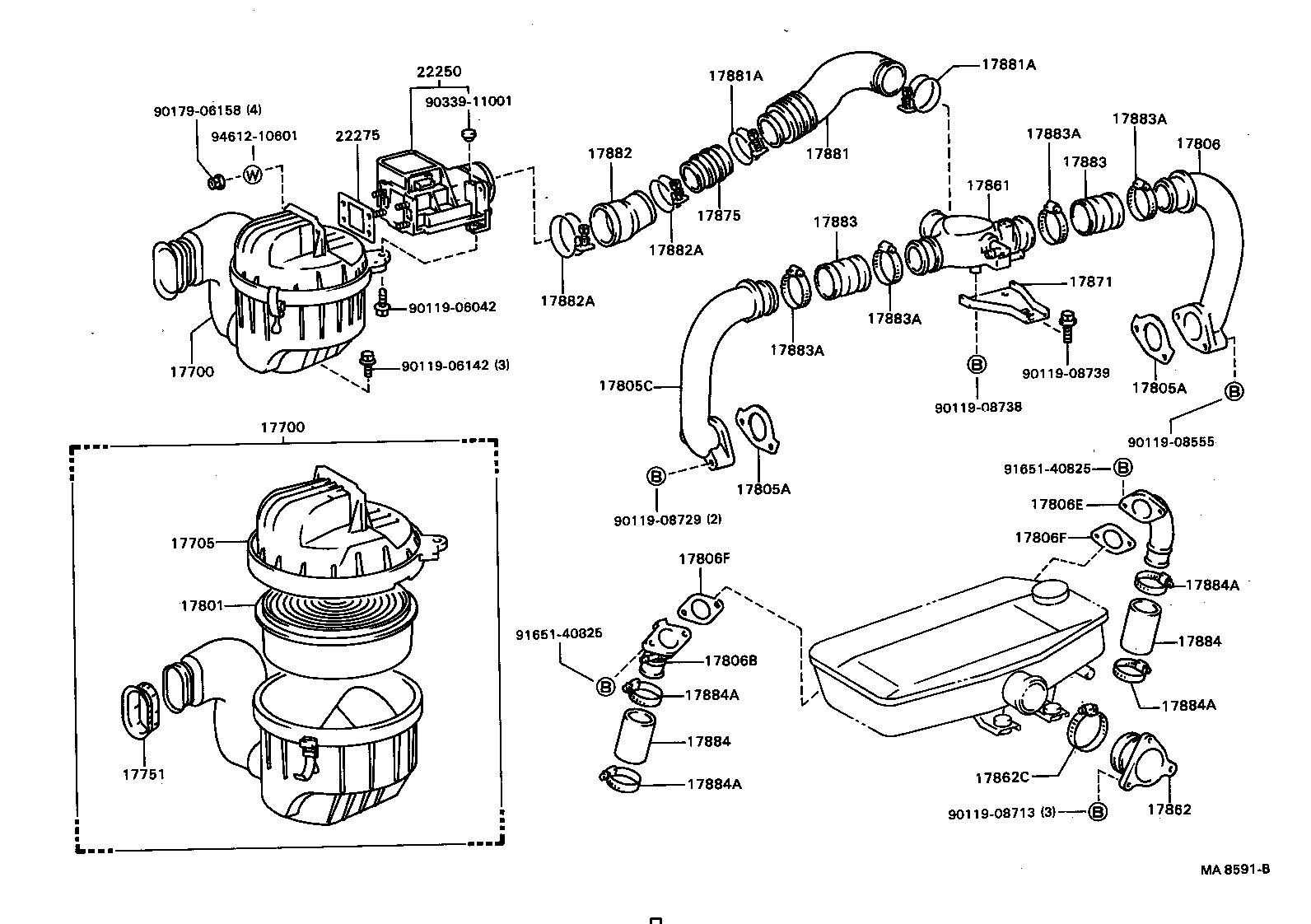

Air Cleaner
42 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 17061 | Diaphragm Sub-assy |
| 17700 | Cleaner Assy, Air |
| 17700A | Nut, Wing(FOR AIR CLEANER) |
| 17700F | Bolt, Stud(FOR AIR CLEANER SETTING) |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17710B | Grommet |
| 17728 | Valve, Thermostatic |
| 17751 | Inlet, Air Cleaner, NO.1 |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17805 | Connector Sub-assy, Intake Air |
| 17805A | Gasket & Washer, Seal |
| 17805C | Pipe Sub-assy, Air Cleaner, NO.1 |
| 17806 | Pipe Sub-assy, Air Cleaner, NO.2 |
| 17806B | Pipe Sub-assy, Air Cleaner, NO.3 |
| 17806D | Clamp(FOR AIR CLEANER PIPE) |
| 17806E | Pipe Sub-assy, Air Cleaner, NO.4 |
| 17806F | Gasket, Air Cleaner Pipe |
| 17841 | Gasket, Filter Element |
| 17845 | Gasket, Air Cleaner Cap |
| 17848 | Gasket, Air Cleaner TO Carburetor |
| 17856 | Gasket, Air Intake Flange |
| 17861 | Connector, Intake Air |
| 17861C | Cap(FOR INTAKE AIR CONNECTOR) |
| 17862 | Connector, Intake Air, NO.2 |
| 17862C | Clamp(FOR INTAKE AIR CONNECTOR NO.2) |
| 17871 | Stay, Air Connector |
| 17875 | Pipe, Intake Air Connector |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17882 | Hose, Air Cleaner, NO.2 |
| 17882A | Clamp(FOR AIR CLEANER HOSE, NO.2) |
| 17883 | Hose, Air Cleaner, NO.3 |
| 17883A | Clamp(FOR AIR CLEANER HOSE, NO.3) |
| 17884 | Hose, Air Cleaner, NO.4 |
| 17884A | Clamp(FOR AIR CLEANER HOSE, NO.4) |
| 17885A | Hose, Air Cleaner, NO.5 |
| 17893 | Resonator, Intake Air |
| 17894 | Bracket, Resonator |
| 22231 | Hose, Throttle Body |
| 22231A | Clamp OR Clip(FOR THROTTLE BODY HOSE) |
| 22250 | Meter Assy, Intake Air Flow |
| 22275 | Gasket, Air Flow Meter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
