Toyota Cresta
1984-08 → 1988-08 · chassis GX71,LX70,MX71,SX70 · catalogue 313150 · Japan
Discontinued model
Data version 1989-02

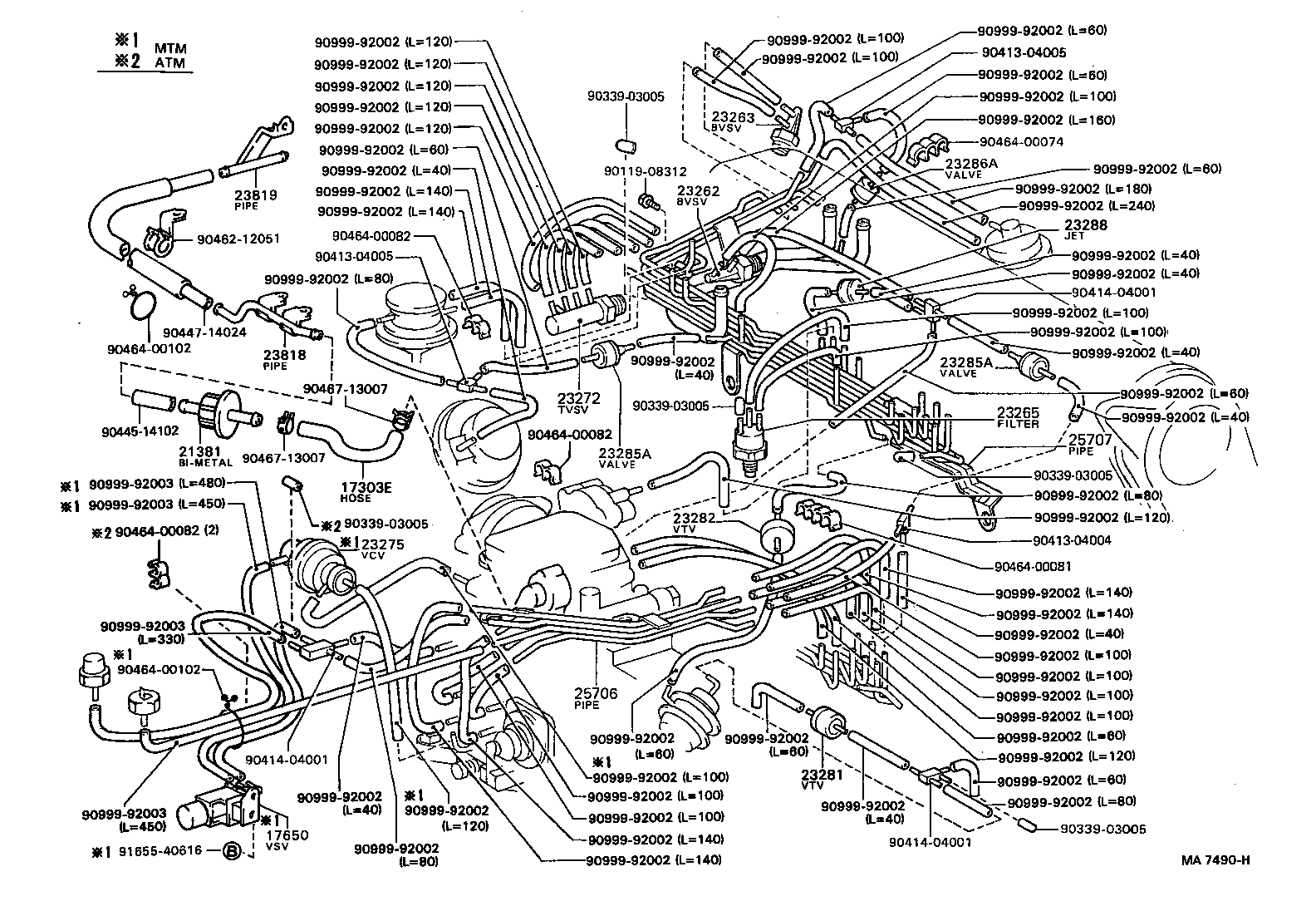

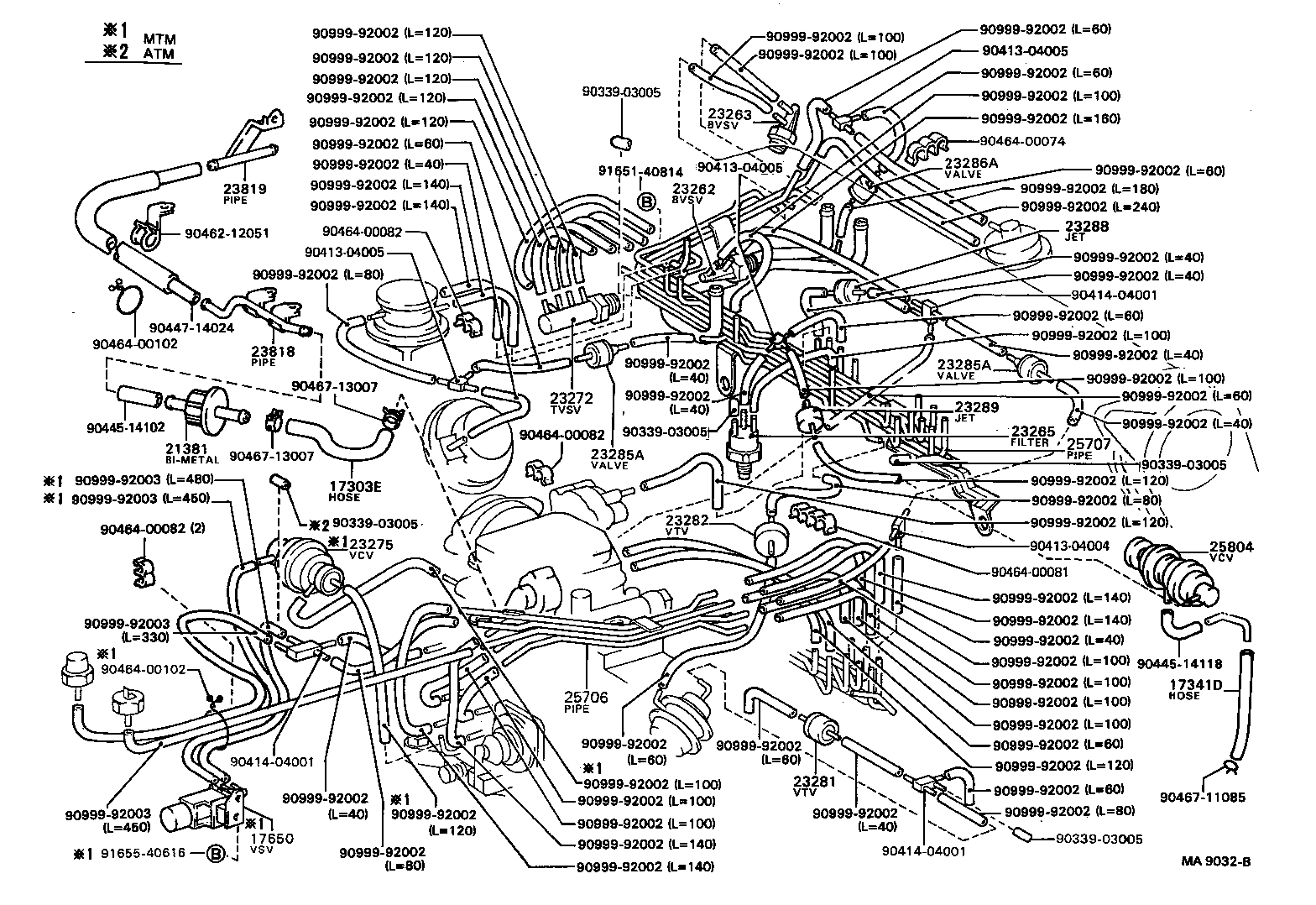

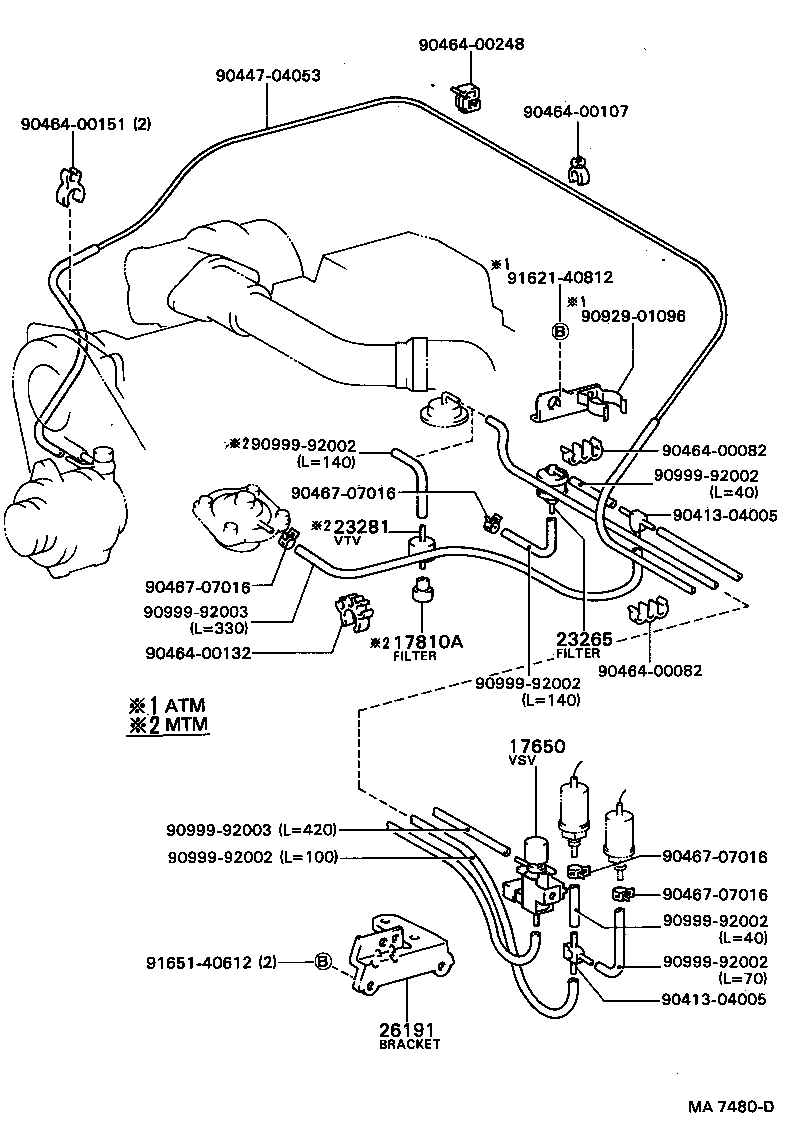

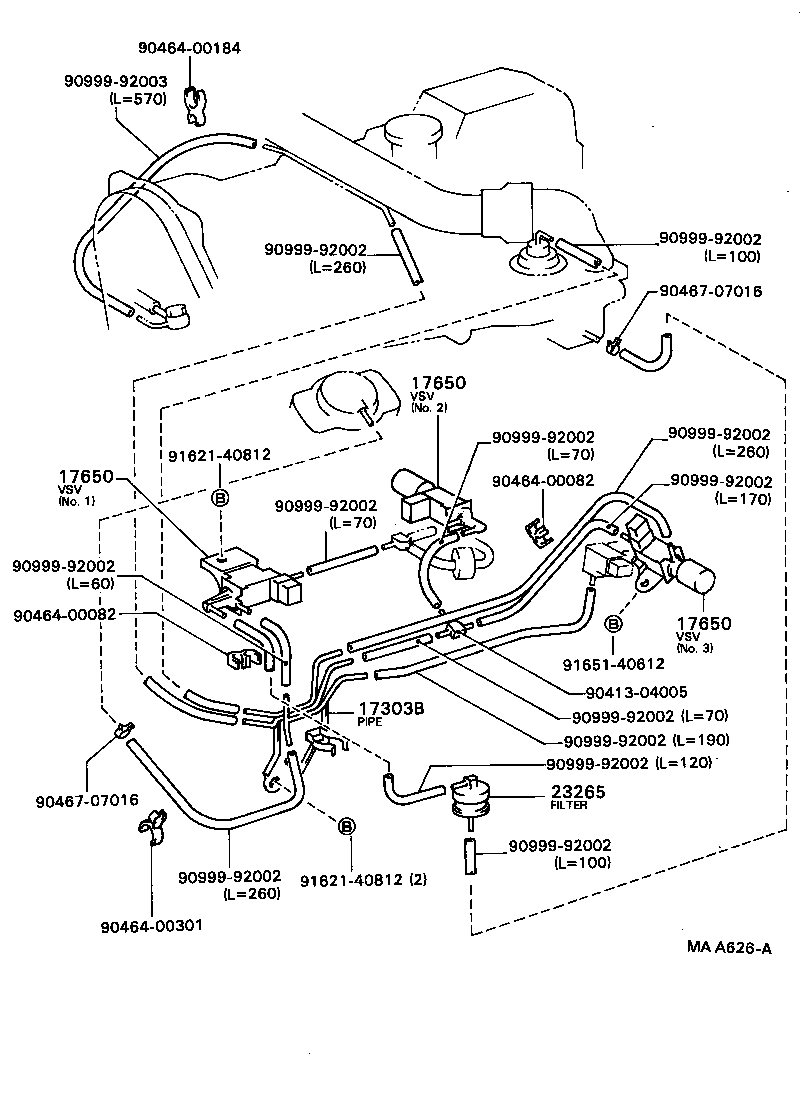

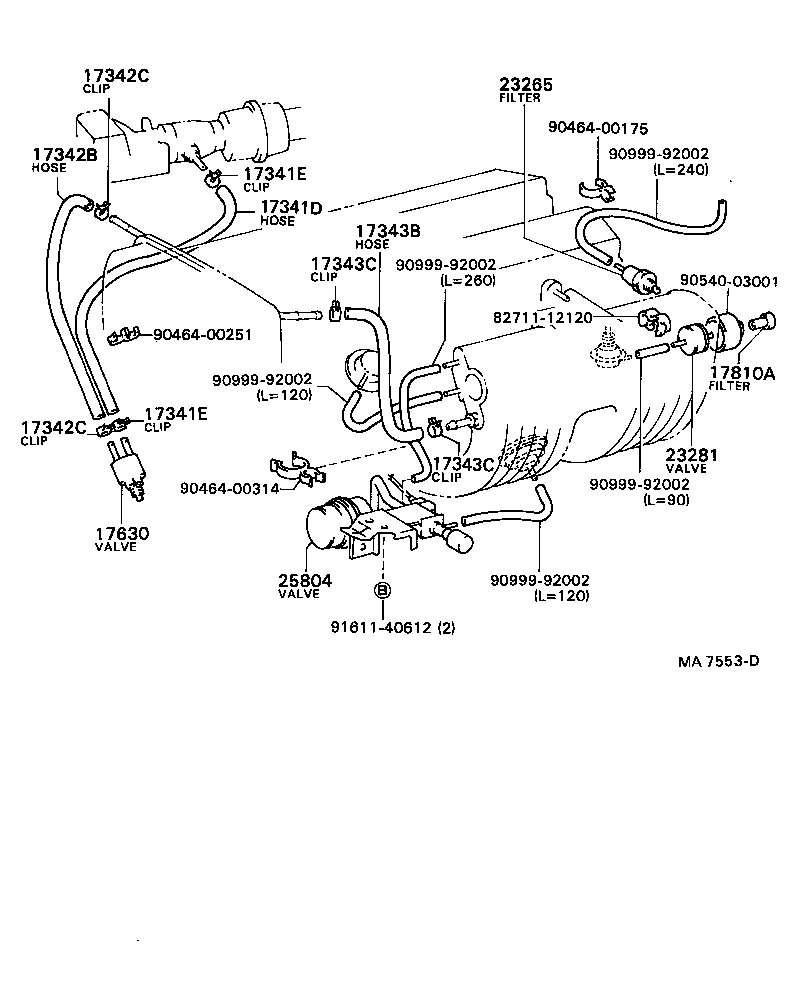

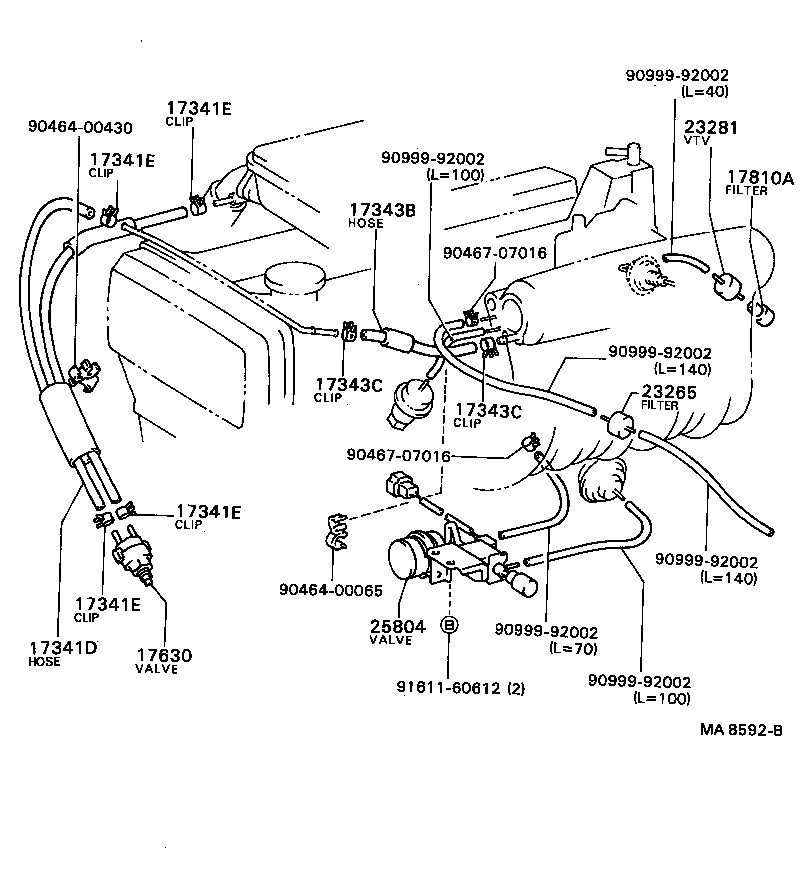

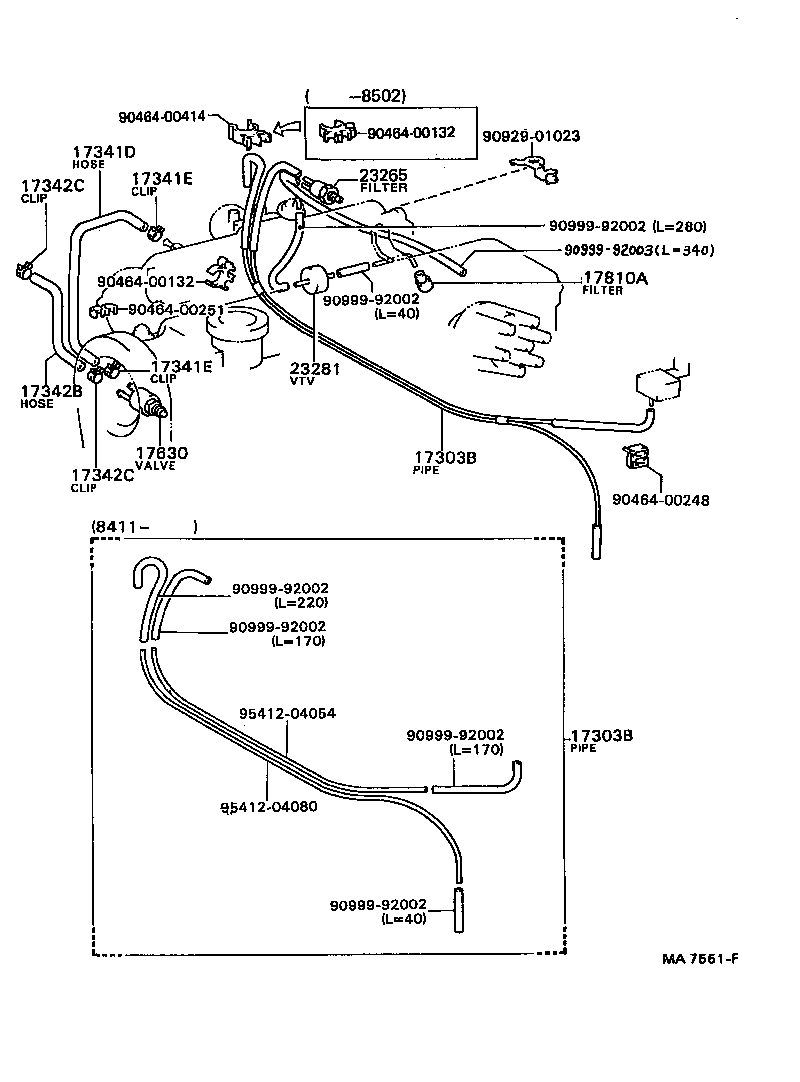

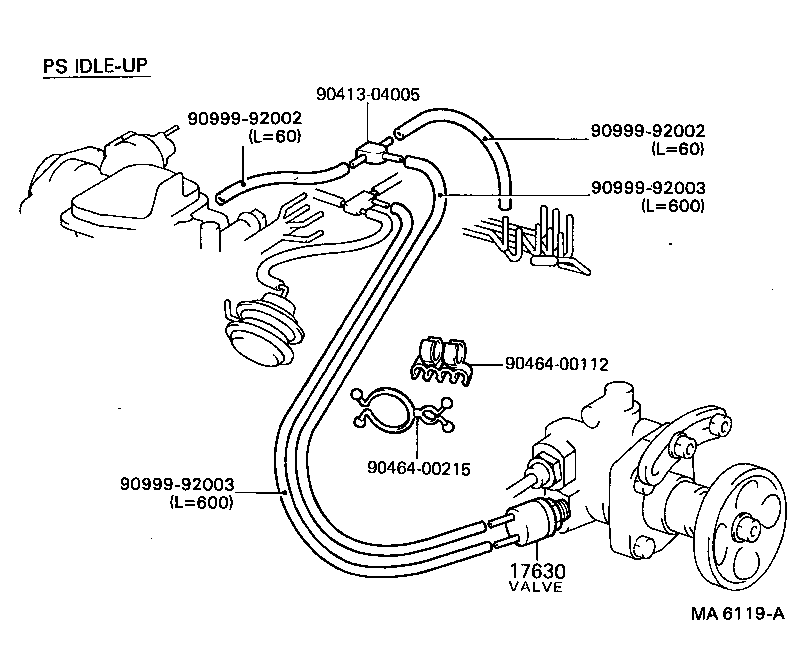

Vacuum Piping

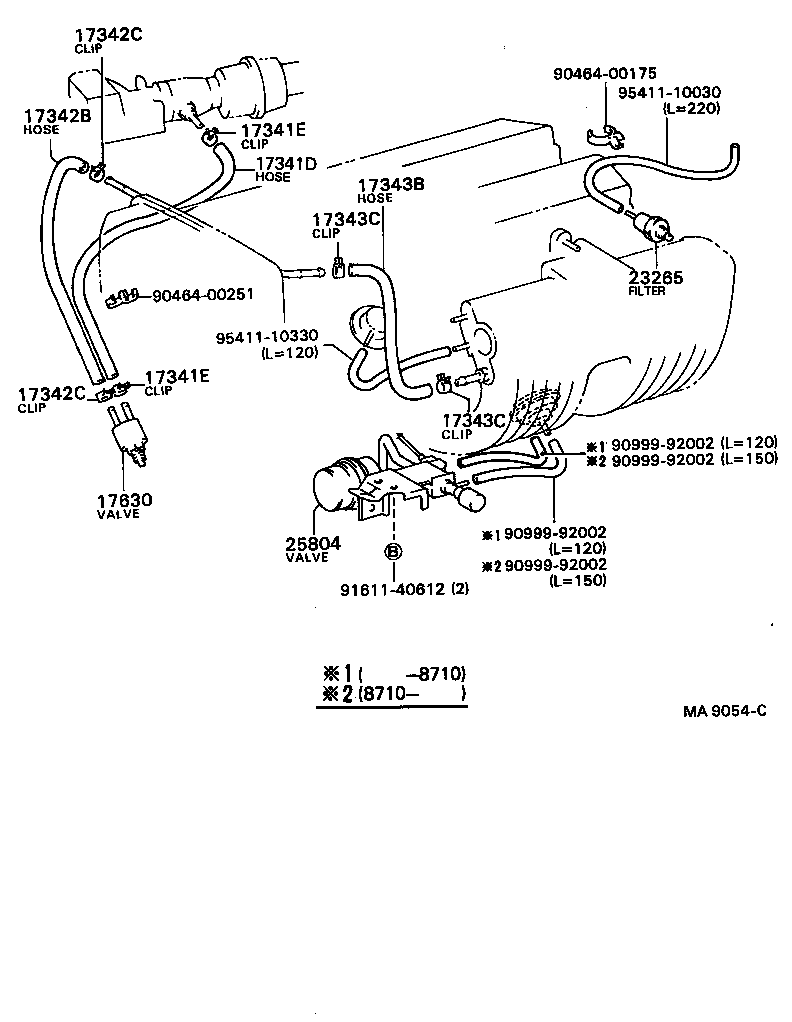

29 part groups · 16 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 17303B | Pipe Sub-assy, Air, NO.1 |
| 17303E | Hose, NO.1(FOR AIR PIPE) |
| 17341D | Hose, NO.1(FOR IDLE-UP) |
| 17341E | Clip, NO.1(FOR IDLE-UP HOSE) |
| 17342B | Hose, NO.2(FOR IDLE-UP) |
| 17342C | Clip, NO.2(FOR IDLE-UP HOSE) |
| 17343B | Hose, NO.3(FOR IDLE-UP) |
| 17343C | Clip, NO.3(FOR IDLE-UP HOSE) |
| 17630 | Valve Assy, Air Control |
| 17650 | Valve Assy, Vacuum Switching |
| 17810A | Filter Assy, Air |
| 21381 | Bimetal, Thermostatic |
| 23262 | Valve, Bimetal Vacuum Switching, NO.1 |
| 23263 | Valve, Bimetal Vacuum Switching, NO.2 |
| 23265 | Filter, Gas, NO.1 |
| 23272 | Valve, Thermostatic Vacuum Switching, NO.2 |
| 23275 | Valve, Vacuum Control, NO.1 |
| 23281 | Valve, Vacuum Transmitting, NO.1 |
| 23282 | Valve, Vacuum Transmitting, NO.2 |
| 23285A | Valve, Check, NO.1 |
| 23286A | Valve, Check, NO.2 |
| 23288 | Jet, NO.1 |
| 23289 | Jet, NO.2 |
| 23818 | Pipe, Fuel Vapor Feed |
| 23819 | Pipe, Fuel Vapor Feed, NO.2 |
| 25706 | Pipe Sub-assy, Vacuum Transmitting, NO.1 |
| 25707 | Pipe Sub-assy, Vacuum Transmitting, NO.2 |
| 25804 | Valve Set, Vacuum Control |
| 26191 | Bracket, Intake Air Control Valve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
