Toyota Cresta

1984-08 → 1988-08 · chassis GX71,LX70,MX71,SX70 · catalogue 313150 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Master Cylinder

15 part groups · 2 illustrations

Illustrations

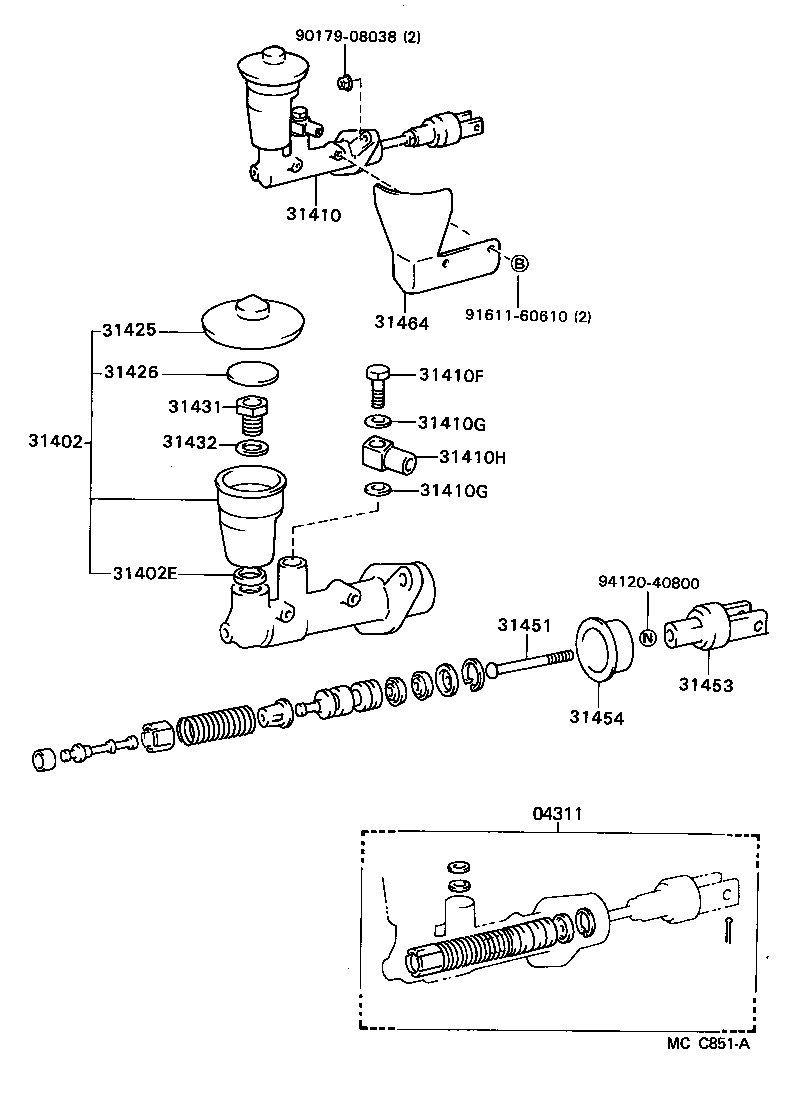

Figure MCA981A MCA981A 1984-08 → — Figure MCC851A MCC851A 1985-10 → —

Part groups

PNCDescription
04311 Cylinder Kit, Clutch Master
31402 Reservoir Sub-assy, Clutch Master Cylinder
31402E Ring(FOR CLUTCH MASTER CYLINDER RESERVOIR)
31410 Cylinder Assy, Clutch Master
31410F Bolt, Union(FOR CLUTCH MASTER CYLINDER)
31410G Gasket(FOR CLUTCH MASTER CYLINDER UNION)
31410H Union(FOR CLUTCH MASTER CYLINDER)
31425 Cap, Clutch Master Cylinder Reservoir Filler
31426 Float, Clutch Master Cylinder Reservoir
31431 Bolt, Clutch Master Cylinder Reservoir Set
31432 Washer, Clutch Reservoir Set Bolt
31451 Rod, Clutch Master Cylinder Push
31453 Clevis, Clutch Master Cylinder Push Rod
31454 Boot, Clutch Master Cylinder
31464 Insulator, Clutch Master Cylinder Heat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
