Toyota Cresta

1984-08 → 1988-08 · chassis GX71,LX70,MX71,SX70 · catalogue 313150 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

29 part groups · 11 illustrations

Illustrations

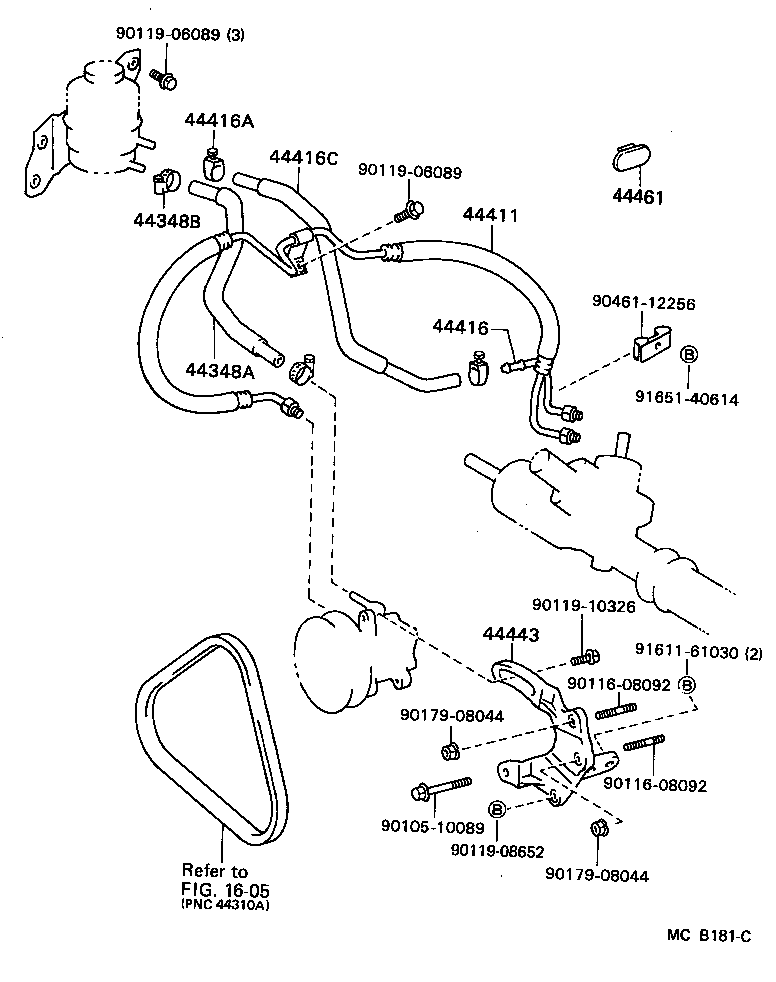

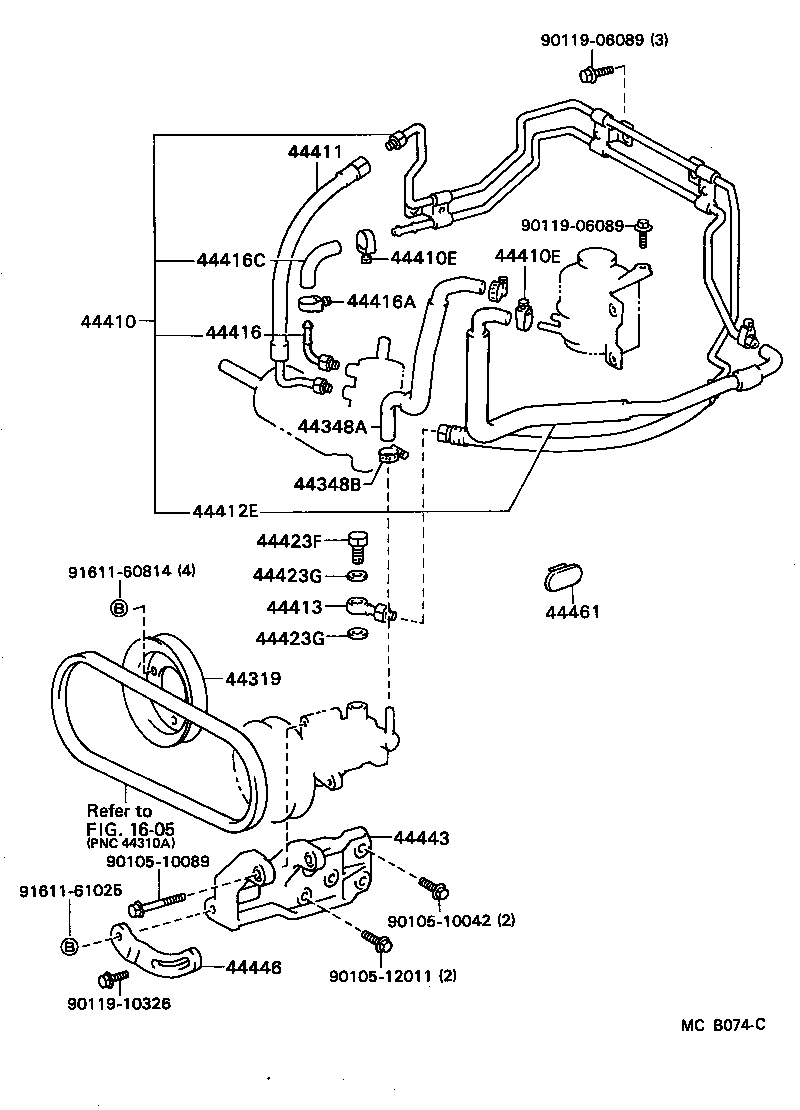

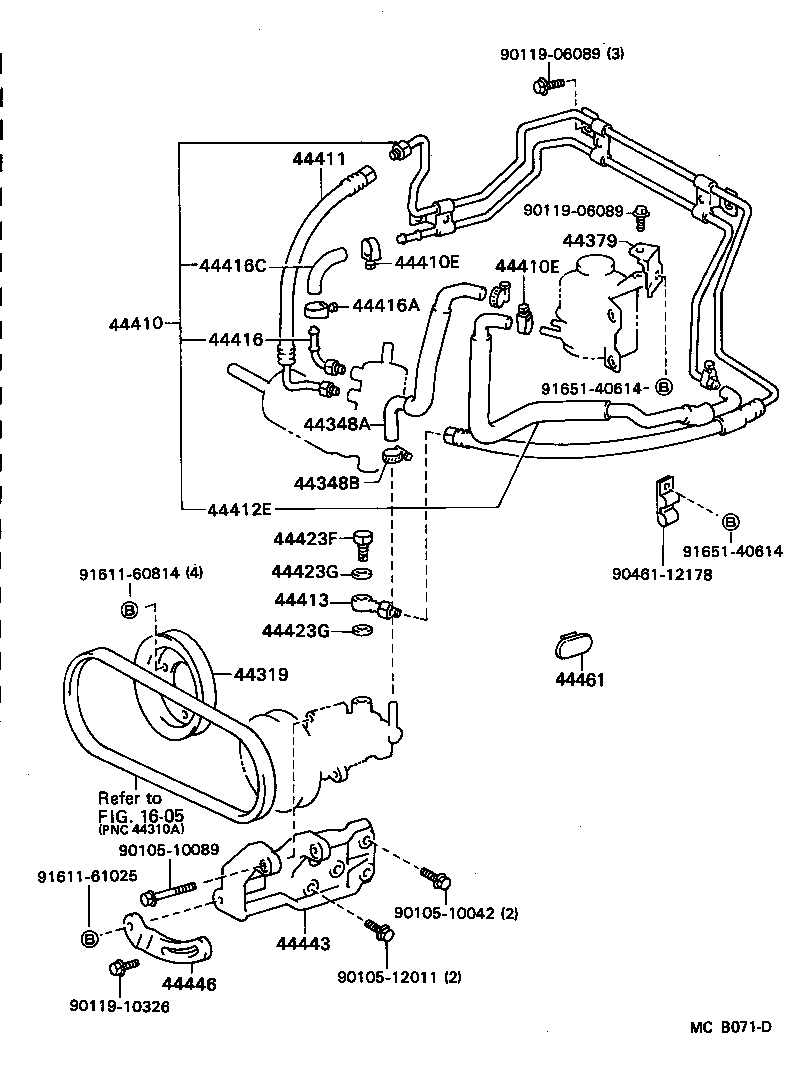

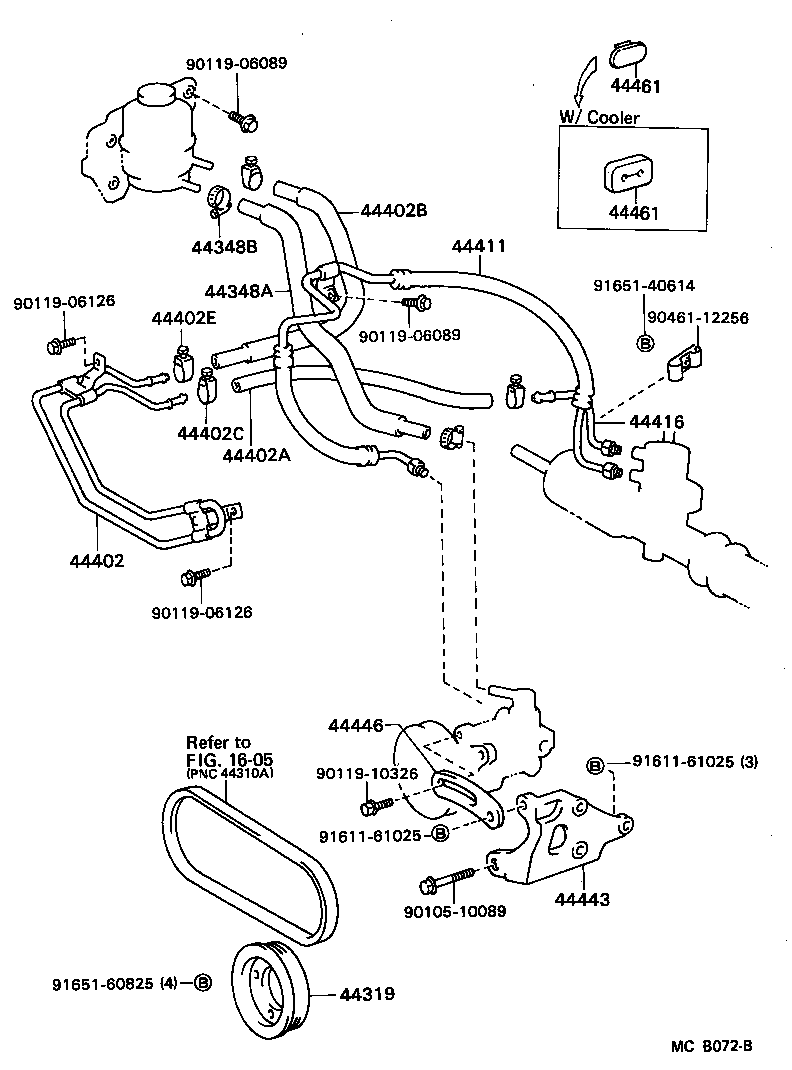

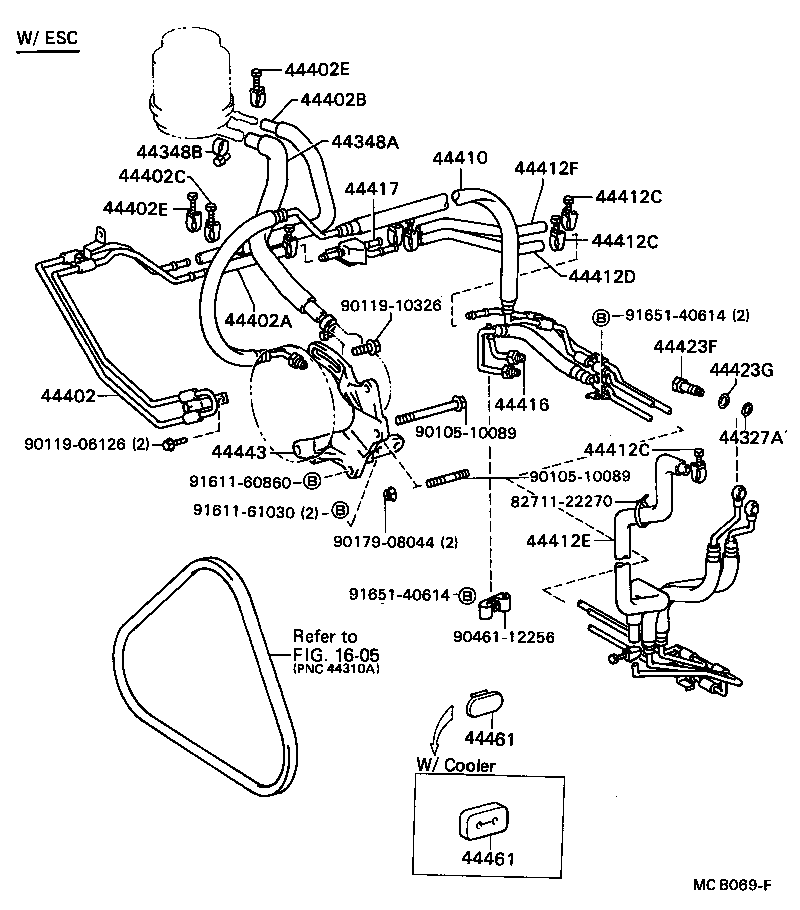

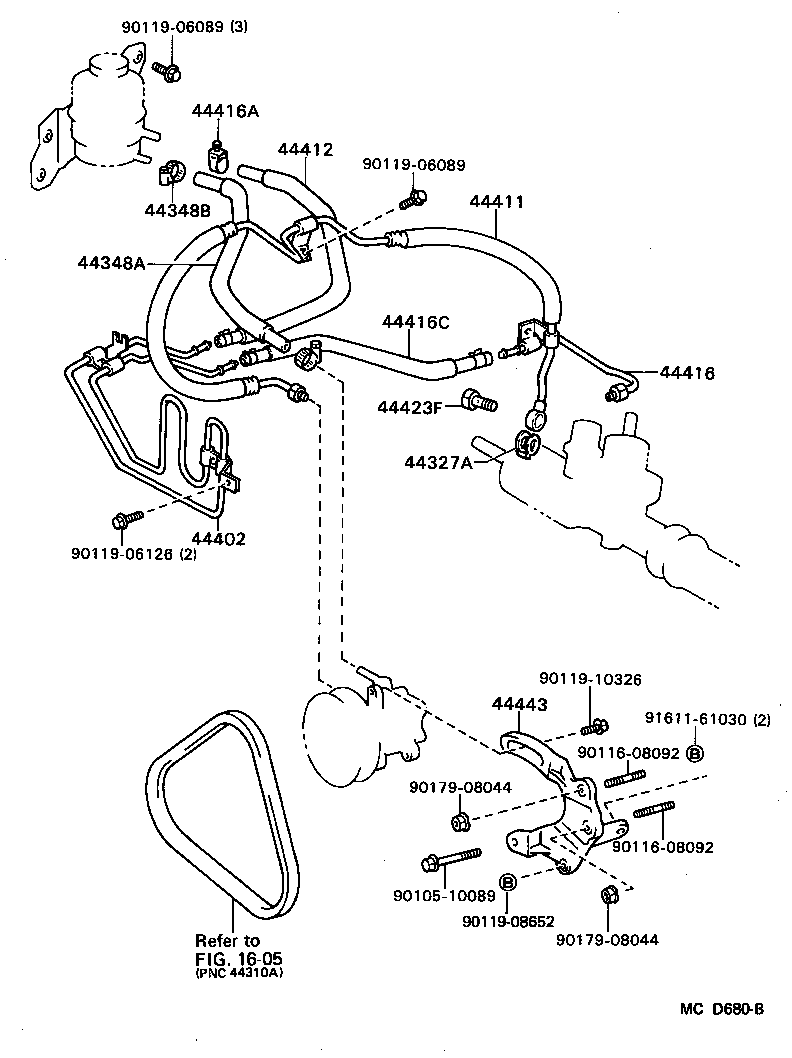

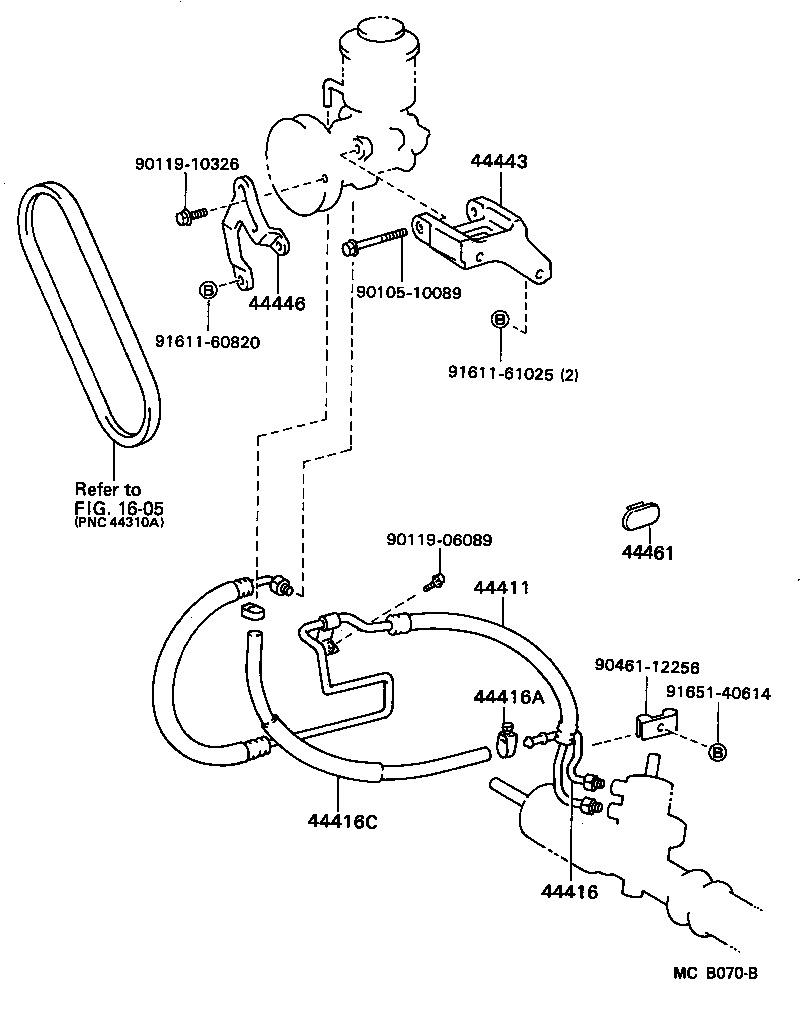

Figure MCB066A MCB066A 1984-08 → — Figure MCB068A MCB068A 1984-08 → 1986-08 Figure MCD679A MCD679A 1986-08 → — Figure MCB181C MCB181C 1984-08 → 1986-08 Figure MCB181C MCB181C 1986-08 → — Figure MCD680B MCD680B 1986-08 → — Figure MCB069F MCB069F 1984-08 → — Figure MCB070B MCB070B 1984-08 → 1985-10 Figure MCB071D MCB071D 1984-08 → — Figure MCB072B MCB072B 1984-08 → — Figure MCB074C MCB074C 1984-08 → —

Part groups

PNCDescription
44319 Pulley, Vane Pump Drive
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44348B Clamp(FOR OIL RESERVOIR TO PUMP HOSE)
44379 Bracket, Oil Reservoir, NO.2
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44402A Hose, Power Steering Oil Cooler Inlet
44402B Hose, Power Steering Oil Cooler Outlet
44402C Clamp, Power Steering Oil Cooler Inlet Hose
44402E Clamp, Power Steering Oil Cooler Outlet Hose
44410 Tube Assy, Pressure Feed
44410E Clamp(FOR PRESSURE FEED TUBE)
44411 Hose, Pressure Feed
44412 Hose, Return
44412C Clamp(FOR RETURN HOSE)
44412D Hose, Return, NO.1
44412E Hose, Return, NO.2
44412F Hose, Return, NO.3
44413 Tube, Pressure Feed, NO.1
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44416A Clamp(FOR RETURN HOSE)
44416C Hose(FOR RETURN TUBE TO RESERVIOR)
44417 Tube, Return, NO.2
44423F Bolt, Union
44423G Gasket, Union Bolt
44441 Bracket, Pump, Front
44443 Bracket, Pump
44446 Strut, Adjusting
44461 Insulator, Tube Refrigerant
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
