Toyota Cresta

1984-08 → 1988-08 · chassis GX71,LX70,MX71,SX70 · catalogue 313150 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

58 part groups · 16 illustrations

Illustrations

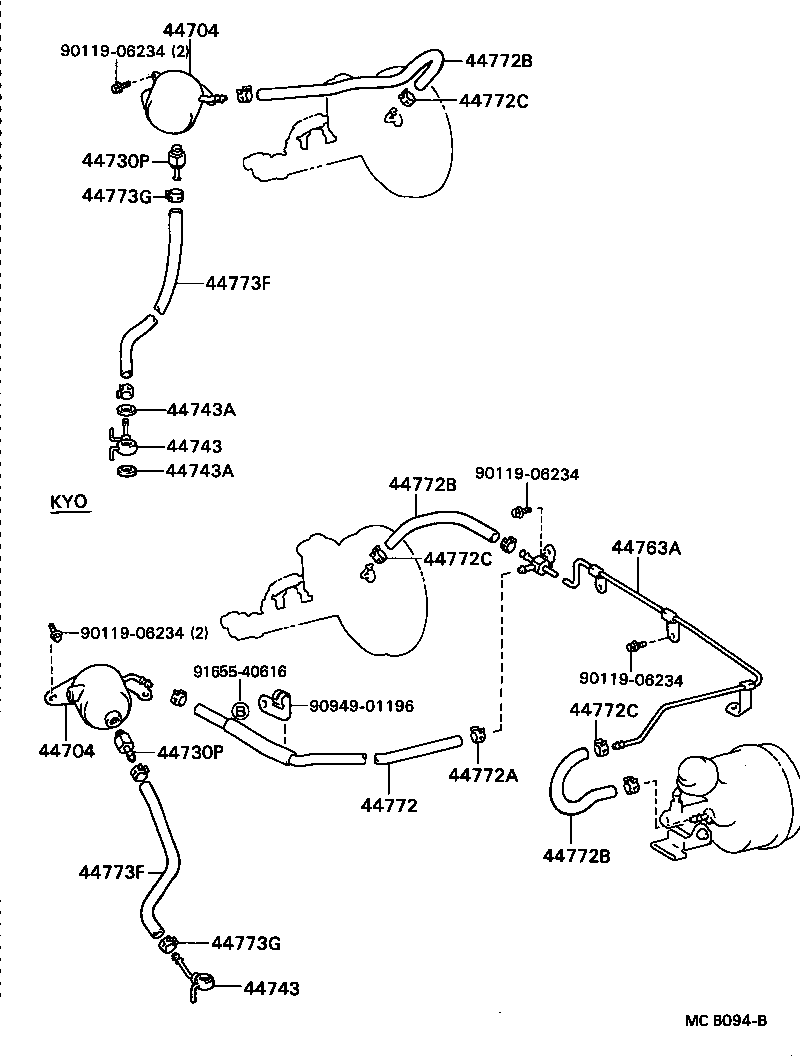

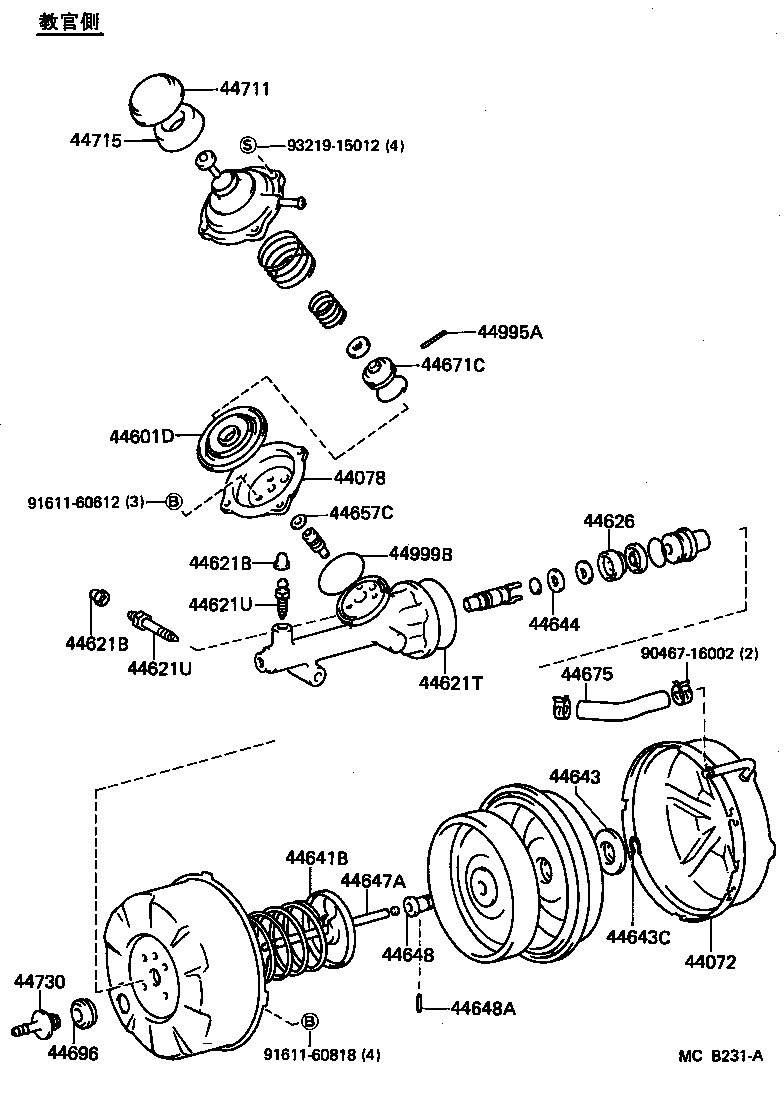

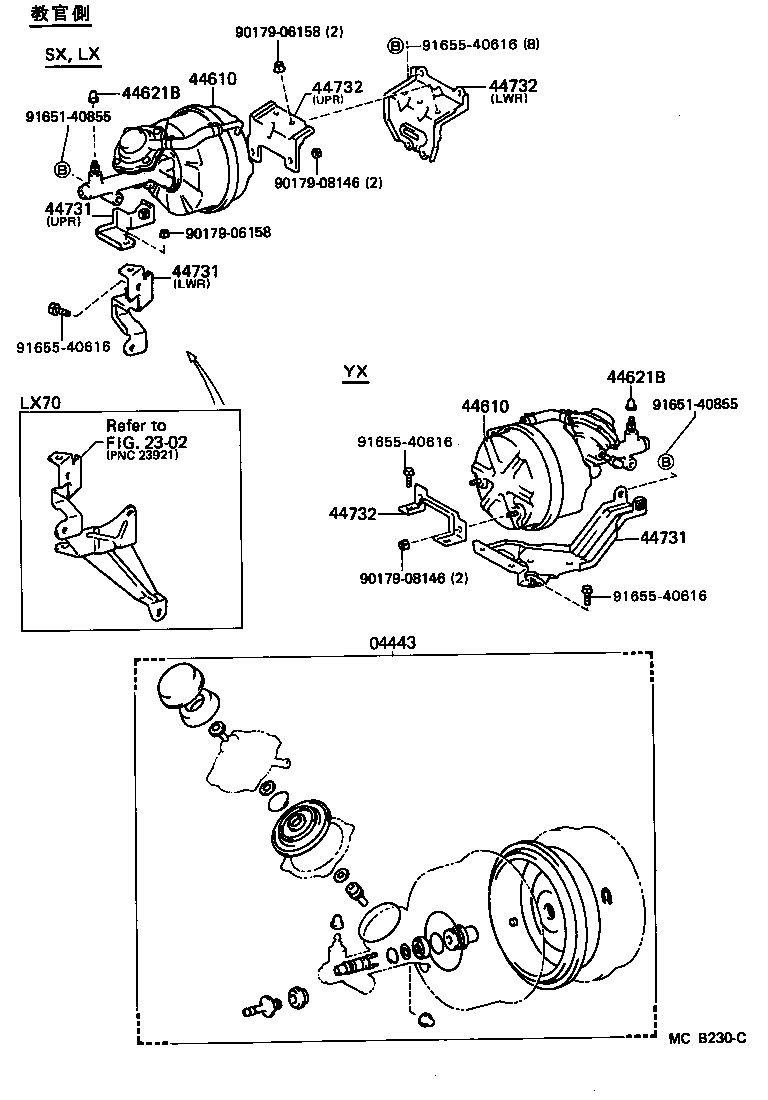

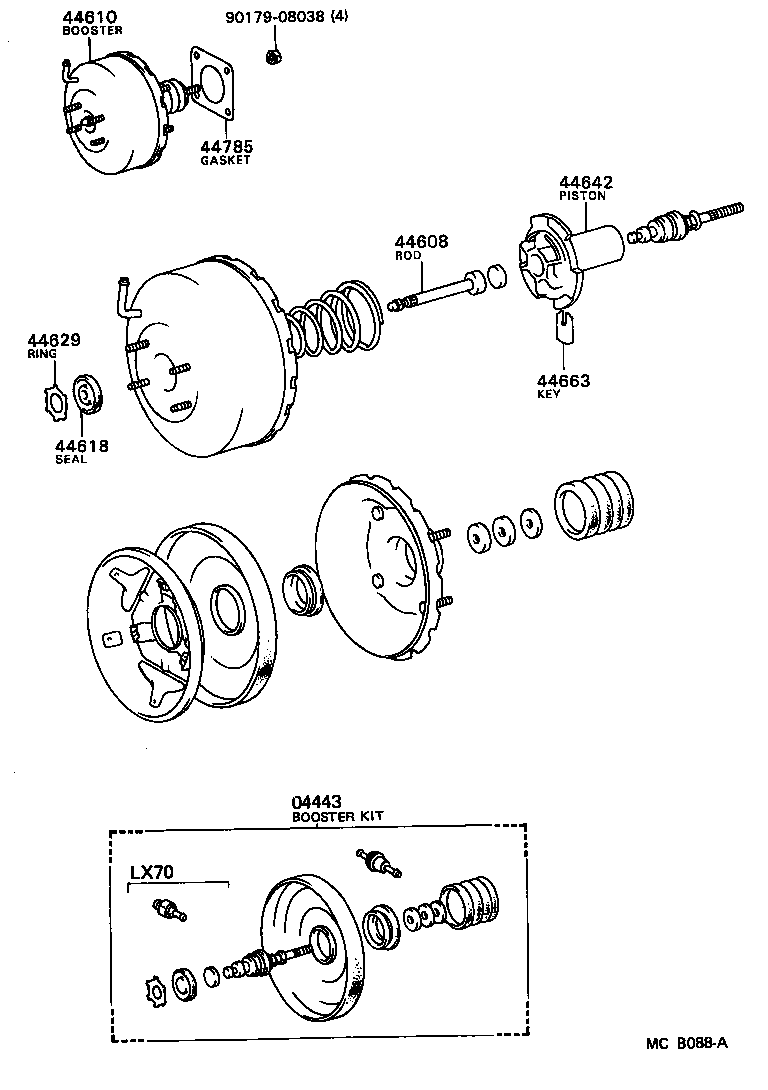

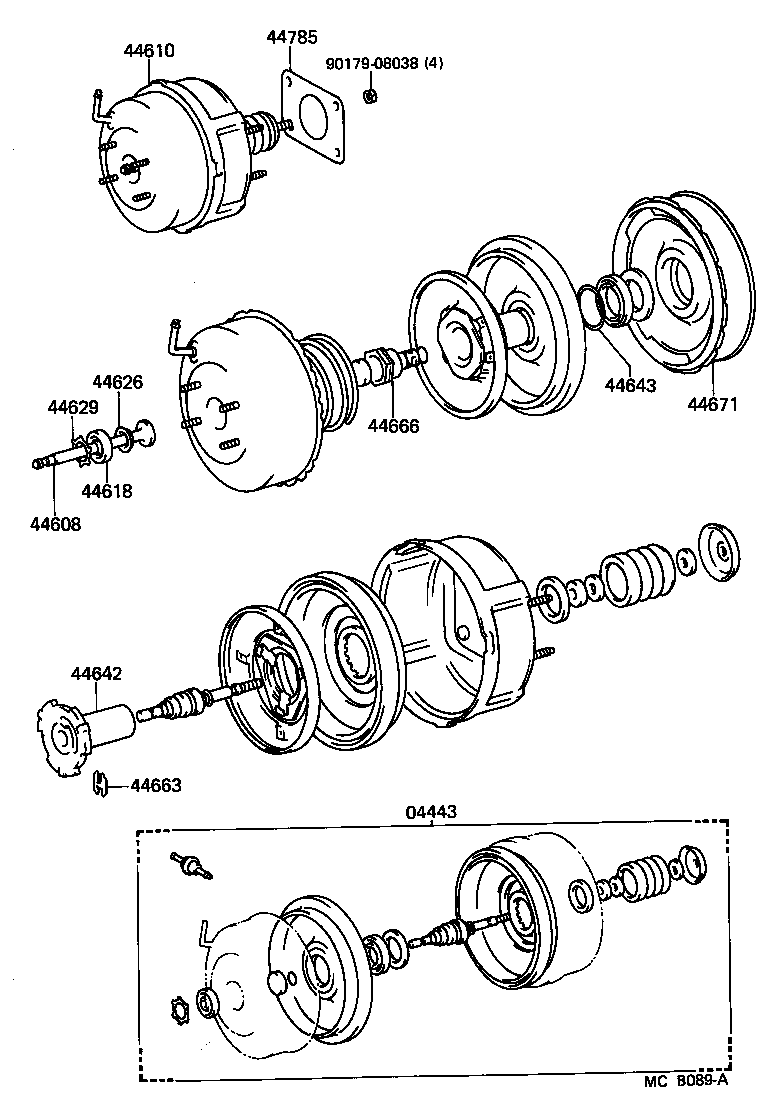

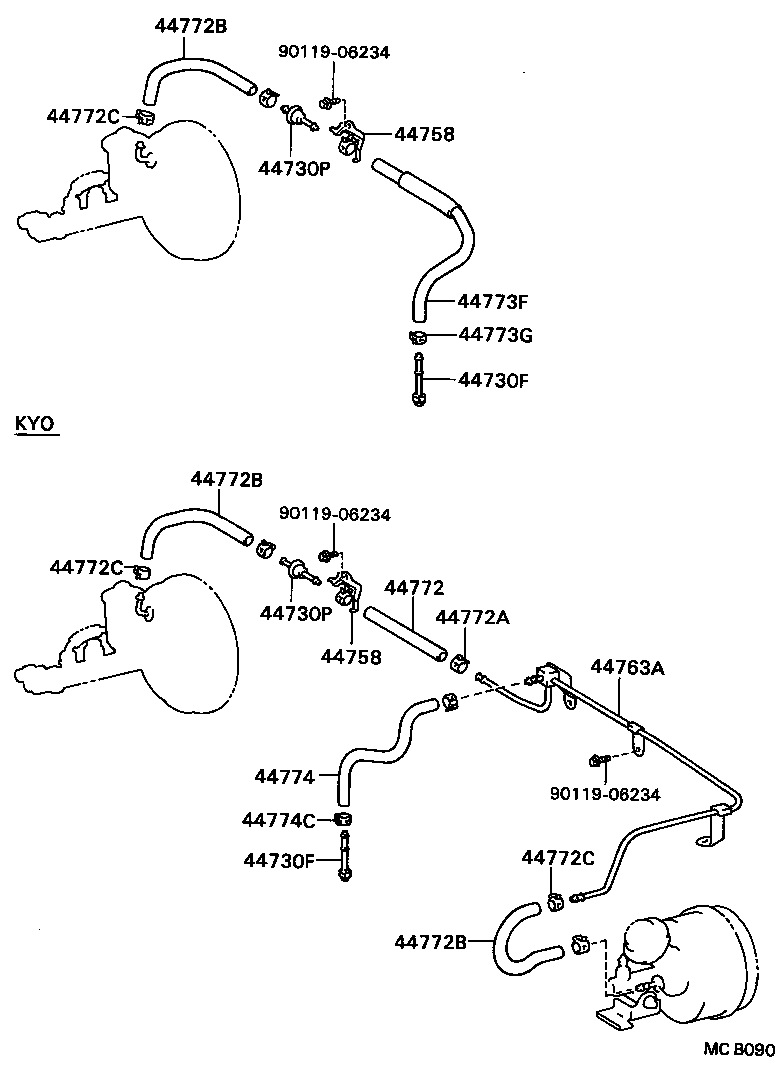

Figure MCB087A MCB087A 1984-08 → 1985-10 Figure MCB087A MCB087A 1985-02 → — Figure MCB087A MCB087A 1985-10 → — Figure MCB088A MCB088A 1984-08 → 1985-02 Figure MCB088A MCB088A 1985-02 → 1985-10 Figure MCB088A MCB088A 1985-02 → — Figure MCB088A MCB088A 1985-10 → — Figure MCB089A MCB089A 1984-08 → 1985-10 Figure MCB089A MCB089A 1985-10 → — Figure MCB230C MCB230C 1984-08 → — Figure MCB231A MCB231A 1984-08 → — Figure MCB090 MCB090 1984-08 → — Figure MCB092 MCB092 1984-08 → — Figure MCC858A MCC858A 1985-10 → — Figure MCB093 MCB093 1984-08 → 1985-10 Figure MCB094B MCB094B 1984-08 → —

Part groups

PNCDescription
04443 Booster Kit, Brake
44072 Body Sub-assy, Separator Booster, NO.2
44078 Body Sub-assy, Control Valve
44601D Diaphragm Sub-assy, Control Valve
44605 Plate & Seal Sub-assy, Booster
44608 Push Rod Sub-assy, Booster
44610 Booster Assy, Brake
44610J Way, 2(FOR BRAKE BOOSTER)
44618 Seal, Booster Body
44621B Cap, Bleeder Plug(FOR BRAKE BOOSTER)
44621T Ring, O(FOR HYDRAULIC CYLINDER BODY)
44621U Plug, Bleeder(FOR HYDRAULIC CYLINDER BODY)
44626 Retainer, Booster Rod Cup
44629 Ring, Circular Internal
44633 Key, Booster Valve Plunger
44637A Plate, Booster Diaphragm
44641B Retainer, Booster Spring
44642 Piston, Brake Booster
44643 Retainer, Diaphragm
44643C Ring, Snap(FOR DIAPHRAGM RETAINER)
44644 Spacer, Piston Rod
44645 Retainer, Booster Push Rod Seal
44647A Rod, Booster Piston
44648 End, Piston Rod
44648A Pin, Booster Rod End
44657C Spacer(FOR BOOSTER CONTROL VALVE PISTON)
44663 Key, Valve Stopper
44666 Case, Reaction Disc
44671 Body Sub-assy, NO.3
44671C Seat, Vacuum Valve
44673A Body, Booster Valve
44675 Hose, Booster Vacuum
44696 Grommet, Check Valve
44704 Reservoir Sub-assy, Vacuum
44711 Body, Air Cleaner(FOR BOOSTER)
44715 Element, Air Cleaner(FOR BOOSTER)
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44730P Valve Assy, Vacuum Check, NO.1
44731 Bracket, Brake Booster, Front
44732 Bracket, Brake Booster, Rear
44743 Union(FOR VACUUM PUMP)
44743A Gasket(FOR VACUUM PUMP UNION)
44758 Bracket, Vacuum Check Valve
44763A Tube, Hose TO Hose, NO.1
44772 Hose, Check Valve TO Connector Tube
44772A Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
44772B Hose, Check Valve TO Brake Booster
44772C Clip(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
44773F Hose, Union TO Check Valve
44773G Clip(FOR UNION TO CHECK VALVE HOSE)
44774 Hose, Union TO Connector Tube
44774C Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44785 Gasket, Brake Booster
44786A Insulator, Brake Booster Heat
44798 Bracket, Heat Insulator, NO.3
44995A Pin, Valve Joint
44999B Ring, O(FOR CONTROL VALVE)
