Toyota Cresta

1984-08 → 1988-08 · chassis GX71,LX70,MX71,SX70 · catalogue 313150 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

10 part groups · 1 illustrations

Illustrations

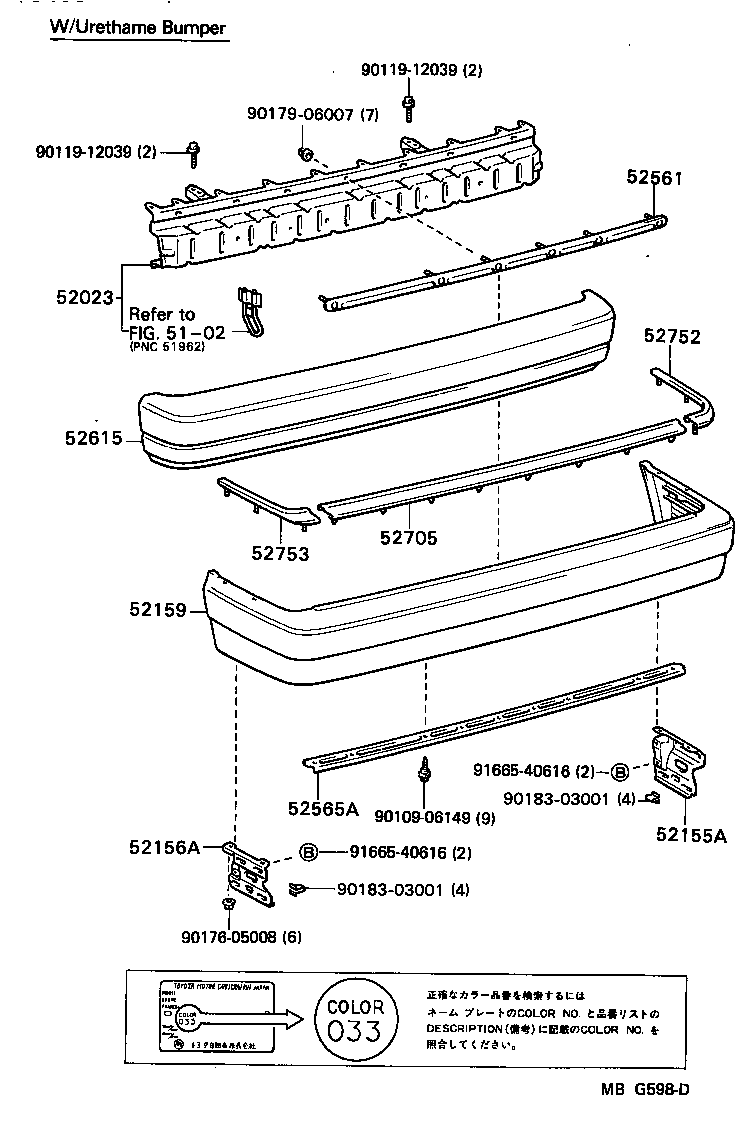

Figure MBG598D MBG598D 1984-08 → —

Part groups

PNCDescription
52023 Reinforcement Sub-assy, Rear Bumper
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52561 Retainer, Rear Bumper, Upper Center
52565A Retainer, Rear Bumper, Lower
52615 Absorber, Rear Bumper Energy
52705 Moulding Sub-assy, Rear Bumper
52752 Moulding, Rear Bumper Side, RH
52753 Moulding, Rear Bumper Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
