Toyota Cresta

1984-08 → 1988-08 · chassis GX71,LX70,MX71,SX70 · catalogue 313150 · Japan

Discontinued model Data version 1989-02

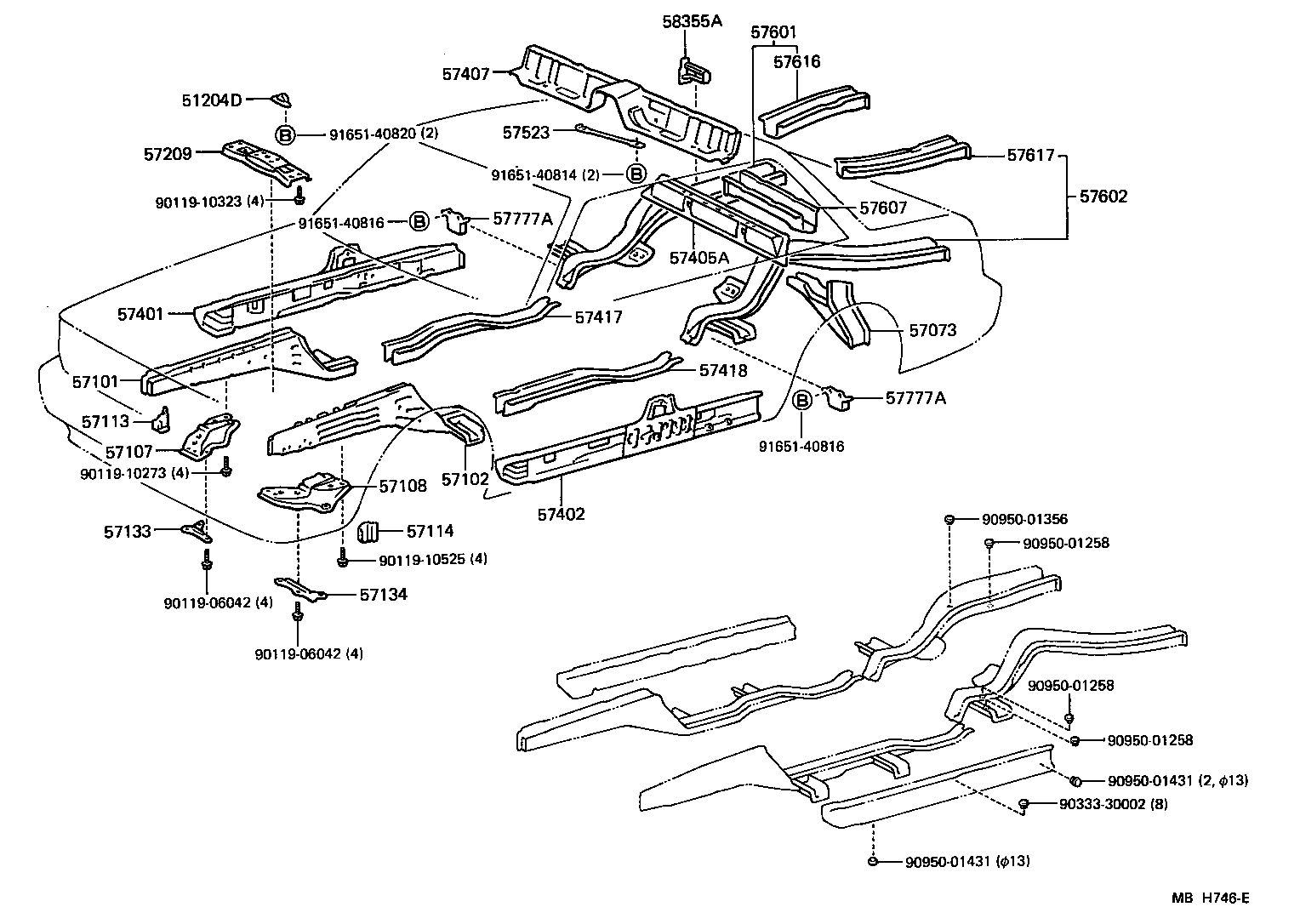

Floor Side Member

25 part groups · 1 illustrations

PNC	Description
51204D	Damper Sub-assy, Engine Rear Support Member
57073	Bracket Sub-assy, Lateral Rod
57101	Member Sub-assy, Front Side, RH
57102	Member Sub-assy, Front Side, LH
57107	Bracket Sub-assy, Strut Bar, RH
57108	Bracket Sub-assy, Strut Bar, LH
57113	Extension, Front Side Member, RH
57114	Extension, Front Side Member, LH
57133	Protector, Strut Bar Bracket, RH
57134	Protector, Strut Bar Bracket, LH
57209	Member Sub-assy, Engine Rear Support
57401	Member Sub-assy, Main Floor Side, RH
57402	Member Sub-assy, Main Floor Side, LH
57405A	Member Sub-assy, Center Floor Cross, NO.2
57407	Crossmember Sub-assy, Center Floor, NO.1
57417	Reinforcement, Front Floor Under, RH
57418	Reinforcement, Front Floor Under, LH
57523	Brace, Center Floor Crossmember
57601	Member Sub-assy, Rear Floor Side, RH
57602	Member Sub-assy, Rear Floor Side, LH
57607	Crossmember Sub-assy, Rear Floor, NO.1
57616	Member, Rear Floor Side, Rear RH
57617	Member, Rear Floor Side, Rear LH
57777A	Protector, Lower Control Link
58355A	Reinforcement, Floor Side Plate, RH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
