Toyota Cresta
1984-08 → 1988-08 · chassis GX71,LX70,MX71,SX70 · catalogue 313150 · Japan
Discontinued model
Data version 1989-02

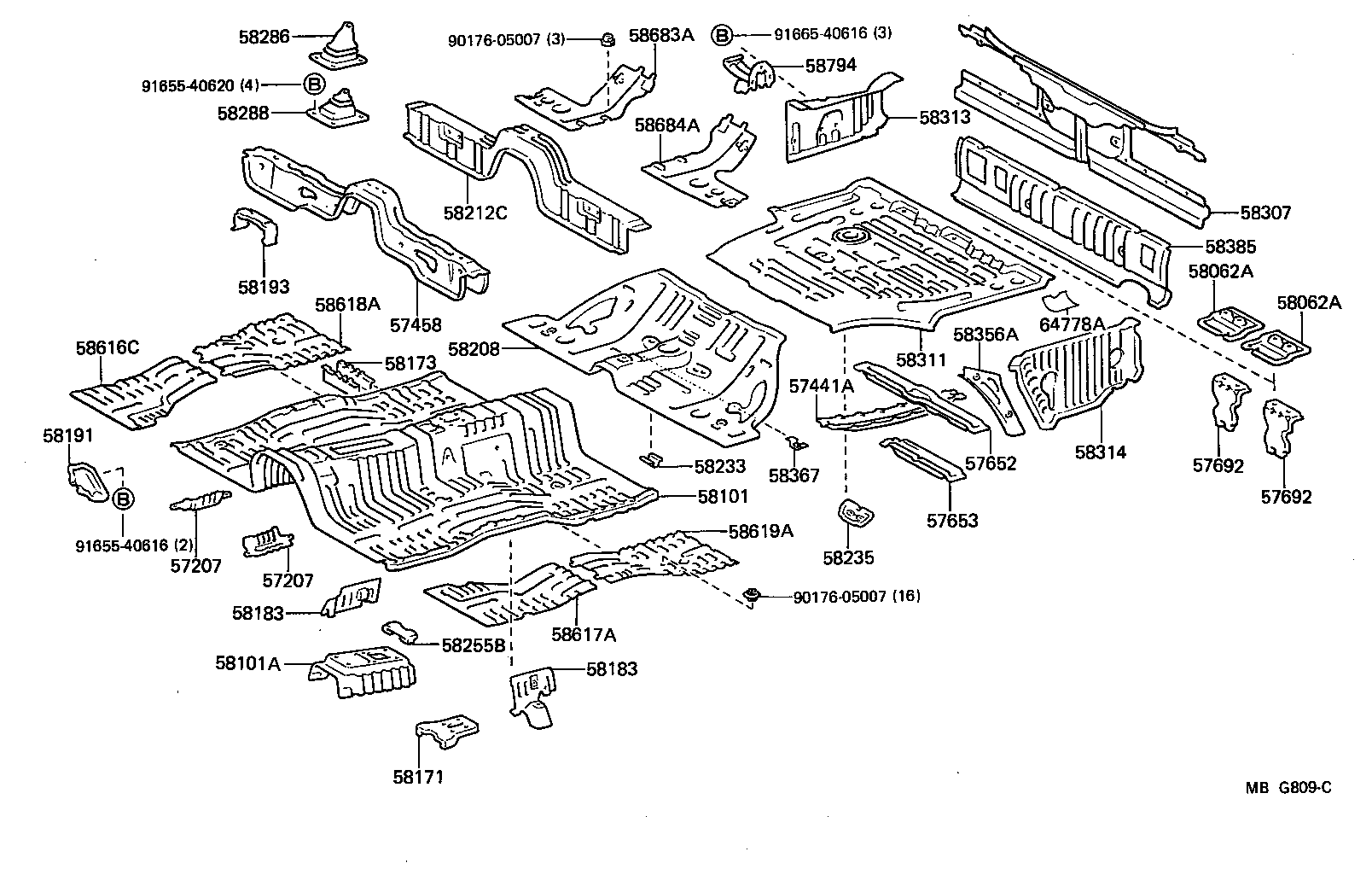

Floor Pan & Lower Back Panel
39 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 57207 | Bracket Sub-assy, Engine Rear Mounting Member |
| 57441A | Member, Rear Floor Center, NO.1 |
| 57458 | Member, Front Floor Cross, NO.1 |
| 57652 | Crossmember, Rear Floor, NO.2 |
| 57653 | Member, Rear Floor Cross, NO.3 |
| 57692 | Bracket, Fuel Tank Mounting, Rear Center |
| 58062A | Bracket Sub-assy, Fuel Tank Mounting, Rear |
| 58101 | Pan Sub-assy, Front Floor |
| 58101A | Cover, Transmission Auxiliary |
| 58136 | Cover, Front Floor Hole |
| 58171 | Reinforcement, Parking Brake Base |
| 58173 | Deflector, Front Floor Stone |
| 58183 | Bracket, Front Seat Mounting, Inner |
| 58191 | Footrest, Front Floor |
| 58193 | Bracket, Instrument Panel Brace Mounting |
| 58208 | Pan, Center Floor |
| 58212C | Pan, Center Floor, Front |
| 58233 | Bracket, Exhaust Pipe Mounting |
| 58235 | Bracket, Differential Carrier Bumper Mounting |
| 58255B | Bracket, Parking Brake Cable Guide, NO.1 |
| 58286 | Boot, Shift & Select Lever, NO.1 |
| 58288 | Seal, Shift Lever Boot |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58311 | Pan, Rear Floor |
| 58313 | Panel, Rear Floor Side, RH |
| 58314 | Panel, Rear Floor Side, LH |
| 58320 | Cover, Rear Floor Service Hole |
| 58320A | Packing, Rear Floor Service Hole |
| 58356A | Reinforcement, Floor Side Plate, LH |
| 58367 | Bracket, Fuel Tube Clamp |
| 58385 | Panel, Rear Valance |
| 58616C | Panel, Front Floor Silencer, NO.1 |
| 58617A | Panel, Front Floor Silencer, NO.2 |
| 58618A | Panel, Front Floor Silencer, NO.3 |
| 58619A | Panel, Front Floor Silencer, NO.4 |
| 58683A | Panel, Center Floor Silencer, RH |
| 58684A | Panel, Center Floor Silencer, LH |
| 58794 | Carrier, Jack |
| 64778A | Protector, Spare Wheel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
