Toyota Cresta

1984-08 → 1988-08 · chassis GX71,LX70,MX71,SX70 · catalogue 313150 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

13 part groups · 1 illustrations

Illustrations

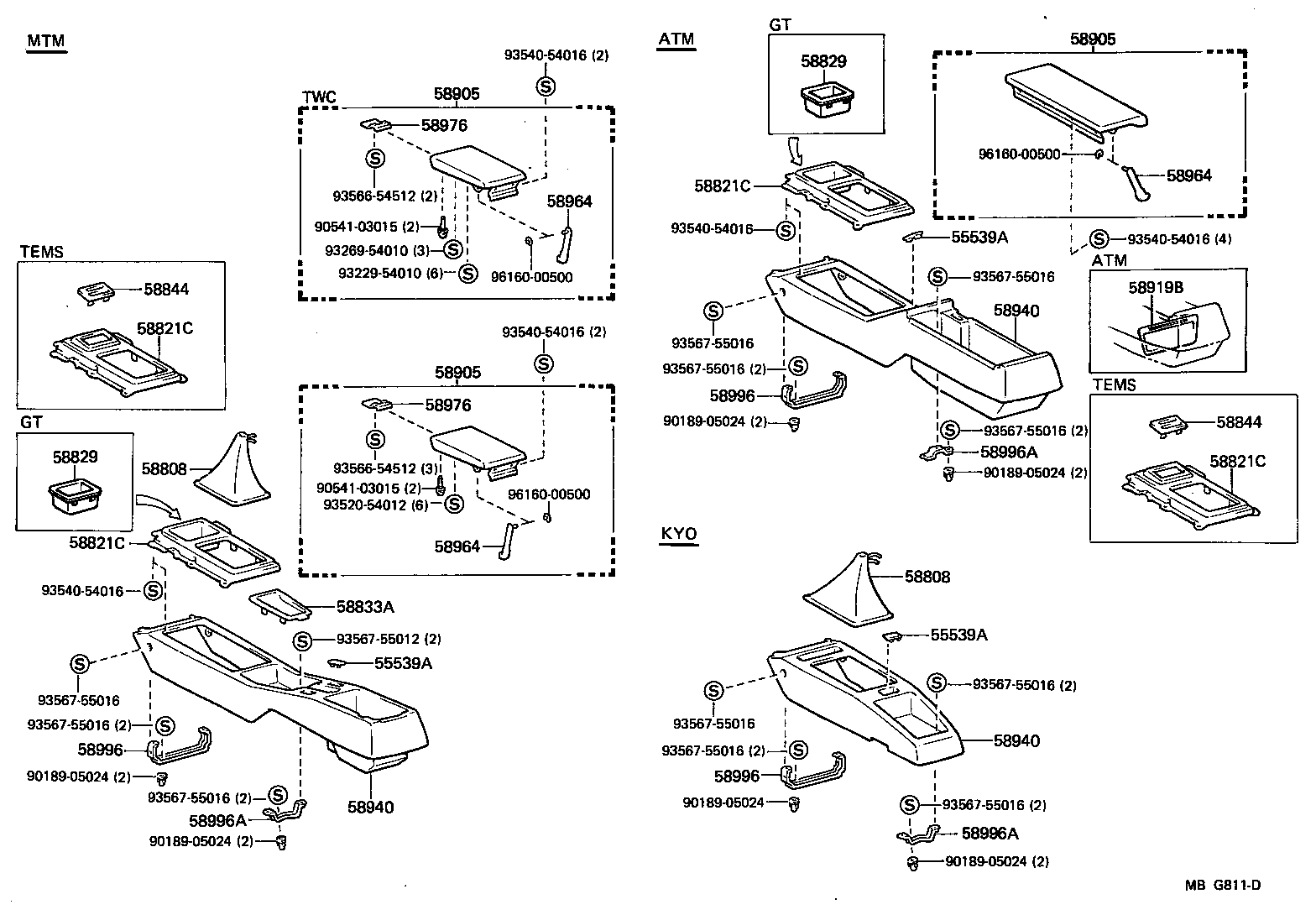

Figure MBG811D MBG811D 1984-08 → —

Part groups

PNCDescription
55539A Cover, Spare Switch Hole
58808 Cover Sub-assy, Shifting Hole
58821C Panel, Console, Upper
58829 Pocket, Console Box
58833A Cover, Console, Upper
58844 Bezel, Console Box
58905 Door Sub-assy, Console Compartment
58919B Plate, Console Box
58940 Console Assy, Rear
58964 Stopper, Console Compartment Door, NO.1
58976 Striker, Console Compartment Door Lock
58996 Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
