Toyota Cresta
1984-08 → 1988-08 · chassis GX71,LX70,MX71,SX70 · catalogue 313150 · Japan
Discontinued model
Data version 1989-02
Roof Side Ventilator
6 part groups · 1 illustrations

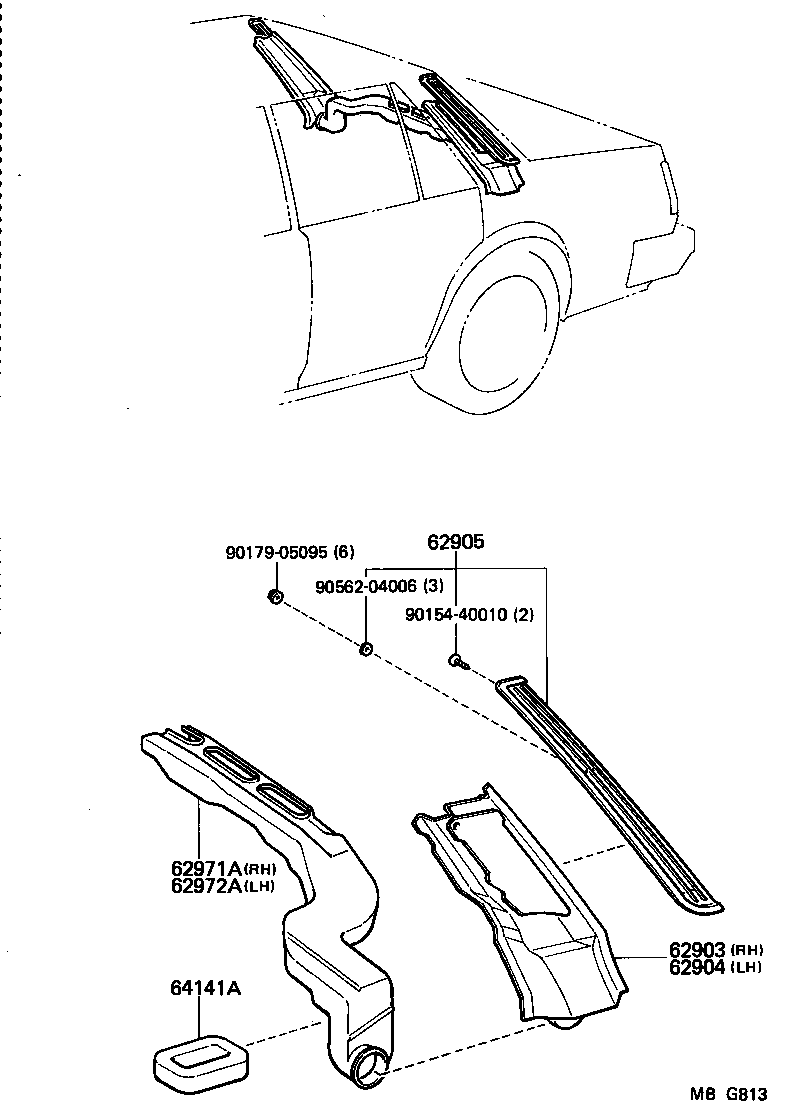

Illustrations
Part groups
| PNC | Description |
|---|---|
| 62903 | Duct Sub-assy, Quarter Ventilator, RH |
| 62904 | Duct Sub-assy, Quarter Ventilator, LH |
| 62905 | Louver, Quarter Ventilation |
| 62971A | Duct, Roof Side Air, NO.1 RH |
| 62972A | Duct, Roof Side Air, NO.1 LH |
| 64141A | Silencer, Back Panel, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
