Toyota Cresta
1984-08 → 1988-08 · chassis GX71,LX70,MX71,SX70 · catalogue 313150 · Japan
Discontinued model
Data version 1989-02

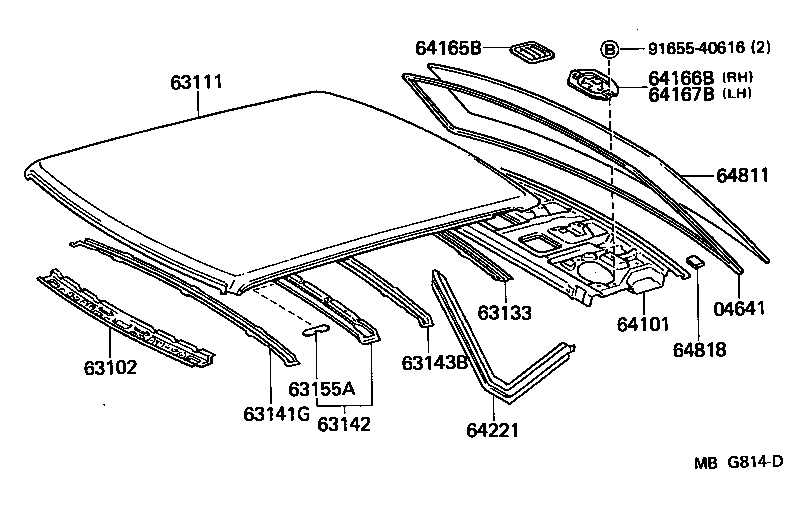

Roof Panel & Back Window Glass
15 part groups · 1 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 04641 | Dam Kit, Back Window Glass |
| 63102 | Reinforcement Sub-assy, Roof Panel, Front |
| 63111 | Panel, Roof |
| 63133 | Frame, Back Window Opening, Upper |
| 63141G | Reinforcement, Roof Panel, NO.1 |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63155A | Plate, Roof Panel Reinforcement |
| 64101 | Panel Sub-assy, Upper Back |
| 64165B | Cover, Upper Back Panel Hole, NO.1 |
| 64166B | Cover, Upper Back Panel Hole, NO.2 |
| 64167B | Cover, Upper Back Panel Hole, NO.3 |
| 64221 | Brace, Rear Seat Cushion Support |
| 64811 | Glass, Back Window |
| 64818 | Spacer, Back Window Glass |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
