Toyota Cresta

1984-08 → 1988-08 · chassis GX71,LX70,MX71,SX70 · catalogue 313150 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board & Door Opening Trim Moulding

26 part groups · 2 illustrations

Illustrations

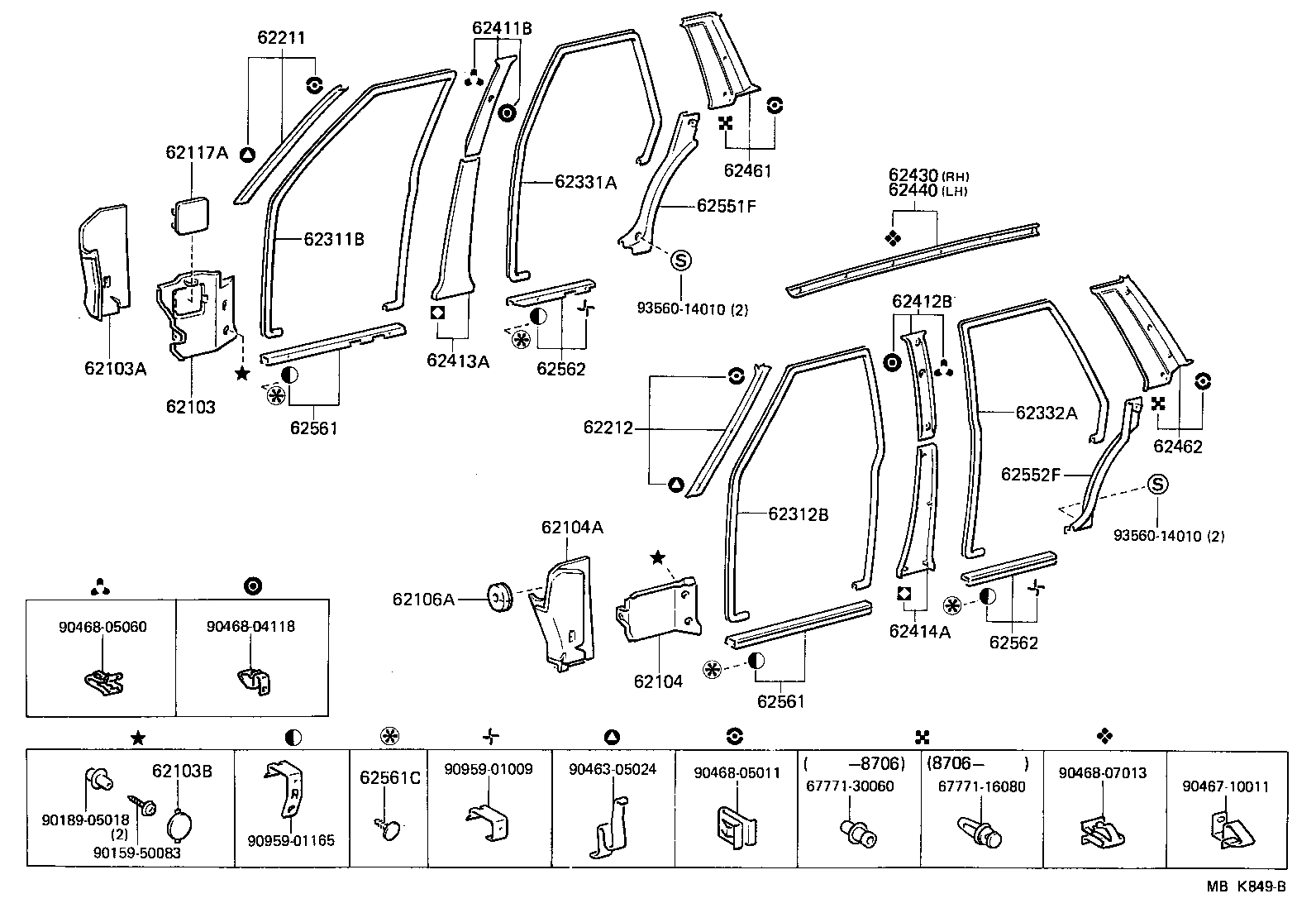

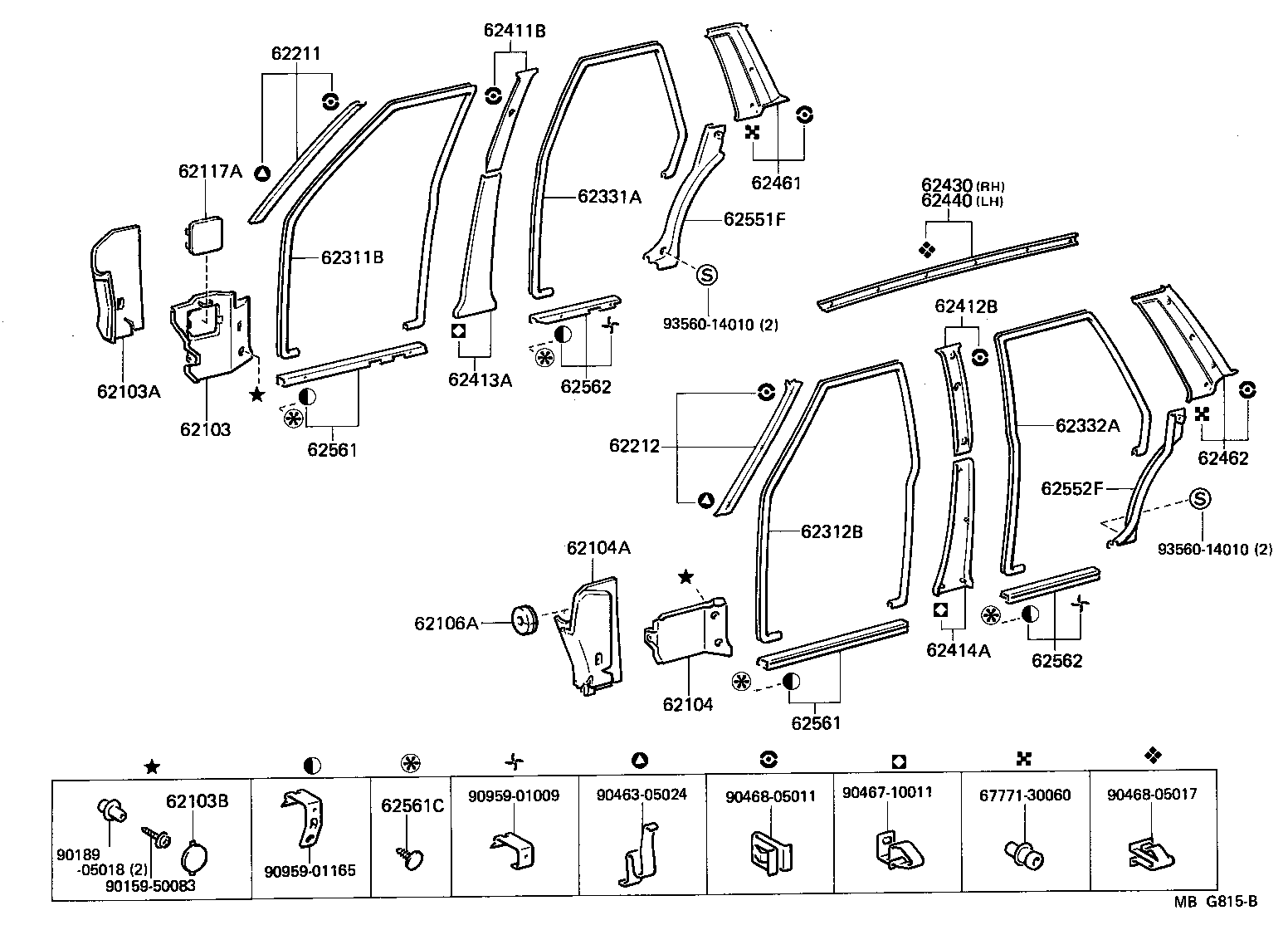

Figure MBG815B MBG815B 1984-08 → 1986-08 Figure MBK849B MBK849B 1986-08 → —

Part groups

PNCDescription
62103 Board Sub-assy, Cowl Side Trim, RH
62103A Insulator Sub-assy, Cowl Side, RH
62103B Plug(FOR COWL SIDE TRIM BOARD)
62104 Board Sub-assy, Cowl Side Trim, LH
62104A Insulator Sub-assy, Cowl Side, LH
62106A Insulator Sub-assy, Cowl Side, Upper LH
62117A Cover, Cowl Side Trim Service Hole
62211 Garnish, Front Pillar, RH
62212 Garnish, Front Pillar, LH
62311B Weatherstrip, Front Door Opening Trim, RH
62312B Weatherstrip, Front Door Opening Trim, LH
62331A Weatherstrip, Rear Door Opening Trim, RH
62332A Weatherstrip, Rear Door Opening Trim, LH
62411B Garnish, Center Pillar, Upper RH
62412B Garnish, Center Pillar, Upper LH
62413A Garnish, Center Pillar, Lower RH
62414A Garnish, Center Pillar, Lower LH
62430 Garnish Assy, Roof Side Rail, RH
62440 Garnish Assy, Roof Side Rail, LH
62461 Garnish, Roof Side Trim, RH
62462 Garnish, Roof Side Trim, LH
62551F Garnish, Rear Seat Side, RH
62552F Garnish, Rear Seat Side, LH
62561 Protector, Rocker Panel, Inner Front
62561C Clip (FOR ROCKER PANEL INNER PROTECTOR)
62562 Protector, Rocker Panel, Inner Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
