Toyota Cresta

1984-08 → 1988-08 · chassis GX71,LX70,MX71,SX70 · catalogue 313150 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

21 part groups · 2 illustrations

Illustrations

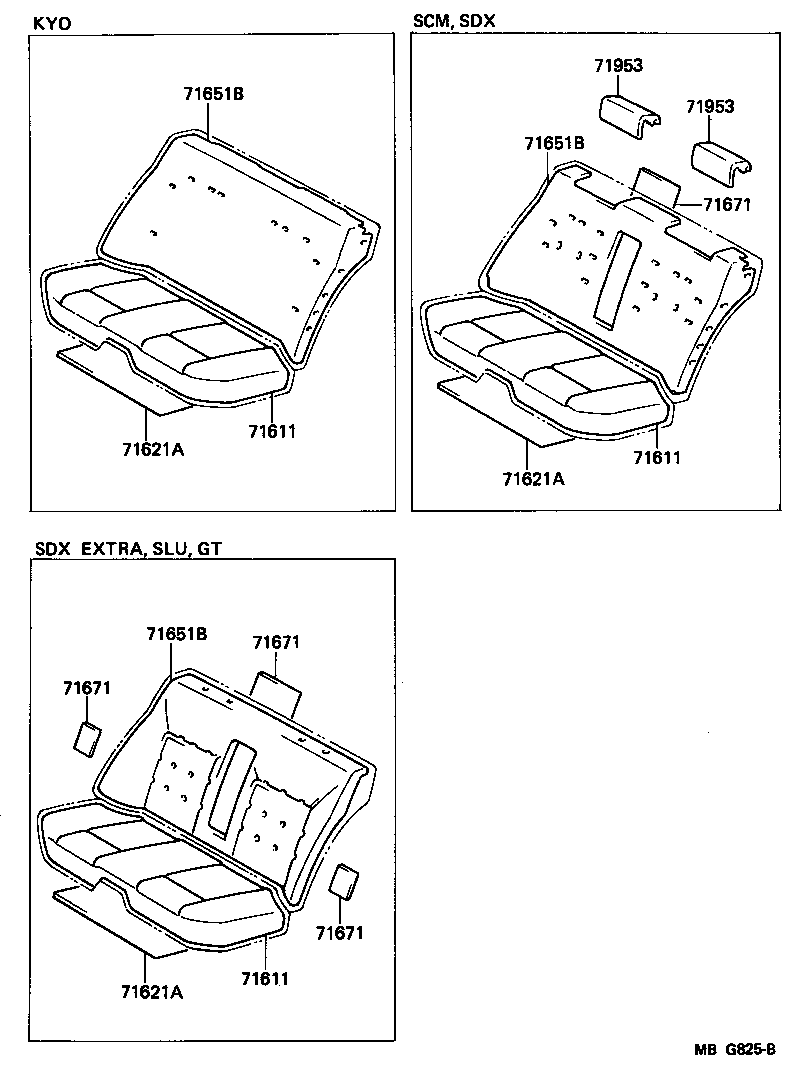

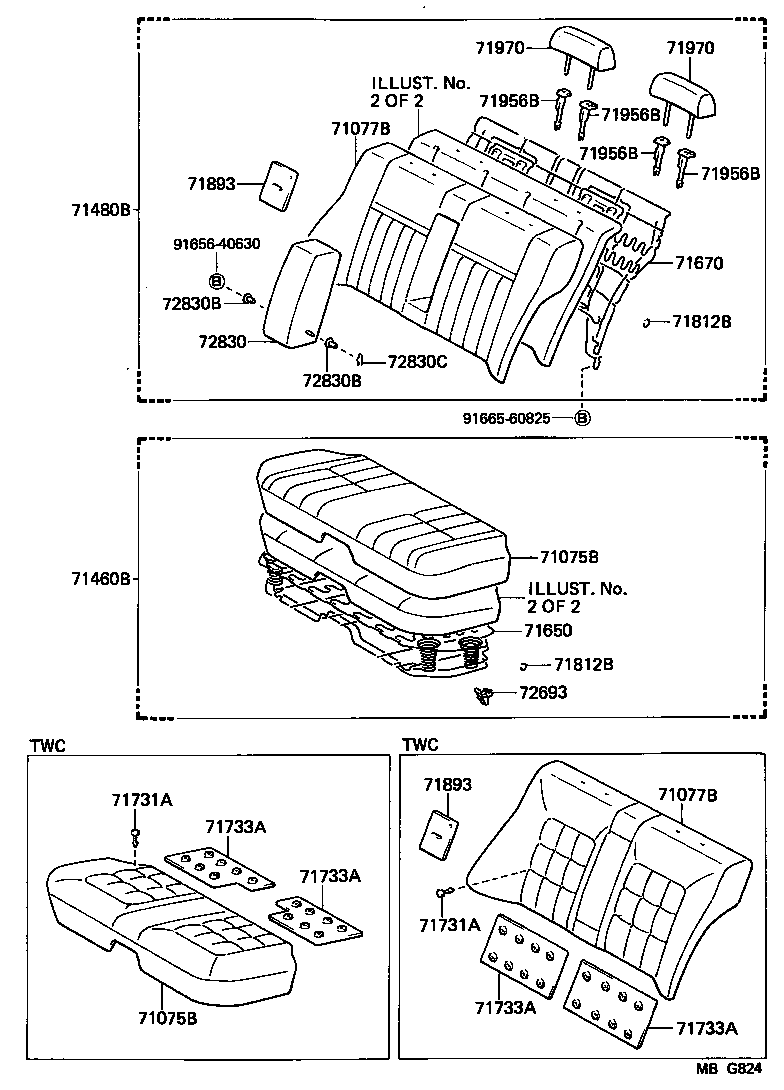

Figure MBG824 MBG824 1984-08 → — Figure MBG825B MBG825B 1984-08 → —

Part groups

PNCDescription
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71611 Pad, Rear Seat Cushion
71621A Pad, Rear Seat Cushion Silencer, A
71650 Spring Assy, Rear Seat Cushion
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71670 Spring Assy, Rear Seatback(FOR BENCH SEAT)
71671 Pad, Rear Seatback Silencer, A
71731A Fastener, Seat Cover, A (FOR REAR SEAT)
71733A Retainer, Seat Cover Fastener, A (FOR REAR SEAT)
71812B Clip(FOR REAR SEAT CUSHION COVER)
71893 Garnish, Rear Seatback Side, Lower RH
71953 Pad, Rear Seat Headrest
71956B Support, Rear Seat Headrest
71970 Headrest Assy, Rear Seat
72693 Hook, Rear Seat Cushion Lock
72830 Armrest Assy, Rear Seat, Center
72830B Bush(FOR REAR SEAT CENTER ARMREST)
72830C Clip, Rear Seat Center Armrest
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
