Toyota Cresta
1984-08 → 1988-08 · chassis GX71,LX70,MX71,SX70 · catalogue 313150 · Japan
Discontinued model
Data version 1989-02
Armrest & Visor
18 part groups · 1 illustrations

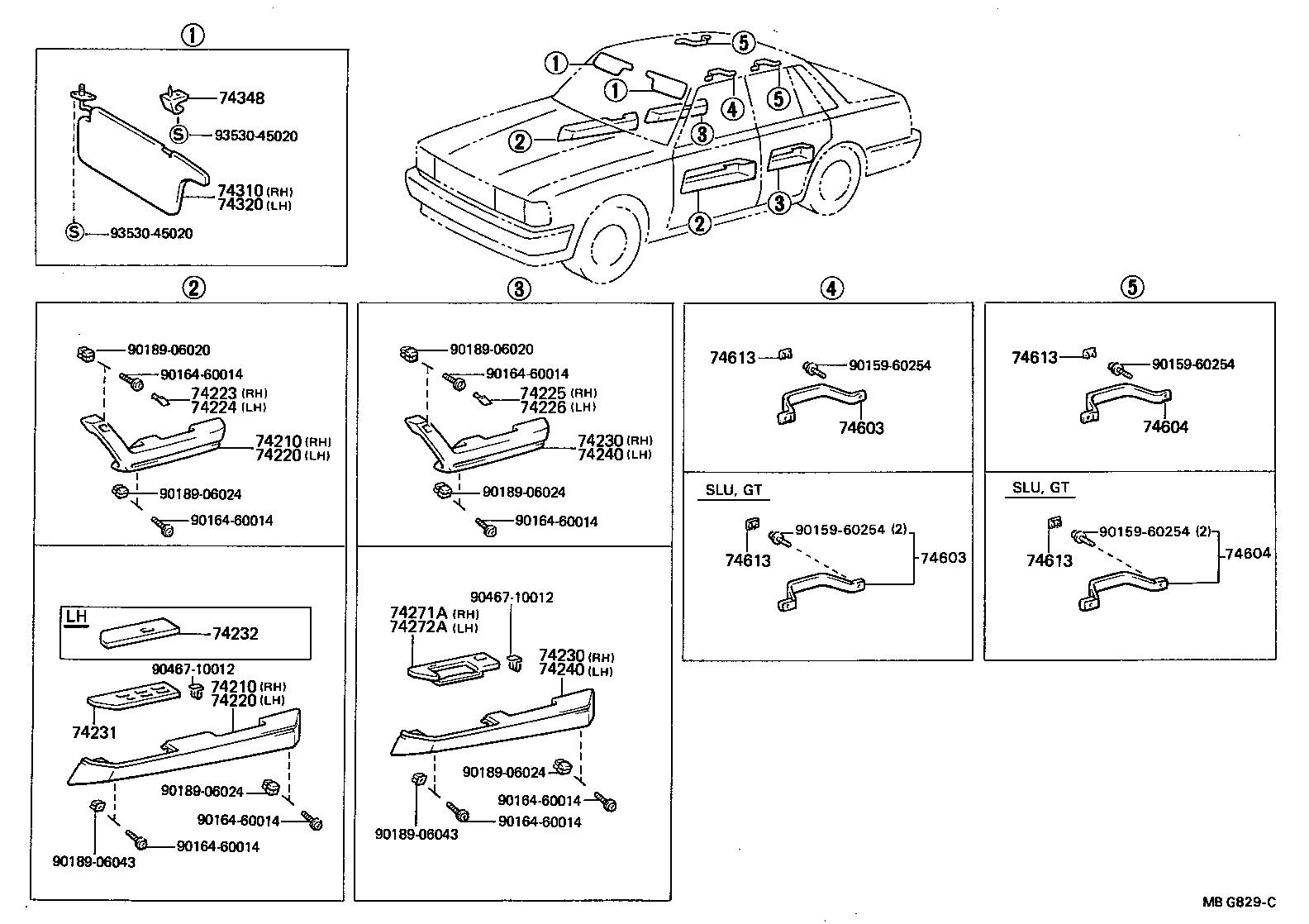

Illustrations
Part groups
| PNC | Description |
|---|---|
| 74210 | Armrest Assy, Front, RH |
| 74220 | Armrest Assy, Front, LH |
| 74223 | Cap, Door Armrest, RH |
| 74224 | Cap, Door Armrest, LH |
| 74225 | Cap, Door Armrest, Rear RH |
| 74226 | Cap, Door Armrest, Rear LH |
| 74230 | Armrest Assy, Rear, RH |
| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74240 | Armrest Assy, Rear, LH |
| 74271A | Panel, Rear Door Armrest Base, Upper RH |
| 74272A | Panel, Rear Door Armrest Base, Upper LH |
| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74348 | Holder, Visor |
| 74603 | Grip Sub-assy, Assist, Front |
| 74604 | Grip Sub-assy, Assist, Rear |
| 74613 | Plug, Assist Grip |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
