Toyota Cresta

1984-08 → 1988-08 · chassis GX71,LX70,MX71,SX70 · catalogue 313150 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Moulding

7 part groups · 1 illustrations

Illustrations

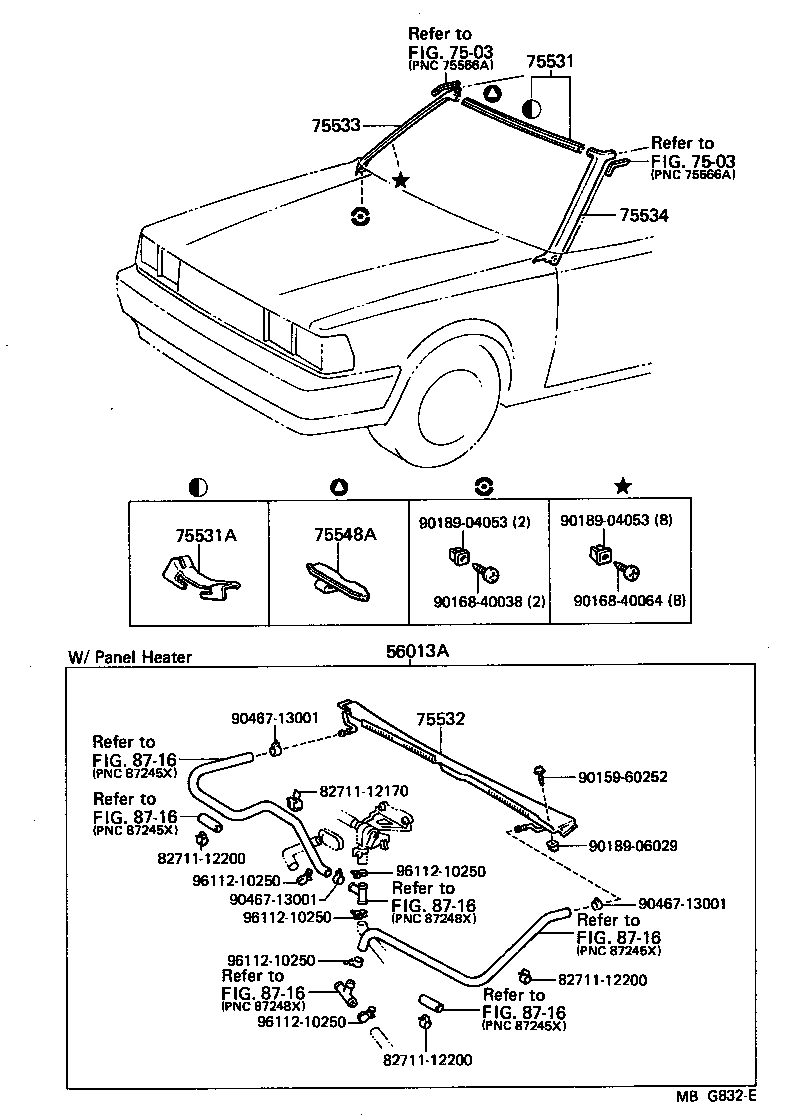

Figure MBG832E MBG832E 1984-08 → —

Part groups

PNCDescription
56013A Moulding Sub-assy, Front Window, Inner Center
75531 Moulding, Windshield, Outer Upper
75531A Clip, Windshield Moulding Set, NO.1
75532 Moulding, Windshield, Lower
75533 Moulding, Windshield, Outside RH
75534 Moulding, Windshield, Outside LH
75548A Fastener, Windshield Outside Moulding, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
