Factory parts data · Europe

Toyota Cresta

1984-08 → 1988-08 · chassis GX71,LX70,MX71,SX70 · catalogue 313150 · Japan

Discontinued model Data version 1989-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

7 part groups · 1 illustrations

Illustrations

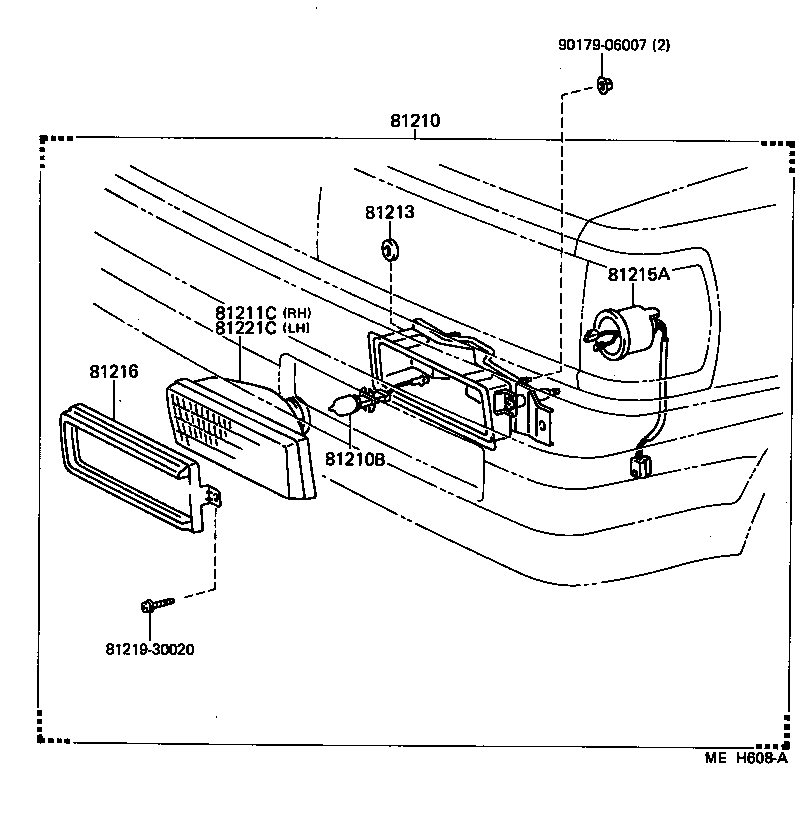

Figure MEH608A

MEH608A 1986-08 → —

Part groups

PNC	Description
81210	Lamp Assy, Fog
81210B	Bulb, Fog Lamp
81211C	Lamp Unit, Fog Lamp, RH
81213	Spacer, Fog Lamp
81215A	Socket & Wire, Fog Lamp
81216	Rim, Fog Lamp, NO.1
81221C	Lamp Unit, Fog Lamp, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
