Toyota Cresta

1984-08 → 1988-08 · chassis GX71,LX70,MX71,SX70 · catalogue 313150 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Clearance Lamp

11 part groups · 2 illustrations

Illustrations

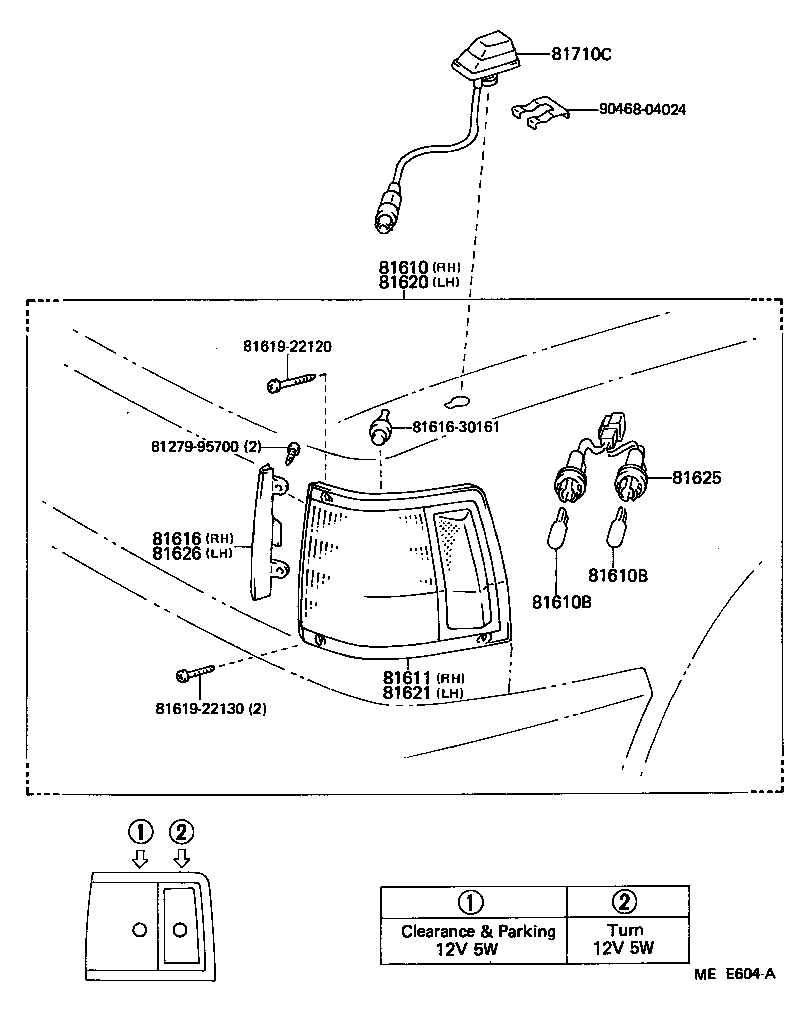

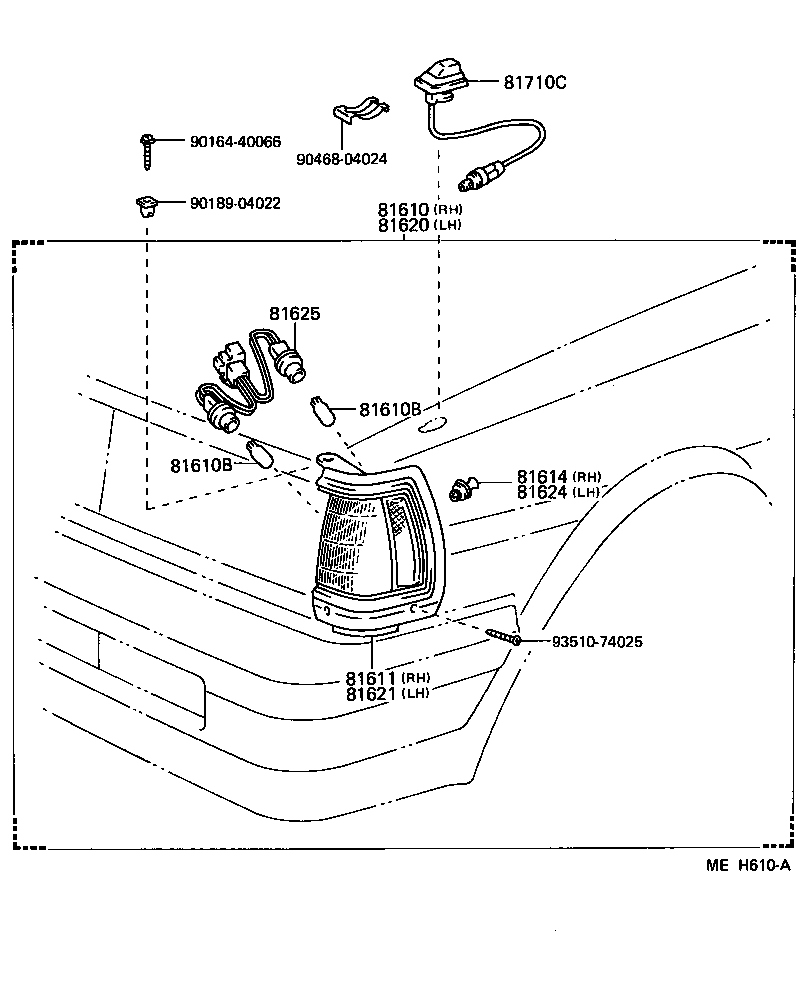

Figure MEE604A MEE604A 1984-08 → 1986-08 Figure MEH610A MEH610A 1986-08 → —

Part groups

PNCDescription
81610 Lamp Assy, Parking & Clearance, RH
81610B Bulb(FOR PARKING & CLEARANCE LAMP)
81611 Lens, Parking & Clearance Lamp, RH
81614 Gasket, Parking And Clearance Lamp Body, RH
81616 Rim, Parking And Clearance Lamp, RH
81620 Lamp Assy, Parking & Clearance, LH
81621 Lens, Parking & Clearance Lamp, LH
81624 Gasket, Parking And Clearance Lamp Body, LH
81625 Socket And Wire, Parking And Clearance Lamp
81626 Rim, Parking And Clearance Lamp, LH
81710C Marker Assy, Fender
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
