Toyota Cresta
1984-08 → 1988-08 · chassis GX71,LX70,MX71,SX70 · catalogue 313150 · Japan
Discontinued model
Data version 1989-02

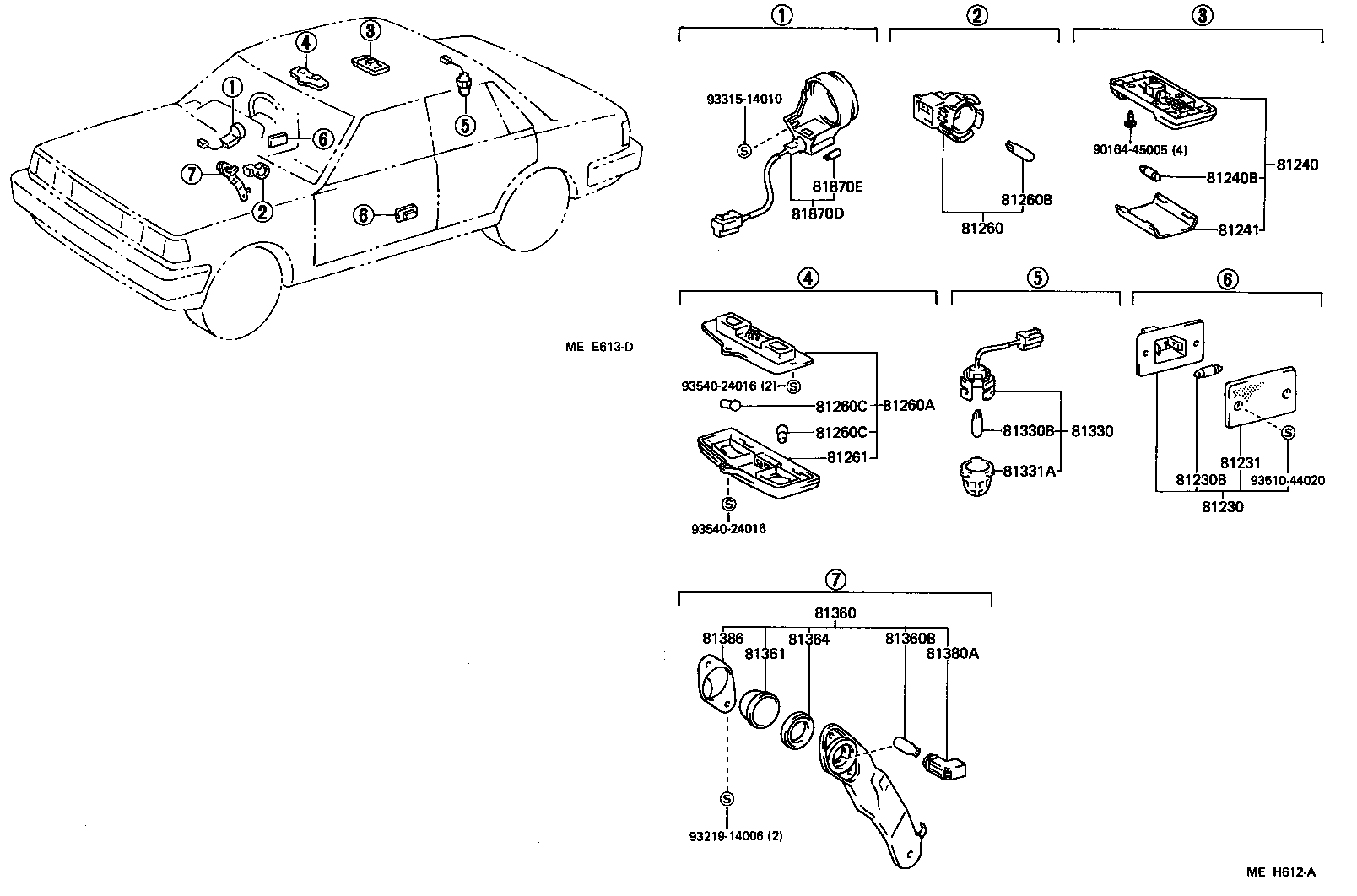

Interior Lamp
22 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81230 | Lamp Assy, Courtesy |
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81231 | Lens, Courtesy Lamp |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81241 | Lens, Room Lamp, NO.1 |
| 81260 | Lamp Assy, Glove Box |
| 81260A | Lamp Assy, Map |
| 81260B | Bulb(FOR GLOVE BOX) |
| 81260C | Bulb(FOR MAP LAMP) |
| 81261 | Lens And Cover, Map Lamp |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81331A | Cover, Luggage Compartment Lamp |
| 81360 | Lamp Assy, Step OR Spot |
| 81360B | Bulb, Step OR Spot Lamp |
| 81361 | Lens, Step Lamp |
| 81364 | Gasket, Step Lamp |
| 81380A | Socket, Plug |
| 81386 | Cover, Step Lamp |
| 81870D | Lamp Assy, Key Cylinder |
| 81870E | Bulb, Key Cylinder Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
