Toyota Cresta

1984-08 → 1988-08 · chassis GX71,LX70,MX71,SX70 · catalogue 313150 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Controlled Transmission

7 part groups · 2 illustrations

Illustrations

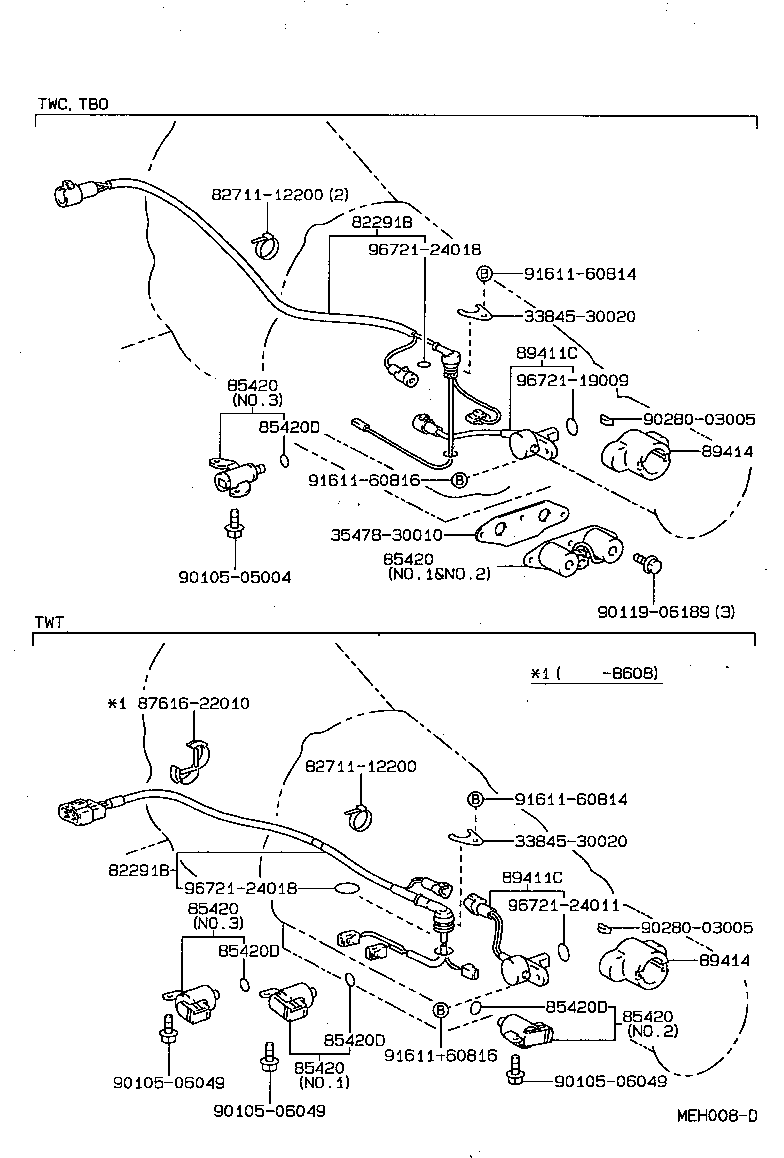

Figure MEE708C MEE708C 1984-08 → — Figure MEH008D MEH008D 1984-08 → —

Part groups

PNCDescription
82291B Wire, TO Solenoid (FOR TRANSMISSION)
84722E Switch, Transmission Control
85420 Solenoid Assy, Transmission
85420D Ring, O (FOR TRANSMISSION SOLENOID)
89411C Sensor, Speed
89414 Rotor, Sensor
89530 Computer Assy, Transmission Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
