Toyota Cresta

1984-08 → 1988-08 · chassis GX71,LX70,MX71,SX70 · catalogue 313150 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

14 part groups · 2 illustrations

Illustrations

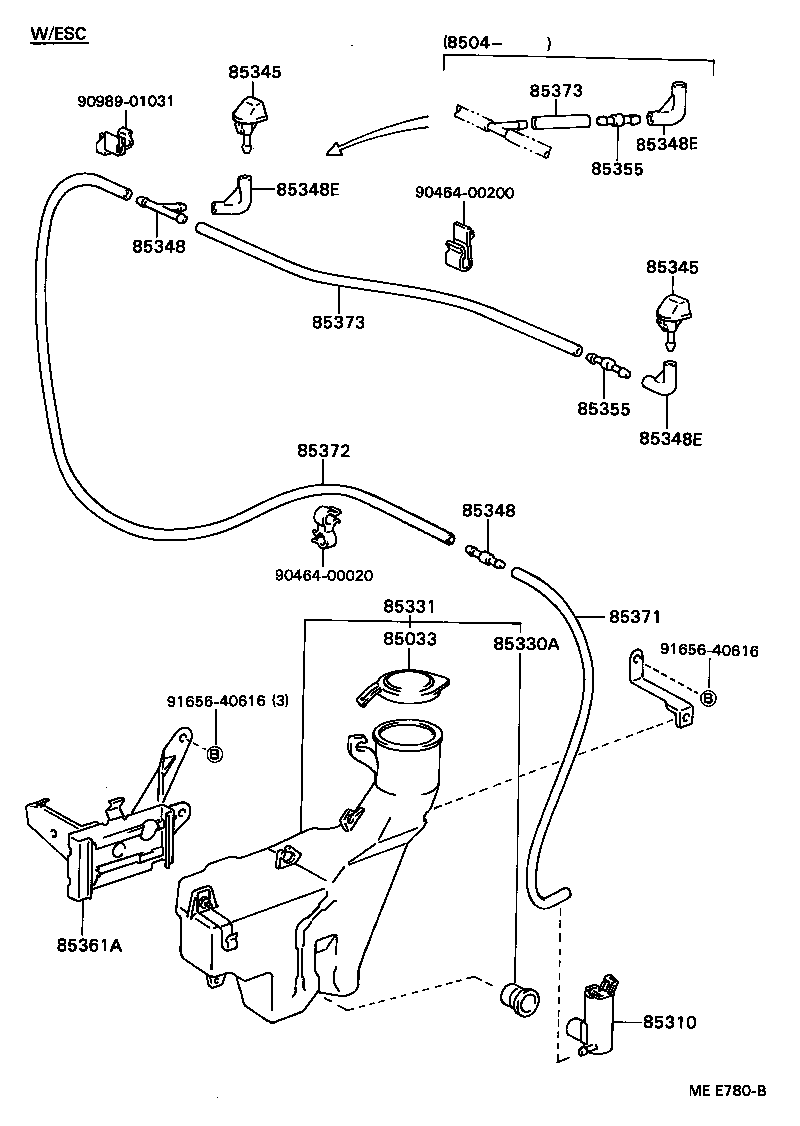

Figure MEE779C MEE779C 1984-08 → — Figure MEE780B MEE780B 1984-08 → —

Part groups

PNCDescription
85033 Cap Assy, Windshield Washer
85310 Motor And Pump Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85331 Jar Sub-assy, Windshield Washer
85345 Nozzle, Windshield Washer
85348 Joint, Windshield Washer Hose, NO.1
85348E Joint, Windshield Washer Elbow, NO.2
85355 Valve, Windshield Washer Hose
85356 Packing (FOR WINDSHIELD WASHER JAR)
85361 Holder, Windshield Washer
85361A Bracket, Windshield Washer, NO.1
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
