Toyota Cresta

1984-08 → 1988-08 · chassis GX71,LX70,MX71,SX70 · catalogue 313150 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

17 part groups · 5 illustrations

Illustrations

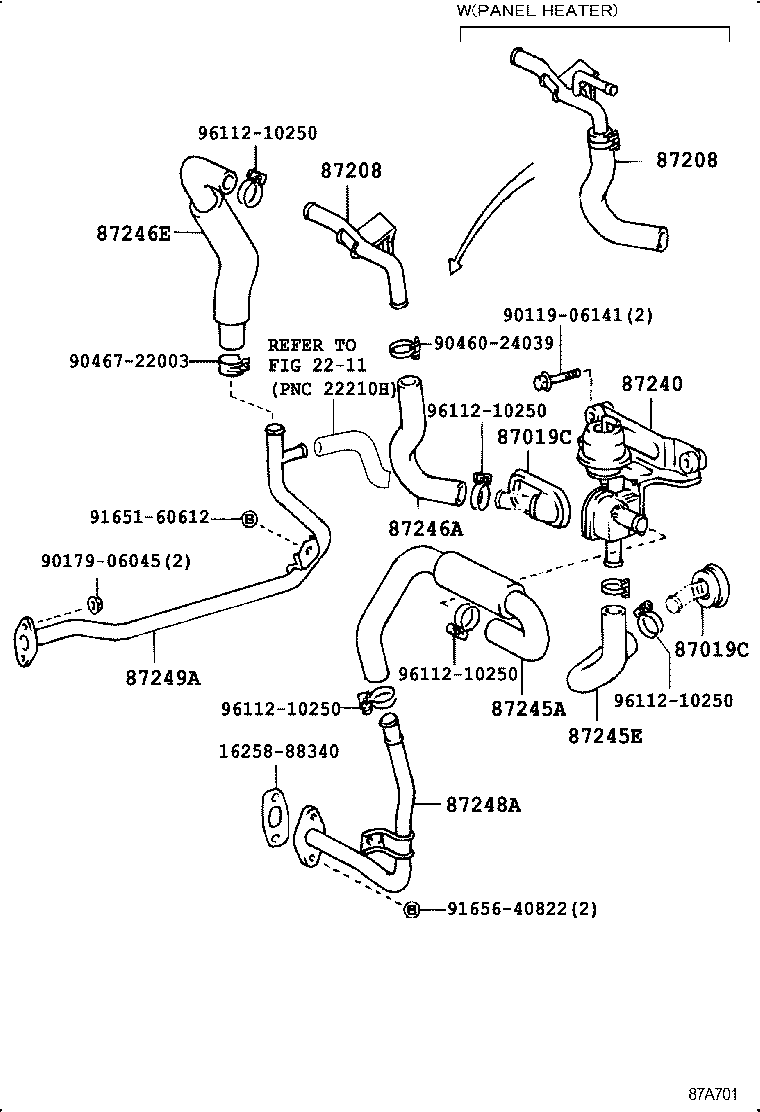

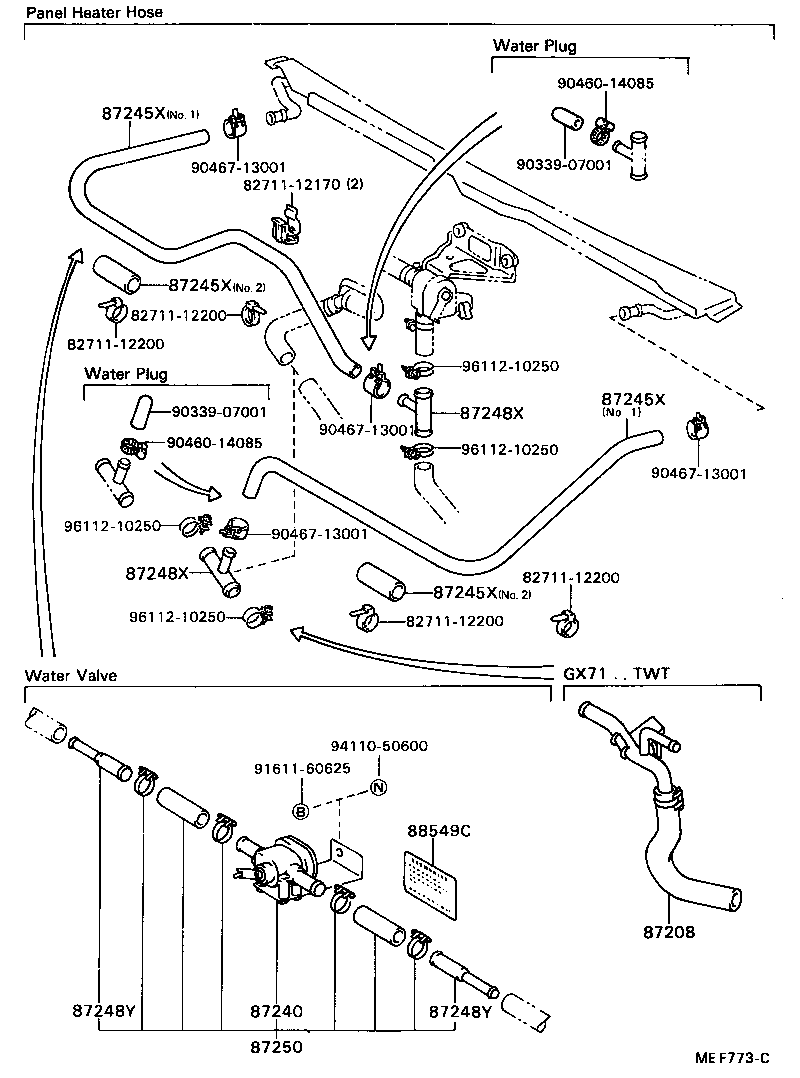

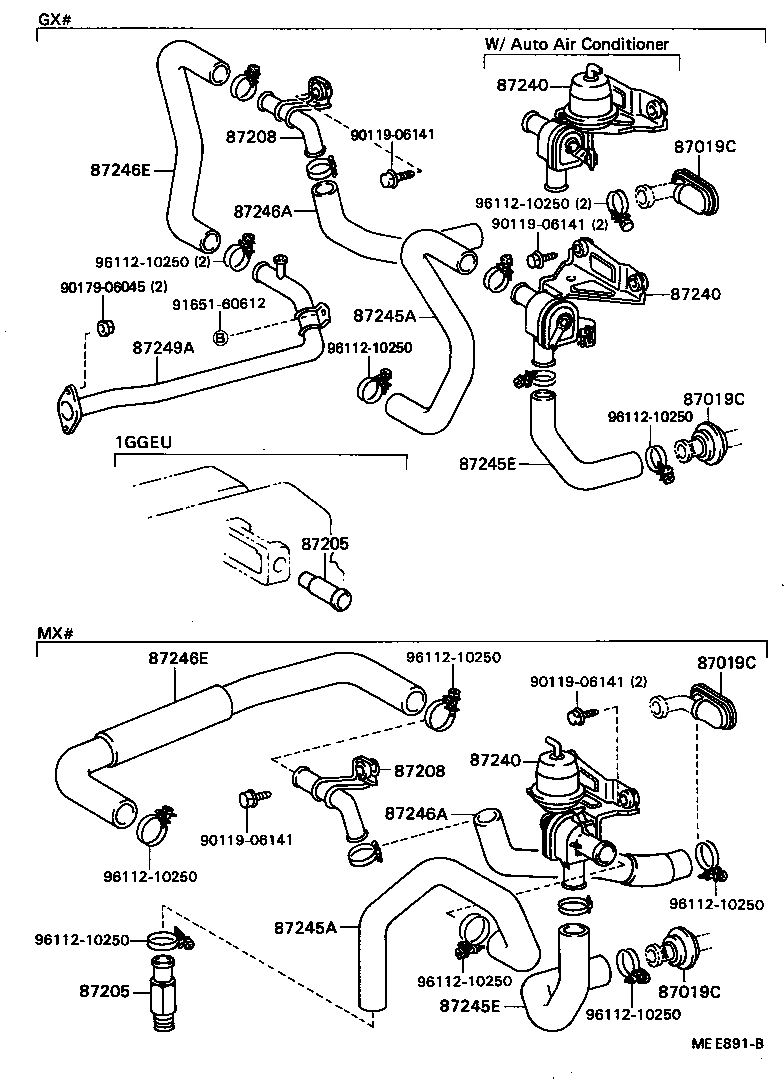

Figure MEE893A MEE893A 1984-08 → — Figure 87A701 87A701 1985-01 → — Figure MEE891B MEE891B 1984-08 → — Figure MEE892 MEE892 1984-08 → — Figure MEF773C MEF773C 1984-08 → —

Part groups

PNCDescription
87019C Grommet, Heater Hose
87205 Joint OR Union, Front Heater Hose Through OR Inlet Valve
87208 Pipe Sub-assy, Heater Water
87209 Hose Sub-assy, Water
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245E Hose, Heater Water, Inlet E
87245X Hose, Heater Water
87246A Hose, Heater Water, Outlet A
87246E Hose, Heater Water, Outlet E
87248A Pipe, Heater Water Inlet, A
87248X Pipe, Heater Water
87248Y Pipe, Heater Water, NO.2
87249A Pipe, Heater Water Outlet, A
87250 Hose And Valve Assy
87251 Joint OR Union, Water Hose Through
88549C Plate, Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
