Toyota Cresta

1988-08 → 1992-10 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 313160 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

12 part groups · 10 illustrations

Illustrations

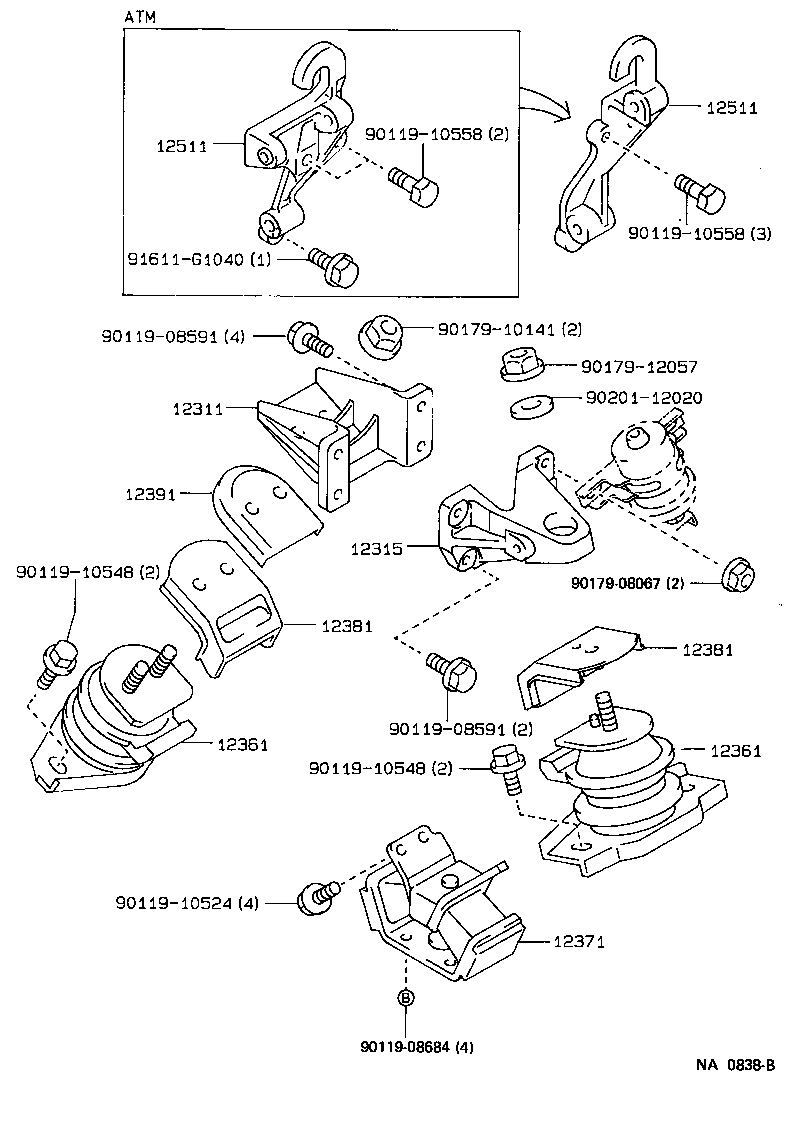

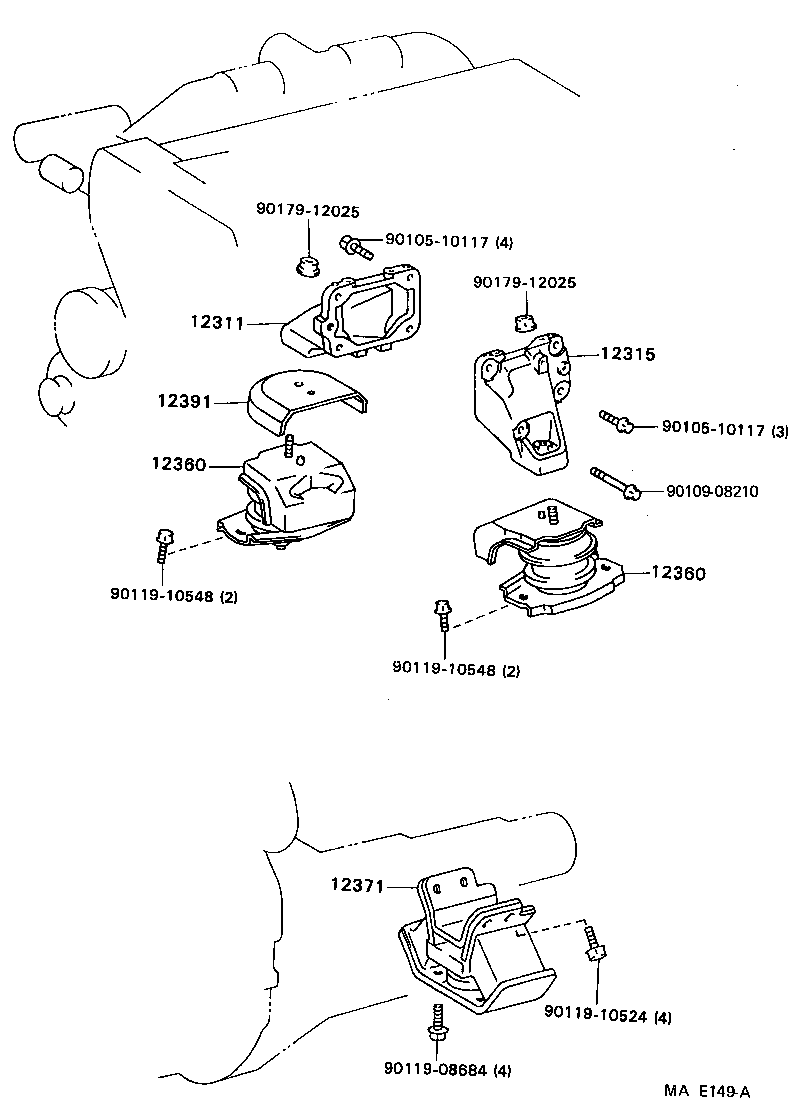

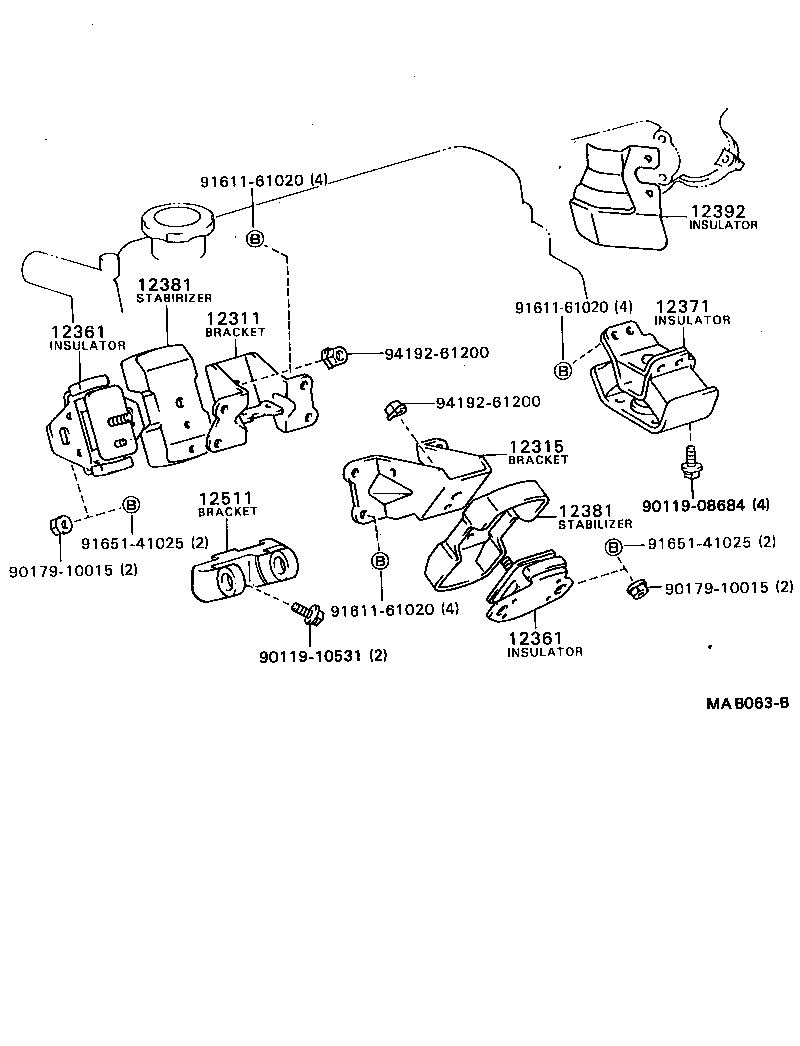

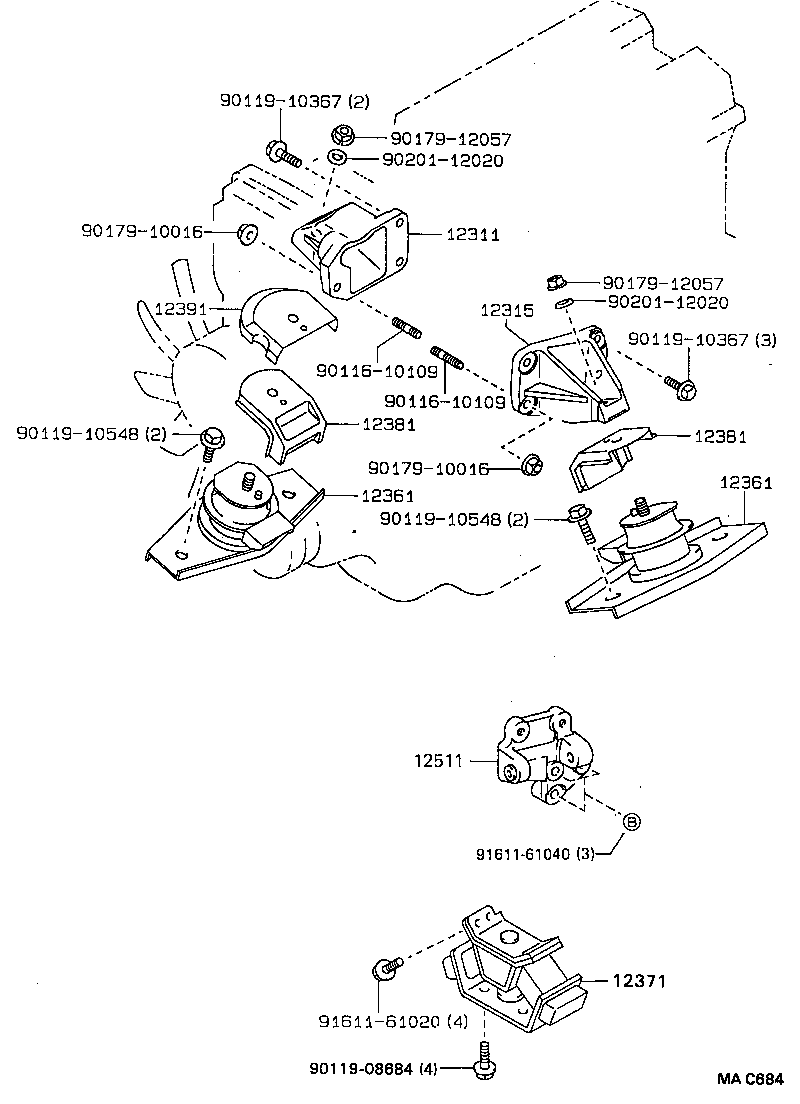

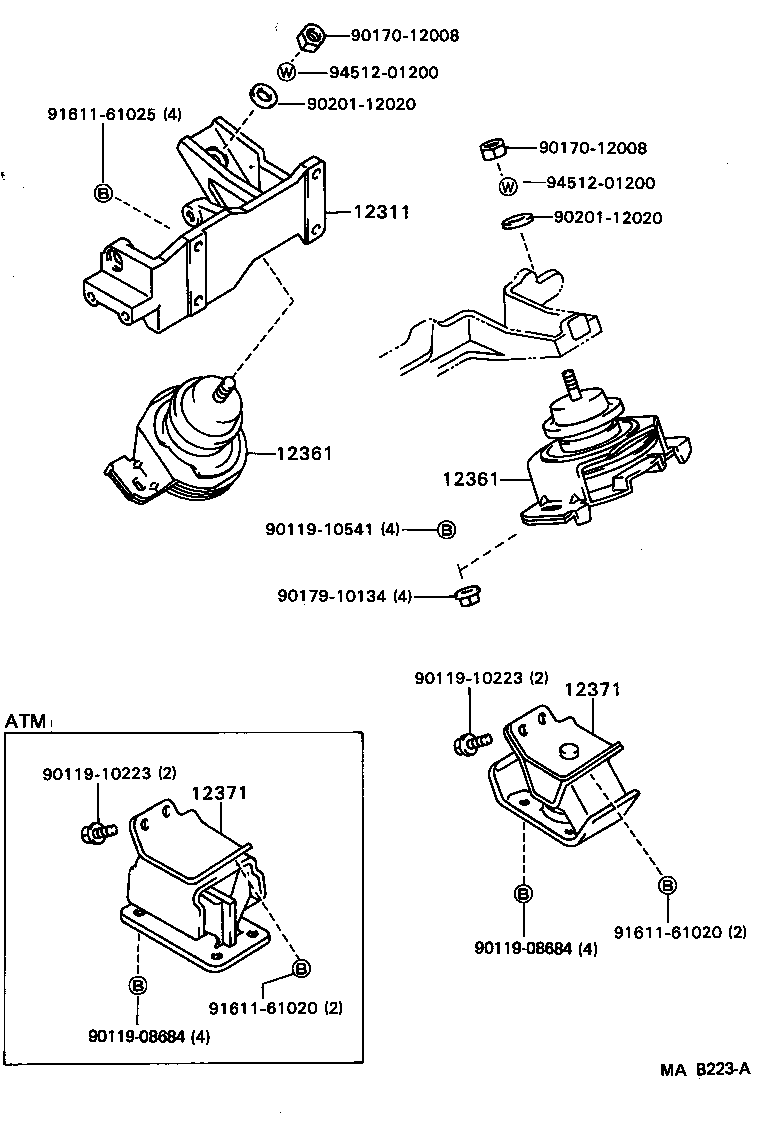

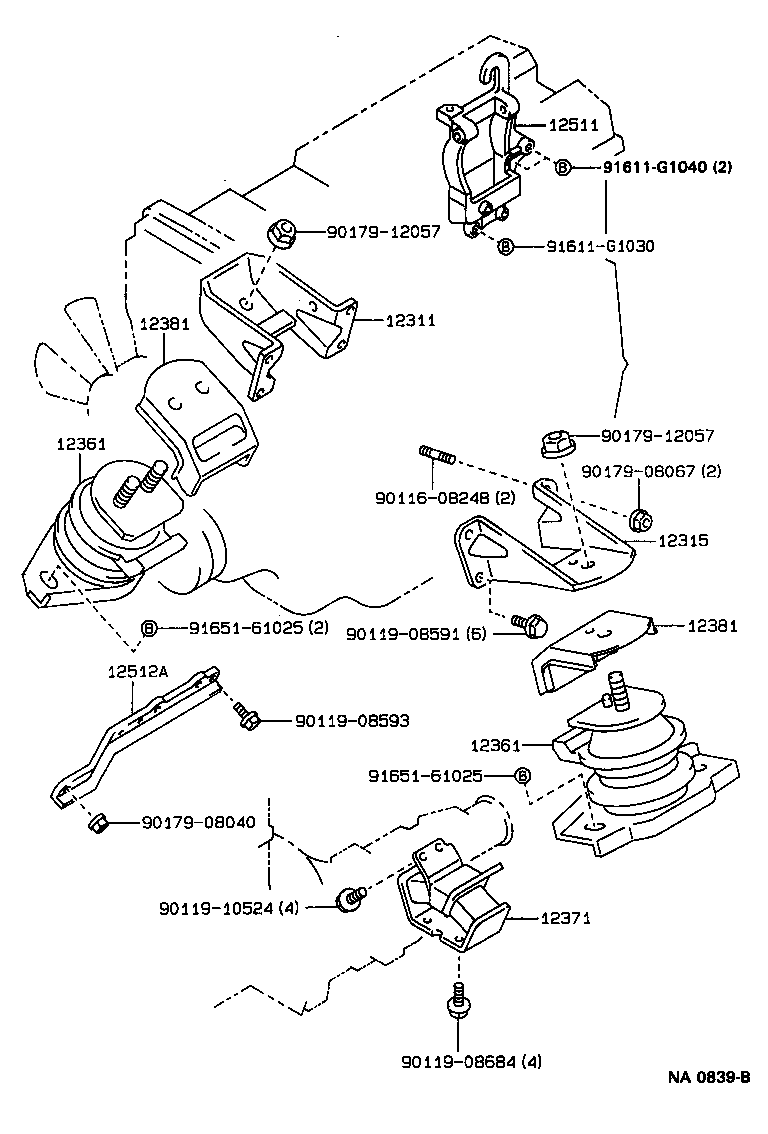

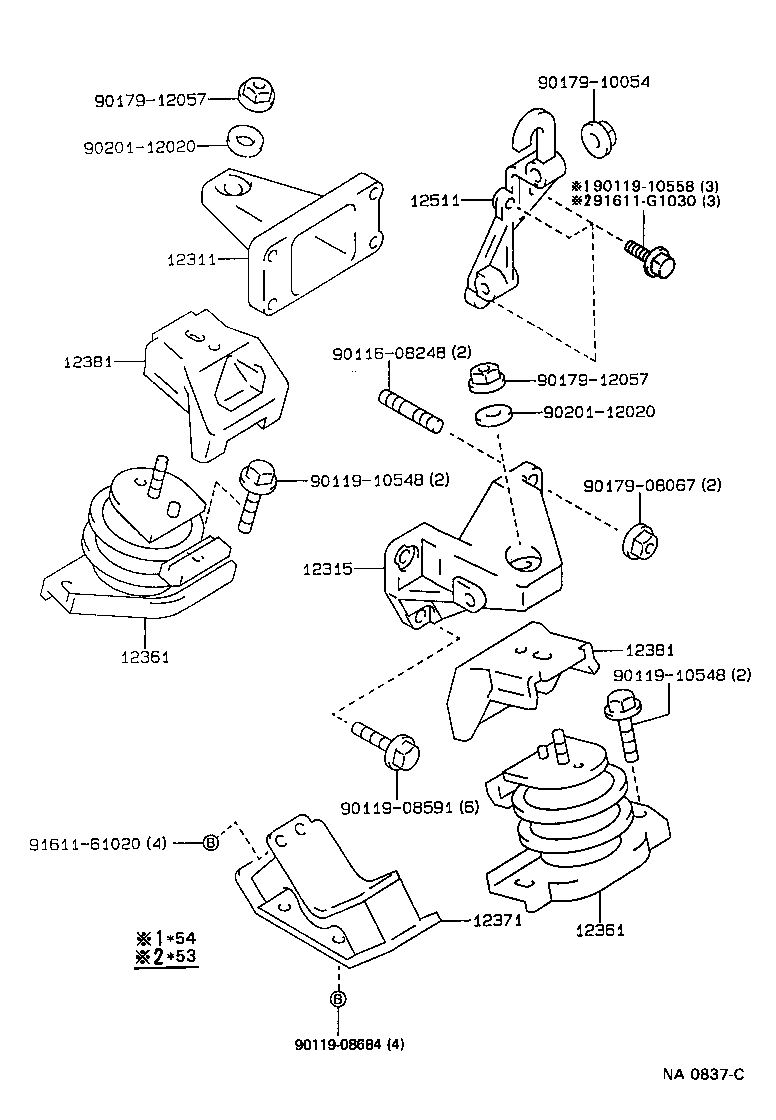

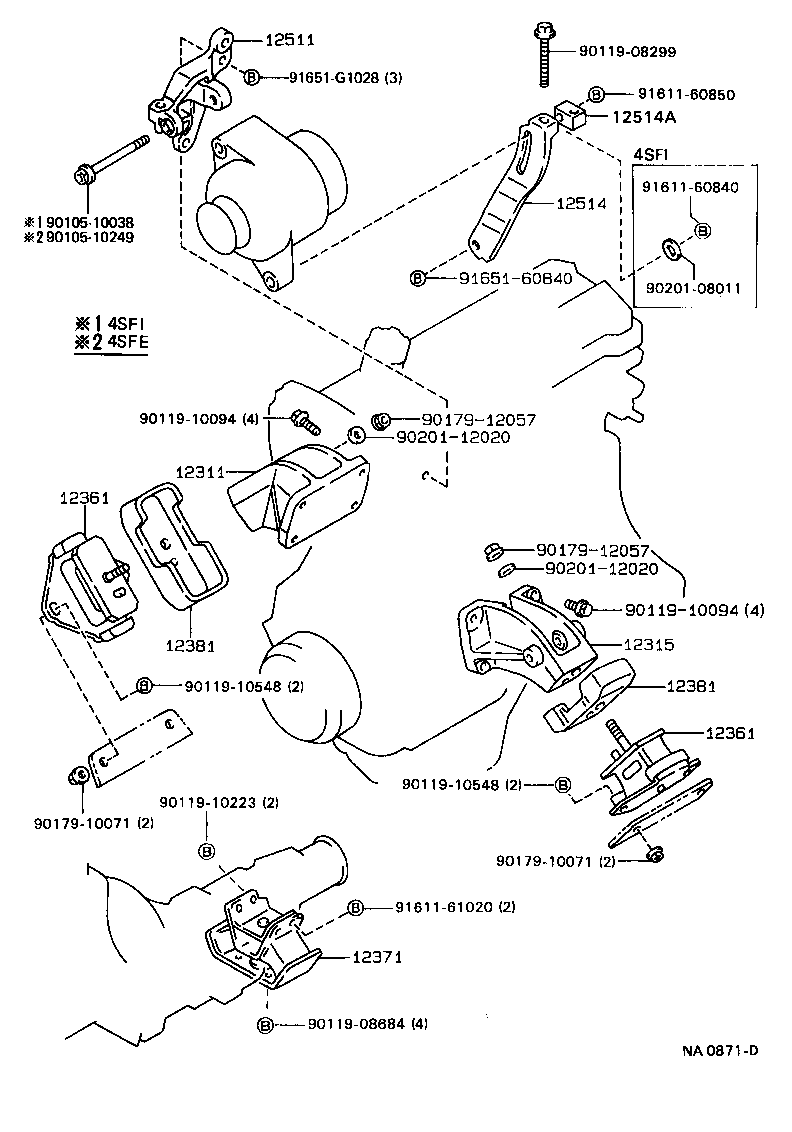

Figure MAB106C MAB106C 1988-08 → — Figure NA0837C NA0837C 1988-08 → — Figure NA0838B NA0838B 1988-08 → 1990-08 Figure NA0839B NA0839B 1988-08 → 1990-08 Figure MAE115A MAE115A 1990-08 → — Figure MAE149A MAE149A 1990-08 → — Figure MAB223A MAB223A 1988-08 → — Figure MAC684 MAC684 1989-08 → — Figure NA0871D NA0871D 1988-08 → — Figure MAB063B MAB063B 1988-08 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12360 Insulator Assy, Engine Mounting, Front
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12391 Insulator, Engine Mounting Front, Heat, RH
12392 Insulator, Engine Mounting Heat, Front LH
12511 Bracket, Alternator, NO.1
12512A Bracket, Alternator, NO.2
12514 Bar, Alternator Belt Adjusting
12514A Slider, Fan Belt Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
