Toyota Cresta

1988-08 → 1992-10 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 313160 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

10 part groups · 10 illustrations

Illustrations

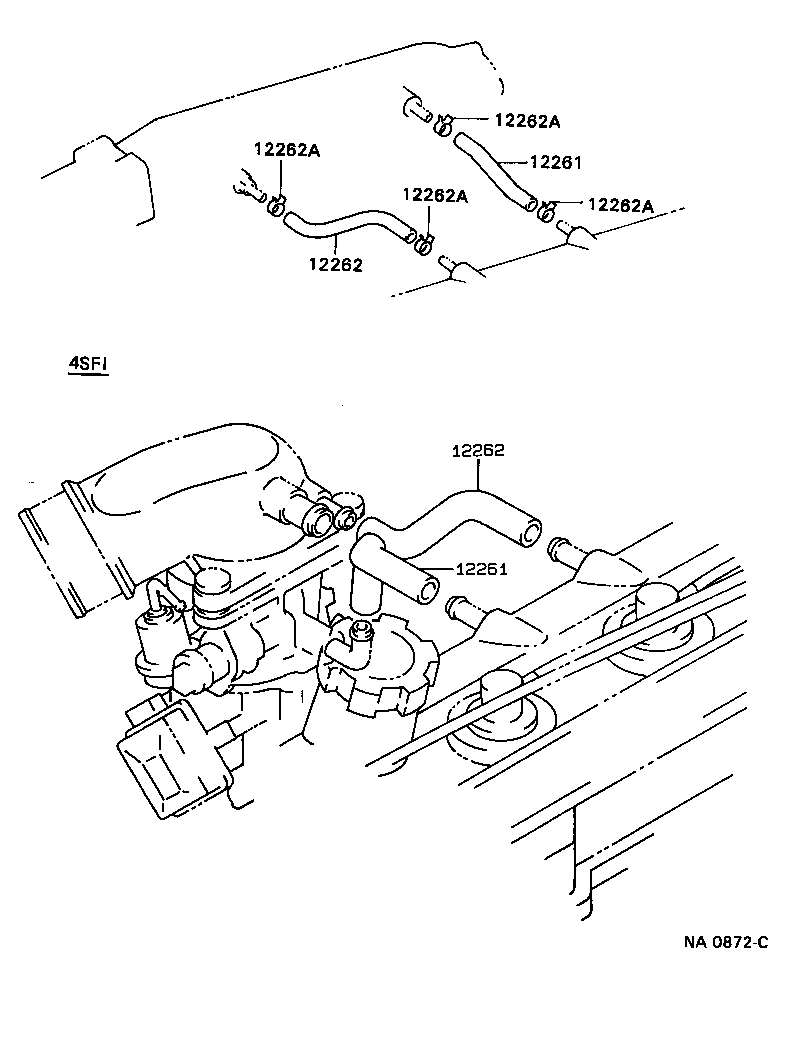

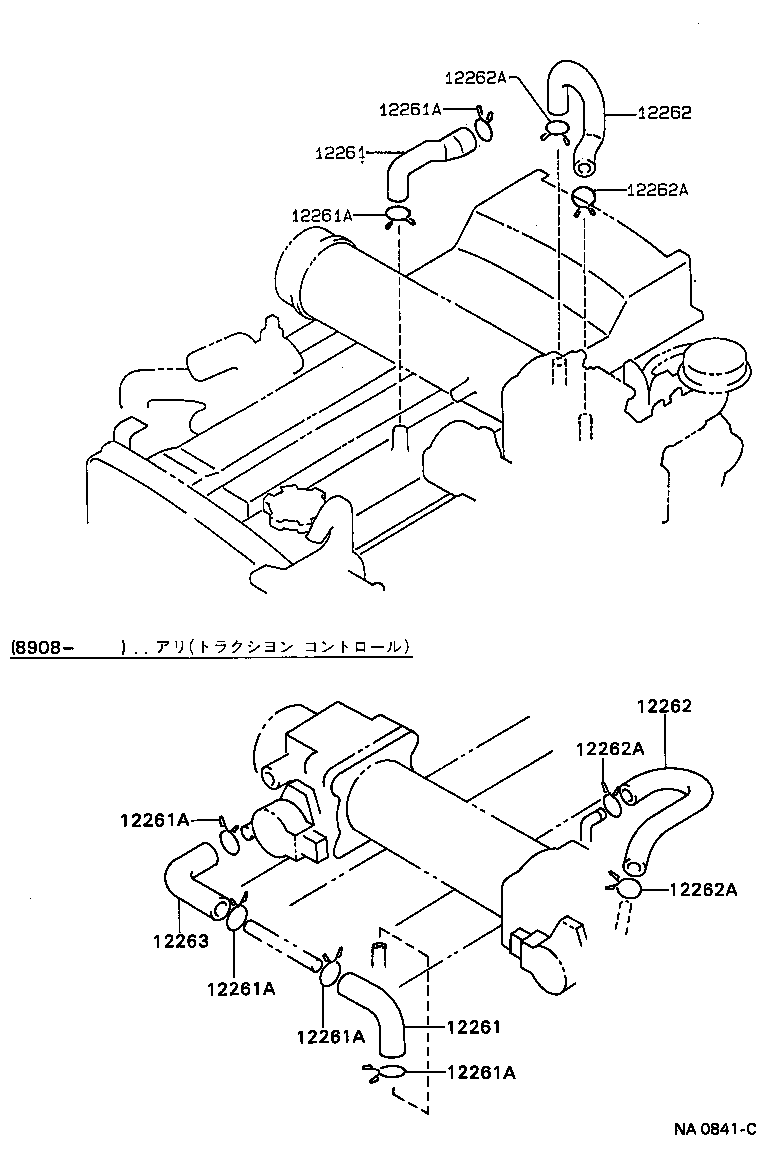

Figure NA0818 NA0818 1988-08 → — Figure NA0840A NA0840A 1988-08 → — Figure MA8586 MA8586 1988-08 → 1990-08 Figure NA0841C NA0841C 1988-08 → 1990-08 Figure MAE116 MAE116 1990-08 → — Figure MAE040A MAE040A 1990-08 → — Figure MA7473 MA7473 1988-08 → — Figure MA9684 MA9684 1989-08 → — Figure NA0872C NA0872C 1988-08 → — Figure MA6177B MA6177B 1988-08 → —

Part groups

PNCDescription
12203 Pipe Sub-assy, Ventilation
12204 Valve Sub-assy, Ventilation
12204A Grommet(FOR VENTILATION SYSTEM)
12225 Flange, Ventilation
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
