Toyota Cresta

1988-08 → 1992-10 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 313160 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

10 part groups · 8 illustrations

Illustrations

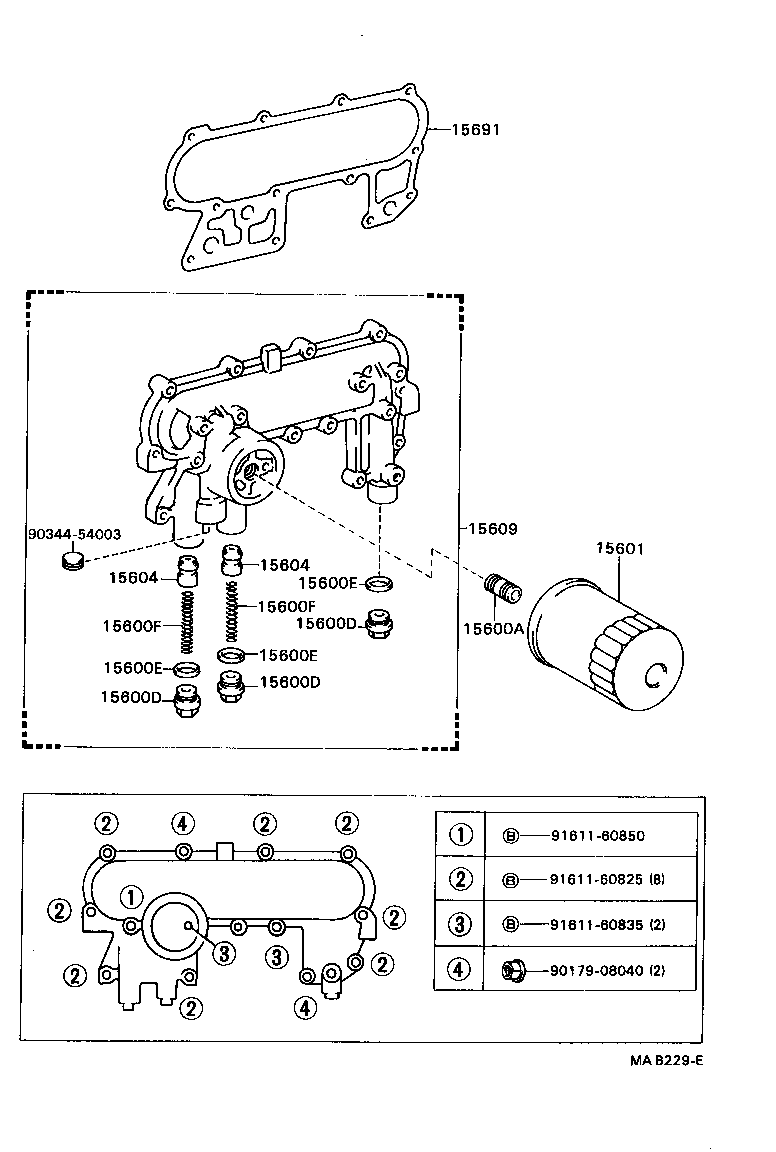

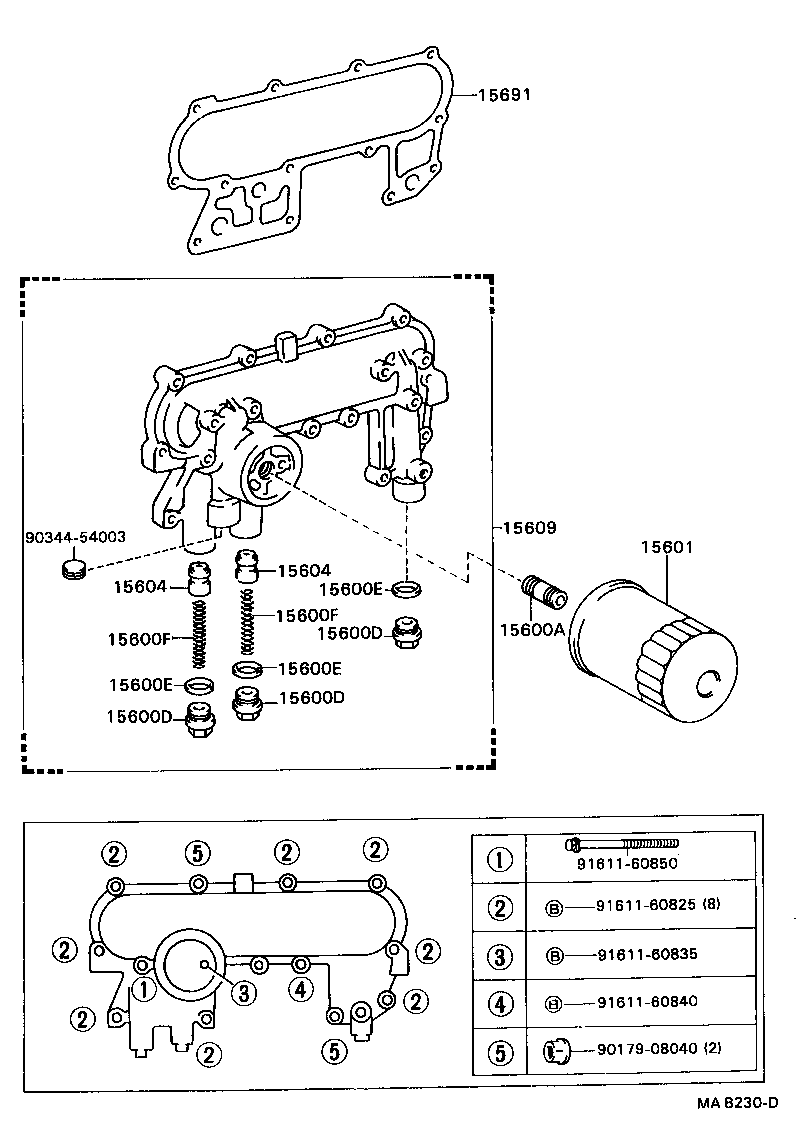

Figure MA6093A MA6093A 1988-08 → — Figure MAE120B MAE120B 1990-08 → — Figure MAE044C MAE044C 1990-08 → — Figure MAB229E MAB229E 1988-08 → — Figure MAB230D MAB230D 1988-08 → — Figure MA6093A MA6093A 1988-08 → — Figure NA0439 NA0439 1988-08 → — Figure MA6182A MA6182A 1988-08 → —

Part groups

PNCDescription
15600A Union(FOR OIL FILTER)
15600D Plug(FOR OIL FILTER)
15600E Washer(FOR OIL FILTER)
15600F Spring, Compression(FOR OIL FILTER)
15601 Filter Sub-assy, Oil
15604 Valve Sub-assy, Oil Safety
15609 Bracket Sub-assy, Oil Filter
15671 Bracket, Oil Filter
15671B Gasket, Oil Filter Bracket
15691 Gasket, Oil Filter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
