Toyota Cresta
1988-08 → 1992-10 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 313160 · Japan
Discontinued model
Data version 1993-06
Manifold
109 part groups · 16 illustrations
Illustrations

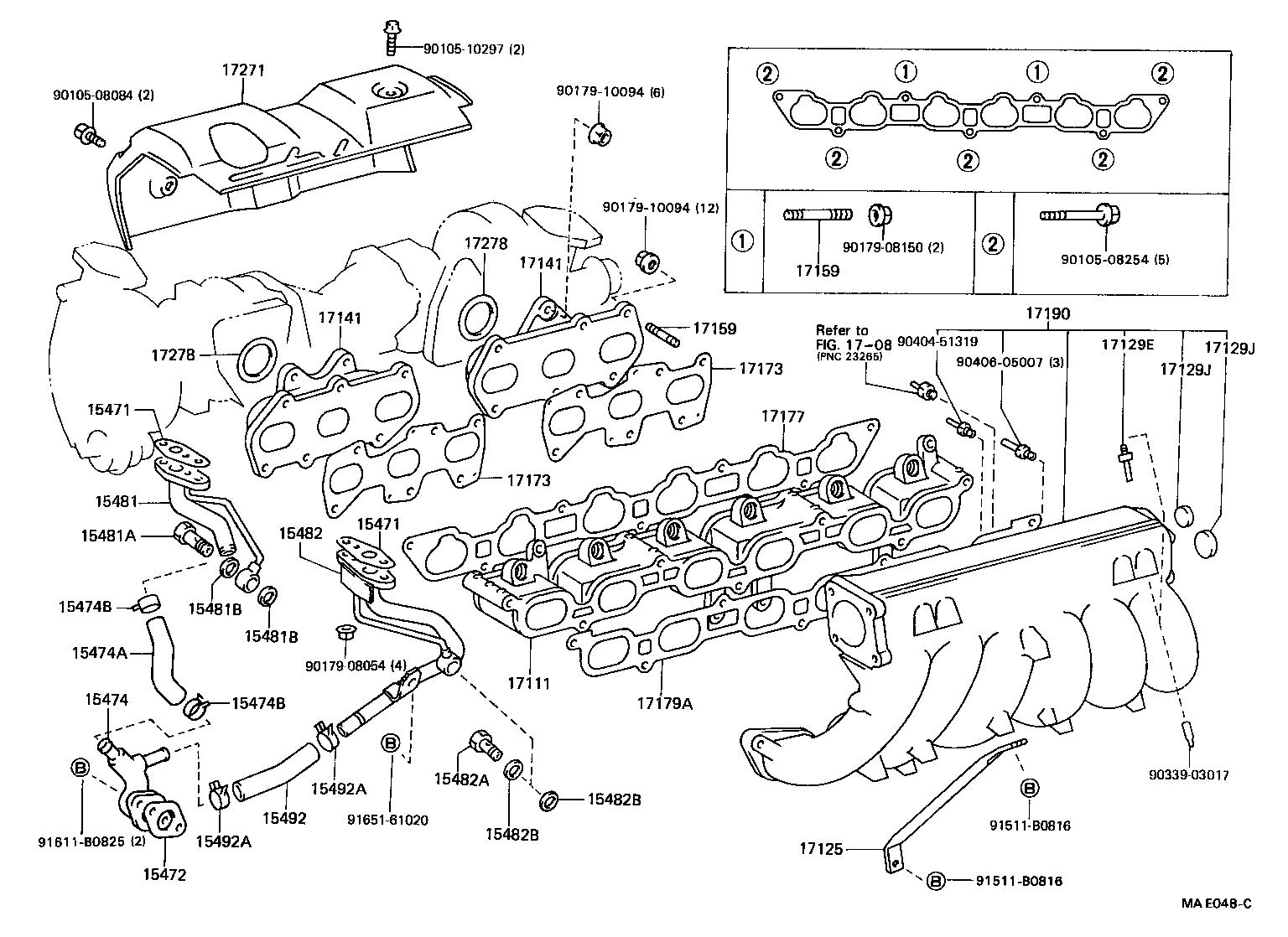

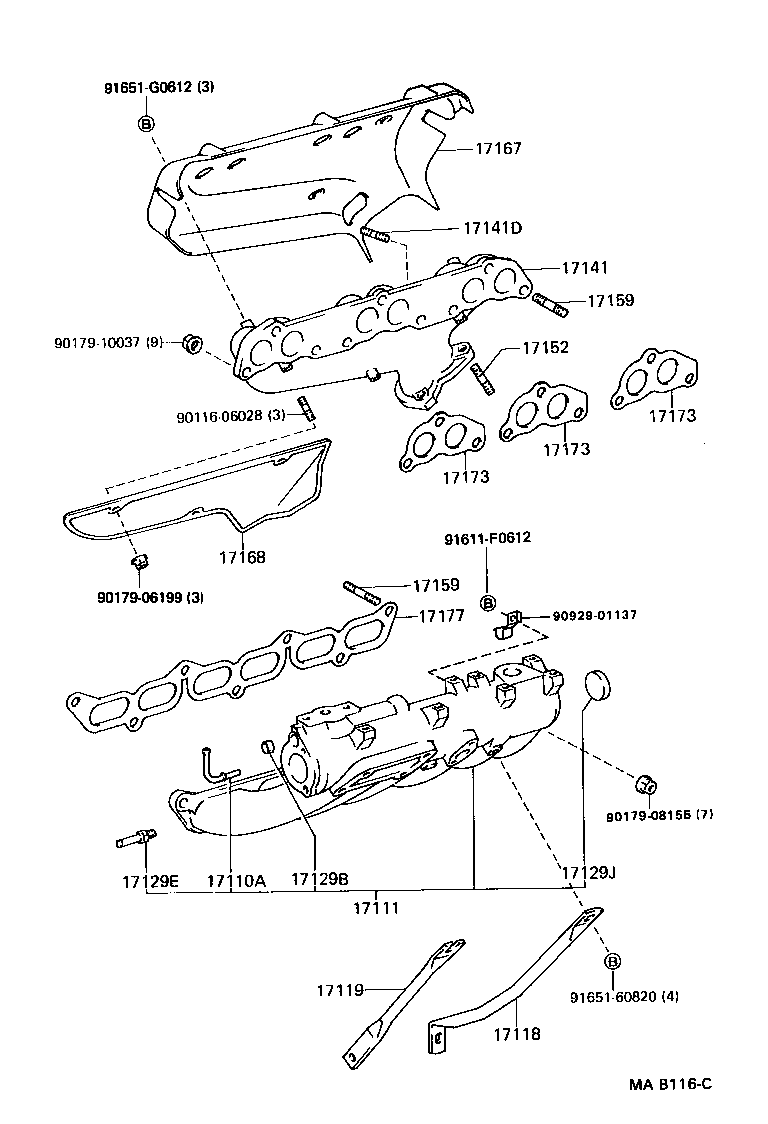

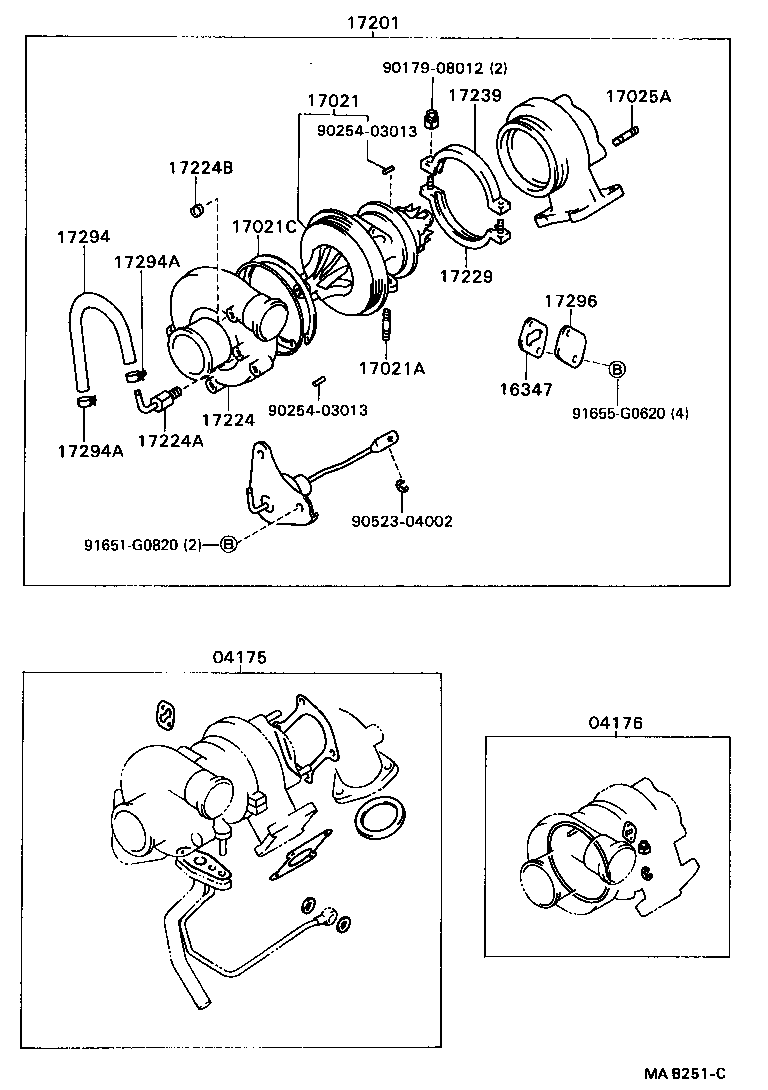

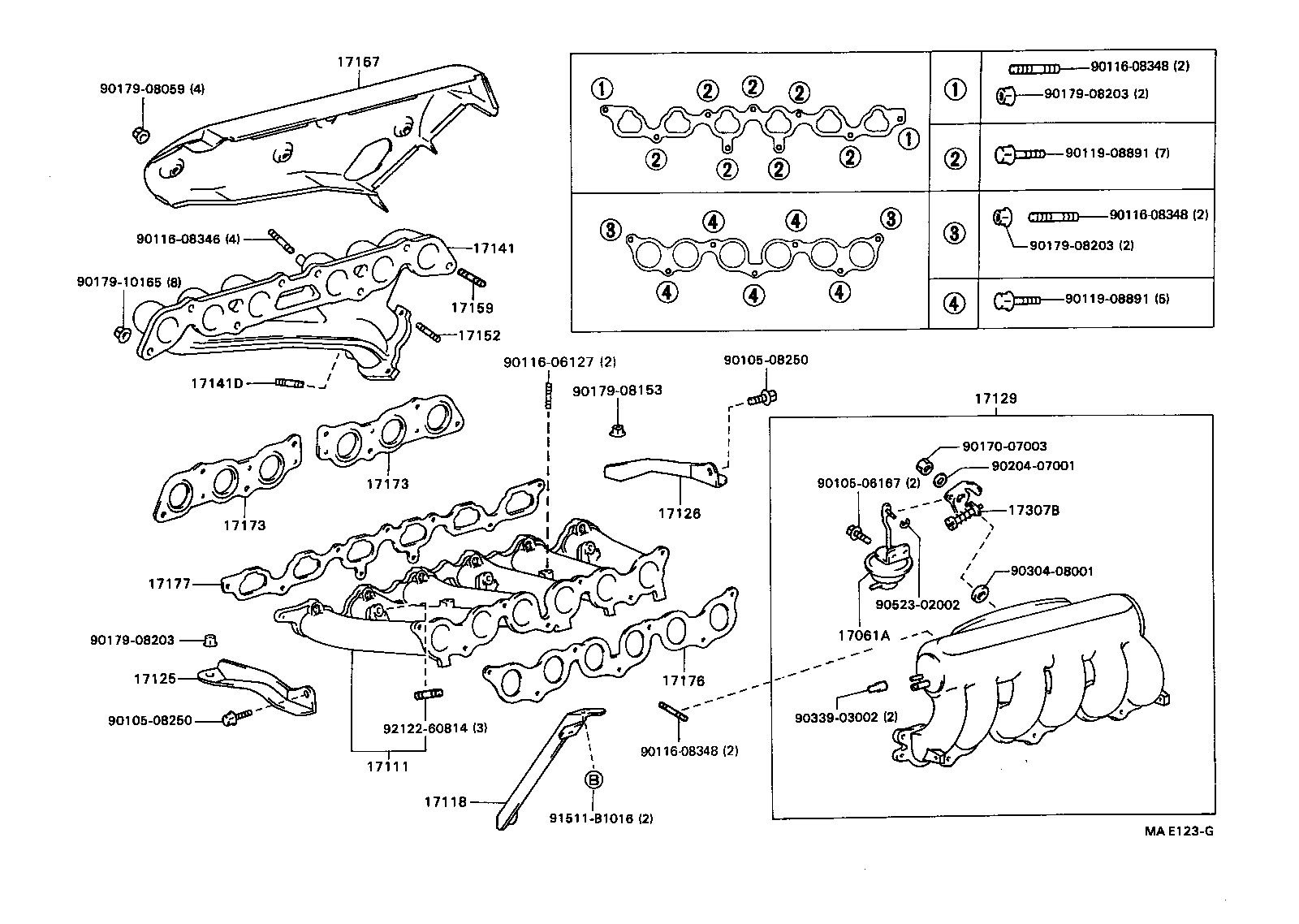

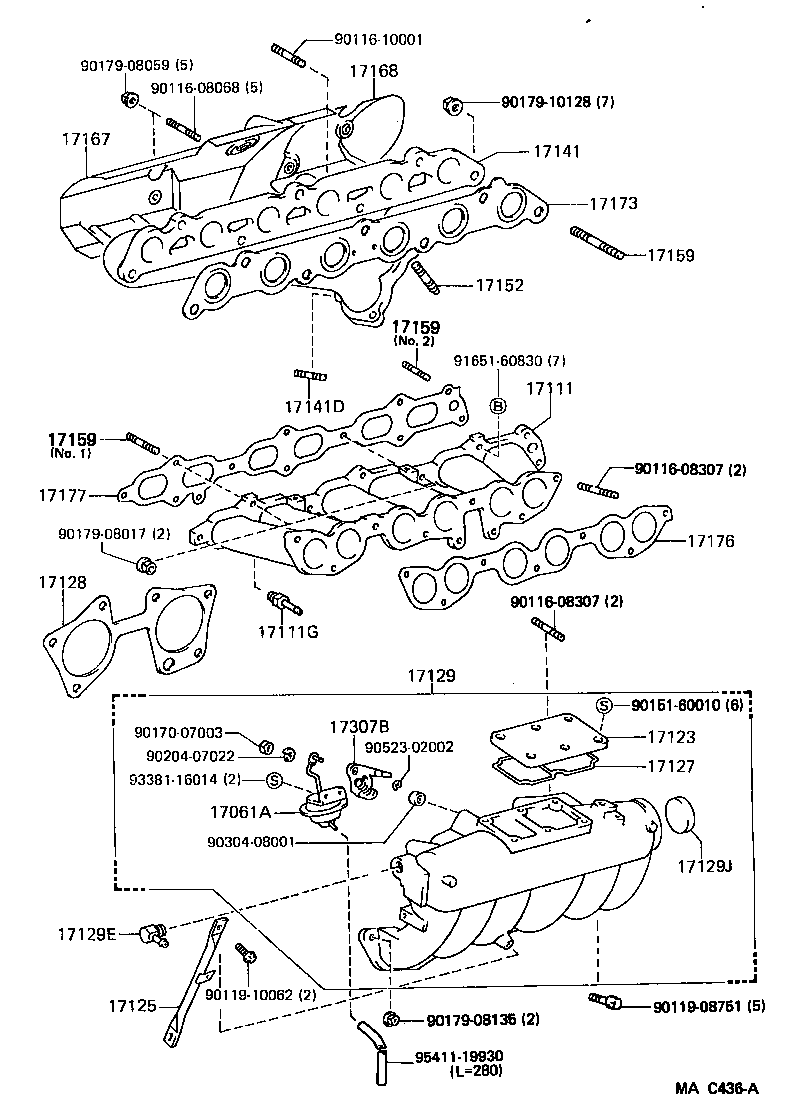

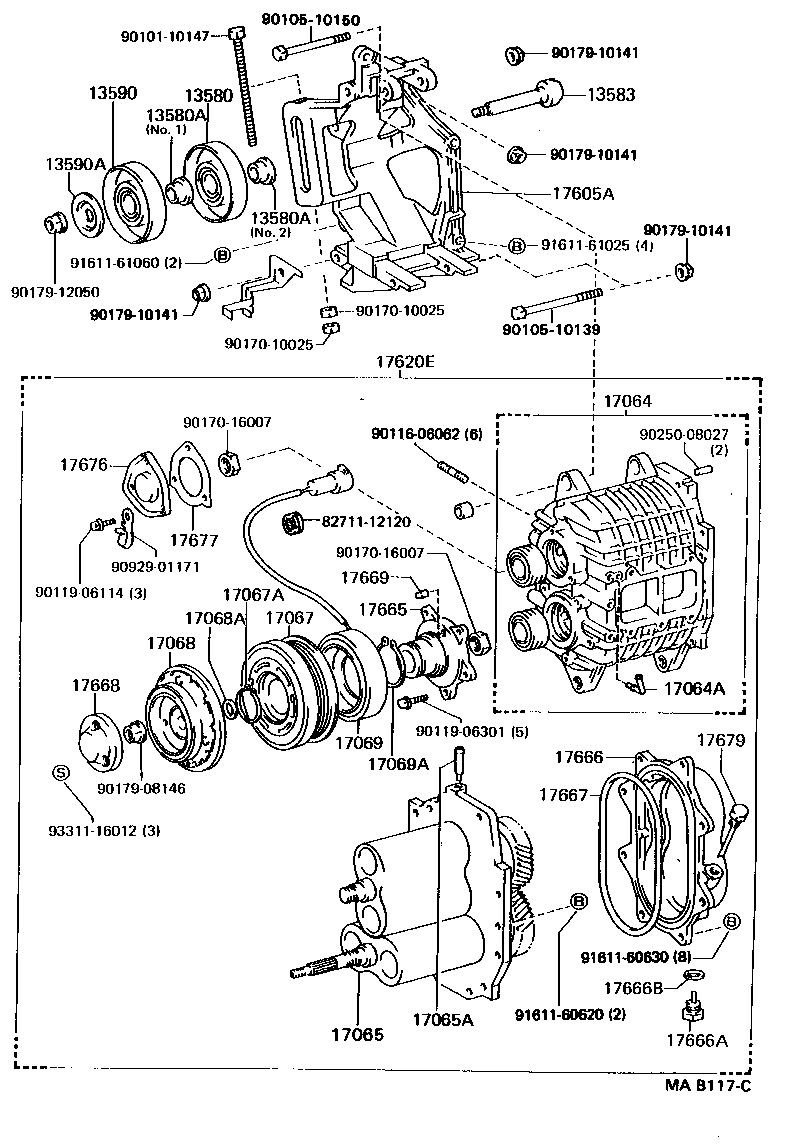

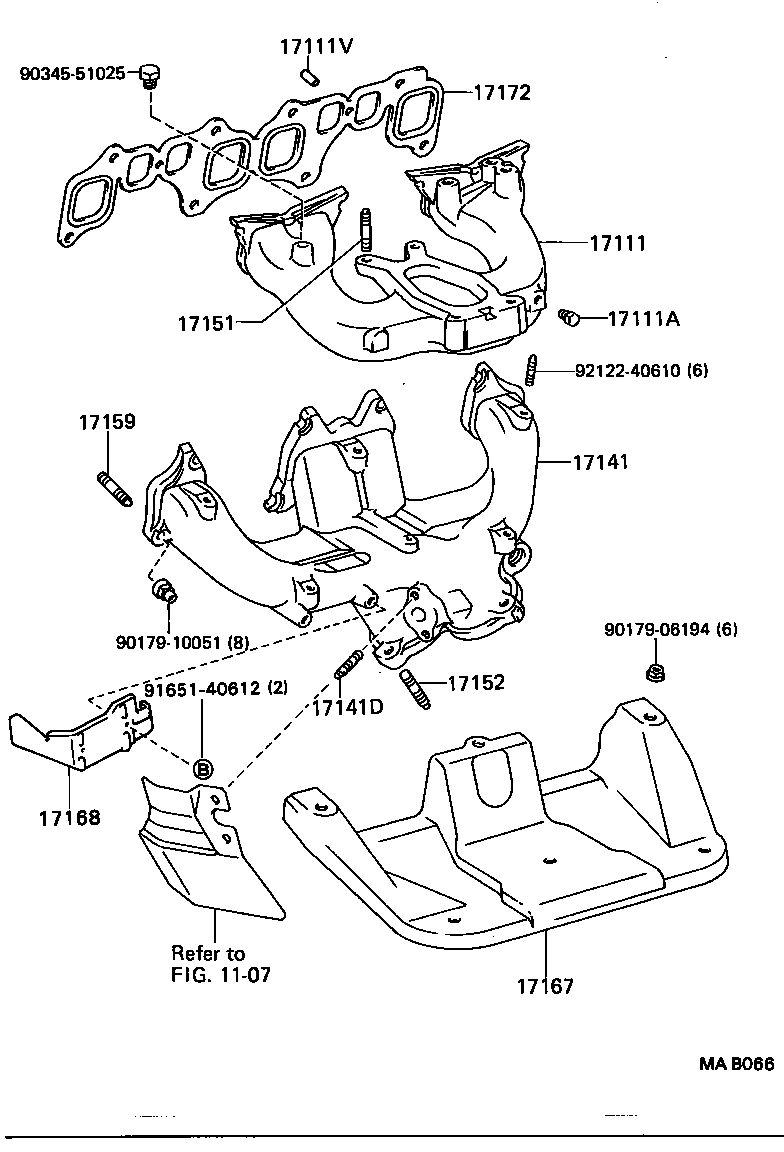

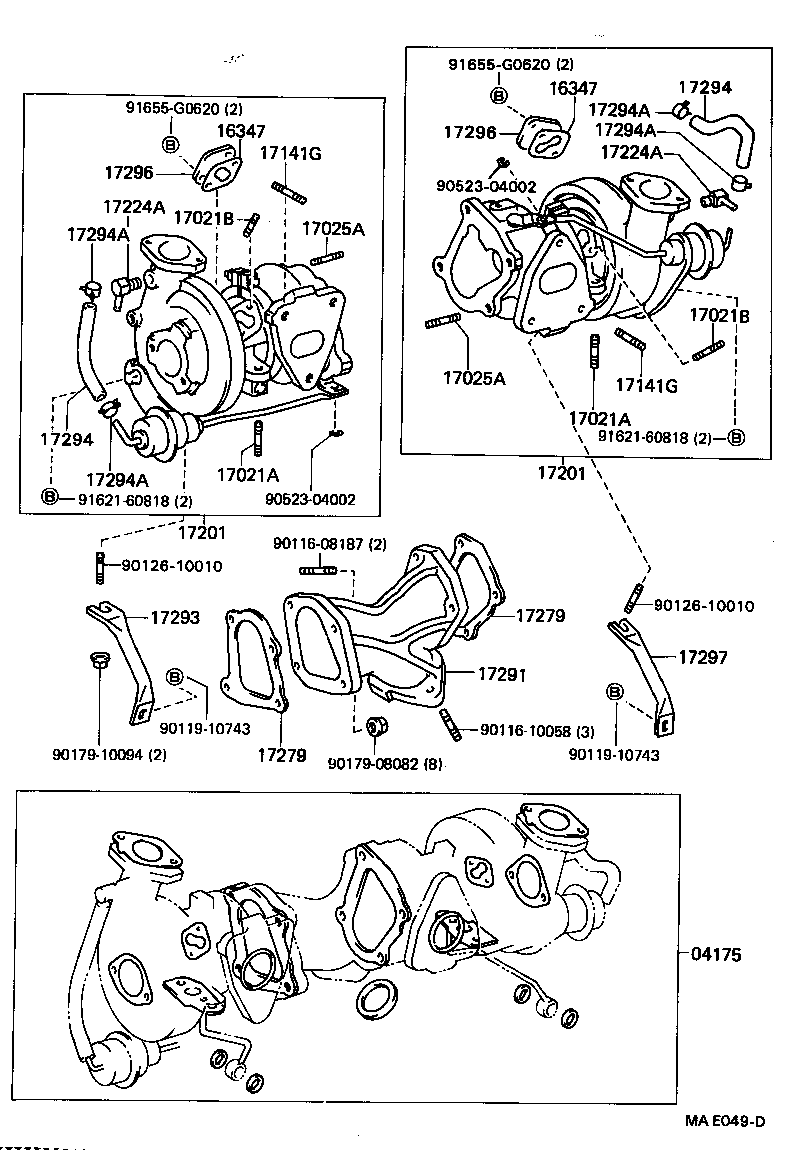

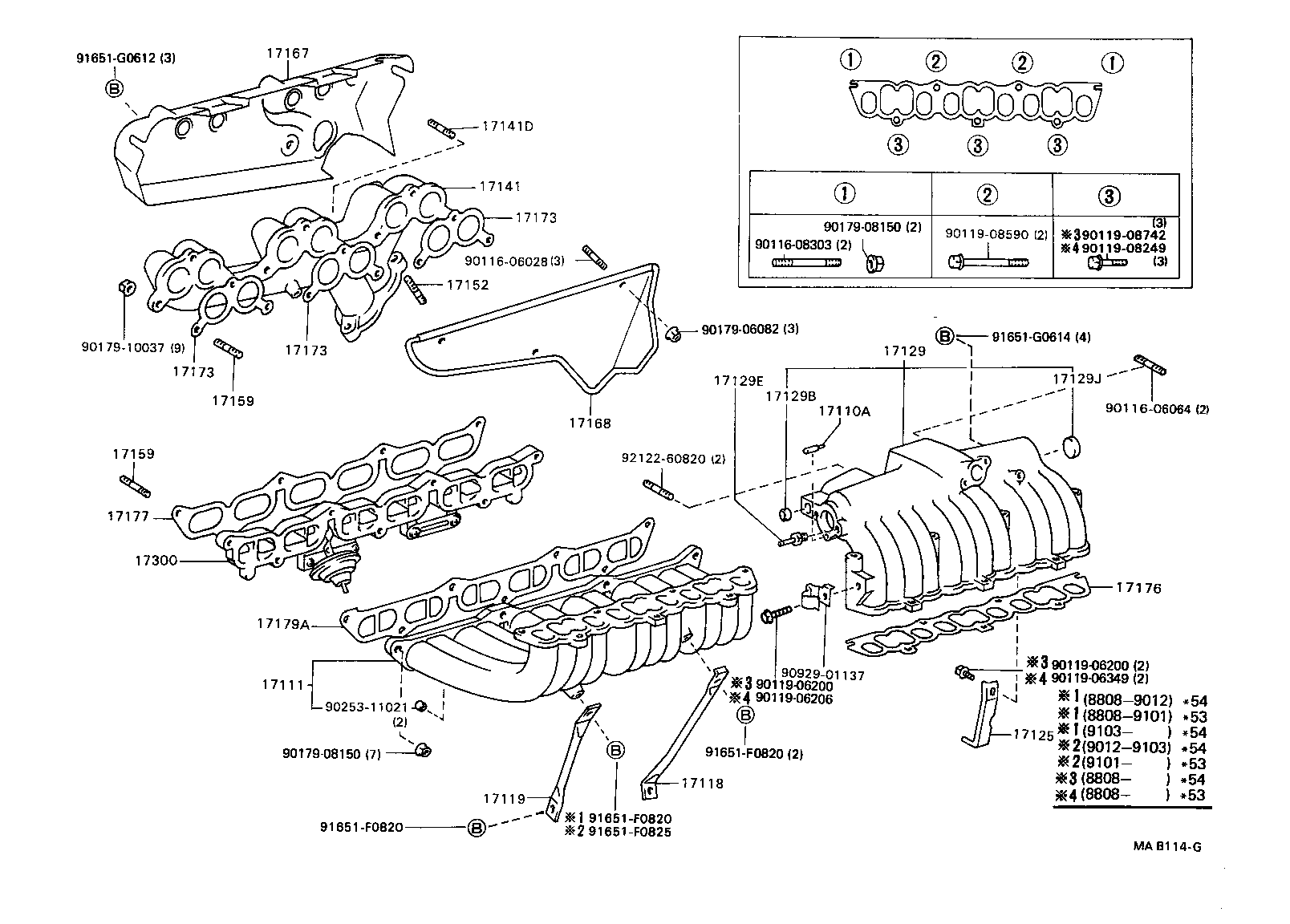

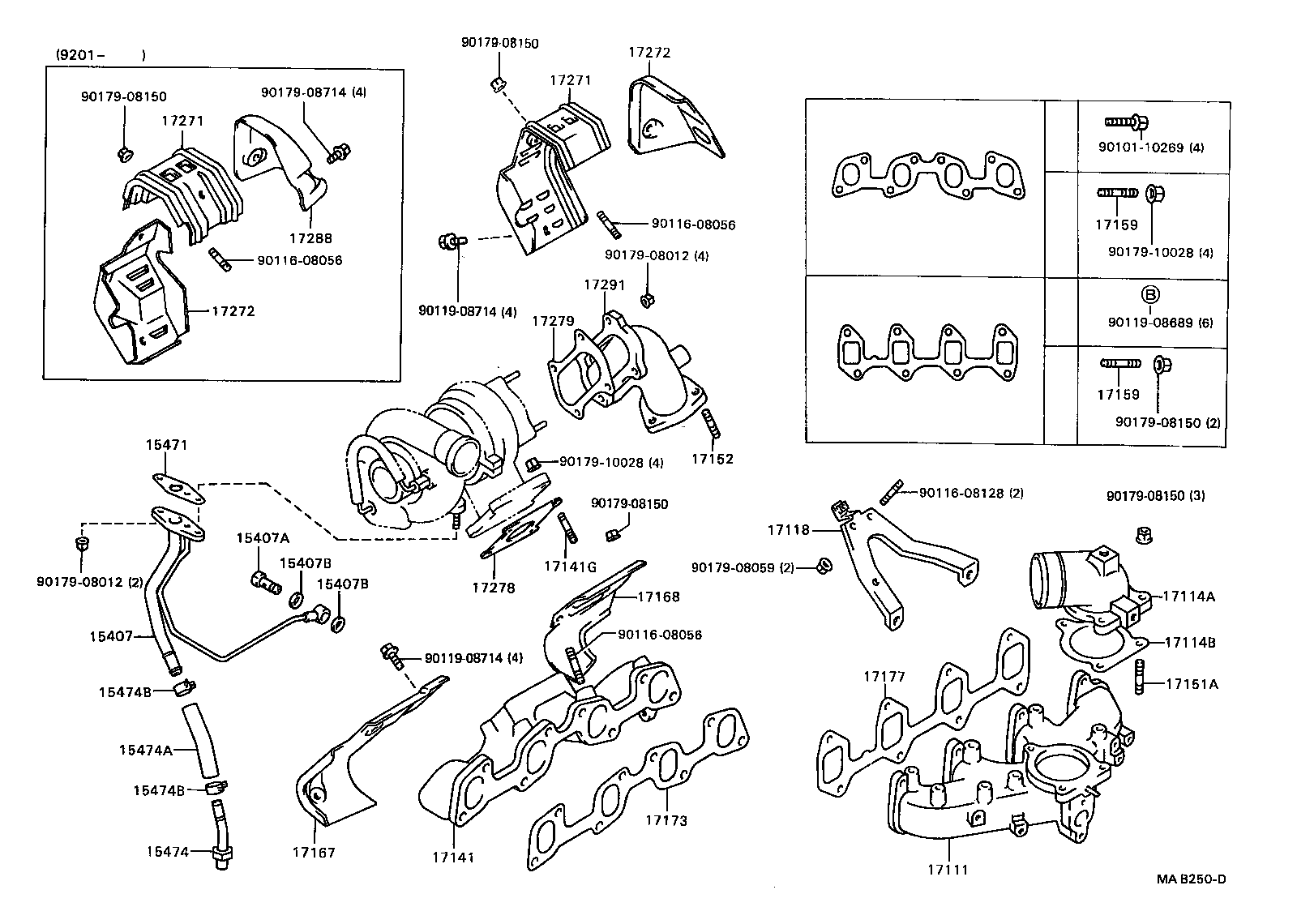

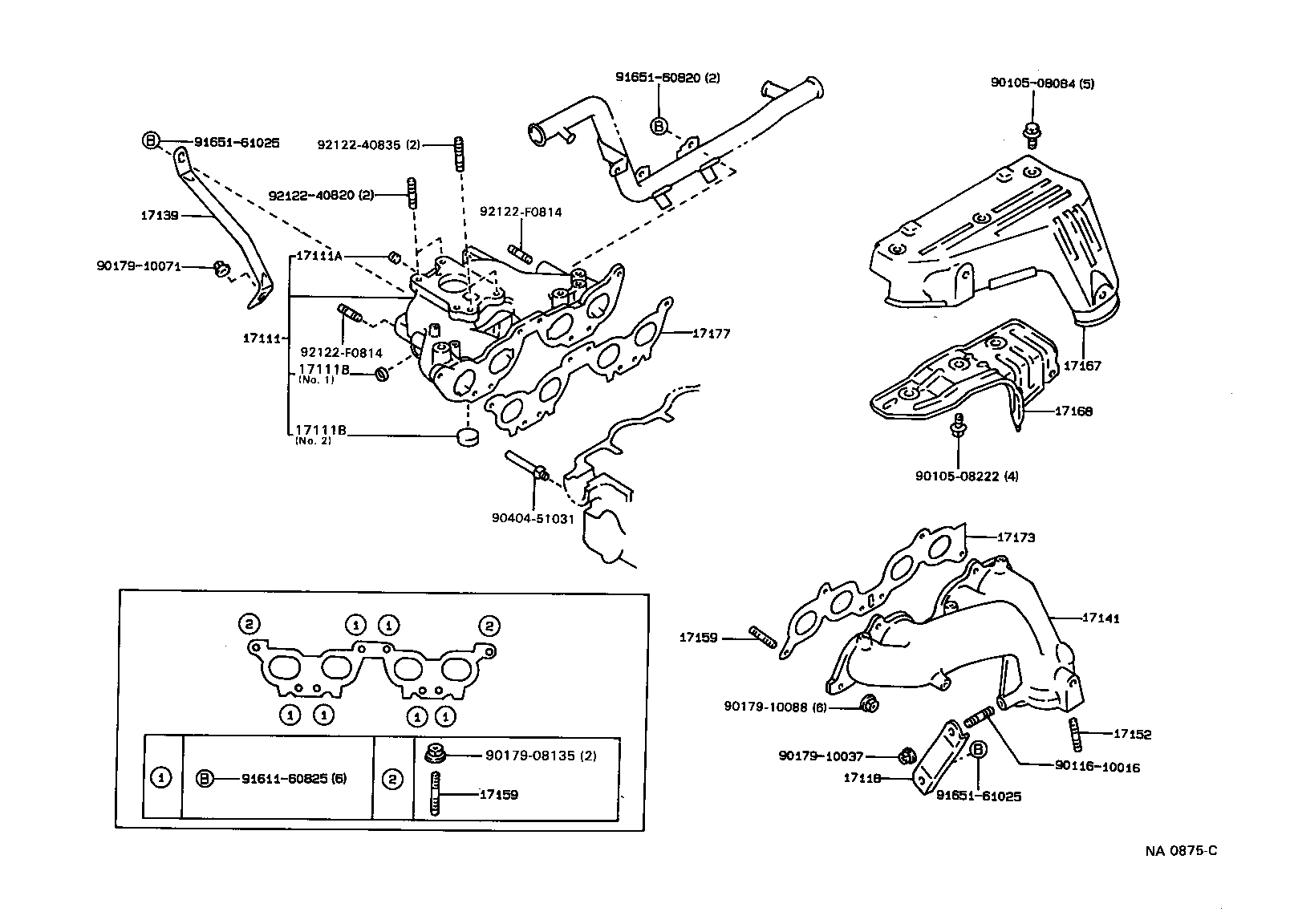

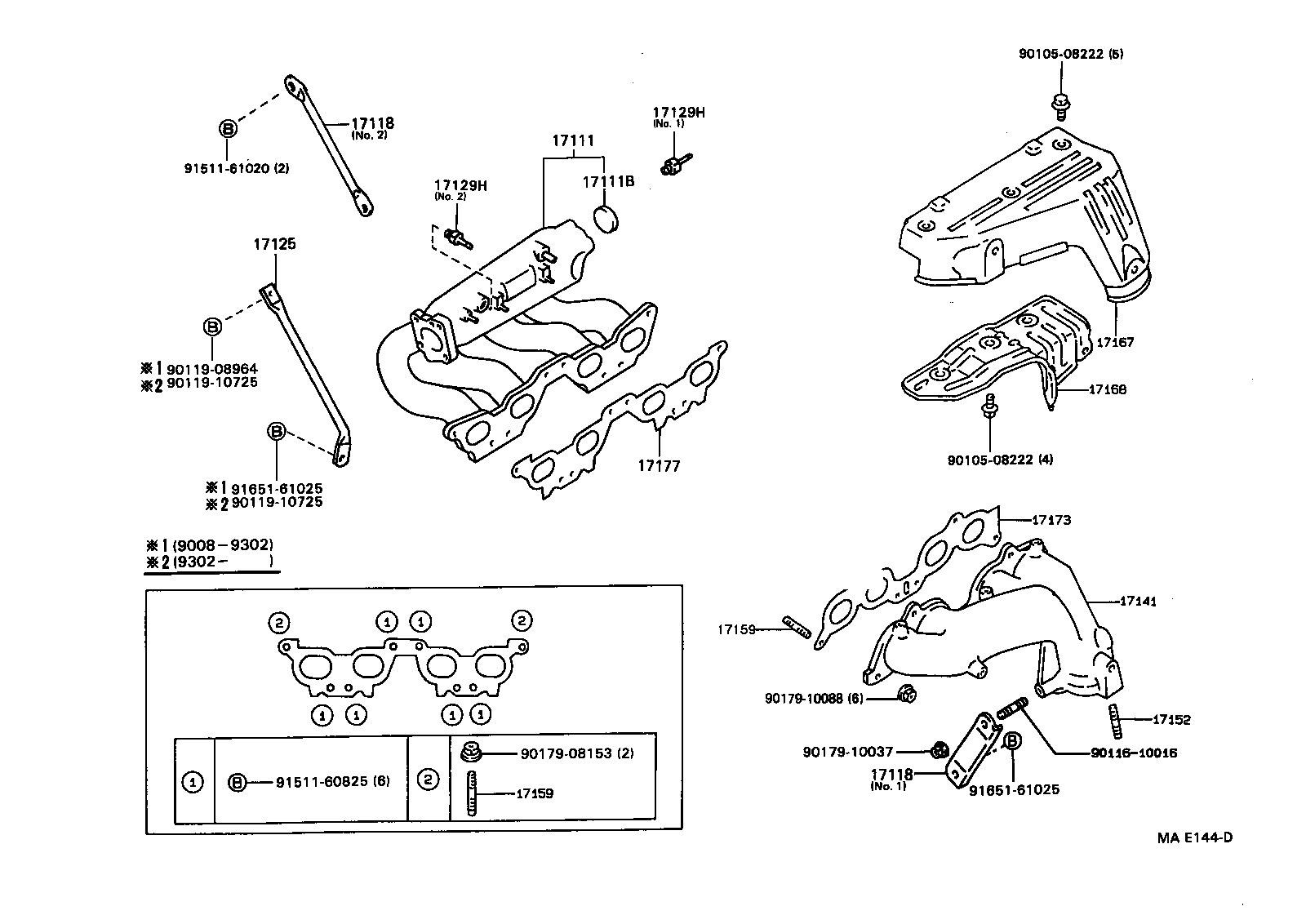

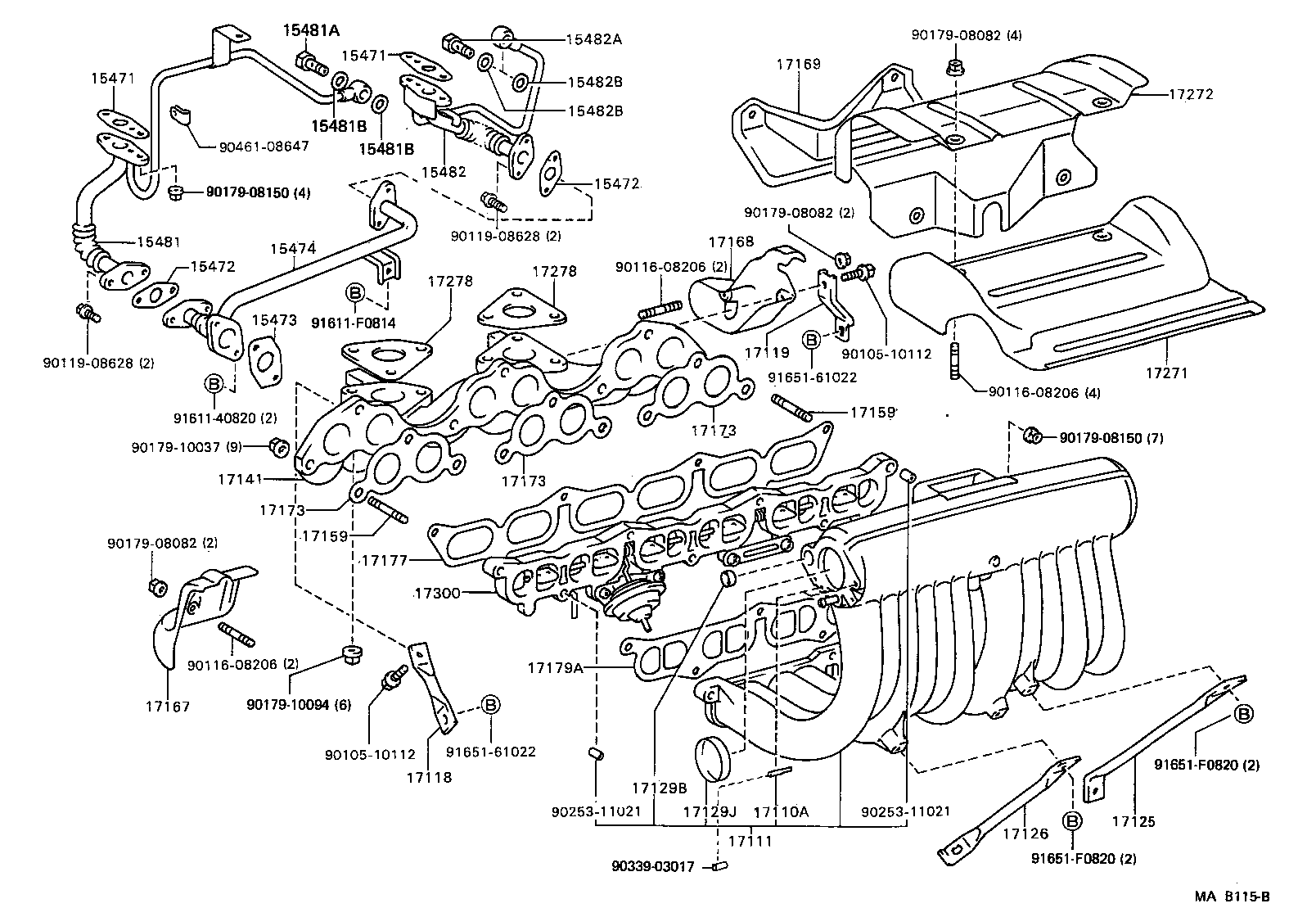

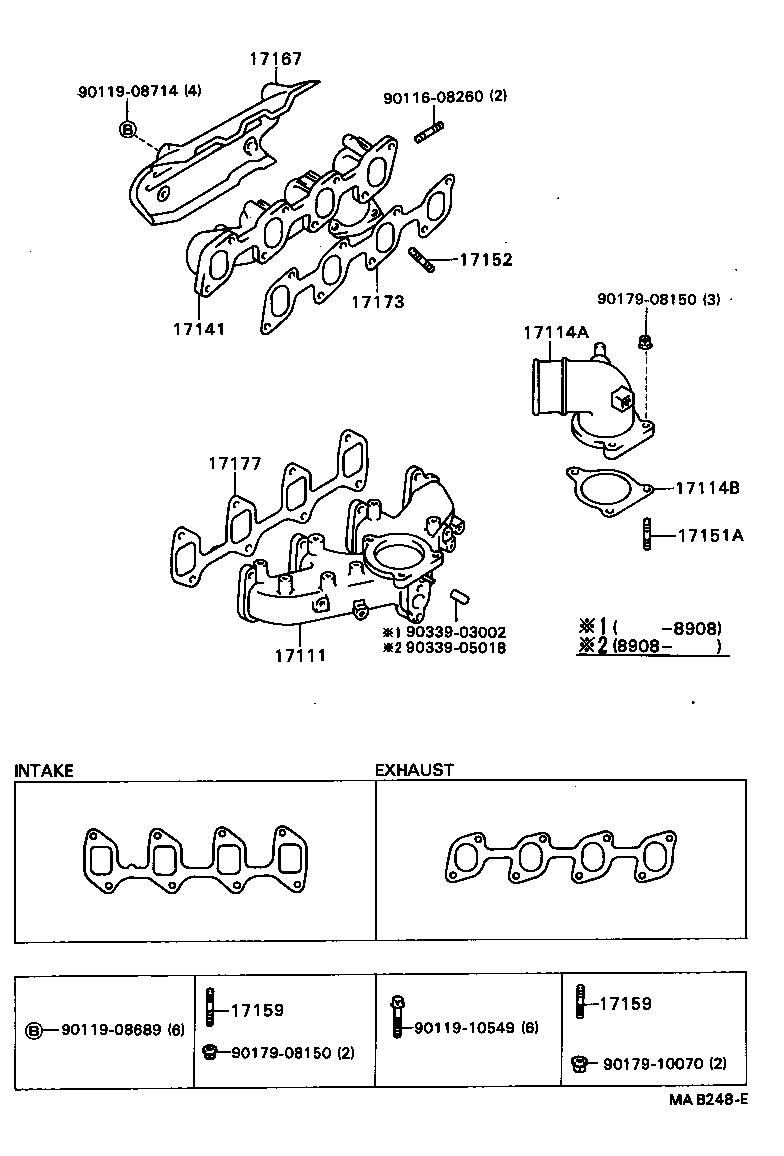

Part groups
| PNC | Description |
|---|---|
| 04175 | Gasket Kit, Turbocharger |
| 04176 | Seal Kit, Turbocharger |
| 13580 | Idler Assy, V-ribbed, NO.2(FOR SUPERCHARGER) |
| 13580A | Spacer(FOR SUPERCHARGER V-RIBBED IDLER) |
| 13583 | Shaft, Idler, V-ribbed Belt(FOR SUPERCHARGER) |
| 13590 | Idler Assy, V-ribbed, NO.3(FOR SUPERCHARGER) |
| 13590A | Washer(FOR SUPERCHARGER V-RIBBED IDLER) |
| 15407 | Pipe Sub-assy, Turbo Oil Inlet |
| 15407A | Bolt, Union(FOR TURBO OIL INLET PIPE) |
| 15407B | Gasket(FOR TURBO OIL INLET PIPE) |
| 15471 | Gasket, Turbo Oil Inlet |
| 15472 | Gasket, Turbo Oil Outlet, NO.1 |
| 15473 | Gasket, Turbo Oil Outlet, NO.2 |
| 15474 | Pipe, Turbo Oil Outlet |
| 15474A | Hose, Turbo Oil Outlet |
| 15474B | Clamp OR Clip(FOR TURBO OIL OUTLET HOSE) |
| 15481 | Pipe, Turbo Oil, NO.1 |
| 15481A | Bolt, Union, NO.1 |
| 15481B | Gasket(FOR UNION BOLT NO.1) |
| 15482 | Pipe, Turbo Oil, NO.2 |
| 15482A | Bolt, Union, NO.2 |
| 15482B | Gasket(FOR UNION BOLT NO.2) |
| 15492 | Hose, Turbo Oil Outlet, NO.2 |
| 15492A | Clip(FOR TURBO OIL OUTLET HOSE NO.2) |
| 16347 | Gasket, Water By-pass |
| 17021 | Housing Sub-assy, Bearing |
| 17021A | Bolt, Stud(FOR BEARING HOUSING) |
| 17021B | Bolt, Stud |
| 17021C | Ring, Hole Snap(FOR BEARING HOUSING) |
| 17025A | Bolt, Stud(FOR TURBINE HOUSING) |
| 17061A | Diaphragm Sub-assy |
| 17064 | Housing Sub-assy, Rotor |
| 17064A | Elbow(FOR SUPERCHARGER) |
| 17065 | Plate Sub-assy, Rotor Housing, RR |
| 17065A | Union(FOR SUPERCHARGER) |
| 17067 | Pulley Sub-assy, Clutch |
| 17067A | Ring, Shaft Snap(FOR CLUTCH PULLEY SUB-ASSY) |
| 17068 | Hub Sub-assy, Clutch |
| 17068A | Shim(FOR SUPERCHARGER) |
| 17069 | Stator Sub-assy, Clutch |
| 17069A | Ring, Shaft Snap(FOR CLUTCH STATOR SUB-ASSY) |
| 17110A | Union, Vacuum Hose |
| 17111 | Manifold, Intake |
| 17111A | Plug, NO.1 |
| 17111B | Plug, NO.2 |
| 17111G | Union(FOR INTAKE MANIFOLD WATER) |
| 17111V | Pin, Straight(FOR INTAKE MANIFOLD SETTING) |
| 17114A | Flange, Intake |
| 17114B | Gasket, Intake Flange |
| 17118 | Stay, Manifold |
| 17119 | Stay, Manifold, NO.2 |
| 17123 | Cover, Surge Tank |
| 17125 | Stay, Surge Tank, NO.1 |
| 17126 | Stay, Surge Tank, NO.2 |
| 17127 | Gasket, Surge Tank Cover |
| 17128 | Gasket, Surge Tank |
| 17129 | Tank, Intake Air Surge |
| 17129B | Plug |
| 17129E | Union, NO.3 |
| 17129H | Union, NO.4 |
| 17129J | Plug, Tight(FOR INTAKE AIR SURGE TANK) |
| 17139 | Stay, Manifold, NO.2 |
| 17141 | Manifold, Exhaust |
| 17141D | Bolt, Stud(FOR OXYGEN SENSOR) |
| 17141G | Bolt, Stud(FOR TURBOCHARGER) |
| 17151 | Bolt, Stud(FOR MANIFOLD TO CARBURETOR) |
| 17151A | Bolt, Stud(FOR MANIFOLD TO VENTURI) |
| 17152 | Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17169 | Insulator, Exhaust Manifold Heat, NO.3 |
| 17172 | Gasket, Manifold TO Cylinder Head |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17176 | Gasket, Air Surge Tank TO Intake Manifold |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 17179A | Gasket, Intake Manifold, NO.2 |
| 17190 | Tank Assy, Intake Air Surge |
| 17201 | Turbocharger Sub-assy |
| 17224 | Housing, Compressor |
| 17224A | Union(FOR COMPRESSOR HOUSING) |
| 17224B | Plug, Taper Screw |
| 17229 | Band, V |
| 17239 | Clamp, V, NO.2 |
| 17271 | Insulator, Turbo, NO.1 |
| 17272 | Insulator, Turbo, NO.2 |
| 17278 | Gasket, Turbo TO Exhaust Manifold |
| 17279 | Gasket, Turbine Outlet Elbow |
| 17288 | Insulator, Turbo, NO.3 |
| 17291 | Elbow, Turbine Outlet |
| 17293 | Stay, Turbocharger |
| 17294 | Hose, Actuator |
| 17294A | Clip(FOR ACTUATOR HOSE) |
| 17296 | Plate, Bearing Housing, Side |
| 17297 | Stay, Turbocharger, NO.2 |
| 17300 | Valve Assy, Intake Air Control |
| 17307B | Lever Sub-assy, Intake Air Control |
| 17605A | Bracket, Sub-assy, Supercharger |
| 17620E | Supercharger Assy |
| 17665 | Flange, Clutch |
| 17666 | Cover, Rear(FOR SUPERCHARGER) |
| 17666A | Plug Sub-assy, W/Head Straight Screw(FOR SUPERCHARGER) |
| 17666B | Gasket, Seat(FOR SUPERCHARGER) |
| 17667 | Gasket, Rear Cover(FOR SUPERCHARGER) |
| 17668 | Cover, Clutch Hub |
| 17669 | Pin, Clutch |
| 17676 | Cover, Housing, Front |
| 17677 | Gasket, Housing Front Cover |
| 17679 | Gage, Supercharger Oil Level |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
