Toyota Cresta

1988-08 → 1992-10 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 313160 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

82 part groups · 14 illustrations

Illustrations

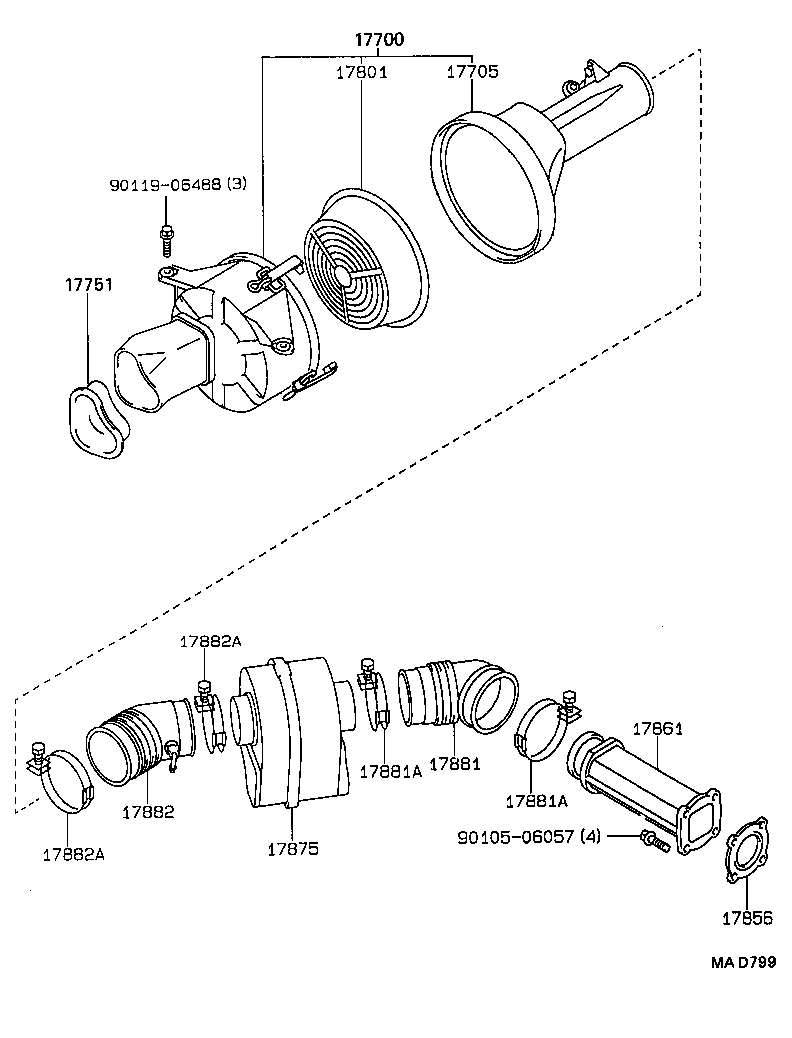

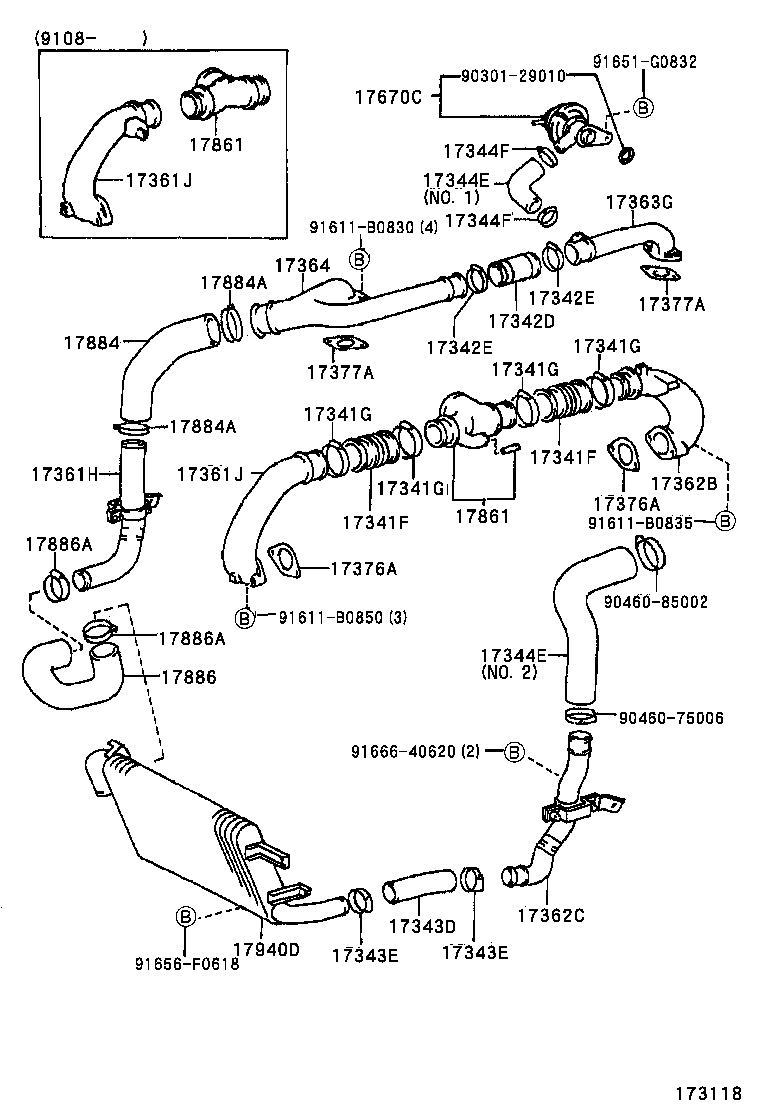

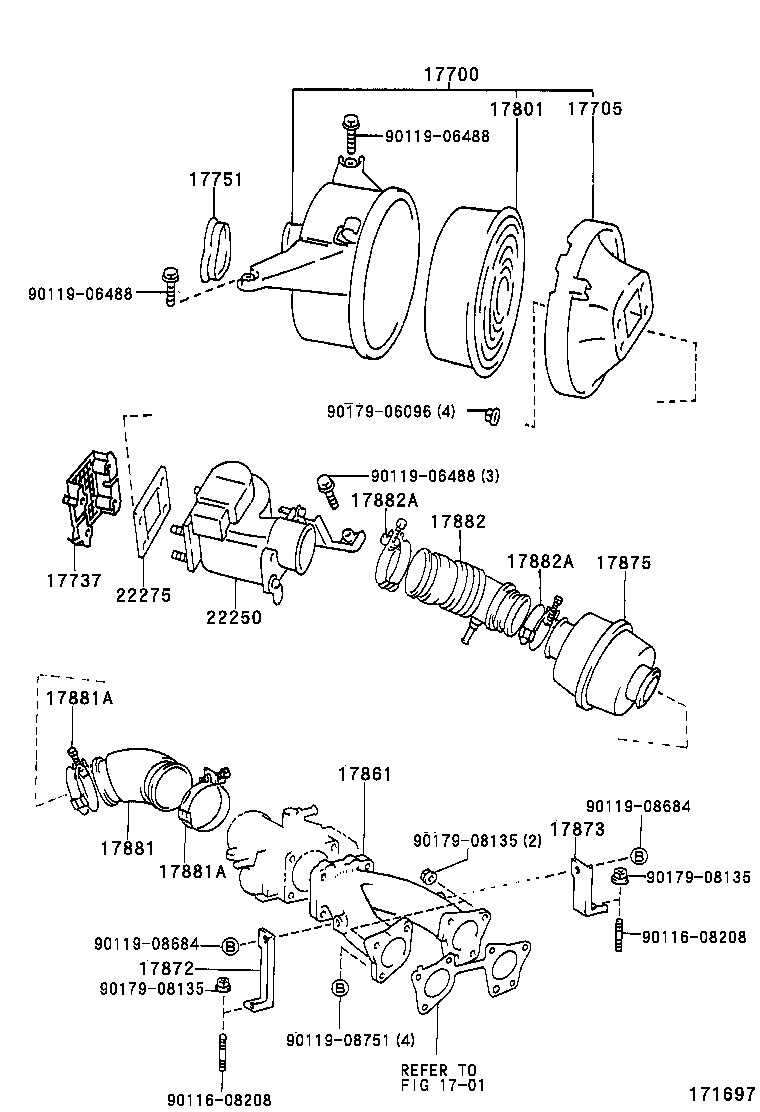

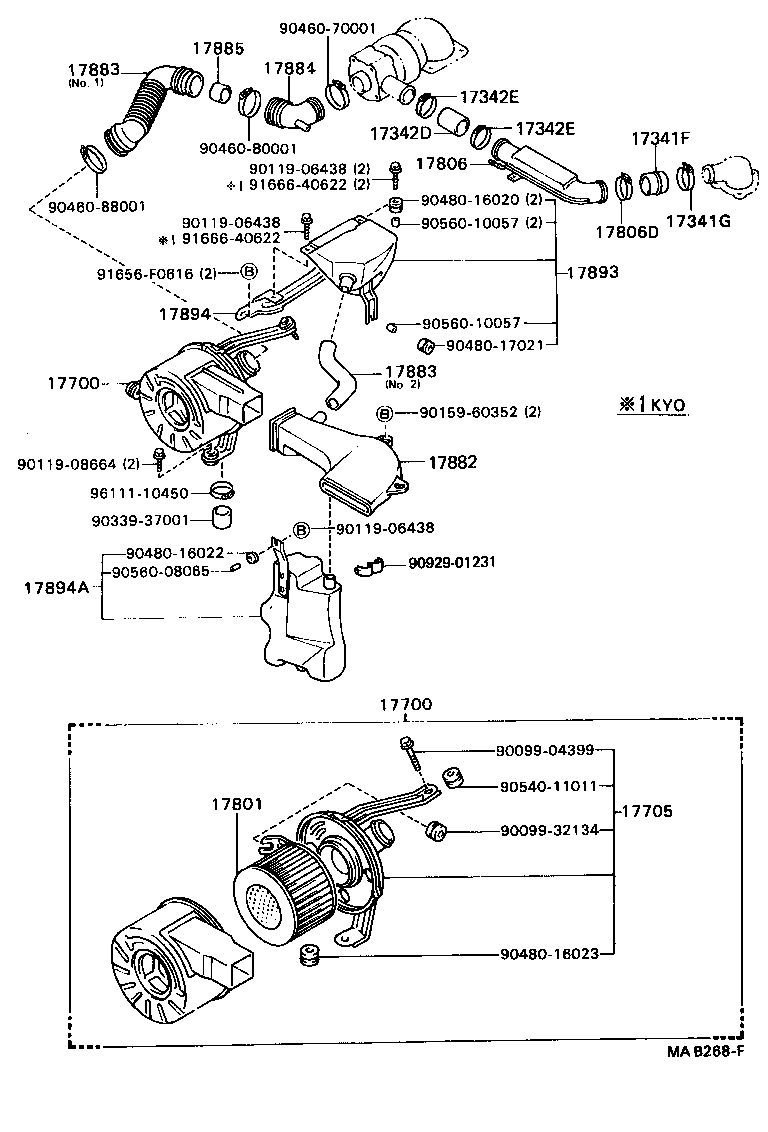

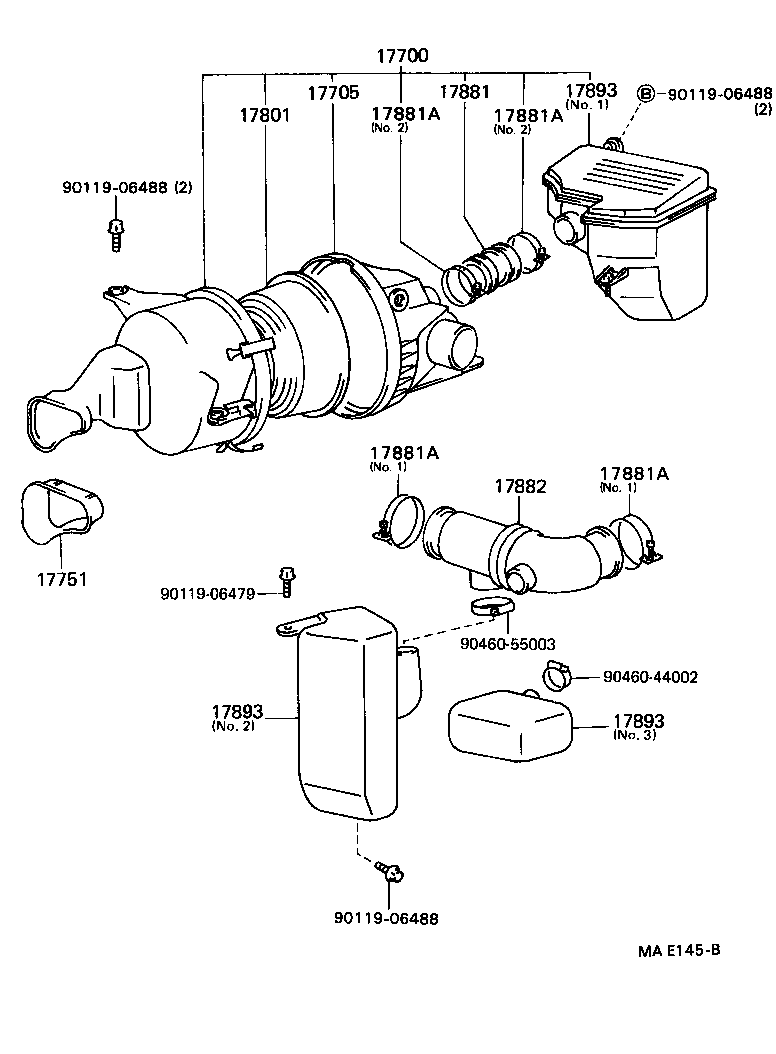

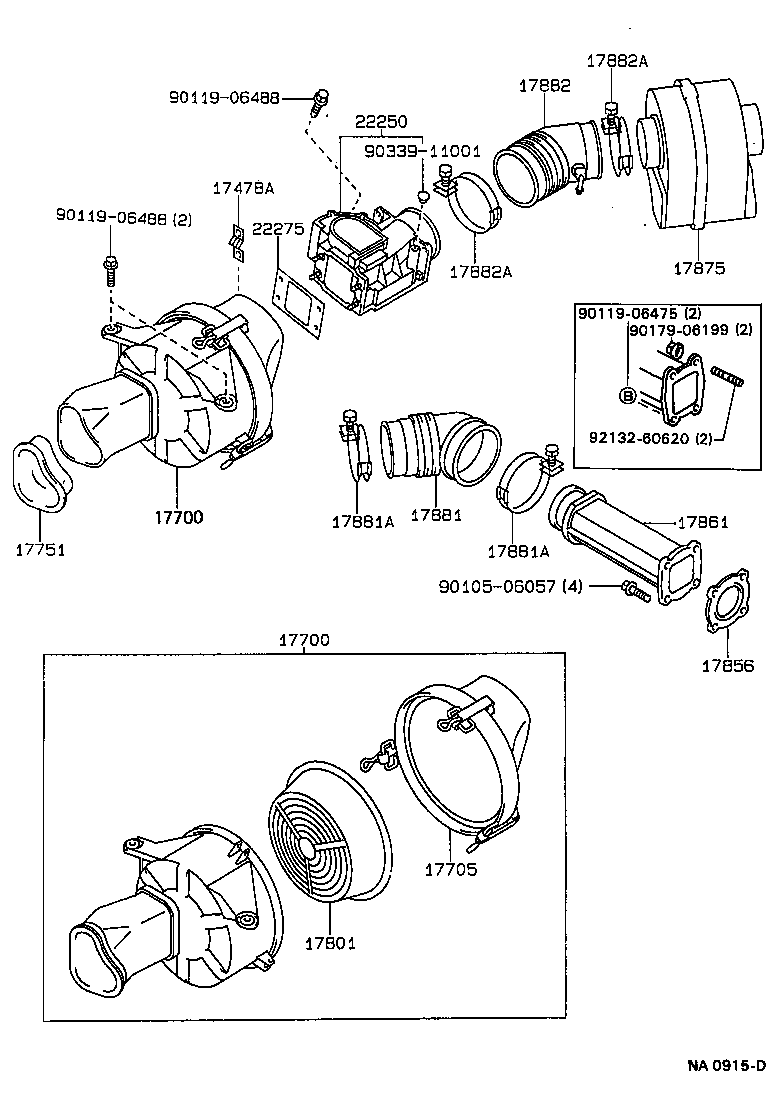

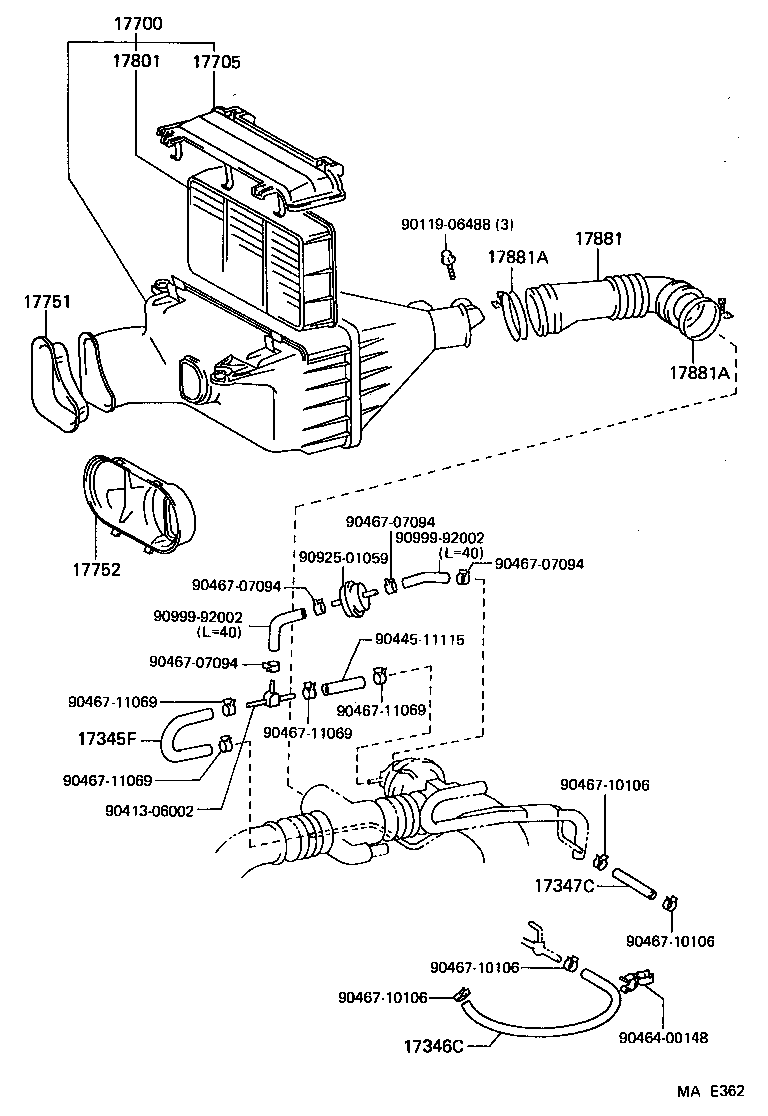

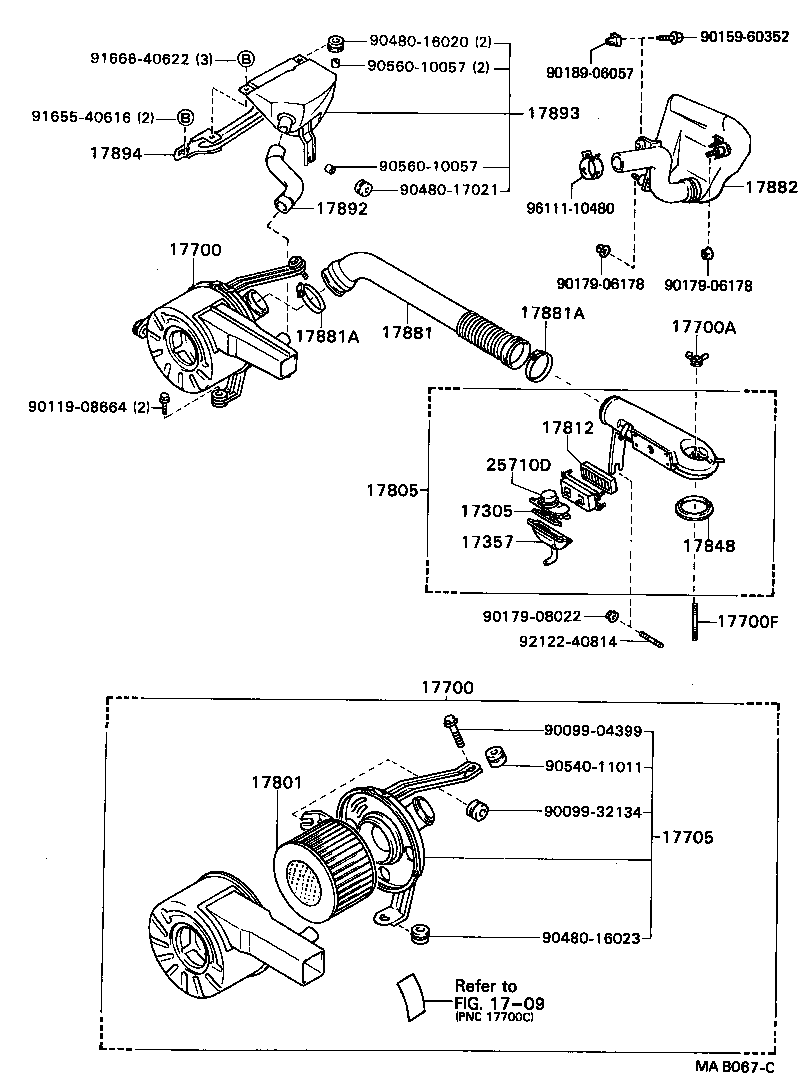

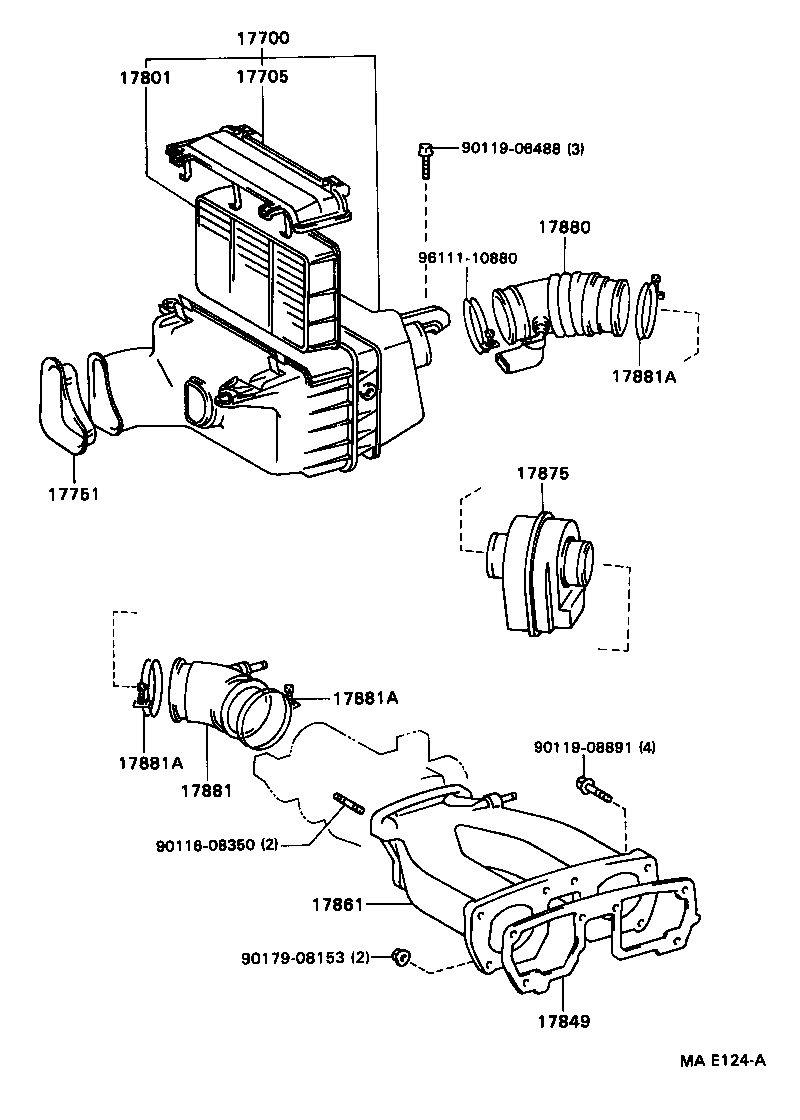

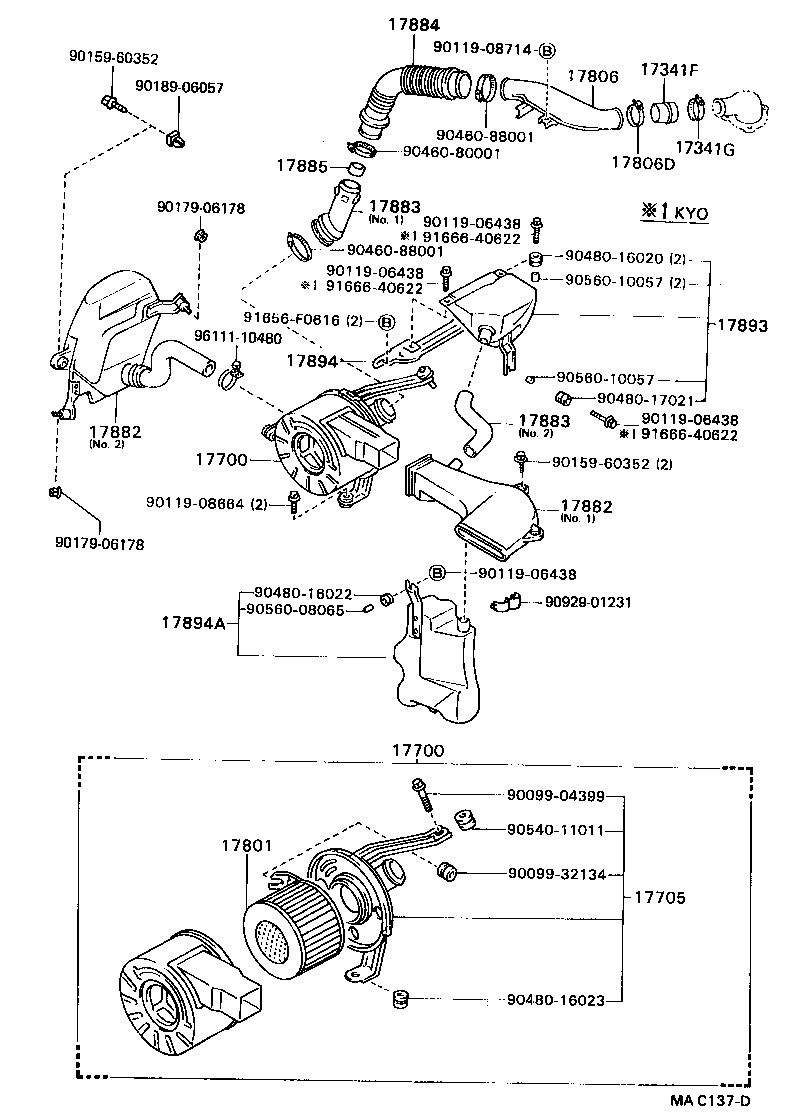

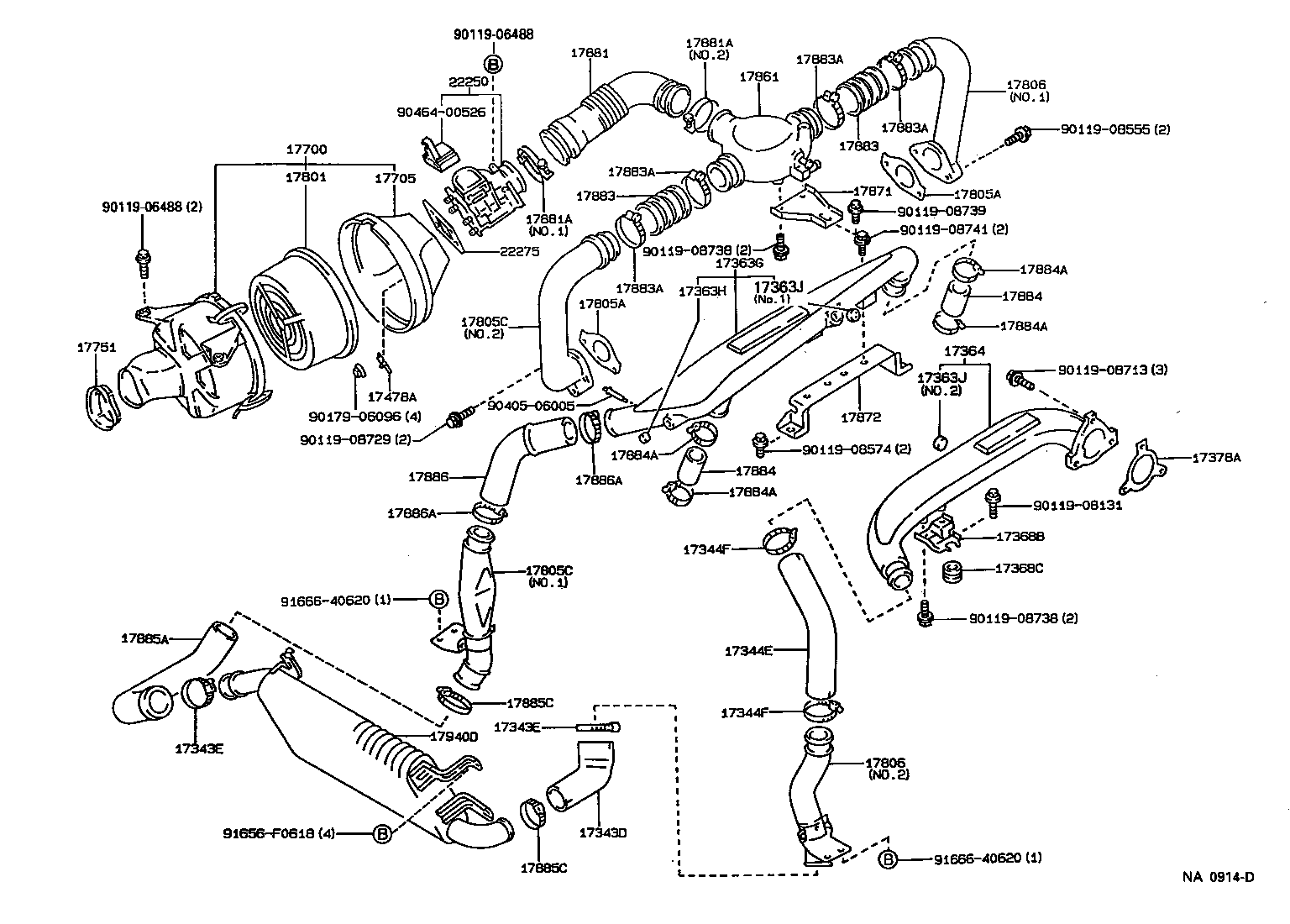

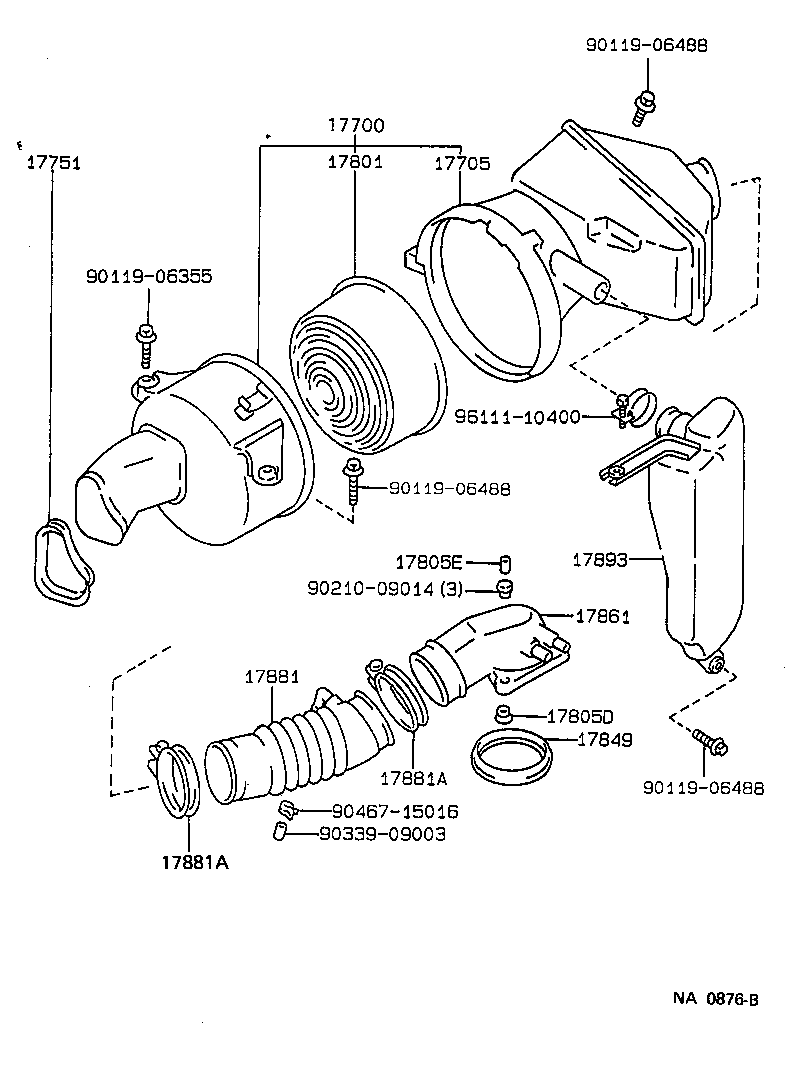

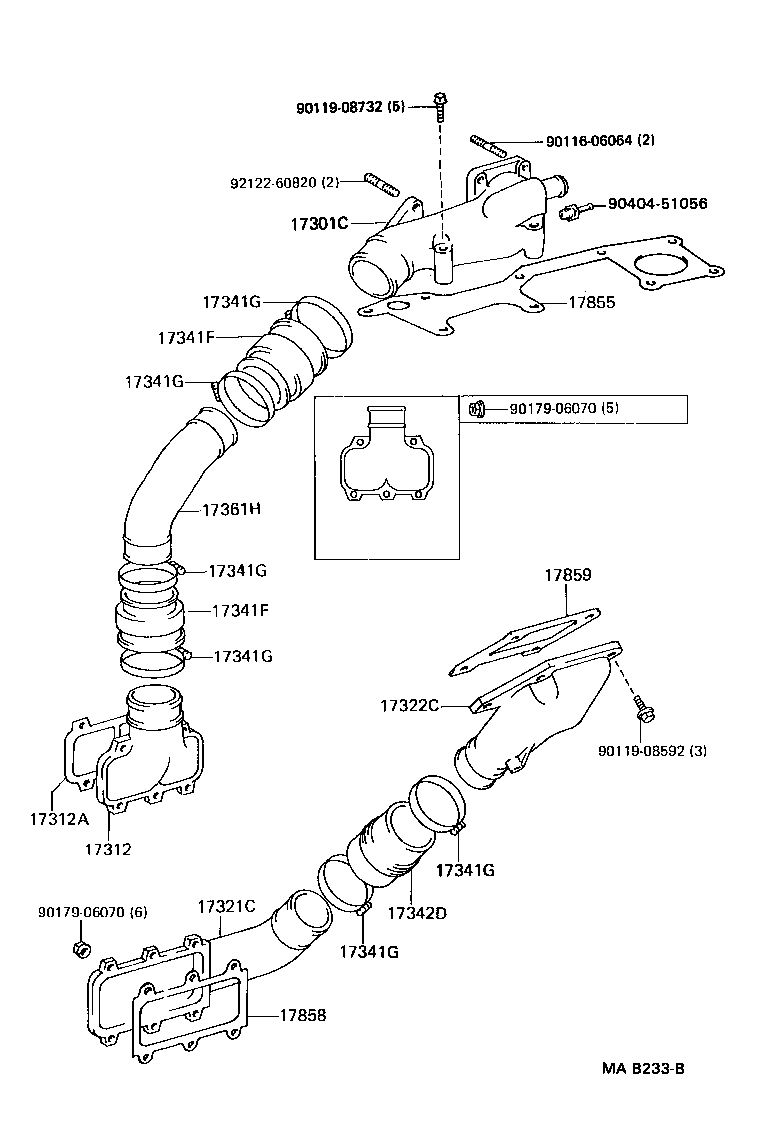

Figure NA0823D NA0823D 1988-08 → — Figure MAD799 MAD799 1988-08 → 1993-02 Figure NA0914D NA0914D 1988-08 → 1990-08 Figure NA0915D NA0915D 1988-08 → 1990-08 Figure MAB233B MAB233B 1988-08 → 1990-08 Figure MAE124A MAE124A 1990-08 → 1993-02 Figure MAE362 MAE362 1990-08 → 1992-10 Figure 173118 173118 1990-08 → 1992-10 Figure MAC137D MAC137D 1988-08 → 1993-08 Figure MAB268F MAB268F 1988-08 → 1993-02 Figure 171697 171697 1989-08 → 1993-02 Figure NA0876B NA0876B 1988-08 → 1993-08 Figure MAE145B MAE145B 1990-08 → — Figure MAB067C MAB067C 1988-08 → —

Part groups

PNCDescription
17301C Duct Sub-assy, Air Inlet, NO.1
17305 Valve Sub-assy, Reed
17312 Duct, Air Inlet, NO.2
17312A Gasket, Air Inlet Duct, NO.2
17321C Duct, Air Outlet, NO.1
17322C Duct, Air Outlet, NO.2
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17342D Hose, Air, NO.2
17342E Clamp OR Clip(FOR AIR HOSE, NO.2)
17343D Hose, Air, NO.3
17343E Clamp, Hose(FOR AIR HOSE, NO.3)
17344E Hose, Air, NO.4
17344F Clamp, Hose(FOR AIR HOSE, NO.4)
17345F Hose, Air, NO.5
17346C Hose, NO.6
17347C Hose, Air, NO.7
17357 Case, Reed Valve
17361H Tube, Air(FOR SUPERCHARGER)
17361J Tube, Air, NO.1
17362B Tube, Air, NO.2
17362C Tube, Air, NO.2
17363G Tube, Air, NO.3
17363H Plug, Tight, NO.1(FOR AIR TUBE, NO3)
17363J Plug, Tight, NO.2(FOR AIR TUBE, NO.3)
17364 Tube, Air, NO.4
17368B Support, Air Tube
17368C Bush(FOR AIR TUBE SUPPORT)
17376A Gasket, Air Tube
17377A Gasket, Air Tube, NO.2
17378A Gasket, Air Tube, NO.3
17478A Plate, Lock
17670C Valve Assy, Air By-pass
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17705 Cap Sub-assy, Air Cleaner
17737 Cover, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17752 Inlet, Air Cleaner, NO.2
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17805A Gasket & Washer, Seal
17805C Pipe Sub-assy, Air Cleaner, NO.1
17805D Grommet(FOR INTAKE AIR CONNECTOR)
17805E Collar(FOR INTAKE AIR CONNECTOR)
17806 Pipe Sub-assy, Air Cleaner, NO.2
17806D Clamp(FOR AIR CLEANER PIPE)
17812 Filter, Air Cleaner, NO.2
17848 Gasket, Air Cleaner TO Carburetor
17849 Gasket, Intake Air Connector
17855 Gasket, Air Inlet Duct, NO.1
17856 Gasket, Air Intake Flange
17858 Gasket, Air Outlet Duct, NO.1
17859 Gasket, Air Outlet Duct, NO.2
17861 Connector, Intake Air
17871 Stay, Air Connector
17872 Bracket, Intake Air Connector
17873 Bracket, Intake Air Connector, NO.2
17875 Pipe, Intake Air Connector
17880 Hose Assy, Air Cleaner
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17884 Hose, Air Cleaner, NO.4
17884A Clamp(FOR AIR CLEANER HOSE, NO.4)
17885 Pipe, Air Cleaner
17885A Hose, Air Cleaner, NO.5
17885C Clamp(FOR AIR CLEANER HOSE, NO.5)
17886 Hose, Air Cleaner, NO.6
17886A Clamp(FOR AIR CLEANER HOSE, NO.6)
17892 Hose, Intake Air Resonator
17893 Resonator, Intake Air
17894 Bracket, Resonator
17894A Resonator, Intake Air, NO.2
17940D Intercooler Assy
22250 Meter Assy, Intake Air Flow
22275 Gasket, Air Flow Meter
25710D Valve Assy, Air Switching
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
